Industrial

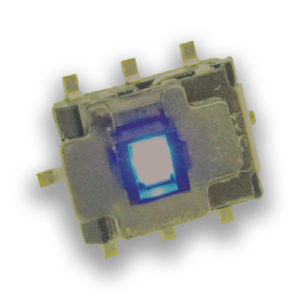

• SMT
• 4.90mm x 4.90mm
• Gull wing termination
• LED, RGB illuminated
• 160g operating force
• Gold contact material
• 50mA @ 12VDC

• Chassis mount
• High Current snap action switch
• Silver – 25A, 125/250VAC; UL
• SPDT; On-(Off)
• Solder or quick connect
• Pin plunger, or six lever options
• 90gf – 400gf operating force

• Through Hole
• 100mA, 125VAC or 48VDC
• PC Pin termination
• SPST Off-(On)
• Pin plunger actuator
• 70gf operating force
• Silver contact material

• 13.6mm diameter panel cutout
• 200mA, 50VDC;  IP68
• SPST; Off-(On) / On-(Off)
• Solder, PCB, or wires w/ connector
• Round button, many color options
• Threaded bushing: M12 x 0.75
• LED illumination options

• 22mm x 19.2mm panel cutout
• Dual rocker switch
• Up to 16A, 250VAC; UL
• SPST or SPDT; latching or mom.
• Quick-connect, solder, or wires
• Actuator marking options
• IP54 with PVC cap:  ACC-P02

• 19.2mm x 13mm panel cutout
• Up to 16A, 125VAC; UL;  IP68
• SPST or SPDT; latching function
• QC-tabs, solder, PC pin, or wires
• Housing and actuator color options
• Actuator marking options
• Right angle mounting option

• 25mm panel cutout;  Snap-In
• 16A, 125VAC; UL
• SPST or DPST; latching or mom.
• Quick connect termination
• Round actuator; color options
• Illumination & marking options
• IP54 with PVC Cap: ACC-F03

• 12.7mm panel cutout
• 3A, 120VAC; UL
• SPST; Off-(On) or On-(Off)
• Plastic or metal body style
• Solder termination
• Round button actuator
• Actuator color options

• 20mm diameter panel cutout
• Up to 16A, 250VAC; UL;  IP68
• SPST or SPDT; latching function
• Quick connect, solder or wire leads
• LED illumination options
• Actuator color options
• Actuator marking options

• 30mm x 11mm panel cutout
• Up to 20A, 125VAC; UL
• SPST or SPDT; latching or mom.
• Quick connect, or wire leads
• Housing and actuator color options
• LED or Neon illumination options
• Actuator marking options

• 19.2mm x 13mm panel cutout
• 9A, 125VAC; UL
• SPST or DPST; latching or mom.
• QC-tabs, PC pin, or wire leads
• Housing and actuator color options
• LED or Neon illumination options
• Actuator marking options

• 19.2mm x 13mm panel cutout
• 15A, 125VAC; UL
• SPST or SPDT; latching or mom.
• QC-tabs, solder, PC pin, or wires
• Housing and actuator color options
• LED illumination options
• Actuator marking options

• Through hole
• Gold – 0.4VA, 20V max. (AC or DC)
• DPDT On-On
• Straight, rt. angle, or rt. angle vert.
• Rocker or paddle actuator
• Actuator color options
• Epoxy sealed terminals

• SMT right angle;  IP67
• Silver – 3A, 120VAC or 28VDC; UL
• Gold – 0.4VA, 20V max. (AC or DC)
• SPDT; latching or momentary
• Standard, black rocker actuator
• Epoxy sealed terminals
• Tape & reel packaged

• Panel mount or through hole;  IP67
• Silver – 3A, 120VAC or 28VDC; UL
• Gold – 0.4VA, 20V max. (AC or DC)
• SPDT or DPDT; latching or mom.
• Straight, rt. angle, or rt. angle vert.
• PC Pin or Solder termination
• Actuator color options

• Panel mount or through hole;  IP67
• Silver – 5A, 120VAC or 28VDC; UL
• Gold – 0.4VA, 20V max. (AC or DC)
• SPDT or DPDT; latching or mom.
• Straight, rt. angle, or rt. angle vert.
• PC Pin, solder, or quick-connect
• Rocker or paddle actuator style

• Panel mount or through hole
• Silver – 3A, 120VAC or 28VDC; UL
• Gold – 0.4VA, 20V max. (AC or DC)
• SPDT, DPDT, or SPST; latch. or mom.
• Straight, rt. angle, or rt. angle vert.
• PC Pin or Solder termination
• Actuator color options

• Panel mount or through hole
• Silver – 5A, 120VAC or 28VDC; UL
• Gold – 0.4VA, 20V max. (AC or DC)
• 1 – 4 pole; latching or mom.
• Straight, rt. angle, or rt. angle vert.
• PC Pin, solder, or quick-connect
• Rocker or paddle actuator style

• Through hole or panel mount
• 500mA, 25VDC (Silver)
• 100mA, 28VDC (Gold)
• SPDT or DPDT; latching or mom.
• PC pin or solder termination
• Variety of cap styles; clear diffuser
• LED illumination options

• Through hole
• 100mA, 30VDC
• 4PDT; latching or momentary
• PC pin termination options
• Three plunger actuator options
• Numerous cap options
• Numerous cap color options

• Through hole
• 100mA, 30VDC
• DPDT; latching or momentary
• PC pin termination
• Plunger actuator
• Many cap options
• 180gf operating force

• SMT
• 100mA, 30VDC
• DPDT On-(On)
• Gullwing termination
• Rectangular button actuator
• White actuator; black housing
• Wave solderable

• Through hole
• 100mA, 30VDC
• DPDT; latching or momentary
• PC pin termination options
• Three plunger actuator options
• Numerous cap options
• Cap color options

• Through hole
• 100mA, 30VDC
• DPDT; latching or momentary
• PC pin termination options
• Three plunger actuator options
• Numerous cap options
• Numerous cap color options

• 13.6mm diameter panel cutout
• 200mA, 50VDC;  IP67
• SPST Off-(On)
• Solder termination
• Round button, many color options
• Threaded bushing: M12 x 0.75
• LED illumination options

• 13.6mm diameter panel cutout
• 100mA, 24VDC;  IP67
• SPST Off-On
• Solder termination
• Round button, many color options
• Threaded bushing: M12 x 0.75
• LED illumination options

• 13.6mm diameter panel cutout
• 100mA, 24VDC;  IP67
• SPST Off-(On)
• Solder or wire leads termination
• Round button, many color options
• Snap-in or threaded (M12 x 0.75)
• LED illumination options

• Through hole right angle
• 100mA, 30VDC
• DPDT, 4PDT or 6PDT
• Latching or momentary function
• PC pin termination;  Bracket option
• Plunger actuator, or Cap options
• Cap options: 1C, 1D, 1R, 1S

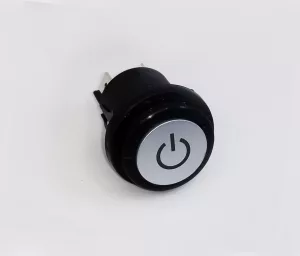

• 25mm panel cutout;  Snap-In
• 16A, 127VAC; UL; IP66
• DPST; Off-On
• Quick connect termination
• Round button actuator
• LED illuminated power symbol
• Laser etched power symbol option

• Through hole right angle
• 3A, 30VDC
• DPST; latching or momentary
• PC pin termination
• Plunger actuator, or Black Cap
• Cap option: 8.8mm Dia.
• Silver contact material

• Through hole
• 30mA, 28VDC
• SPST mom. or SPDT double action
• PC pin termination
• Firm tactile response
• High actuation force
• LED illuminated

• Through hole
• 30mA, 28VDC
• SPST mom. or SPDT double action
• PC pin termination
• Firm tactile response
• High actuation force
• Non-illuminated

• 30mm x 22mm cutout;  Snap-In
• Standard, or Safety Lock versions
• 15A, 250VAC; UL; IP54
• SPST, SPDT, DPST, DPDT; latching
• Quick connect termination
• Dual, square button actuator
• Illumination and marking options

• 19.2mm x 13mm cutout;  Snap-In
• 15A, 250VAC; UL.  VDE rated to 10A
• SPST or DPST; latching or mom.
• Quick connect – 0.187″ termination
• Rectangular button actuator
• LED or neon illumination options
• Housing and actuator color options

• Panel mount, rear or lateral
• 16A, 125/250VAC; UL
• SPST or DPST; latching or mom.
• Snap-in plunger actuator
• Solder or quick connect
• Non-illuminated
• Engineered for use at foot switch

• 19mm x 13mm cutout;  Snap-In
• 16A, 125/250VAC; UL
• SPST or DPST; latching or mom.
• Std. button, or rubber cap (IP54)
• Solder or quick-connect
• LED illumination & marking options
• Actuator and body color options

• 16mm panel cutout
• Up to 8A, 125VAC; UL
• Modular interface/contact block
• SPDT; latching or momentary
• Quick connect socket termination
• Circular, square, or rectangle head
• LED, neon, or incandescent lamp

• Through hole
• 12mA, 12VDC
• SPST or DPST; momentary
• PC Pin termination
• Square button actuator
• LED illumination options
• Bi-color & RGB color options

• Thru hole or thru hole rt. angle
• 100mA, 30VDC
• DPDT; latching or momentary
• PC Pin termination
• Square, round, or plunger actuator
• With or without bezel
• LED illumination options

• SMT right angle
• 10mA-250mA, 20mVDC-50VDC
• SPDT On-(On)
• Gull wing termination
• 9.6mm plunger actuator
• LED illuminated
• Tape & reel packaged

• Through hole
• 1mA, 20VDC or 5mA, 5VDC
• SPST Off-(On)
• PC Pin termination
• Square button; three size options
• LED illumination options
• Button color options

• Through hole
• 100mA, 20VDC
• SPST Off-(On)
• PC pin termination
• Square button; two size options
• LED illumination options
• Button & Diffuser color options

• Through hole
• 1mA, 20VDC
• SPST Off-(On)
• PC Pin termination
• LED illumination options
• Square or round button
• Button color options

• Through hole
• 100mA, 12VDC
• SPST; latching or momentary
• PC Pin termination
• Tactile or non-tactile feel actuator
• Square button; three size options
• LED illumination; bi-color or RGB

• 8mm panel cutout
• 100mA, 30VDC
• SPST Off-(On)
• LED illuminated
• Solder termination
• 5.4mm dia. actuator
• 50,000 cycle life

• Through hole right angle
• 300mA, 30VDC
• SPDT or DPDT; latching or mom.
• PC pin termination
• Plunger for cap actuator
• Shorting or non-shorting versions
• Many cap options

• 22mm panel cutout
• 3A, 250VAC;  IP65
• SPDT or DPDT; latching or mom.
• Solder termination
• LED illumination options
• Actuator color options
• Silver or gold contact material

• Three panel cutout options
• Up to 8A, 125VAC; UL;  IP65
• 1 – 4 pole; latching or momentary
• Pilot lamp indicator option
• Modular interface/contact block
• Actuator head style options
• LED, neon, or incandescent lamp

• 16mm panel cutout
• Pilot lamp indicator light
• Modular interface/contact block
• Solder termination
• Circular, square, or rectangle head
• LED, neon, or incandescent lamp
• Lamp and lens color options

• Keyboard functionality
• Through hole
• 10mA, 12VDC
• SPST Off-(On)
• PC Pin termination
• 60gf operating force
• 50,000,000 cycle life

• 12.2mm panel cutout
• Panel mount, rear
• 1A, 9VDC
• SPDT, DPDT or 3PDT
• Momentary or alternate action
• Solder lug or PC Pin termination
• High actuation force

• 16mm panel cutout
• Up to 8A, 125VAC; UL
• Modular interface/contact block
• 1 – 4 pole; latching or momentary
• Solder termination
• Circular, square, or rectangle head
• LED, neon, or incandescent lamp

• Through hole;  IP67 rated
• Gold – 0.4VA, 20V max. (AC or DC)
• SPDT or DPDT; On-(On)
• PC pin termination
• Straight, rt. angle, or rt. angle vert.
• Cap and cap color options
• Gold contact material

• Panel mount rear, or through hole
• Silver – 3A, 120VAC or 28VDC
• Gold – 0.4VA, 20V max. (AC or DC)
• SPDT On-On
• Solder or PC pin termination
• Straight, rt. angle, or rt. angle vert.
• Alternating action design

• IP67 rated
• SMT right angle
• Gold – 0.4VA, 20V max. (AC or DC)
• SPST or SPDT; momentary function
• Gullwing termination
• Gold contact material
• Epoxy sealed terminals

• Through hole;  IP67 rated
• Silver – 3A, 120VAC or 28VDC; UL
• Gold – 0.4VA, 20V max. (AC or DC)
• SPST or SPDT; momentary function
• Cap style and color options
• Straight, rt. angle, or rt. angle vert.
• Butt contact design

• Panel mount rear, or through hole
• Silver – 3A, 120VAC or 28VDC
• Gold – 0.4VA, 20V max. (AC or DC)
• SPDT On-On
• Solder or PC pin; V-bracket option
• Straight, rt. angle, or rt. angle vert.
• Push-on, push-off alternate action

• IP67 rated
• Panel mount rear, or through hole
• Silver – 3A, 120VAC or 28VDC
• Gold – 0.4VA, 20V max. (AC or DC)
• SPDT or DPDT; On-(On)
• Solder or PC pin; V-bracket option
• Snap acting contact design

• Through hole
• 300mA, 12VDC
• Hinged pushbutton design
• Crisp tactile feel
• Small or large cap style
• SPDT On-(On)
• Single or dual LED

• Panel mount rear, or through hole
• Silver – 3A, 120VAC or 28VDC; UL
• Gold – 0.4VA, 20V max. (AC or DC)
• SPST or SPDT; momentary function
• Cap style and color options
• Straight, rt. angle, or rt. angle vert.
• Butt contact design

• Panel mount, Snap-In
• Silver – 3A, 120VAC or 28VDC; UL
• Gold – 0.4VA, 20V max. (AC or DC)
• SPDT or DPDT; On-(On)
• Solder or PC Pin termination
• Bezel option; cap color options
• Snap acting contact design

• Panel mount rear, or through hole
• Silver – 3A, 120VAC or 28VDC; UL
• Gold – 0.4VA, 20V max. (AC or DC)
• SPDT or DPDT; On-(On)
• Variety of termination options
• Cap style and color options
• Snap acting contact design

• 12mm or 19mm panel cutout
• Up to 4A, 125VAC available
• Variety of size & package options
• Variety of key types & pull options
• Variety of key code options
• Variety of termination options
• Angle of throw & position options

• IP65
• 16mm panel cutout size
• Multiple agency approvals
• Contact arrangement options
• Many contact ratings
• Pushlock turn to reset, design
• Multiple illumination options

• IP65
• 16mm panel cutout size
• Multiple agency approvals
• Contact arrangement options
• Many contact ratings
• Pushlock turn to reset design
• Multiple illumination options

• Through hole, SMT, or Rt angle
• 150mA, 42VDC;  IP67 rated
• 2×3 or 3×3 pcb terminal layout
• Flush, shaft, or knob actuator
• 4, 6, 8, 10, or 16 positions
• Real or complementary code
• 0.100″ (2.54mm), Full pitch

• Through hole, SMT, or Rt angle
• 25mA, 24VDC;  IP67 rated
• 3×3 pcb terminal layout
• Flush, or shaft actuator
• 10 or 16 positions
• Real or complementary code
• 0.100″ (2.54mm), Full pitch

• Through hole, or rt. angle
• 25mA, 24VDC
• Slide actuator; raised or recessed
• 1-12 positions; SPST each position
• 0.100″ (2.54mm) Full pitch
• Gold contact material
• Top tape seal option

• Through hole right angle
• 25mA, 24VDC
• Piano actuator; raised or recessed
• 2-12 positions; SPST each position
• 0.100″ (2.54mm) Full pitch
• Gold contact material
• Top tape seal option

• SMT
• 25mA, 24VDC
• Slide actuator; recessed
• 2-10 positions; SPST each position
• 0.050″ (1.27mm) Half pitch
• Gold contact material
• Top tape seal option

• SMT
• 25mA, 24VDC
• Slide actuator; raised or recessed
• 1-10 positions; SPST each position
• 0.100″ (2.54mm) Full pitch
• Gold contact material
• Top tape seal option

• Through hole or SMT
• 25mA, 24VDC
• Slide actuator; raised or recessed
• 1-12 positions; SPST each position
• 0.100″ (2.54mm) Full pitch
• Gold contact material
• Top tape seal option

• Through hole or SMT
• 25mA, 24VDC
• Slide actuator; raised or recessed
• 4-10 positions; SPDT each position
• 0.100″ (2.54mm) Full pitch
• Gold contact material
• Top tape seal option

• SMT rt angle or thru hole rt angle
• 25mA, 24VDC
• Piano actuator; raised
• 2-10 positions; SPST each position
• 0.100″ (2.54mm) Full pitch
• Gold contact material
• No tape seal

• Through hole, SMT, or Rt angle
• 25mA, 24VDC
• 2×3, 3×3, or 4×1 pcb terminal layout
• Flush, or shaft actuator
• 10 or 16 positions
• Real code
• 0.100″ (2.54mm), Full pitch

• SMT
• 1mA, 5VDC
• SPST Off-(On)
• Angled toggle detector
• 50gf max. force;  2.2mm travel
• Mounting boss option
• Ultraminiature size; guiding post

• SMT
• 1mA, 5VDC
• SPST, NO or NC; momentary
• Angled toggle detector
• 35gf max. force;  2.5mm travel
• Mounting boss
• Ultraminiature size

• 12mm diameter panel cutout;  IP40
• Up to 20A, 125VAC/30VDC, UL
• 1 or 2 pole; latching or momentary
• Solder, QC-tabs, screw, or wires
• Standard metal bat, or plastic bat
• 15/32-32 bushing
• -10°C to 125°C operating temp

• 12mm diameter panel cutout;  IP68
• Up to 20A, 125VAC/30VDC, UL
• 1 or 2 pole; latching or momentary
• Solder, QC-tabs, screw, or wires
• Standard metal bat, or plastic bat
• 15/32-32 bushing
• -10°C to 55°C operating temp

• 12mm diameter panel cutout
• Up to 24A, 125VAC, UL
• 3 pole; latching
• Solder, QC-tabs, screw, or wires
• Standard metal bat actuator
• M12 x 1.0 bushing
• 0°C to 85°C operating temp

• • 12mm diameter panel cutout
  • Up to 20A, 125VAC, UL
  • 2 pole; latching or momentary
  • Solder, QC-tabs, screw, or wires
  • Standard metal bat actuator
  • M12 x 1.0 or 15/32-32 bushing
  • 0°C to 85°C operating temp

• 12mm diameter panel cutout
• Up to 20A, 125VAC, UL
• 1 pole; latching or momentary
• Solder, QC-tabs, screw, or wires
• Standard or short metal bat
• M12 x 1.0 or 15/32-32 bushing
• 0°C to 85°C operating temp

• Through hole;  IP67 rated
• Gold – 0.4VA, 20V max. (AC or DC)
• 1 or 2 pole; 2 or 3 position; latching
• PC pin termination
• Straight, rt. angle, or rt. angle vert.
• Standard actuator
• Non-threaded bushing

• Through hole
• Gold – 0.4VA, 48V max. (AC or DC)
• 1 or 2 pole; latching or momentary
• PC pin termination
• Straight, rt. angle, or rt. angle vert.
• Standard metal bat actuator
• Non-threaded bushing

• SMT right angle;  IP67 rated
• Gold – 0.4VA, 20V max. (AC or DC)
• Silver – 3A, 120VAC or 28VDC; UL
• SPDT; latching or momentary
• Gullwing termination
• Standard metal bat actuator
• Non-threaded bushing

• Through hole;  IP67 rated
• Gold – 0.4VA, 20V max. (AC or DC)
• Silver – 3A, 120VAC or 28VDC; UL
• 1 or 2 pole; latching or momentary
• Straight, rt. angle, or rt. angle vert.
• Two actuator height options
• Non-threaded bushing

• Panel mount or through hole;  IP67
• Gold – 0.4VA, 28V max. (AC or DC)
• Silver – 3A, 120VAC or 28VDC; UL
• 1 or 2 pole; latching or momentary
• Straight, rt. angle, or rt. angle vert.
• Two actuator height options
• Threaded or nonthreaded bushing

• Panel mount or through hole
• Gold – 0.4VA, 28V max. (AC or DC)
• Silver – 5A, 120VAC or 28VDC; UL
• 1 – 4 pole; latching or momentary
• 17 mounting options
• 11 actuator options
• 15 bushing options

• IP67 rated
• SMT
• 8.40mm x 8.40mm
• Gull wing termination
• 400gf operating force
• 500,000 cycle life
• 50mA @ 16VDC

• SMT
• 6.00mm x 6.00mm
• Soft Touch tactile switch
• Long travel 1.3mm
• J lead termination
• 180gf or 260gf operating force
• 50mA @ 12VDC

• SMT
• 6.00mm x 6.00mm
• Soft Touch tactile switch
• Long travel 1.3mm
• Gull wing termination
• 200gf or 350gf operating force
• 50mA @ 12VDC

• IP67 rated
• SMT
• 6.30mm x 6.20mm
• J lead termination
• 160gf or 260gf operating force
• Long life up to 1,000,000 cycles
• 50mA @ 12VDC

• IP67 rated
• SMT
• 6.00mm x 3.50mm
• J lead termination
• 160gf or 260gf operating force
• Actuator height options
• 50mA @ 12VDC

• IP67 rated
• SMT right angle
• 3.85mm x 1.95mm
• SMD tab termination
• 160gf operating force
• 200,000 cycle life
• 20mA @ 12VDC

• IP67 rated
• SMT
• 4.60mm x 2.80mm
• SMD tab termination
• 200gf, 300gf, or 400gf
• Actuator height options
• 50mA @ 32VDC

• IP67 rated
• Through hole
• 12.00mm x 12.00mm
• PC Pin termination
• Long life 10,000,000 cycles
• 130gf or 260gf operating force
• Actuator height and size options

• Through hole
• 8.00mm x 8.00mm
• PC Pin termination
• LED illuminated
• Actuator height options
• Many cap styles and colors
• 350gf operating force

• IP67 rated
• Through hole; vertical or right angle
• PC Pin termination
• LED illuminated
• Many cap styles and colors
• 200gf or 450gf operating force
• 50mA @ 12VDC

• IP67 rated
• SMT
• 6.20mm x 4.60mm
• Gull wing termination
• LED illuminated
• 200gf operating force
• 50mA @ 12VDC

• IP67 rated
• SMT or Through hole
• 10.10mm x 10.10mm
• Gull wing or PC Pin
• Many actuator height options
• Long life 10,000,000 cycles
• 300gf operating force

• IP67 rated
• SMT
• 6.30mm x 6.30mm
• Gull wing termination
• 180gf or 250gf operating force
• Tall actuator height options
• 50mA @ 12VDC

• IP67 rated
• Through hole right angle, PIP
• 6.55mm x 6.40mm
• PC Pin termination
• 350gf operating force
• 300,000 cycle life
• 50mA @ 32VDC

• IP67 rated
• SMT
• 6.20mm x 6.20mm
• Gull wing or J lead
• 160gf, 200gf, or 350gf
• Actuator height options
• Long life 5M cycles (160gf)

• IP67 rated
• SMT
• 7.40mm x 7.40mm
• Gull wing termination
• 130gf, 160gf, 300gf, or 500gf
• Many actuator height options
• Silver or gold contacts

• IP67 rated
• Through hole right angle
• 8.30mm x 5.80mm
• PC Pin termination
• 130gf, 160gf, 300gf, or 500gf
• Many actuator height options
• Silver or gold contacts

• IP67 rated
• Through hole
• 7.40mm x 7.40mm
• PC Pin w/ Earth Ground
• 130gf, 160gf, 300gf, or 500gf
• Many actuator height options
• Silver or gold contacts

• IP67 rated
• Through hole
• 7.40mm x 7.40mm
• PC Pin termination
• 130gf, 160gf, 300gf, or 500gf
• Many actuator height options
• Silver or gold contacts

• Through hole right angle
• 8.40mm x 10.50mm
• PC Pin termination
• Dual actuation
• Many actuator height options
• 100gf, 160gf, or 260gf
• 50mA @ 12VDC

• IP67 rated
• Through hole
• 8.00mm x 8.00mm
• PC Pin termination
• 160gf or 260gf operating force
• 50mA @ 12VDC
• Radial lead packaging

• SMT rt. angle, edge mount
• 4.50mm x 2.20mm
• SMD tab termination
• 160gf or 220gf operating force
• 600,000 cycle life
• Silver contact material
• 50mA @ 12VDC

• SMT rt. angle, edge mount
• 6.20mm x 2.50mm
• Gull wing termination
• 160gf or 250gf operating force
• 200,000 cycle life
• Silver contact material
• 50mA @ 12VDC

• SMT rt. angle, edge mount
• 6.20mm x 2.50mm
• Gullwing; L-shape terminals option
• 120gf, 160gf, or 240gf
• 1,000,000 cycles, certain models
• Silver contact material
• 50mA @ 12VDC

• SMT right angle
• 6.00mm x 5.40mm
• Gull wing termination
• 180gf operating force
• Mounting bosses
• Silver contact material
• 50mA @ 12VDC

• SMT right angle
• 6.50mm x 6.50mm
• Gull wing termination
• Actuator height options
• Solder pad option
• Auto placement tab option
• 185gf or 260gf operating force

• SMT
• 5.20mm x 5.20mm
• Low profile 1.50mm
• Gull wing termination
• 100gf, 160gf, 260gf, 320gf, 450gf
• Silver contact material
• 50mA @ 12VDC

• IP67 rated
• SMT right angle
• 7.10mm x 6.60mm
• Gull wing termination
• 100gf, 160gf, 260gf, or 320gf
• Silver contact material
• 50mA @ 12VDC

• SMT
• 4.50mm x 4.50mm
• Low profile 0.55mm
• Snap dome actuator
• Gull wing termination
• 100gf, 160gf, or 250gf
• 50mA @ 15VDC

• SMT
• 4.60mm x 4.60mm
• Gull wing termination
• 100gf, 160gf, or 250gf
• 100,000 cycle life
• Silver contact material
• 50mA @ 12VDC

• SMT
• 3.70mm x 3.70mm
• Low profile 0.35mm
• Snap dome actuator
• SMD tab termination
• 160gf or 235gf operating force
• 50mA @ 12VDC

• SMT
• 4.50mm x 4.50mm
• Gull wing termination
• Actuator height options
• 100gf, 160gf, 260gf, or 350gf
• -40°C to 105°C operating temp
• 50mA @ 12VDC

• SMT
• 6.20mm x 6.20mm
• Gull wing or J lead termination
• Actuator height options
• 160gf, 260gf, 350gf, 500gf
• 100,000 cycle life
• 50mA @ 12VDC

• SMT
• 6.00mm x 6.00mm
• Gull wing termination
• Actuator height options
• Ground terminal option
• Long life option (5M cycles, 65gf)
• 100gf, 160gf, or 260gf

• SMT
• 6.00mm x 3.50mm
• Gull wing or J lead termination
• Actuator height options
• 130gf, 180gf, or 260gf force
• 50mA @ 12VDC

• SMT
• 6.00mm x 6.00mm
• Gull wing or J lead termination
• Many actuator height options
• Cap options for certain models
• 100gf, 160gf, or 260gf
• 50mA @ 12VDC

• SMT
• 12.00mm x 12.00mm
• Gull wing termination
• Many actuator height options
• Cap options for certain models
• 130gf, 160gf, 260gf, 320gf, 520gf
• 50mA @ 12VDC

• SMT
• 7.00mm x 6.80mm
• Gull wing termination
• LED Illuminated
• Many LED color options
• Cap options
• 160gf operating force

• Through hole right angle
• 8.40mm x 10.55mm
• PC Pin termination
• LED illuminated options
• Dual actuation
• Cap options
• 160gf operating force

• SMT
• 6.10mm x 6.10mm
• LED illuminated
• Many LED color options
• Cap options
• 100gf, 160gf, or 260gf
• 50mA @ 12VDC

• SMT
• 4.90mm x 4.90mm
• SMD tab termination
• LED illuminated
• many LED color options
• 160gf or 250gf operating force
• 50mA @ 12VDC

• SMT
• 5.60mm x 3.40mm
• Gull wing termination
• LED illuminated
• Many LED color options
• 160gf operating force
• 50mA @ 12VDC

• SMT
• 6.80mm x 4.50mm
• Gull wing termination
• Single or dual LED illuminated
• Many LED color options
• 160gf operating force
• 50mA @ 12VDC

• IP67 rated
• SMT
• 6.45mm x 6.45mm
• J lead termination
• Actuator height options
• 180gf, 260gf, or 350gf force
• 50mA @ 12VDC

• Through hole right angle
• 7.30mm x 8.00mm
• Dual actuation
• 180gf operating force
• 0.25mm travel
• 50mA @ 12VDC

• 16mm diameter panel cutout
• Wire leads with connectors
• LED illuminated power symbol
• Many LED color options
• 350gf operating force
• Sharp tactile response
• 50mA @ 12VDC

• Through hole
• 7.00mm x 6.80mm
• PC Pin termination
• LED illuminated options
• Many cap styles and colors
• 160gf operating force
• 50mA @ 12VDC

• Through hole right angle
• 7.00mm x 6.80mm
• PC Pin termination
• LED illuminated
• Round flat cap option
• 160gf operating force
• 50mA @ 12VDC

• Through hole
• 6.00mm x 6.00mm
• PC Pin termination
• LED illuminated options
• Several cap styles and colors
• 160gf operating force
• 50mA @ 12VDC

• Through hole, or reverse
• 6.00mm x 3.50mm
• PC Pin termination
• Actuator height options
• 130gf, 180gf, or 260gf
• Silver contact material
• 50mA @ 12VDC

• Through hole, or rt. angle
• 6.00mm x 6.00mm
• PC Pin termination
• Ground terminal option
• Many actuator heights & caps
• 100gf, 160gf, or 250gf
• Silver or gold contact material

• Through hole, or rt. angle
• 12.00mm x 12.00mm
• PC Pin termination
• Many actuator heights & caps
• 160gf or 260gf
• Silver or gold contact material
• 50mA @ 12VDC

• SMT
• 3.50mm x 2.60mm
• Gull wing termination
• Ground terminal option
• 160gf, 240gf, 340gf, or 450gf
• Silver contact material
• 50mA @ 12VDC

• SMT
• 3.00mm x 2.50mm
• Gull wing termination
• Mounting boss option
• Ground terminal option
• 160gf or 260gf
• Silver contact material

• SMT right angle
• 4.70mm x 2.90mm
• Gull wing termination
• Mounting boss option
• Ground terminal option
• 160gf or 220gf
• Silver contact material

• SMT right angle
• 4.70mm x 3.50mm
• Gull wing termination
• Mounting boss option
• 160gf or 220gf
• Silver contact material
• 50mA @12VDC

• Reverse SMT
• 6.00mm x 6.00mm
• Gull wing termination
• 100gf, 160gf, 260gf, or 320gf
• 100,000 cycle life
• Silver contact material
• 50mA @ 12VDC

• Reverse through hole
• 6.80mm x 6.80mm
• PC Pin termination
• Tray packaging
• 160gf, 260gf, or 350gf
• Silver contact material
• 50mA @ 12VDC

• SMT
• 6.00mm x 6.00mm
• Gull wing or J lead termination
• Many actuator height options
• Cap options for certain models
• 65gf operating force
• 1,000,000 cycle life

• Through hole
• 12.40mm x 12.40mm
• PC Pin termination
• Many cap styles and colors
• 135gf operating force
• 1,000,000 cycle life
• 25mA @ 50VDC

• Panel mount or through hole
• 2A, 30VDC or 250VAC; UL
• SPDT On-On;  IP67 rated
• Solder, quick connect, or PC pin
• Pin plunger actuator
• 183gf max. operating force

• Panel mount
• 0.1A 48VDC or 125/250VAC; UL
• 3A 12VDC or 125/250VAC;  UL
• SPDT On-On;  IP67 rated
• Solder, or wire leads
• Pin plunger actuator
• 130gf max. operating force

• SMT
• 100mA, 125VAC or 48VDC
• SPST Off-(On)
• Pin plunger actuator
• 70gf operating force
• 3,000,000 life cycles
• Tape & reel packaged

• Thru hole or thru hole right angle
• 300mA, 6VDC
• SPDT On-(On)
• Lever actuator
• PC Pin right or left angle
• PC Pin long or short
• 20gf operating force

• Chassis, thru hole, or rt angle
• Gold – 0.4VA, 20V max. (AC or DC)
• Silver – 3A or 0.1A options; UL
• SPDT On-(Off)
• Solder, PC pin, retention, or angled
• Pin plunger, or three lever options
• 15gf – 130gf operating force

• Chassis, thru hole, or rt angle
• Gold – 0.4VA, 20V max. (AC or DC)
• Silver – 5A, 125/250VAC; UL, VDE
• SPDT or SPST-NO
• Solder, quick connect, or PC pin
• Pin plunger, or seven lever options
• 10gf – 295gf operating force

• Chassis or thru hole rt angle
• Gold – 0.4VA, 20V max. (AC or DC)
• Silver – 15A, 125/250VAC; UL, VDE
• SPDT, SPST-NC or SPST-NO
• Solder, quick connect or PC pin
• Pin plunger or six lever options
• 25gf – 250gf operating force

• SMT
• 300mA, 6VDC
• DPDT On-On
• LED illumination; color options
• Compact 7.65mm x 5.5mm body
• 200gf operating force
• 2.0mm travel

• SMT, thru hole, or rt. angle
• 300mA, 24VDC
• SPDT On-On
• Gullwing or PC pin options
• 250gf operating force
• 1.6mm travel
• Gold terminals

• SMT right angle
• 30mA, 15VDC
• SP3T On-On-(On)
• Gullwing termination
• 150gf operating force
• 1.5mm travel to any position
• 1.5mm height above pcb

• SMT right angle
• 25mA, 24VDC
• SPDT On-On
• Gullwing termination
• 150gf operating force
• 1.5mm travel
• 1.4mm height above pcb

• Panel mount or through hole
• 100-500mA dependent on model
• 6-30VDC dependent on model
• Up to 6 poles;  Up to 6 positions
• Vertical or right angle actuation
• Solder or PC pin
• Variety of package designs

• Thru hole, or thru hole rt angle
• Gold – 0.4VA, 20V max. (AC or DC)
• SPDT or DPDT; 2 or 3 positions
• 2.8mm actuator length
• PC pin termination
• Epoxy sealed terminals
• IP67 rated

• Through hole or SMT
• Gold – 0.4VA, 20V max. (AC or DC)
• Silver – 3A, 120VAC; 1A, 250VAC; UL
• SPDT; 2 or 3 positions; latching
• Vertical or right angle actuation
• PC pin or gullwing termination
• Epoxy sealed terminals

• Thru hole, or thru hole rt angle
• Gold- 0.4VA, 20V max. (AC or DC)
• Silver- 3A, 120VAC; 1A, 250VAC; UL
• SPDT or DPDT; 2 or 3 positions
• Vertical or right angle actuation
• Recessed or raised actuator
• Epoxy sealed terminals

• Panel mount, or through hole
• Gold- 0.4VA, 20V max. (AC or DC)
• Silver- 5A, 120VAC; 2A, 250VAC; UL
• SPDT or DPDT; 2 or 3 positions
• Vertical or right angle actuation
• Variety of termination options
• Epoxy sealed terminals

• Through hole
• 100mA, 16VDC
• SP9T – Single pole, 9 positions
• Shaft actuator, 9.8mm height
• 11.40mm x 12.40mm body
• Stainless steel cover
• Silver contact material

• 9.8mm or 10.2mm panel cutout
• 350mA, 125VAC
• 1-4 poles, 1-12 positions
• Flat, round, or slotted actuator
• Many actuator length options
• Non-shorting or shorting
• Standard or metric bushing

• 30mm x 22mm panel cutout
• Up to 20A, 125VAC; UL; IP55
• DPST or DPDT; latching or mom.
• Quick connect, or wire leads
• Housing and actuator color options
• Actuator marking options
• Non-illuminated

• 36.8mm x 21mm panel cutout
• Up to 20A, 125VAC; UL; IP54
• 1 or 2 pole; latching or mom.
• QC-tabs, solder, screw, or wires
• Housing and actuator color options
• Actuator marking options
• Matte or Glossy finish

• Four panel cutout options
• Up to 20A, 125VAC; UL; IP54
• SPST or SPDT; latching or mom.
• Quick connect, solder, or wires
• Housing and actuator color options
• LED illumination options
• Actuator marking options

• 20mm diameter panel cutout
• Up to 16A, 125VAC; UL
• SPST or SPDT; latching or mom.
• Quick connect, solder, or wires
• Housing and actuator color options
• Non-illuminated, glossy finish
• Actuator marking options

• 22mm diameter panel cutout
• Up to 15A, 125VAC; UL
• 1 or 2 pole; latching
• Quick connect, or wire leads
• LED illumination options
• Actuator marking options
• IP54 with PVC cap: ACC-P04

• 20mm diameter panel cutout
• Up to 16A, 125VAC; UL
• DPST; Off-On
• Quick connect, or wire leads
• LED illumination options
• Actuator marking options
• IP54 with PVC cap: ACC-P03

• 20mm diameter panel cutout
• Up to 20A, 125VAC; UL
• SPST; latching or momentary
• Quick connect, solder, or wires
• Housing and actuator color options
• Actuator marking options
• Short body design

• 15mm diameter panel cutout
• Up to 6A, 125VAC; UL
• SPST or SPDT; latching
• Solder, or wire leads termination
• Black housing and actuator
• Paddle style actuator
• Threaded body with nut design

• 18.2mm diameter panel cutout
• Up to 10A, 125VAC; UL
• 1 or 2 pole; latching
• Solder, or wire leads termination
• Housing and actuator color options
• Actuator marking options
• Threaded body with nut design

• 20.2mm diameter panel cutout
• Up to 16A, 125VAC; UL
• SPST or SPDT; latching or mom.
• Quick connect, or wire leads
• Housing and actuator color options
• LED or NEON illumination options
• Actuator marking options

• 20mm diameter panel cutout
• Up to 16A, 125VAC; UL
• SPST or SPDT; latching
• Quick connect, solder, or wires
• LED illumination options
• Actuator marking options
• IP54 with PVC cap: ACC-P03

• 23.3mm 13.5mm Oval panel cutout
• Up to 16A, 125VAC; UL
• SPST or SPDT; latching
• Quick connect, or wire leads
• Housing and actuator color options
• LED illumination options
• Actuator marking options

• 19.2mm 6.8mm panel cutout
• Up to 16A, 125VAC; UL
• SPST Off-On
• Quick connect, or wire leads
• Housing and actuator color options
• Non-illuminated
• Actuator marking options

• 30mm 22mm panel cutout
• Up to 16A, 125VAC; UL; IP66
• DPST or DPDT; latching
• Quick connect, or wire leads
• Housing and actuator color options
• LED illumination options
• Actuator marking options

• 30.2mm 22mm panel cutout
• IP67 rated
• Up to 25A, 125VAC; UL
• DPST or DPDT; latching or mom.
• Quick connect, or wire leads
• LED illumination options
• Actuator marking options

• 30.2mm 13.8mm panel cutout
• IP67 rated
• Up to 25A, 125VAC; UL
• SPST or SPDT; latching or mom.
• Quick connect, or wire leads
• LED illumination options
• Actuator marking options

• 30mm 22mm panel cutout
• Up to 20A, 125VAC; UL
• DPST or DPDT; latching or mom.
• Quick connect, or wire leads
• LED illumination options
• Actuator marking options
• IP54 with PVC cap:  ACC-F02

• 30mm 11mm panel cutout
• Up to 20A, 125VAC; UL
• SPST or SPDT; latching or mom.
• Quick connect, or wire leads
• LED illumination options
• Actuator marking options
• IP54 with PVC cap:  ACC-F01

• 19.2mm 13mm panel cutout
• Up to 16A, 125VAC; UL
• SPST or DPST; Off-On
• Quick connect, PC pin, or wires
• LED illumination options
• Actuator marking options
• IP54 with PVC cap:  ACC-P01

• 22mm 19.2mm panel cutout
• Up to 16A, 125VAC; UL
• 1 or 2 pole; latching or mom.
• Quick connect, PC pin, or wires
• LED illumination options
• Actuator marking options
• IP54 with PVC cap:  ACC-P02

• 19.2mm 13mm panel cutout
• Up to 16A, 125VAC; UL
• SPST or SPDT; latching or mom.
• QC-tabs, solder, PC pin, or wires
• LED illumination options
• Actuator marking options
• IP54 with PVC cap:  ACC-P01

• 37mm 21.2mm panel cutout
• Up to 20A, 125VAC; UL; IP67
• 1 or 2 pole; latching or mom.
• QC-tabs, solder, screw, or wires
• Many actuator style options
• LED illumination options
• Custom actuator marking avail.

• 19.2mm 6.65mm panel cutout
• 10A, 125VAC; UL
• SPST; latching or mom.
• Quick connect, or wire leads
• Housing and actuator color options
• Non-illuminated
• Actuator marking options

• 30mm x 22mm panel cutout
• Up to 20A, 125VAC; UL
• DPST or DPDT; latching or mom.
• Quick connect, or wire leads
• Actuator color options
• LED or Neon illumination options
• Actuator marking options

• Through hole or Panel Mount
• Up to 50mA, 16VDC;  IP67 rated
• SPST Off-(On)
• Pin plunger, or lever actuator
• 160gf max. operating force
• Free position, operating position, total travel dependent on actuator

• Recessed magnetic, reed switch
• 500mA, 10V (AC/DC);  IP67 rated
• SPST Off-(On)
• 19mm or 25mm contact gap
• (2) 18 inch 22AWG wire leads
• 150mΩ contact resistance
• For position detection or sensing

• SMT right angle
• 100mA, 50VDC
• SPST, NO or NC; momentary
• Overtravel plunger actuator
• 50gf max. force;  2.0mm travel
• Mounting boss option
• Tape and reel packaged

Free hanging plug housing for ECM Series connector system with 3mm spacing, a low profile design, up to 10 poles, and 500mm wire leads option.

• 25mm panel cutout
• 3A, 250VAC, UL;  IP67 rated
• SPDT or DPDT; latching or mom.
• Flat actuator
• Solder, wire leads, or socket
• LED ring, ring/power, or graphic
• Stainless steel or black anodized

• 22mm panel cutout
• 3A, 250VAC, UL;  IP67 rated
• SPDT or DPDT; latching or mom.
• Flat actuator
• Solder, wire leads, or socket
• LED ring, ring/power, or graphic
• Stainless steel or black anodized

• 19mm panel cutout
• 3A, 250VAC, UL;  IP67 rated
• SPDT or DPDT; latching or mom.
• Flat, high, or domed actuator
• Solder, wire leads, or socket
• LED dot, ring, power, or graphic
• Nickel, stainless steel, or black

• 25mm panel cutout
• 2A, 36VDC;  IP67 rated
• SPST Off-(On)
• Short body design; flat actuator
• Solder or wire leads termination
• with ECM Connector option
• LED ring or ring/power symbol

• 22mm panel cutout
• 2A, 36VDC;  IP67 rated
• SPST Off-(On)
• Short body design; flat actuator
• Solder or wire leads termination
• with ECM Connector option
• LED ring or ring/power symbol

• 19mm panel cutout
• 2A, 36VDC;  IP67 rated
• SPST Off-(On)
• Short body design; flat actuator
• Solder or wire leads termination
• with ECM Connector option
• LED ring or ring/power symbol

• 25mm panel cutout
• 15A, 125VAC;  IP67 rated
• SPDT; latching or momentary
• Pre-mounted on LS Series switch
• Quick connect 0.187″ or wire leads
• LED ring, or ring/power symbol
• Stainless steel or black anodized

• 22mm panel cutout
• 15A, 125VAC;  IP67 rated
• SPDT; latching or momentary
• Pre-mounted on LS Series switch
• Quick connect 0.187″ or wire leads
• LED ring, or power symbol
• Stainless steel or black anodized

• 19mm panel cutout
• 15A, 125VAC;  IP67 rated
• SPDT; latching or momentary
• Pre-mounted on LS Series switch
• Quick connect 0.187″ or wire leads
• LED ring, dot, or power symbol
• Stainless steel or black anodized

• 16mm, 19mm, or 22mm cutout
• 1A, 24VDC;  IP68 rated
• SPST Off-(On);  Piezo switch
• Concave or flat bezel
• Wire leads with connector
• LED ring, or non-illuminated
• Clear anodized or black anodized

• 19m panel cutout
• 50mA, 24VDC;  IP65 rated
• SPST Off-(On)
• Tactile response; 0.5mm travel
• Solder or wire leads
• LED ring illumination
• Stainless steel or black anodized

• 22m panel cutout
• 2A, 24VDC;  IP65 rated
• SPDT or DPDT; latching or mom.
• Square bezel; flat actuator
• Solder or wire leads
• LED ring, or etched power symbol
• Stainless steel finish

• Socket extension for PV Series
• Solder or wire leads termination
• SPDT or DPDT circuit
• LED illuminated or non-illuminated
• Use with PV3, 4, 7, 8, 9, 10, or PVB3
• Order socket separate from switch

• 6mm-25mm panel cutout
• Pilot lamp indicator light;  IP67
• Flat or domed lens style
• Solder, screw, or wire leads
• LED illuminated, many colors
• Stainless steel, black, or nickel
• 40,000 hours nominal lamp life

• 19mm panel cutout
• 2A, 24VDC;  IP65 or IP40 rated
• SPDT or DPDT; 2 or 3 positions
• Keylock or selector actuator
• Solder or wire leads
• LED illuminated arrow (selector)
• Stainless steel finish

• 22m panel cutout
• 20A, 250VAC, UL;  IP67 rated
• SPST; latching or momentary
• Flat actuator
• Solder or wire leads
• LED ring or ring/power symbol
• Stainless steel or black anodized

• 19m panel cutout
• 20A, 250VAC, UL;  IP67 rated
• SPST; latching or momentary
• Flat actuator
• Solder or wire leads
• LED ring or ring/power symbol
• Stainless steel or black anodized

• 16m panel cutout
• 2A, 24VDC, UL;  IP67 rated
• SPDT; latching or momentary
• High or flat actuator
• Solder or wire leads
• LED ring or ring/power symbol
• Stainless steel or black anodized

• 16m panel cutout
• 2A, 36VDC;  IP67 rated
• SPST; latching or momentary
• Domed, high or flat bezel/actuator
• Solder, wire leads, or molded back
• LED ring or ring/power symbol
• Stainless steel, clear, or black

• 28m panel cutout
• 2A, 48VDC;  IP65 rated
• DPST-NO/NC or 4PST-2NO/2NC
• Flat actuator
• Solder or wire leads
• LED ring or dot
• Stainless steel or black anodized

• 25m panel cutout
• 2A, 48VDC;  IP65 rated
• DPST-NO/NC or 4PST-2NO/2NC
• Flat actuator
• Solder or wire leads
• LED ring, dot or power symbol
• Stainless steel or black anodized

• 22m panel cutout
• 2A, 48VDC;  IP65 rated
• DPST-NO/NC latching or mom.
• Flat actuator
• Solder or wire leads
• LED ring, dot or power symbol
• Stainless steel or black anodized

• 16mm panel cutout
• 2A, 48VDC;  IP65 rated
• SPST Off-(On) or Pilot Indicator
• High or flat actuator
• Solder or wire leads
• LED ring, dot, or power symbol
• Stainless steel, nickel or black

• 12mm panel cutout
• 2A, 36VDC;  IP65 rated
• SPST Off-(On)
• Domed or raised actuator
• Solder, screw, or wire leads
• Non-illuminated
• Body & actuator finish options

• 19mm panel cutout
• 2A, 24VDC;  IP67 rated*
• SPDT, DPDT, or DPDT-NO/NC
• High, or flat actuator
• Solder, screw, or wire leads
• LED ring, dot, or power symbol
• Stainless steel or black anodized

• 16mm panel cutout
• 2A, 48VDC;  IP67 or IP40 rated
• SPDT or DPDT; momentary
• Long or short body
• Guarded, high, or flat actuator
• Solder or wire leads
• LED ring or dot

• 16mm panel cutout
• 2A, 48VDC;  IP65 rated
• SPST Off-(On)
• Domed, high, or flat actuator
• Solder, screw, or wire leads
• Non-illuminated
• Gold, nickel, stainless, or black

• 40m panel cutout
• 2A, 48VDC;  IP65 rated
• DPST-NO/NC or 4PST-2NO/2NC
• Flat actuator
• Solder or wire leads
• LED ring or dot
• Stainless steel or black anodized

• 19mm panel cutout
• 2A, 36VDC;   IP65 rated
• SPST Off-(On)
• Domed, high, or flat actuator
• Solder, screw, or wire leads
• Non-illuminated
• Gold, nickel, stainless, or black

• 12mm panel cutout
• 2A, 36VDC;  IP67 rated
• SPST Off-(On)
• High or flat actuator
• Solder or wire leads
• LED ring, dot, or power symbol
• Stainless steel or black anodized

• 16mm panel cutout
• 2A, 24VDC;  IP67 rated
• SPST or SPDT; momentary
• Wire leads termination
• Actuator color options
• Non-illuminated
• Black nylon 6/6 housing
