Power Rated

E-Switch offers power switches rated up to 24 amps. These switches work great in industrial applications along with many other applications, including kiosks.

100A Series Sealed Miniature Toggle Switch

• IP67 sealed for protection from dust and moisture
• Up to 5A, 120VAC or 28VDC electrical rating with [cURus] approval
• Vertical and right angle mounting designs
• 1 or 2 poles and throws; momentary and maintained (latching) functions

100 Series Miniature Toggle Switch

• Up to 4 poles available
• Variety of switching functions
• Miniature
• Multiple actuator & bushing options

200A Series Subminiature, Sealed Toggle Switch

• IP67 ingress protection rating, sealed from dust and moisture
• 3A, 120VAC or 28VDC electrical rating
• Vertical and right angle mounting designs
• 1 or 2 poles and throws, momentary and maintained (latching) functions

200B Series Subminiature, Sealed Toggle Switch

• IP67 sealed for proction from dust and moisture
• 0.4VA, 20V max. (AC or DC) electrical rating
• Surface mount design
• 1 pole, momentary and maintained (latching) functions

200 Series Subminiature Toggle Switch

• Up to 3A, 120VAC or 28VDC electrical rating
• Vertical and right angle mounting designs
• 1 or 2 poles and throws; momentary and maintained (latching) functions

300A Series Sealed, Miniature Rocker Switch

• Sealed, IP67 ingress protection rating
• Up to 5A 120VAC or 28VDC rating, also available in gold
• Panel or PC board mount design
• Up to 2 poles, momentary and maintained functions

300 Series Subminiature Rocker Switch

• Up to 5A, 120VAC or 28VDC rating; also available with gold contacts
• Panel or PC board mount design
• Up to 4 poles, momentary and maintained functions

400A Series Sealed, Sub-Miniature Rocker Switches

• Up to 3A 120VAC or 28VDC rating, also available in gold
• PC board mount design
• 1 or 2 pole momentary and maintained functions
• IP67 sealed

400B Series Subminiature, Sealed Rocker Switch

• IP67 sealed against dust and moisture
• 3A ,120VAC electrical rating, or 1A, 250VAC
• Surface mount design
• 1 pole, momentary and maintained functions

400 Series Subminiature Rocker Switch

• Up to 3A, 120VAC or 28VDC rating, also available in gold contacts
• PC board or panel mount design
• 1 or 2 pole circuits, momentary and maintained functions

500A Series Subminiature Slide Switch

• 1 pole circuits with up to 3 actuator positions for maintained functions
• Surface mount, PCB mount or PCB right angle designs
• Vertical and horizontal actuation options

500 Series Miniature Slide Switches

• 1 or 2 poles with up to 3 actuator positions; momentary and maintained (latching) functions
• Panel or PC board mounting designs
• Vertical and horizontal actuation options

700 Series Snap-Acting, Panel Mount Pushbutton Switch

• SPDT or DPDT, large momentary push button
• Gold or silver termination options
• Panel mount design
• Solder lug and quick connect termination

700 Series Snap-Acting Pushbutton Switch

• 3A 120VAC or 28VDC rating
• Through hole mounting design
• 1 or 2 poles momentary functions
• Variety of bushing and terminal options

800 Series Subminiature Pushbutton Switches

• 3A, 120VAC or 28VDC rating
• Through hole mounting design
• 1 pole momentary functions
• Variety of bushing and terminal options

D16 Series Illuminated Pushbutton Switch

• UL, VDE, and ENEC power rated
• Circular, rectangular, and square panel mount designs
• SPDT, DPDT, 3PDT, 4PDT, maintained (latching) or momentary pushbuttons
• Exclusive solder lug design

KJD17 Series Heavy Duty, Industrial Power Pushbutton Switches

• 46mm x 22mm x 2.5mm panel cutout
• 16A 120VAC 1/2HP with IP54 rating
• Off-On, Off-On with Remote Trip, and NO and NC with Remote Trip functions

LA Series Sealed, Illuminated Pushbutton Switches

• IP65 rated for ingress protection from dust and moisture
• [cURus] power rated for direct and alternating currents
• Signal light illumination with LED, neon, or incandescent lamps in multiple colors
• Momentary, maintained and pilot functions

LS Series Standard Snap Action Switch

• 15A, 125VAC rating
• Up to 1 million mechanical life cycles
• Available with gold contacts
• Multiple actuator and termination options

MS Series Miniature, Snap Action Switch

• 5A, 125/250 VAC rating
• Up to 1 million mechanical life cycles
• Available with gold contacts
• Multiple actuator and termination options

PA4 Series Illuminated, Power Pushbutton Switch

• Water resistant version with IP54 ingress protection rating
• cURus and ENEC power rated
• 13mm x 19mm panel cutout
• Full illumination options

PA5 Series Power Pushbutton Switch

• cURus and ENEC power rated for 16A
• Operate in temperatures ranging from -20 to 125°C
• SPST or DPST circuits, maintained (latching) or momentary pushbuttons

PB1973 Series Illuminated, Snap-in Pushbutton Switch

• 15A, 250VAC rating
• 13mm x 19.2mm panel cutout
• Full illumination options and multiple actuator colors
• SPST or DPST circuits; maintained (latching) or momentary functions

PB2 Series Illuminated, Power Pushbutton Switch

• High power rating of 20A, 125VAC
• IP54 rating for water resistence
• 22mm x 30mm panel cutout
• Spot illumination options

PP1 Series Push-pull Pushbutton Detector Switch

• 16A 125VAC 1HP rating
• 13.3mm x 28.2mm panel cutout
• SPDT, push-pull or momentary pushbutton

PP2 Series Push-pull Pushbutton Detector Switch

• Up to 16A 125VAC 1HP rating
• 13.5mm x 36mm panel cutout
• 2 poles; push-pull or momentary pushbutton

R1966 Series Illuminated Rocker Switch

• 15A, 125VAC electrical rating with cURus agency approval
• Industry standard 13mm x 19.2mm panel cutout
• Lens LED illumination options and actuator marking options

R1973 Series Illuminated Power Rocker Switch

• 9A, 125VAC electrical rating
• 13mm x 19.2mm panel cutout
• Full illumination options and actuator marking options
• 1 or 2 pole circults; maintained (latching) functions

R4 Series Illuminated, High Current Rocker Switch

• 20A, 125VAC electrical rating
• 11mm x 30mm panel cutout
• Full or dot illumination options; also non-illuminated options

R5 Series Illuminated, High Current Rocker Switch

• 20A, 125VAC electrical rating [cURus]
• 22mm x 30mm panel cutout
• Full illumination or non-illuminated options and actuator marking options

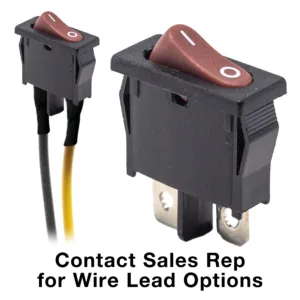

R6 Series Slim Power Rocker Switch

• 10A, 125VAC or 6A, 250VAC UL and cURus electrical ratings
• 6.65mm x 19.2mm slim, panel cutout
• 1 pole; maintained and momentary functions

R7 Series Illuminated, Sealed Rocker Switch

• IP67 rated & UL Listed
• LED illumination options
• Custom actuator marking available
• Ergonomic design

R7 Series Rocker Actuator - Actuator Only

• IP67 rated & UL Listed
• LED illumination options
• Custom actuator marking available
• Ergonomic design

RA1 Series Illuminated, Power Rocker Switch with PVC Cap

• Up to 16A, 125VAC electrical rating
• PVC cap provides protection from dust and moisture at IP54 rating
• 13mm x 19.2mm panel cutout
• Full or signal light illumination options

RA4 Series Illuminated, Power Rocker Switch with PCV Cap

• Up to 16A, 125VAC 1/3HP electrical rating
• IP54 protection against dust and moisture with PVC cap
• 22mm x 19.2mm panel cutout
• 1 or 2 pole; maintained and momentary functions

RA8 Series Illuminated, Power Rocker Switch

• 16A, 125VAC electrical rating with [cURus] approval
• Full or signal light illumination with multiple LED lens colors
• IP54 ingress protection from dust and moisture with optional cap
• 1 or 2 pole, maintained functions

RB1 Series Illuminated, Power Rocker Switch

• 20A, 125VAC 3/4HP electrical rating with [cURus] approval
• Optional cap provides protection from dust and moisture at IP54 rating
• Full, dot, or signal light illumination and actuator marking options

RB2 Series High Current, Power Rocker Switch

• 20A, 125VAC 1/4HP electrical rating with [cURus] approval
• IP54 protection from dust and moisture with optional cap
• Full, dot, or signal light illumination options

RBW2 Series Illuminated, Sealed Rocker Switch

• 16(16)A, 125VAC 1/3HP electrical rating with UL and [cURus] approval
• IP66 rated for protection from dust and moisture
• Full illumination options

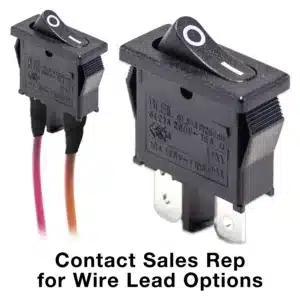

RD1 Series Compact, Power Rocker Switch

• Up to 16A, 125VAC 1/3HP electrical rating with UL and [cURus] approvals
• Compact switch for 6.8mm x 19.4mm panel cutout
• 1 pole, Off-On functionality

RE1 Series Oval, Illuminated Power Rocker Switch

• Up to 16A, 125VAC 1/3HP electrical rating, with multiple rating options
• Operate in temperatures ranging from -20 to at least 105°C and up to 125°C, depending on electrical rating option
• Full illumination options, multiple marking options and lens colors

RR1 Series Round, Illuminated Power Rocker Switch with Cap

• Up to 16A, 125VAC 1/3HP electrical rating
• IP54 protection from dust and moisture with cap
• Full, dot, and signal light illumination options

RR3112 Series Round, Illuminated Power Rocker Switch

• 16A, 125VAC or 10A, 250VAC electrical ratings with [cURus] approval
• Ergonomic, visually appealing actuator design
• Full illumination options, with neon or LED options
• 1 pole, momentary and maintained (latching) functions

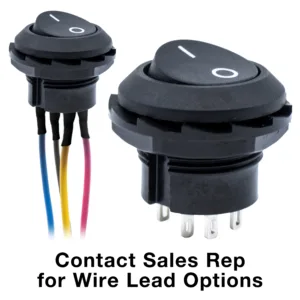

RR3130 Series Round Power Rocker Switch

• 10A, 125VAC or 6A, 250VAC electrical ratings with [cURus] approvals
• Ergonomic, curved actuators with color and marking options
• 1 or 2 pole, maintained (latching) functions

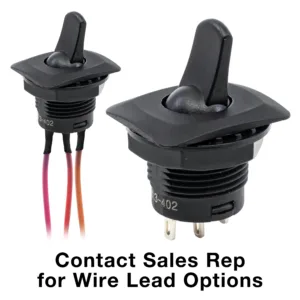

RR3402 Series Round, Paddle Style Power Rocker Switch

• 6A, 125VAC or 3A, 250VAC electrical ratings with [cURus] approvals
• 15mm diameter panel cutout
• Ergonomic, paddle style actuator
• 1 pole, maintained functions

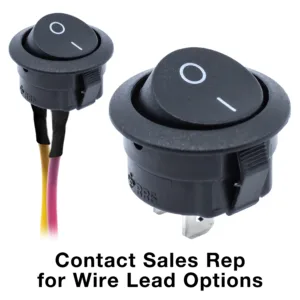

RR5 Series Round, High Current Rocker Switch

• 20A, 125VAC or 12A, 250VAC electrical ratings with [cURus] approval
• Short body for low clearance applications
• 1 pole, maintained (latching) and momentary functions

RR8 Series Round, Illuminated Power Rocker Switch

• Up to 16A, 125VAC, 1/3HP electical rating with multiple agency approvals
• Meant for round, 20mm diameter panel cutout
• Full illumination options

RRA Series Round, Illuminated Power Rocker Switch with Cap

• Up to 15A, 125VAC 1/3HP electrical rating with approvals from multiple agencies
• IP54 protection from dust and moisture with cap
• Full illumination options

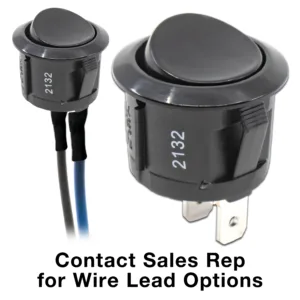

RRG3 Series Round, Power Rocker Switch

• Up to 16A ,125VAC 1/3HP electrical rating with approvals from multiple agencies
• Meant for round, 20mm diameter panel cutout
• 1 pole, maintained (latching) and momentary functions

RRGA Series Round, High Current Rocker Switches

• 16A, 125VAC 1/3HP electrical rating with approvals from multiple agencies
• Operates in temperatures ranging from -20°C to 105°C
• 1 pole, maintained (latching) and momentary functions

RSC Series High Current Rocker Switch with Bi-color Actuator

• 20A, 125VAC 1/4HP electrical rating with [cURus] approval
• Full or signal light illumination options
• 4 different panel cutouts ranging between 12.1mm and 13.9mm x 27.2mm and 28.6mm

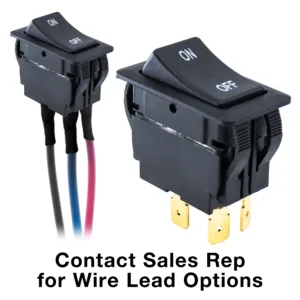

RVW Series High Current Power Rocker Switches

• Up to 20A, 125VAC 2HP electrical rating with [cURus] and [UL508] approvals
• IP54 rated protection from dust and moisture
• 1 or 2 pole, maintained and momentary functions

SAV4 Series Anti-Vandal Switch

  • 19mm diameter panel cutout
  • Dot, ring, power, or ring/power illumination options
  • Multiple illumination voltage options
  • Momentary and latching functions
  • 15A high current rating

SAV7 Series Anti-Vandal Switch

  • 22mm diameter panel cutout
  • Ring or ring/power illumination options
  • Multiple illumination voltage options
  • Momentary and latching functions
  • 15A high current rating

SAV8 Series Anti-Vandal Switch

  • 25mm diameter panel cutout
  • Ring or ring/power illumination options
  • Multiple illumination voltage options
  • Momentary and latching functions
  • 15A high current rating

ST1 Series High Current, Power Toggle Switch

• Up to 20A, 125VAC 2HP electrical rating with multiple agency approvals
• 1 pole, 1 or 2 throws; maintained (latching) and momentary functions
• 12mm diameter panel cutout

ST2 Series High Current, Power Toggle Switch

• Up to 20A, 125VAC 2HP electrical rating with [cURus] approval
• 2 poles, 1 or 2 throws; maintained (latching) and momentary functions
• 12mm diameter panel cutout

ST3 Series High Current, Power Toggle Switch

• Up to 24A, 125VAC 2HP electrical rating with [cURus] approvals
• 3 poles, 1 or 2 throws; maintained and momentary functions
• 12mm diameter panel cutout

ULV4 Series Anti-vandal Switch UL Certified

• Dot, ring or power symbol illuminated
• IP67 rated, UL certified
• Long life; latching or momentary
• Three wire lead options available:

  • 300mm long wire leads
  • Detachable socket with wire leads 500mm long
  • Molded Back with wire leads 500mm long

ULV7 Series Anti-Vandal Switch

• Ring illuminated, 22mm panel cutout
• IP67 rated, UL Certified
• Long life; latching or momentary
• SPDT or DPDT with multiple functions
• Three wire lead options available:

• 300m long wire leads
• Detachable socket with wire leads 500mm long
• Molded Back with wire leads 500mm long

ULV8 Series UL Certified Sealed Anti-vandal Switch

• Ring illuminated, 25mm panel cutout
• IP67 rated, UL Certified
• Long life; latching or momentary
• SPDT or DPDT with multiple functions
• Three wire lead options available:

  • Wire Leads 300mm long
  • Detachable Socket with wire leads 500mm long
  • Molded Back with wire leads 500mm long

WB2 Series Sealed, High Current Rocker Switch

• Up to 20A, 125VAC 2HP electrical rating with [cURus] approval
• IP55 rated for dust and moisture protection
• 2 pole, maintained and momentary functions
