Long Life

CS Series Illuminated, Touch Sensor Anti-vandal Switch

• 19mm or 22mm panel cutouts
• Latching or Momentary Function options
• Ring or Ring/Power Symbol lens options
• Illuminated color options: red, green, or blue
• Capacitive switching technology (Touch Sensor)

JS1300 Series 5-position Navigation Switch

• 5-position navigation switch
• Long life expectancy of up to 200,000 cycles
• 9.8mm x 9.8mm base; low profile, 1.55mm height
• Surface mount design

JS1400 Series 5-position, Joystick Navigation Switch

• 5-position, joystick navigation switch
• 7.4mm x 7.7mm with 3 different actuator height options
• Long mechanical life expectancy of 100,000 cycles
• Surface mount design

JS5208 Series 5-position, Joystick Navigation Switch

• 5-position navigation switch
• 12.4mm x 12.4mm base; 12.2mm tall
• Long life expectancy of up to 100,000 cycles
• Surface mount design

KS1100 Series Pushbutton Switch With Keyboard Functionality

• 10mA 12VDC rating
• SPST, momentary function
• Long Travel
• 50,000,000 Electrical Life
• Low Actuator Force

LP16 Series Long Life, Illuminated Pushbutton Switch

• 50,000,000 cycle life expectancy
• Long travel of 3.3mm
• Multiple illumination options
• Two cap sizes

LS Series Standard Snap Action Switch

• 15A, 125VAC rating
• Up to 1 million mechanical life cycles
• Available with gold contacts
• Multiple actuator and termination options

MS Series Miniature, Snap Action Switch

• 5A, 125/250 VAC rating
• Up to 1 million mechanical life cycles
• Available with gold contacts
• Multiple actuator and termination options

PV0 Series Sealed, Illuminated Anti-vandal Switch

• IP65 rated for protection against dust and moisture
• 12mm panel cutout
• Ring or dot illumination options
• Multiple LED color options

PV1 Series Long Life, Water Resistant Anti-vandal Switch

• IP65 rating for protection against dust and moisture
• 19mm diameter panel cutout
• 1 pole, Off-(On)
• Solder and screw terminal options available

PV2 Series Sealed, Long Life Anti-vandal Switch

• IP65 rating for protection against dust and moisture
• 16mm diameter panel cutout
• 1 pole Off-(On) circuit
• Solder and screw terminal options available

PV5 Series Sealed, Long Life Anti-vandal Switch

• IP65 rated for protection against dust and moisture
• Solder lug or screw terminal options available
• 1 pole; momentary functions

PV8 Series Illuminated, Sealed Anti-vandal Switch

• IP65 rated for dust and moisture protection
• 25mm diameter panel cutout
• Dot and ring illumination options available
• 1 or 2 poles; maintained (latching) and momentary double break functions

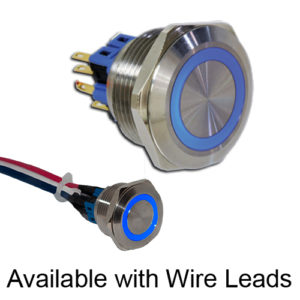

PV9 Series Sealed Illuminated Anti-vandal Switch

• IP66 rated for dust and moisture protection
• Dot or ring illumination options available
• Multiple switch functions available
• SPDT or DPDT

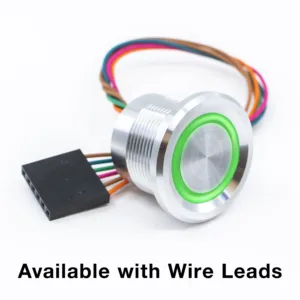

PZ Series Anti-vandal, Illuminated Piezo Switch

• Electrical life of 50 million cycles
• Ring illumination options
• RGB color options
• Bezel options

RDM Series Ultra Slim, Sealed Rotary DIP Switch

• Offers IP67 ingress protection from dust and moisture
• 10 or 16 positions
• Right angle or vertical mount
• Ultra slim size

SAV4 Series Anti-Vandal Switch

• 19mm diameter panel cutout
• Dot, ring, power, or ring/power illumination options
• Multiple illumination voltage options
• Momentary and latching functions
• 15A high current rating

SAV7 Series Anti-Vandal Switch

• 22mm diameter panel cutout
• Ring or ring/power illumination options
• Multiple illumination voltage options
• Momentary and latching functions
• 15A high current rating

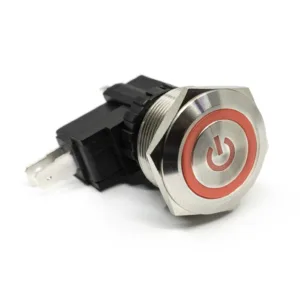

SAV8 Series Anti-Vandal Switch

• 25mm diameter panel cutout
• Ring or ring/power illumination options
• Multiple illumination voltage options
• Momentary and latching functions
• 15A high current rating

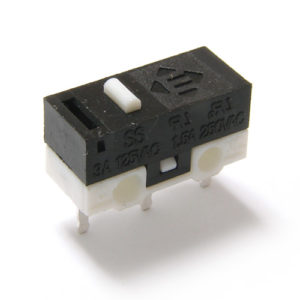

SS Series Subminiature, Snap Action Switch

• 3A, 125VAC rating
• Up to 1 million mechanical life cycles
• Available with gold contacts
• Multiple actuator and termination options

TD4700 Series Ultraminiature Detector Switch

• Long life expectancy of 100,000 cycles
• Ultraminiature
• Very low profile

TL1014 Series Subminiature, Right Angle Tactile Switch

• Long life expectancy of up to 200,000 cycles
• 160 or 220 gram force options
• Right angle, surface mount design
• Silver plated contacts

TL1015 Series Ultraminiature Tactile Switch

• 3mm x 4mm tactile switch
• 160 ± 50 gram force
• Surface mount design
• Silver plated contacts

TL1220 Series Illuminated, Multi-option Tactile Switch

• Multiple illuminated cap options
• Single color LED options
• 180 ± 50 gram force
• PC board mount design

TL1265 Series Illuminated Vertical Tactile Switch

• 6.8mm x 7mm tactile switch
• Long life expectancy of 500,000 cycles
• LED illumination options
• Vertical, through-hole mounting design

TL2233 Series Subminiature Pushbutton Switch

• DPDT, momentary contact push button
• Wave solderable
• Surface mount design
• Long electrical life

TL3145 Series Long Life, SMT Tactile Switch

• Long life expectancy up to 3,000,000 cycles
• Tactile tape and reel packaging
• IP67 ratings
• Multiple operating force options

TL3215 Series Ultraminiature SMT, LED Illuminated Tactile Switch

• 50mA 12VDC rating
• Multiple LED colors
• Long life of 1 million cycles
• SMT, low profile, ultra miniature

TL3253 Series Dual LED Illuminated Tactile Switch

• 7.5mm x 22.6mm tactile switch
• 160 gram force
• Dual LEDs
• Right angle mount

TL3265 Series LED Illuminated, SMT Tactile Switch

• 500,000 cycle life expectancy
• Multiple cap options
• Surface mount design
• Illumination options

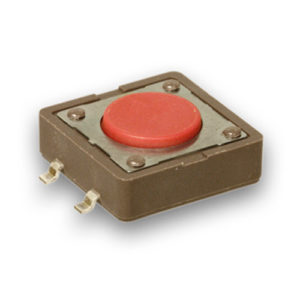

TL3300 Series SMT Tactile Switch

• 12mm x 12mm tactile switch
• 160, 260, 320, 520 gram force options
• Surface mount design
• Multiple actuator options

TL3303 Series SMT Tactile Switch

• 6mm x 6mm tactile switch
• 100 ± 50; 160 ± 50; 260 ± 50 gram force options
• Surface mount design
• Silver plated contacts

TL4100 Series Miniature, Right Angle Edge Tactile Switch

• 1,000,000 cycle life expectancy
• 120 and 240 gram force options
• Unique pcb edge-mounting design

TL4110 Series Low Profile, SMT Tactile Switch

• Surface Mount Switch
• Long Cycle Life of 300,000 Cycles
• Extremely Small Surface profile of 2.0mm x 2.8mm
• Switch Mounts along the edge of the PCB for Right Angle Actuation

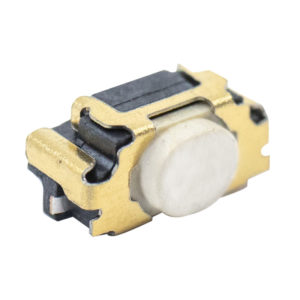

TL4115 Series Right Angle Edge, SMT Tactile Switch

• 600,000 cycle life expectancy
• Tactile tape and reel packaging
• Low travel
• Right angle edge, surface mount design

TL6100 Series Process Sealed, PCB Pin Tactile Switch

• Process sealed tactile switch
• 130,160, 300, and 500 gram force options
• Through-hole design
• Silver or gold plated contacts

TL6105 Series Process Sealed Tactile Switch with Earth Ground Terminal

• Process sealed tact switch with earth ground terminal
• 130, 160, 300, and 500 gram force options
• Long life of up to 1 million cycles

TL6110 Series Process Sealed, Right Angle Tactile Switch

• Process sealed tactile switch
• 130, 160, 300, and 500 gram force options
• Right angle design
• Long life of up to a million cycles

TL6120 Series Process Sealed, SMT Tactile Switch

• Process sealed tactile switch
• 130, 160, 300, and 500 gram force options
• Surface mount design
• Long life of up to a million cycles

TL6170 Series Mid-sized, Sealed Tactile Switch with Tall Actuator

• Up to 300,000 cycle life expectancy
• Tactile tape and Reel packaging
• IP67 rating
• Surface mount design
• Actuation force options and two tall actuator options

TL6200 Series Sealed, Long Life Tactile Switch

• Long life of up to 10,000,000 cycles
• Multiple actuator heights
• SMT or Thru Hole termination
• IP67 rating for dust and moisture protection

TL6215 Series Right Angle, Illuminated, Sealed Tactile Switch

• 50mA @12VDC contact rating
• Illuminated with cap options
• SPST momentary (500,000 life cycles)
• IP67 sealed; right angle or vertical

TL6300 Series PCB Mount, High-Temperature Tactile Switch

• 10,000,000 cycle life expectancy
• IP67 rated dust and moisture protection
• PCB Mount
• Sharp tactile response

TL6800 Series Sealed, SMT Tactile Switch

• IP67 rated
• 6.3mm x 6.2mm tactile switch
• Long life expectancy of up to 1,000,000 cycles
• 160 ± 50; 260 ± 50 gram force options
• surface mount design

TL9320 Series Sealed Tactile Switch

• IP67 rated for dust and moisture protection
• SPST contact arrangement
• 8.4mm (W) x 8.4mm (L) x 3.95mm (H) dimensions
• Long life expectancy up to 500,000 cycles

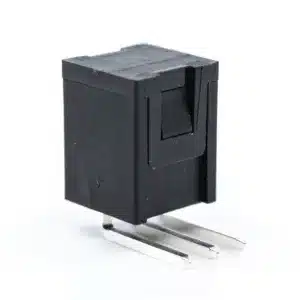

TM1000 Series Tilt Switch

• Up to 20mA 24V AC or DC rating
• 1,000,000 cycle life expectancy
• Switch is triggered when tilted 45 degrees
• Environmentally friendly, contains no mercury

TS2 Series Surface Mount, Snap Action Switch

• 3,000,000 cycle life
• 100mA, 125VAC or 48VDC electrical rating
• Subminiature size
• Surface mount design

ULP Series Long Life, Illuminated Pushbutton Switch

• Long life of one million cycles for mechanical components and 200,000 cycle electrical life
• PC board or panel mount design with several button options
• Full LED illumination options
• SPDT or DPST, maintained (latching) or momentary pushbuttons

ULV4 Series UL Certified, Long Life Anti-vandal Switch

• Dot, ring, or power symbol illuminated
• IP67 rated for dust and moisture protection; UL certified
• Long life; maintained (latching) or momentary
• Three wire lead options available

ULV7 Series UL Certified Anti-Vandal Switch

• Ring illuminated; 22mm panel cutout
• IP67 rated for dust and moisture protection; UL Certified
• Long life; maintained (latching) or momentary
• Three wire lead options available: 300m long wire leads, detachable socket with wire leads 500mm long, or molded back with wire leads 500mm long

ULV8 Series UL Certified, Sealed Anti-vandal Switch

• Ring illuminated; 25mm panel cutout
• IP67 rated for dust and moisture protection; UL Certified
• Long life; maintained (latching) or momentary
• SPDT or DPDT with multiple functions
• Three wire lead options available

WS Series Sealed, Snap Action Switch

• IP67 rated for dust and moisture protection
• UL Certified
• Multiple termination and actuator options
• Mechanical life of 1,000,000 cycles
