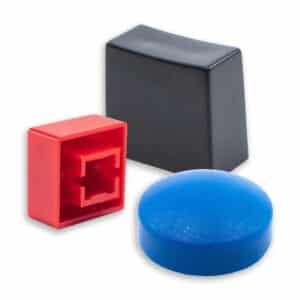

CONFIGURABLE CAP
A configurable cap allows for customization of the switch’s appearance and functionality to suit different applications. This includes options for color coding, labeling, shape, size and tactile feel, which can improve user interface clarity, ergonomics and aesthetic integration into a product. It also enables standardization of switch bodies across multiple products while allowing for application-specific customization through interchangeable caps, saving both design time and manufacturing costs.
To view all E-Switch Cap offerings, visit: Caps
Find Your Product
If you need help finding what you're looking for, use our advanced parametric search to find your specific product.
Product Search

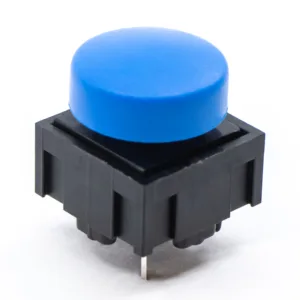

320 Series
320 Series Tactile Pushbutton Switch
- Through hole
- 12.40mm x 12.40mm
- PC Pin termination
- Many cap styles and colors
- 135gf operating force
- 1,000,000 cycle life
- 25mA @ 50VDC
700 Series
700 Series Snap-Acting Pushbutton Switch
- Panel mount or through hole
- Up to 3A, 120VAC or 28VDC; UL
- SPDT or DPDT; On-(On)
- Variety of termination options
- Cap style and color options
- Threaded or nonthreaded bushing
- Snap acting contact design
800 Series
800 Series Subminiature Pushbutton Switch
- Panel mount or through hole
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPST or SPDT; momentary function
- Cap style and color options
- Straight, rt. angle, or rt. angle vert.
- Butt contact design
800A Series
800A Series Sealed, Subminiature Pushbutton Switch
- Through hole;Â IP67 rated
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPST or SPDT; momentary function
- Cap style and color options
- Straight, rt. angle, or rt. angle vert.
- Butt contact design
800U Series
800U Series Sealed, Ultraminiature Pushbutton Switch
- Through hole;Â IP67 rated
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT or DPDT; On-(On)
- PC pin termination
- Straight, rt. angle, or rt. angle vert.
- Cap style and color options
- Gold contact material
LC Series
LC Series Right Angle Pushbutton Switch
- Through hole right angle
- 300mA, 30VDC
- SPDT or DPDT; latching or mom.
- PC pin termination
- Plunger for cap actuator
- Shorting or non-shorting versions
- Many cap options

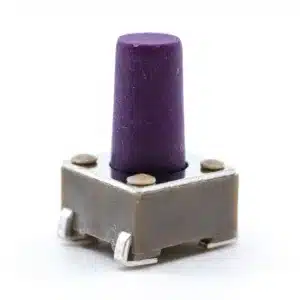

LL3301 Series
LL3301 Series Long Life SMT Tactile Switch
- SMT
- 6.00mm x 6.00mm
- Gull wing or J lead termination
- Many actuator height options
- Cap options for certain models
- 65gf operating force
- 1,000,000 cycle life
PB400 Series
PB400 Series Right Angle Pushbutton Switch
- Through hole right angle
- 3A, 30VDC
- DPST; latching or momentary
- PC pin termination
- Plunger actuator, or Black Cap
- Cap option: 8.8mm Dia.
- Silver contact material
PBH Series
PBH Series Right Angle Pushbutton Switch
- Through hole right angle
- 100mA, 30VDC
- DPDT, 4PDT or 6PDT
- Latching or momentary function
- PC pin termination
- Plunger actuator, or cap options
- Cap option: 1C, 1D, 1R, 1S
PR1 Series
PR1 Series Illuminated, Power Pushbutton Switch with PVC Cap
- 25mm diameter panel cutout
- 16A, 125VAC; UL
- SPST or DPST; latching or mom.
- Quick-connect termination
- Round actuator; color options
- Illumination & marking options
- IP54 with PVC Cap: ACC-F03
RA1 Series
RA1 Series Illuminated, Power Rocker Switch with PVC Cap
- 19.2mm 13mm panel cutout
- Up to 16A, 125VAC; UL
- SPST or SPDT; latching or mom.
- QC-tabs, solder, PC pin, or wires
- LED illumination options
- Actuator marking options
- IP54 with PVC cap:Â ACC-P01
RA2 Series
RA2 Series Dual Power Rocker Switch with PVC Cap
- 22mm x 19.2mm panel cutout
- Dual rocker switch
- Up to 16A, 250VAC; UL
- SPST or SPDT; latching or mom.
- Quick-connect, solder, or wires
- Actuator marking options
- IP54 with PVC cap:Â ACC-P02
RA4 Series
RA4 Series Illuminated, Power Rocker Switch with PVC Cap
- 22mm 19.2mm panel cutout
- Up to 16A, 125VAC; UL
- 1 or 2 pole; latching or mom.
- Quick connect, PC pin, or wires
- LED illumination options
- Actuator marking options
- IP54 with PVC cap:Â ACC-P02
RA8 Series
RA8 Series Illuminated, Power Rocker Switch with PVC Cap
- 19.2mm 13mm panel cutout
- Up to 16A, 125VAC; UL
- SPST or DPST; Off-On
- Quick connect, PC pin, or wires
- LED illumination options
- Actuator marking options
- IP54 with PVC cap:Â ACC-P01
RB1 Series
RB1 Series Illuminated, Power Rocker Switch with PVC Cap
- 30mm 11mm panel cutout
- Up to 20A, 125VAC; UL
- SPST or SPDT; latching or mom.
- Quick connect, or wire leads
- LED illumination options
- Actuator marking options
- IP54 with PVC cap:Â ACC-F01
RB2 Series
RB2 Series Illuminated, Power Rocker Switch with PVC Cap
- 30mm 22mm panel cutout
- Up to 20A, 125VAC; UL
- DPST or DPDT; latching or mom.
- Quick connect, or wire leads
- LED illumination options
- Actuator marking options
- IP54 with PVC cap:Â ACC-F02
RR1 Series
RR1 Series Round, Illuminated, Power Rocker Switch with PVC Cap
- 20mm diameter panel cutout
- Up to 16A, 125VAC; UL
- SPST or SPDT; latching
- Quick connect, solder, or wires
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-P03
RR8 Series
RR8 Series Round, Illuminated, Power Rocker Switch with PVC Cap
- 20mm diameter panel cutout
- Up to 16A, 125VAC; UL
- DPST; Off-On
- Quick connect, or wire leads
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-P03
RRA Series
RRA Series Round, Illuminated, Power Rocker Switch with PVC Cap
- 22mm diameter panel cutout
- Up to 15A, 125VAC; UL
- 1 or 2 pole; latching
- Quick connect, or wire leads
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-P04
ST1 Series
ST1 Series High Current, Power Toggle Switch
- 12mm diameter panel cutout
- Up to 20A, 125VAC, UL
- 1 pole; latching or momentary
- Solder, QC-tabs, screw, or wires
- Standard or short metal bat
- M12 x 1.0 or 15/32-32 bushing
- 0°C to 85°C operating temp
ST2 Series
ST2 Series High Current, Power Toggle Switch
-
- 12mm diameter panel cutout
- Up to 20A, 125VAC, UL
- 2 pole; latching or momentary
- Solder, QC-tabs, screw, or wires
- Standard metal bat actuator
- M12 x 1.0 or 15/32-32 bushing
- 0°C to 85°C operating temp
View Series
TL1100 Series
TL1100 Series Through Hole Tactile Switch
- Through hole, or rt. angle
- 12.00mm x 12.00mm
- PC Pin termination
- Many actuator heights & caps
- 160gf or 260gf
- Silver or gold contact material
- 50mA @ 12VDC
TL1105 Series
TL1105 Series Through Hole Tactile Switch
- Through hole, or rt. angle
- 6.00mm x 6.00mm
- PC Pin termination
- Ground terminal option
- Many actuator heights & caps
- 100gf, 160gf, or 250gf
- Silver or gold contact material
TL1240 Series
TL1240 Series Illuminated, Through Hole Tactile Switch
- Through hole
- 6.00mm x 6.00mm
- PC Pin termination
- LED illuminated options
- Several cap styles and colors
- 160gf operating force
- 50mA @ 12VDC
TL1250 Series
TL1250 Series Illuminated, Through Hole Right Angle Tactile Switch
- Through hole right angle
- 8.30mm x 10.30mm
- PC Pin termination
- LED illuminated options
- Round cap option; clear
- 120gf, 180gf, or 280gf
- 50mA @ 12VDC
TL1260 Series
TL1260 Series Illuminated, Through Hole Right Angle Tactile Switch
- Through hole right angle
- 7.00mm x 6.80mm
- PC Pin termination
- LED illuminated
- Round flat cap option
- 160gf operating force
- 50mA @ 12VDC
TL1265 Series
TL1265 Series Illuminated, Through Hole Tactile Switch
- Through hole
- 7.00mm x 6.80mm
- PC Pin termination
- LED illuminated options
- Many cap styles and colors
- 160gf operating force
- 50mA @ 12VDC
TL2201 Series
TL2201 Series Subminiature Pushbutton Switch
- Through hole
- 100mA, 30VDC
- DPDT; latching or momentary
- PC pin termination options
- Three plunger actuator options
- Numerous cap options
- Numerous cap color options
TL2202 Series
TL2202 Series Subminiature Pushbutton Switch
- Through hole
- 100mA, 30VDC
- DPDT; latching or momentary
- PC pin termination options
- Three plunger actuator options
- Numerous cap options
- Cap color options
TL3240 Series
TL3240 Series Illuminated, SMT Tactile Switch
- SMT
- 6.10mm x 6.10mm
- LED illuminated
- Many LED color options
- Cap options
- 100gf, 160gf, or 260gf
- 50mA @ 12VDC
TL3253 Series
TL3253 Series Dual Illuminated, Through Hole Right Angle Tactile Switch
- Through hole right angle
- 8.40mm x 10.55mm
- PC Pin termination
- LED illuminated options
- Dual actuation
- Cap options
- 160gf operating force
TL3265 Series
TL3265 Series Illuminated, SMT Tactile Switch
- SMT
- 7.00mm x 6.80mm
- Gull wing termination
- LED Illuminated
- Many LED color options
- Cap options
- 160gf operating force
TL3300 Series
TL3300 Series Long Life, SMT Tactile Switch
- SMT
- 12.00mm x 12.00mm
- Gull wing termination
- Many actuator height options
- Cap options for certain models
- 130gf, 160gf, 260gf, 320gf, 520gf
- 50mA @ 12VDC

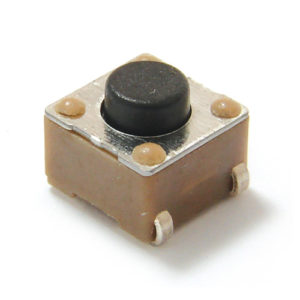

TL3301 Series
TL3301 Series SMT Tactile Switch
- SMT
- 6.00mm x 6.00mm
- Gull wing or J lead termination
- Many actuator height options
- Cap options for certain models
- 100gf, 160gf, or 260gf
- 50mA @ 12VDC
TL4201 Series
TL4201 Series Subminiature Pushbutton Switch
- Through hole
- 100mA, 30VDC
- 4PDT; latching or momentary
- PC pin termination options
- Three plunger actuator options
- Numerous cap options
- Numerous cap color options
TL6190 Series
TL6190 Series Sealed, Through Hole Right Angle Tactile Switch
- IP67 rated
- Through hole right angle
- 12.00mm x 11.50mm
- PC Pin termination
- 160gf, 220gf, or 320gf
- Optional Cap
- Silver or gold contact material
TL6215 Series
TL6215 Series Sealed, Illuminated, Through Hole Tactile Switch
- IP67 rated
- Through hole; vertical or right angle
- PC Pin termination
- LED illuminated
- Many cap styles and colors
- 200gf or 450gf operating force
- 50mA @ 12VDC
TL6275 Series
TL6275 Series Illuminated, Through Hole Tactile Switch
- Through hole
- 8.00mm x 8.00mm
- PC Pin termination
- LED illuminated
- Actuator height options
- Many cap styles and colors
- 350gf operating force
