Anti-vandal
Anti- vandal switches are designed for applications that are subjected to harsh use and attempts to damage them. Applications for anti-vandal switches (and tamper proof switches) include vending kiosks, public ticket dispensers, pedestrian cross walk signals, and security keypad panels in a gated community.

CS Series Illuminated, Touch Sensor Anti-vandal Switch
• 19mm or 22mm panel cutouts
• Latching or Momentary Function options
• Ring or Ring/Power Symbol lens options
• Illuminated color options: red, green, or blue
• Capacitive switching technology (Touch Sensor)

PMV6 Series Anti-Vandal Switch
- 16mm panel cutout
- UL3385 20AWG pre-stripped and tinned wire leads
- Multiple Cap Colors
- 10,000 Cycle Electrical Life
- Crisp tactile response
- IP67 rated

PV0 Series Sealed, Illuminated Anti-vandal Switch
- IP65 rated for protection against dust and moisture
- 12mm panel cutout
- Ring or dot illumination options
- Multiple LED color options

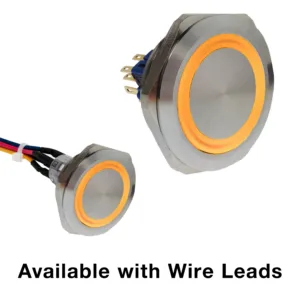

PV10 Series Anti-vandal Switch
• 40mm diameter panel cutout
• Dot or ring illumination options available
• Multiple switch functions available
• Multiple illumination voltage options
• IP65 rated
• SPDT or DPDT

PV1 Series Long Life, Water Resistant Anti-vandal Switch
• IP65 rating for protection against dust and moisture
• 19mm diameter panel cutout
• 1 pole Off-(On) with
• Solder and screw terminal options available

PV2 Series Sealed, Long Life Anti-vandal Switch
• IP65 rating for protection against dust and moisture
• 16mm diameter panel cutout
• 1 pole Off-(On) circuit
• Solder and screw terminal options available

PV3 Series Illuminated, Sealed, Long Life Anti-vandal Switch
• Non-sealed (IP40) and sealed (IP67) options
• 16mm diameter panel cutout
• Dot and ring illumination options available
• 1 or 2 poles; momentary functions

PV4 Series Illuminated, Long Life, Sealed Anti-vandal Switch
• IP65 rating
• 19mm diameter panel cutout
• Dot and ring illuminated; RGB LED illumination available
• 1 or 2 poles; maintained, momentary, and double break functions

PV5 Series Sealed, Long Life Anti-vandal Switch
• IP65 rated for protection against dust and moisture
• Solder lug or screw terminal options available
• 1 pole; momentary functions

PV6 Series Illuminated, Sealed, Long Life Anti-vandal Switch
• IP65 rating for protection against dust and moisture
• 16mm diameter panel cutout
• 1 pole; Off-(On) functionality
• Dot and ring illumination options available with RGB multicolor LED indicator light
• Solder lug or wire lead terminals

PV7 Series Anti-Vandal Switches
- 22mm diameter panel cutout
- Dot or ring lens options
- Multiple LED colors
- 1 pole double break function
- IP65 rated

PV8 Series Illuminated, Sealed Anti-vandal Switches
• 25mm diameter panel cutout
• Dot and ring illumination options available
• 1 or 2 poles maintained and momentary double break functions
• IP65 rated

PV9 Series Sealed Illuminated Anti-vandal Switch
- 28mm diameter panel cutout
- Dot or ring illumination options available
- Multiple switch functions available
- IP66 rated, SPDT or DPDT

PVA3 Series Anti-vandal Switch
• 16mm panel cutout
• Ring illumination option
• Multiple LED color options
• IP65 rated
• Momentary or Latching functions

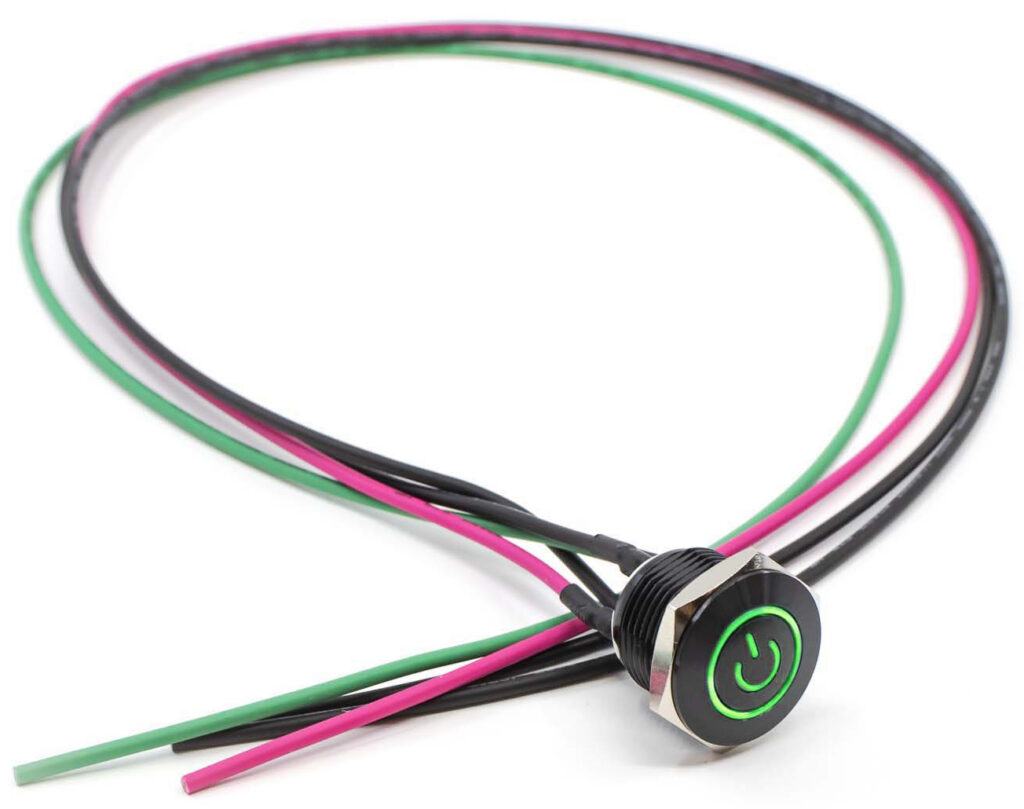

PVA6 Series Anti-vandal Switch
- 16mm diameter panel cutout
- Solder lug or wire leads (500mm long) termination
- Ring or power symbol illumination options
- IP67 rated, Off-(On), SPST
- Refer to Detail Specs for PVA6L - latching version

PVL Series Pilot Lamp Indicator
- Pilot lamp indicator
- IP67 rated
- Multiple panel cutout sizes ranging from 6mm to 19mm
- Mulitple illumination volt options
- Multiple LED color options
- 40,000 hours nominal lamp life
- 150mm long wire lead option

PVP Series Anti-vandal Switch Socket
- PVP3 both socket and wired socket are compatible with PV3 series switches featuring SPDT, DPDT, non-illuminated, or LED illuminated color options.
- PVP4 both socket and wired socket are compatible with PV4 series switches featuring SPDT, DPDT, non-illuminated, or LED illuminated color options.
- PVP7 both socket and wired socket are compatible with PV7 series switchs featuring DPDT, non-illuminated, or LED illuminated color options.
- PVP8 wired socket is compatible with PV8, PV9 and PV10 series switches featuring SPDT, DPDT, non-illuminated, or LED illuminated color options.
- Wire, 22 AWG AWM UL 1007
- Standard wire length 140.0mm [5.5 in]

PVS7 Series Anti-vandal Switch
- 22mm diameter panel cutout
- Wire leads available
- RGB LED option
- Ring illumination avaliable
- Multiple function options
- IP65 rated
- SPDT & DPDT
- Soldered wire leads (300mm long) optional

PVT4 Series Illuminated, Tactile Response Anti-vandal Switch
- 19mm panel cutout
- Solder lug or wire lead termination options
- Ring illumination
- LED color options
- Crisp tactile response
- IP65 rated

PZ Series Anti-vandal, Illuminated Piezo Switch
• Electrical life of 50 million cycles
• Ring illumination options
• RGB color options
• Bezel options

SAV4 Series Anti-Vandal Switch
- 19mm diameter panel cutout
- Dot, ring, power, or ring/power illumination options
- Multiple illumination voltage options
- Momentary and latching functions
- 15A high current rating

SAV7 Series Anti-Vandal Switch
- 22mm diameter panel cutout
- Ring or ring/power illumination options
- Multiple illumination voltage options
- Momentary and latching functions
- 15A high current rating

SAV8 Series Anti-Vandal Switch
- 25mm diameter panel cutout
- Ring or ring/power illumination options
- Multiple illumination voltage options
- Momentary and latching functions
- 15A high current rating

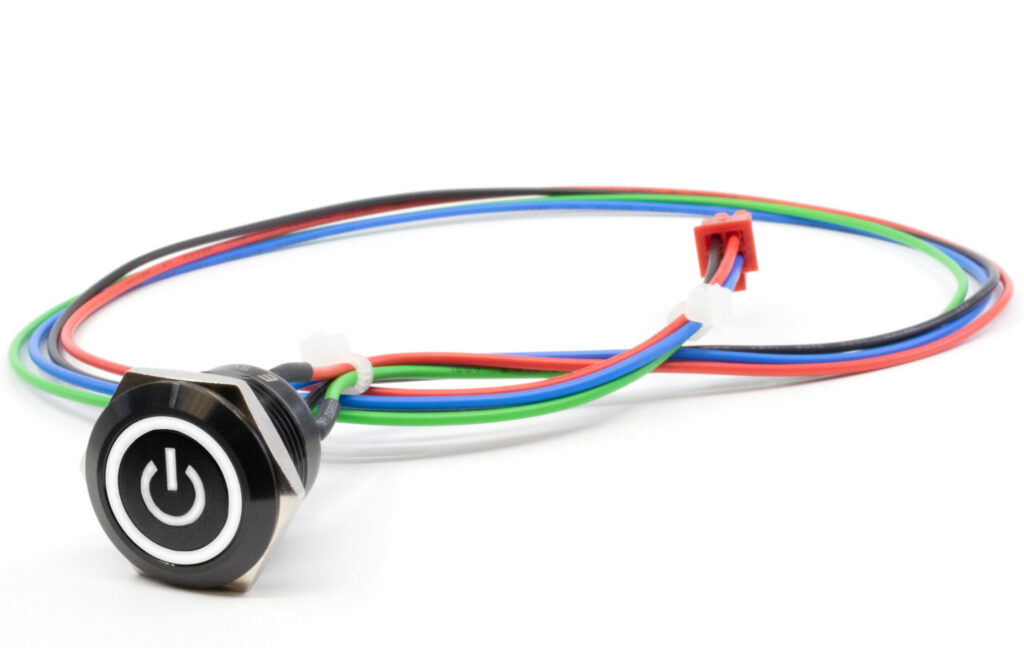

SV4 Series Anti-Vandal Switch
- Short body design
- 19mm diameter panel cutout
- Ring or Ring/Power Symbol combo illumination
- IP67
- SPST
- Optional soldered wire leads (500mm long)

SV7 Series Anti-Vandal Switch
- Short body design
- 22mm diameter panel cutout
- Ring or Ring/Power Symbol combo illumination
- IP67
- SPST
- Optional soldered wire leads (500mm long)

SV8 Series Anti-vandal Switch
- Short body design
- 25mm diameter panel cutout
- Multiple LED options
- Ring or Ring/Power Symbol combo illumination
- IP67
- SPST
- Optional soldered wire leads (500mm long)

ULV4 Series Anti-vandal Switch UL Certified
• Dot, ring or power symbol illuminated
• IP67 rated, UL certified
• Long life; latching or momentary
• Three wire lead options available:
- 300mm long wire leads
- Detachable socket with wire leads 500mm long
- Molded Back with wire leads 500mm long

ULV7 Series Anti-Vandal Switch
• Ring illuminated, 22mm panel cutout
• IP67 rated, UL Certified
• Long life; latching or momentary
• SPDT or DPDT with multiple functions
• Three wire lead options available:
• 300m long wire leads
• Detachable socket with wire leads 500mm long
• Molded Back with wire leads 500mm long

ULV8 Series UL Certified Sealed Anti-vandal Switch
• Ring illuminated, 25mm panel cutout
• IP67 rated, UL Certified
• Long life; latching or momentary
• SPDT or DPDT with multiple functions
• Three wire lead options available:
- Wire Leads 300mm long
- Detachable Socket with wire leads 500mm long
- Molded Back with wire leads 500mm long
