E-Switch offers many different SMT (surface mount) switches for your applications.

200B Series Subminiature, Sealed Toggle Switch

• IP67 sealed for protection from dust and moisture
• 0.4VA, 20V max. (AC or DC) electrical rating
• Surface mount design
• 1 pole, momentary and maintained (latching) functions

200R Series Miniature Toggle Switch

• Multiple termination and mounting options
• Single or double pole
• Available in both 2 or 3 position circuits
• Miniature in size


400B Series Subminiature, Sealed Rocker Switch

• IP67 sealed against dust and moisture
• 3A ,120VAC electrical rating, or 1A, 250VAC
• Surface mount design
• 1 pole; momentary and maintained (latching) functions

500A Series Subminiature Slide Switch

• 1 pole circuits with up to 3 actuator positions for maintained (latching) functions
• Surface mount, PCB mount, or PCB right angle designs
• Vertical and horizontal actuation options

600 Series Miniature Slide Switch

• 1 or 2 poles with up to 3 actuator positions
• PC board mount design with surface mountable option
• Vertical and horizontal actuation options

800B Series Sealed, Subminiature SMT Pushbutton Switches

• 0.4VA Max
• Surface mount design
• 1 pole, either in single or double throw options
• Tape and reel packaging available

900 Series Subminiature, Right Angle Detector Switch

• Surface mount detector switch
• 100mA, 50VDC electrical rating
• Right angle actuation
• Low operating force

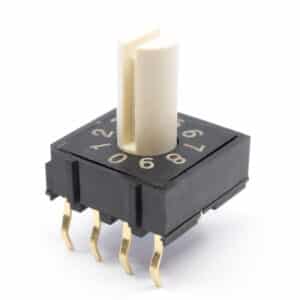

DR Series Rotary DIP Switch

• Life expectancy of 15,000 steps
• 3x2, 3x3, and 4x1 PCB pin layouts
• Through hole, through hole snap-in, right angle, and surface mount designs
• Tube or tape and reel packaging

EG1215 Series Slide Switch

  • Surface mount, PC board design
  • 1.50mm travel
  • Compact design
  • 150 gram force
  • SPDT function

EG1315 Series Slide Switch

  • Surface mount PC board design
  • 1.50mm travel
  • Compact design
  • 150-200 gram force
  • SP3T function

EGL2290 Series Illuminated Slide Switch

  • LED illumination
  • SMT design
  • DPDT circuit; 2 position actuator
  • Compact design

EG Series Subminiature Slide Switch

• Up to 6 poles available and up to 6 actuator positions
• Panel and PC board mounting designs
• Vertical and horizontal actuation options

JS1300 Series 5-position Navigation Switch

• 5-position navigation switch
• Long life expectancy of up to 200,000 cycles
• 9.8mm x 9.8mm base; low profile, 1.55mm height
• Surface mount design

JS1400 Series 5-position, Joystick Navigation Switch

• 5-position, joystick navigation switch
• 7.4mm x 7.7mm with 3 different actuator height options
• Long mechanical life expectancy of 100,000 cycles
• Surface mount design

JS5208 Series 5-position, Joystick Navigation Switch

• 5-position navigation switch
• 12.4mm x 12.4mm base; 12.2mm tall
• Long life expectancy of up to 100,000 cycles
• Surface mount design

KAC Series Low Profile, Piano DIP Switch

  • Replaced KAR series, 2012
  • Through hole and surface mount DIP switch
  • 2, 4, 6, 8, or 10 actuator positions
  • Tube or tape and reel packaging options

KAE Series Low Profile DIP Switch

  • Replaced KAJ series, 2012
  • KAJ replaced KAW series, 2006
  • 1 to 12 actuator positions; both PCB pin and SMT termination options
  • Top tape seal optional; tube or tape and reel packaging

KAN Series Half Pitch, Low Profile DIP Switches

• Replaced KAD series, 2006
• Half pitch, low profile DIP switch for surface mounting
• 2, 4, 6, 8 or 10 actuator positions; top tape seal optional
• Tube or tape and reel packaging

LP37 Series Illuminated, Right Angle Pushbutton Switch

• 10mA 20mVDC to 250mA 50VDC
• Right angle surface mount design
• Multiple LED illumination options
• SPDT momentary function

RDM Series Ultra Slim, Sealed Rotary DIP Switch

• Offers IP67 ingress protection from dust and moisture
• 10 or 16 positions
• Right angle or vertical mount
• Ultra slim size

RDT Series Sealed Rotary DIP Switch

• Offers IP67 protection from dust and moisture
• 4, 6, 8, 10 or 16 positions
• Right angle or vertical mount
• SMT or through hole mounting options

TD1146 Series SMT Ultraminiature Detector Switch

• Surface mount detector switch
• Ultraminiature 4.8mm x 3.5mm footprint
• Very low profile

TD1150 Series Detector Switch

  • IP67 Ingress Protection
  • Compact Size
  • Through-hole, PCB mounted

TD4700 Series Ultraminiature Detector Switch

• Long life expectancy of 100,000 cycles
• Ultraminiature
• Very low profile

TL1014 Series Subminiature, Right Angle Tactile Switch

• Long life expectancy of up to 200,000 cycles
• 160 or 220 gram force options
• Right angle, surface mount design
• Silver plated contacts

TL1016 Series Micro-Miniature Right Angle SMT Tact Switch

  • 3.55 x 3.5mm tactile switch
  • 160 or 220 gram force options
  • Right angle surface mount design
  • Up to 100,000 cycle life expectancy
  • Ground terminal option

TL2233 Series Subminiature Pushbutton Switch

• DPDT, momentary contact push button
• Wave solderable
• Surface mount design
• Long electrical life

TL3145 Series Long Life, SMT Tactile Switch

  • Long life expectancy up to 3,000,000 cycles
  • Tactile tape and reel packaging
  • IP67 ratings
  • Multiple operating force options

TL3200 Series SMT, Dual LED Illuminated Tactile Switch

• 6.8mm x 4.5mm tactile switch
• 160 +75/-30 gram force
• Single or dual illumination options
• Surface mount design

TL3210 Series Miniature, LED Illuminated Tact Switch

• 5.6mm x 3.4mm tactile switch
• 160 ± 50 gram force options
•  Illuminated SMT
• Tape & reel packaging

TL3215 Series Ultraminiature SMT, LED Illuminated Tactile Switch

• 50mA 12VDC rating
• Multiple LED colors
• Long life of 1 million cycles
• SMT, low profile, ultra miniature

TL3240 Series LED Illuminated, SMT Tactile Switch

• 6mm x 7.8mm tactile switch
• 100gf, 160gf, and 260gf options
• Surface mount design
• Tactile tape and reel packaging

TL3265 Series LED Illuminated, SMT Tactile Switch

• 500,000 cycle life expectancy
• Multiple cap options
• Surface mount design
• Illumination options

TL3300 Series SMT Tactile Switch

• 12mm x 12mm tactile switch
• 160, 260, 320, 520 gram force options
• Surface mount design
• Multiple actuator options

TL3301 Series SMT Tactile Switch

• 6mm x 6mm tactile switch
• 100, 160, and 260 gram force options
• Surface mount design
• Silver or gold plated contacts

TL3302 Series 3.5mm x 6mm SMT Tactile Switch

• 3.5mm x 6mm tactile switch
• 130 ± 50; 180 ± 50; 260 ± 50 gram force options
• Surface mount design
• Silver plated contacts

TL3303 Series SMT Tactile Switch

• 6mm x 6mm tactile switch
• 100 ± 50; 160 ± 50; 260 ± 50 gram force options
• Surface mount design
• Silver plated contacts

TL3305 Series Ultraminiature, SMT Tactile Switch

  • Ultraminiature, 4.5 x 4.5mm
  • Multiple actuator options
  • Surface mount
  • Multiple operating force options

TL3312 Series Miniature, Low Profile, SMT Tactile Switch

  • Ultraminiature, 3.7mm x 3.7mm in size
  • Surface mount termination
  • Very low profile of 0.35mm

TL3313 Series Subminiature, SMT Tactile Switch

• 4.8mm x 4.8mm tactile switch
• 100 ± 50; 160 ± 50; 250 ± 50 gram force options
• Surface mount design
• Silver plated contacts

TL3315 Series Ultra Low Profile, SMT Tactile Switch

• 4.5mm x 4.5mm tactile switch
• Ultra low profile with 0.55mm height
• 100 ± 30; 160 ± 50; 250 ± 50 gram force options
• Surface mount design

TL3330 Series SMT, Right Angle Tactile Switch

• 6.9mm x 3.3mm tactile switch
• 100 ± 40; 200 ± 50 gram force options
• Right angle surface mount design
• Silver plated contacts

TL3336 Series Sealed, Right Angle SMT Tactile Switch

  • 100,000 cycle life expectancy
  • Tactile tape and reel packaging
  • IP67 rating for dust and moisture protection
  • Right angle, surface mount design

TL3340 Series Right Angle SMT, Subminiature Tactile Switch

• 4.25mm x 3.3mm tactile switch
• 160 ± 50gf and 130gf ± 30gf options
• Right angle surface mount design
• Silver plated contacts

TL3342 Series Low Profile, SMT Tactile Switch

• 5.2mm x 5.2mm tactile switch
• Ultra low profile with 1.50mm height
• 160 ± 50; 250 ± 50 gram force options
• Surface mount design

TL3360 Series Right Angle, SMT Tactile Switch

• Right angle surface mount
• 185 or 260 gram operating force
• Multiple actuation options
• SPST

TL3365 Series Ultraminiature, SMT Tactile Switch

  • Ultraminiature size: 3.2mm x 4.2mm
  • Surface mount
  • 100,000 electrical / mechanical life
  • SPST, 180gf, 250gf, or 400gf

TL3701 Series Ultraminiature Micro Tactile SMT Switch

• 3.0mm x 2.6mm x 0.65mm tactile switch
• Up to 100,000 cycles life expectancy
• 100gf and 160gf options
• Surface mount design

TL3780 Series Ultraminiature, Low Profile SMT Tactile Switch

• Ultraminiature 2.0mm x 3.0mm size
• Surface mount termination
• Very low profile of 0.60mm
• Multiple operating forces

TL3901 Series Subminiature Right Angle, Edge Mounted SMT Tactile Switch

• 4.3mm x 6.10mm tactile switch
• 180 ± 50 gram force
• Right angle surface mount design
• Silver plated contacts

TL4100 Series Miniature, Right Angle Edge Tactile Switch

• 1,000,000 cycle life expectancy
• 120 and 240 gram force options
• Unique pcb edge-mounting design

TL4105 Series Right Angle Edge, Ultraminiature Tactile Switch

• 200,000 cycle life expectancy
• 160 gram force option
• Unique PCB, edge-mounting design

TL4110 Series Low Profile, SMT Tactile Switch

• Surface Mount Switch
• Long Cycle Life of 300,000 Cycles
• Extremely Small Surface profile of 2.0mm x 2.8mm
• Switch Mounts along the edge of the PCB for Right Angle Actuation

TL4115 Series Right Angle Edge, SMT Tactile Switch

  • 600,000 cycle life expectancy
  • Tactile tape and reel packaging
  • Low travel
  • Right angle edge, surface mount design

TL6120 Series Process Sealed, SMT Tactile Switch

• Process sealed tactile switch
• 130, 160, 300, and 500 gram force options
• Surface mount design
• Long life of up to a million cycles

TL6150 Series Sealed, Long Life Tactile Switch

  • Up to 5,000,000 cycle life expectancy
  • Tactile tape and reel packaging
  • IP67 rating for dust and moisture protection
  • Multiple force options

TL6155 Series Right Angle, Sealed SMT Tactile Switch

  • Life expectancy of up to 300,000 cycles
  • Tactile tape and reel packaging
  • IP67 rating for dust and moisture protection
  • Right angle, surface mount design

TL6170 Series Mid-sized, Sealed Tactile Switch with Tall Actuator

• Up to 300,000 cycle life expectancy
• Tactile tape and Reel packaging
• IP67 rating
• Surface mount design
• Actuation force options and two tall actuator options

TL6210 Series Miniature, Sealed, Illuminated Tactile Switch

  • Surface mount termination
  • IP67 rating for dust and moisture protection
  • Multiple LED color options
  • Small package size

TL6275 Series Subminiature, LED Illuminated Tactile Switch

  • PCB Mount
  • Illumination options
  • Multiple cap/lens options
  • 100,000 cycle life expectancy
  • Capable to withstand a typical water wash

TL6330 Series High-Temperature, SMT Tactile Switch

• IP67 rating for dust and moisture protection
• Surface mount, PC board design
• Long life up to 200,000 cycles
• Small package size of 2.80mm x 4.60mm, with two actuator height options
• 200gf, 300gf, 400gf options

TL6400 Series Sealed Tactile Switch

  • IP67 rating for dust and moisture protection
  • 3.5mm x 6mm tactile switch
  • 160 ± 50; 260 ± 70 gram force options
  • 4.3mm; 5.0mm actuator height options
  • Surface mount design

TL6700 Series Sealed SMT Tactile Switch

• 6.9mm x 6.2mm tactile switch
• 160 ± 50; 260 ± 50 gram force options
• Surface mount design
• Process sealed

TL6800 Series Sealed, SMT Tactile Switch

  • IP67 rated
  • 6.3mm x 6.2mm tactile switch
  • Long life expectancy of up to 1,000,000 cycles
  • 160 ± 50; 260 ± 50 gram force options
  • surface mount design

TL9100 Series Soft Touch, SMT J-Bend Tactile Switch

• Single pole, single throw (SPST)
• Multiple actuation forces
• “Soft Touch” tactile switch
• Surface mount device

TL9210 Series Long Travel, SMT J-bend Tactile Switch

  • Surface mount termination
  • Multiple operating force options
  • Long travel and quiet tactile feel
  • Low contact resistance

TL9320 Series Sealed Tactile Switch

  • IP67 rated for dust and moisture protection
  • SPST contact arrangement
  • 8.4mm (W) x 8.4mm (L) x 3.95mm (H) dimensions
  • Long life expectancy up to 500,000 cycles

TS2 Series Surface Mount, Snap Action Switch

• 3,000,000 cycle life
• 100mA, 125VAC or 48VDC electrical rating
• Subminiature size
• Surface mount design
