Rotary

A rotary switch consists of a rotor that has a contact arm or spoke which projects from its surface like a cam. It has an array of terminals, arranged in a circle around the rotor, each of which serves as a contact for the "spoke" through which any one of a number of different electrical circuits can be connected to the rotor. The switch is layered to allow the use of multiple poles, each layer is equivalent to one pole.

Small 4rh series

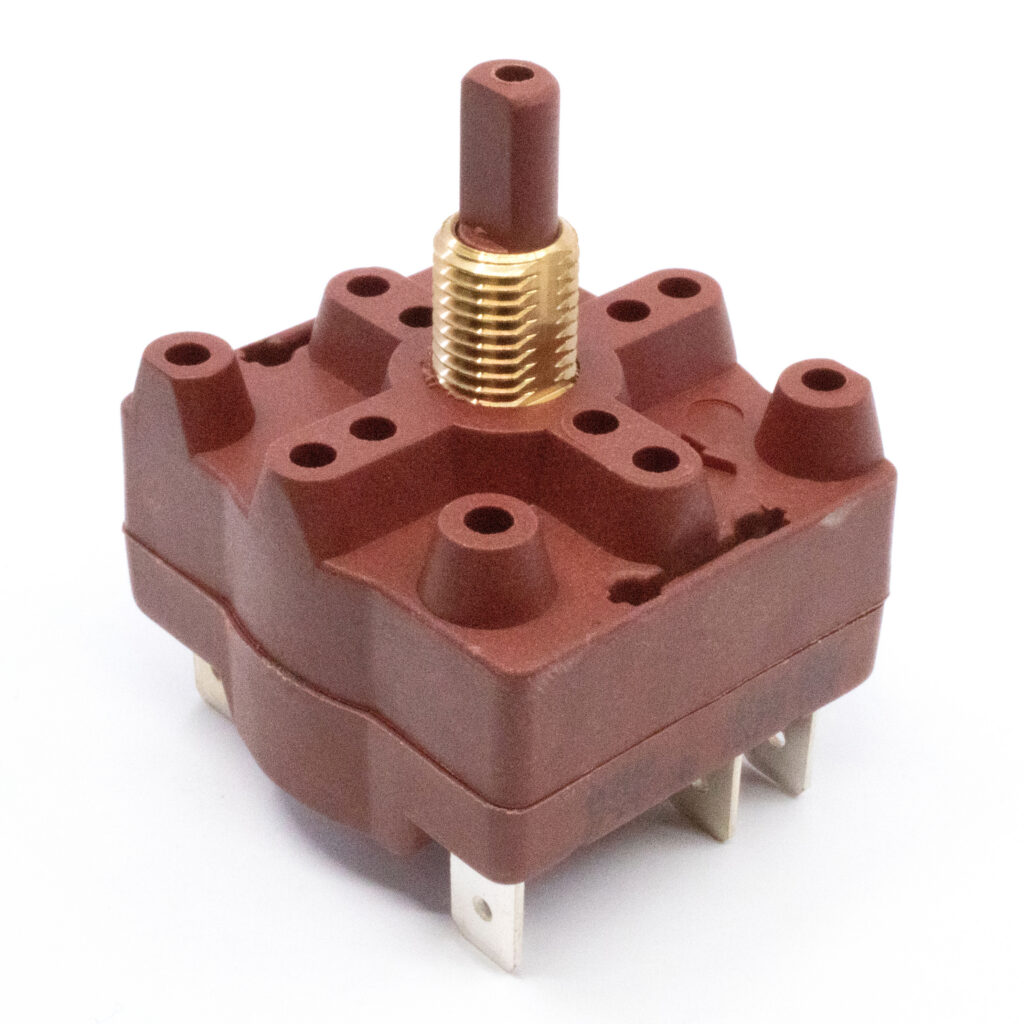

4RH Series High Current Capacity Rotary Switches

• Up to 25A 250VAC with 2HP rating
• Up to 12 circuits
• Housing made of rugged glass reinforced nylon

Small kc series

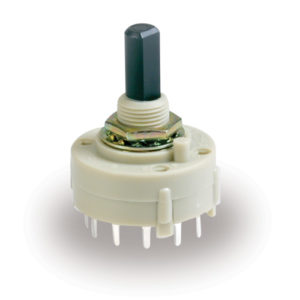

KC Series Rotary Switches

• 350mA 125VAC rating
• Up to 12 positions
• No stop option

Small kc1901 series

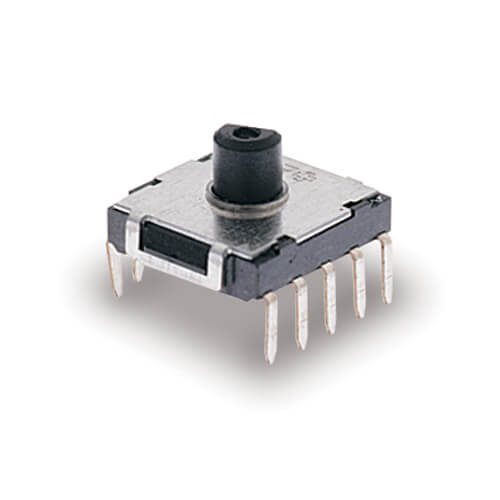

KC1901 Series Rotary Switches

• 100mA 16VDC rating
• Up to 9 positions
• Through hole mount design

Small x02

X02 Series Rugged Rotary Switches

• 10A 125VAC with 1/4HP rating
• Up to 4 circuits
• Housing made of rugged glass reinforced nylon
