400A Series
400A Series Sealed, Subminiature Rocker Switch
- Panel mount or through hole; IP67
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT or DPDT; latching or mom.
- Straight, rt. angle, or rt. angle vert.
- PC Pin or Solder termination
- Actuator color options
300A Series
300A Series Sealed, Miniature Rocker Switch
- Panel mount or through hole; IP67
- Silver – 5A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT or DPDT; latching or mom.
- Straight, rt. angle, or rt. angle vert.
- PC Pin, solder, or quick-connect
- Rocker or paddle actuator style
RP8600 Series
RP8600 Series Square Pushbutton Switch
- 16mm diameter panel cutout
- 0.4VA, 20V max. (AC or DC); IP67
- SPST Off-(On)
- Solder termination
- Square bezel; round button flush
- Threaded bushing: M16 x 1.0
- Gold over silver contact material
PP2 Series
PP2 Series Push-Pull Pushbutton Detector Switch
- 36.5mm x 13.5mm panel cutout
- Up to 16A or 1HP, UL; IP40 rated
- Panel mount snap-in
- DPDT; push-pull or momentary
- Pin plunger, or push-pull plunger
- Quick connect termination options
- Black or white body and actuator
D16 Series
D16 Series Illuminated Pushbutton Switch
- 16mm diameter panel cutout
- Up to 8A, 125VAC; UL
- Modular interface/contact block
- 1 – 4 pole; latching or momentary
- Solder termination
- Circular, square, or rectangle head
- LED, neon, or incandescent lamp
800C Series
800C Series Alternating Action, Miniature Pushbutton Switch
- Panel mount or through hole
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT On- On
- Solder or PC pin
- Straight, rt. angle, or rt. angle vert.
- Alternating action design
700C Series
700C Series Alternate Action, Miniature Pushbutton Switch
- Panel mount or through hole
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT On-On
- Solder or PC pin; bracket option
- Straight, rt. angle, or rt. angle vert.
- Push-on, push-off alternate action
700 Series
700 Series Snap-Acting, Panel Mount Pushbutton Switch
- Panel mount
- Up to 3A, 120VAC or 28VDC; UL
- SPDT or DPDT; On-(On)
- Solder or quick-connect
- Bezel option; cap color options
- Silver or gold contact material
- Snap acting contact design
700 Series
700 Series Snap-Acting Pushbutton Switch
- Panel mount or through hole
- Up to 3A, 120VAC or 28VDC; UL
- SPDT or DPDT; On-(On)
- Variety of termination options
- Cap style and color options
- Threaded or nonthreaded bushing
- Snap acting contact design
KO Series
KO Series Keylock Switch
- 12mm or 19mm panel cutout
- Up to 4A, 125VAC available
- Variety of size & package options
- Variety of key types & pull options
- Variety of key code options
- Variety of termination options
- Angle of throw & position options

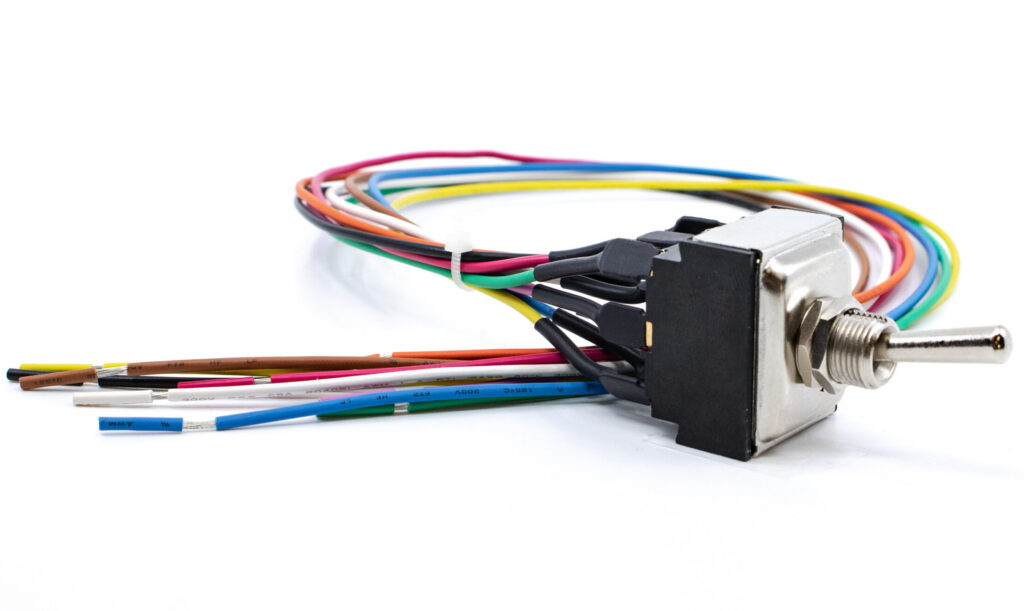

ST3 Series
ST3 Series High Current, Power Toggle Switch
- 12mm diameter panel cutout
- Up to 24A, 125VAC, UL
- 3 pole; latching
- Solder, QC-tabs, screw, or wires
- Standard metal bat actuator
- M12 x 1.0 bushing
- 0°C to 85°C operating temp
TL1240 Series
TL1240 Series Illuminated, Through Hole Tactile Switch
- Through hole
- 6.00mm x 6.00mm
- PC Pin termination
- LED illuminated options
- Several cap styles and colors
- 160gf operating force
- 50mA @ 12VDC
RBW2 Series
RBW2 Series Sealed, Illuminated, Power Rocker Switch
- 30mm 22mm panel cutout
- Up to 16A, 125VAC; UL; IP66
- DPST or DPDT; latching
- Quick connect, or wire leads
- Housing and actuator color options
- LED illumination options
- Actuator marking options
PV4 Series
PV4 Series Illuminated Anti-Vandal Switch
- 19mm panel cutout
- 2A, 24VDC; IP67 rated*
- SPDT, DPDT, or DPDT-NO/NC
- High, or flat actuator
- Solder, screw, or wire leads
- LED ring, dot, or power symbol
- Stainless steel or black anodized
PV2 Series
PV2 Series Long Life Anti-Vandal Switch
- 16mm panel cutout
- 2A, 48VDC; IP65 rated
- SPST Off-(On)
- Domed, high, or flat actuator
- Solder, screw, or wire leads
- Non-illuminated
- Gold, nickel, stainless, or black
CS Series
CS Series Illuminated, Touch Sensor Anti-Vandal Switch
- 19mm or 22mm panel cutout
- 1A, 24VDC; IP68 rated
- SPST; latching or momentary
- Touch sensor, capacitive switch
- Wire leads with connector
- LED ring, or ring/power symbol
- Aluminum, clear anodized finish
