Transportation

PV16 Series

PV16 Series Illuminated Anti-Vandal Switch

• 16mm panel cutout
• 2A, 24VDC / 5A, 220VAC;  IP67
• SPDT or DPDT
• High or flat actuator
• Solder, wire leads, or w/ connector
• LED ring, dot, or ring/power symbol
• Stainless steel or black anodized

View Series

RA2 Series

RA2 Series Dual Power Rocker Switch with PVC Cap

• 22mm x 19.2mm panel cutout
• Dual rocker switch
• Up to 16A, 250VAC; UL
• SPST or SPDT; latching or mom.
• Quick-connect, solder, or wires
• Actuator marking options
• IP54 with PVC cap:  ACC-P02

View Series

R1966 Series

R1966 Series Illuminated, Power Rocker Switch

• 19.2mm x 13mm panel cutout
• 15A, 125VAC; UL
• SPST or SPDT; latching or mom.
• QC-tabs, solder, PC pin, or wires
• Housing and actuator color options
• LED illumination options
• Actuator marking options

View Series

P16 Series

P16 Series Illuminated Pushbutton Switch

• 16mm panel cutout
• Up to 8A, 125VAC; UL
• Modular interface/contact block
• SPDT; latching or momentary
• Quick connect socket termination
• Circular, square, or rectangle head
• LED, neon, or incandescent lamp

View Series

LA Series

LA Series Sealed, Illuminated Pushbutton Switch

• Three panel cutout options
• Up to 8A, 125VAC; UL;  IP65
• 1 – 4 pole; latching or momentary
• Pilot lamp indicator option
• Modular interface/contact block
• Actuator head style options
• LED, neon, or incandescent lamp

View Series

D16 Series

D16 Series Illuminated Pushbutton Switch

• 16mm panel cutout
• Up to 8A, 125VAC; UL
• Modular interface/contact block
• 1 – 4 pole; latching or momentary
• Solder termination
• Circular, square, or rectangle head
• LED, neon, or incandescent lamp

View Series

JS5208 Series

JS5208 Series 5-Position, Joystick Navigation Switch

• SMT
• 20mA, 15VDC
• 4-way directional, center select
• Plunger for cap actuator
• Center: 500gf, Tilt: 280gf
• 12.4mm x 12.4mm body
• 12.2mm actuator height

View Series

JS1400 Series

JS1400 Series 5-Position, Joystick Navigation Switch

• SMT
• 50mA, 12VDC
• 4-way directional, center select
• Plunger for cap actuator
• Center: 360gf, Tilt: 160gf
• 7.4mm x 7.7mm body
• Four actuator height options

View Series

JS1300 Series

JS1300 Series 5-Position Navigation Switch

• SMT
• 50mA, 12VDC
• 4-way directional, center select
• Tactile (5 Button) actuator
• Center: 320gf, Tilt: 180gf
• 9.8mm x 9.8mm body
• 1.55mm actuator height

View Series

KO Series

KO Series Keylock Switch

• 12mm or 19mm panel cutout
• Up to 4A, 125VAC available
• Variety of size & package options
• Variety of key types & pull options
• Variety of key code options
• Variety of termination options
• Angle of throw & position options

View Series

ST5 Series

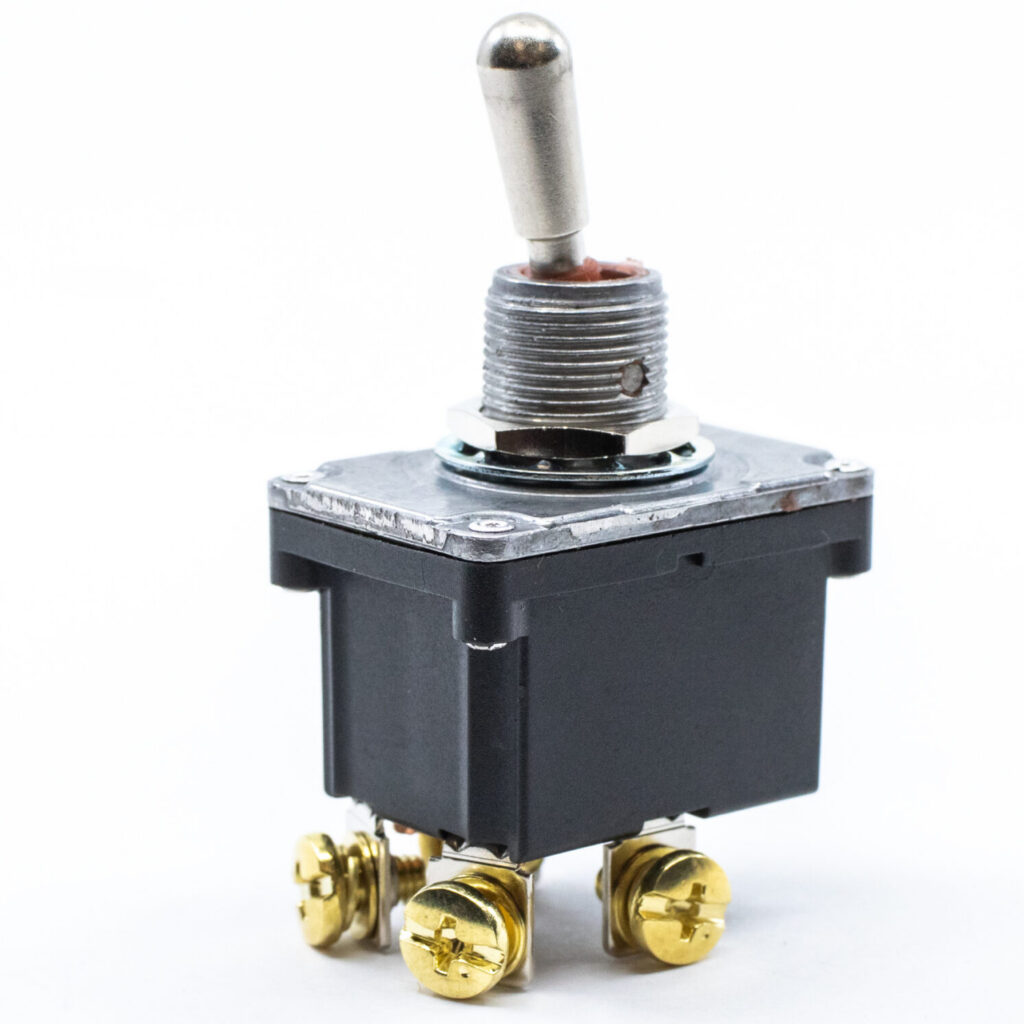

ST5 Series High Current, High Temperature, Power Toggle Switch

• 12mm diameter panel cutout;  IP40
• Up to 20A, 125VAC/30VDC, UL
• 1 or 2 pole; latching or momentary
• Solder, QC-tabs, screw, or wires
• Standard metal bat, or plastic bat
• 15/32-32 bushing
• -10°C to 125°C operating temp

View Series

ST4 Series

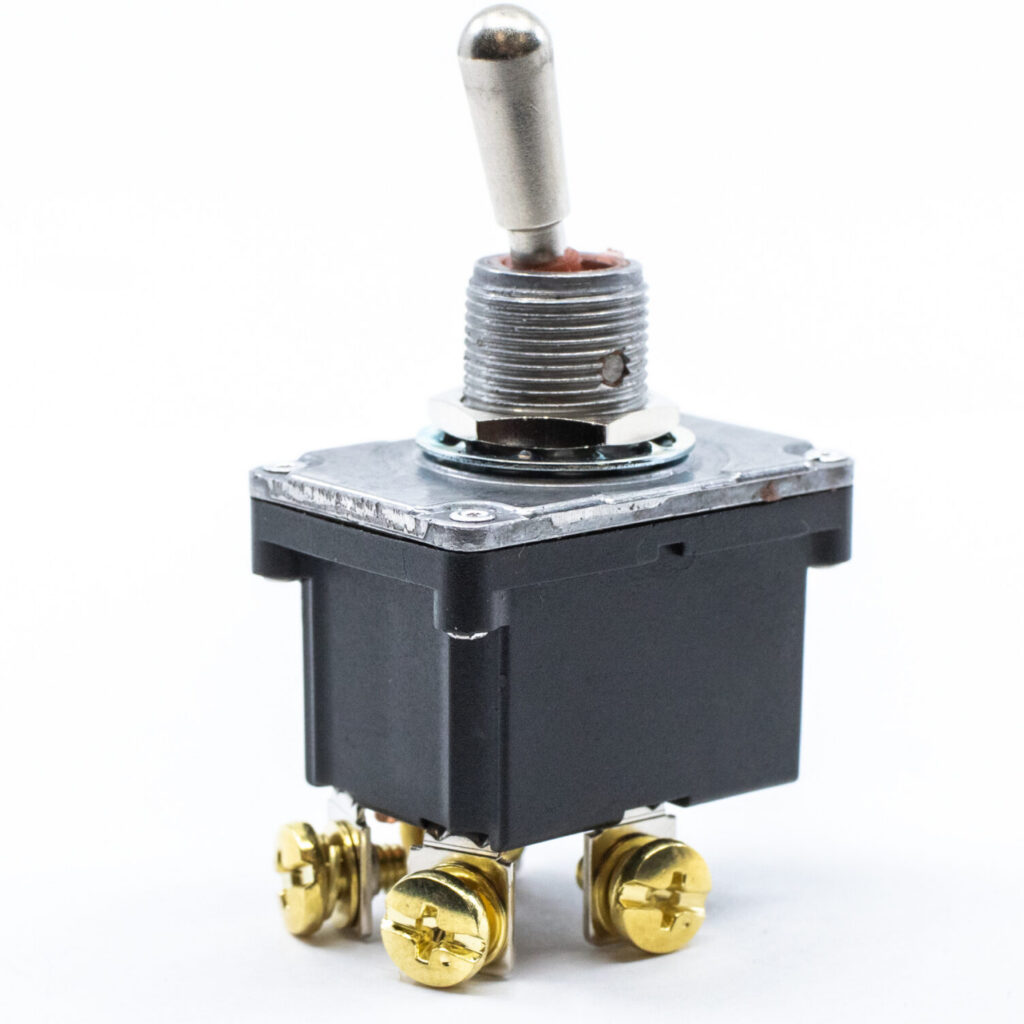

ST4 Series High Current, Sealed, Power Toggle Switch

• 12mm diameter panel cutout;  IP68
• Up to 20A, 125VAC/30VDC, UL
• 1 or 2 pole; latching or momentary
• Solder, QC-tabs, screw, or wires
• Standard metal bat, or plastic bat
• 15/32-32 bushing
• -10°C to 55°C operating temp

View Series

600 Series

600 Series Miniature, Through Hole Slide Switch

• Thru hole, or thru hole rt angle
• Gold- 0.4VA, 20V max. (AC or DC)
• Silver- 3A, 120VAC; 1A, 250VAC; UL
• SPDT or DPDT; 2 or 3 positions
• Vertical or right angle actuation
• Recessed or raised actuator
• Epoxy sealed terminals

View Series

WB2 Series

WB2 Series Sealed, Power Rocker Switch

• 30mm x 22mm panel cutout
• Up to 20A, 125/250VAC; UL; IP55
• DPST or DPDT; latching or mom.
• Quick connect, or wire leads
• Housing and actuator color options
• Actuator marking options
• Non-illuminated

View Series

RVW Series

RVW Series Sealed, Power Rocker Switch

• 36.8mm x 21mm panel cutout
• Up to 20A, 125VAC; UL; IP54
• 1 or 2 pole; latching or mom.
• QC-tabs, solder, screw, or wires
• Housing and actuator color options
• Actuator marking options
• Matte or Glossy finish

View Series

RRG3 Series

RRG3 Series Round, Power Rocker Switch

• 20mm diameter panel cutout
• Up to 16A, 125VAC; UL
• SPST or SPDT; latching or mom.
• Quick connect, solder, or wires
• Housing and actuator color options
• Non-illuminated, glossy finish
• Actuator marking options

View Series

RE1 Series

RE1 Series Oval, Illuminated, Power Rocker Switch

• 23.3mm x 13.5mm Oval cutout
• Up to 16A, 125VAC; UL
• SPST or SPDT; latching
• Quick connect, or wire leads
• Housing and actuator color options
• LED illumination options
• Actuator marking options

View Series

RD1 Series

RD1 Series Compact, Power Rocker Switch

• 19.2mm x 6.8mm panel cutout
• Up to 16A, 125VAC; UL
• SPST Off-On
• Quick connect, or wire leads
• Housing and actuator color options
• Non-illuminated
• Actuator marking options

View Series

RB5 Series

RB5 Series Sealed, Illuminated, Power Rocker Switch

• 30.2mm x 22mm panel cutout
• IP67 rated
• Up to 25A, 125VAC; UL
• DPST or DPDT; latching or mom.
• Quick connect, or wire leads
• LED illumination options
• Actuator marking options

View Series

RB3 Series

RB3 Series Sealed, Illuminated, Power Rocker Switch

• 30.2mm x 13.8mm panel cutout
• IP67 rated
• Up to 25A, 125VAC; UL
• SPST or SPDT; latching or mom.
• Quick connect, or wire leads
• LED illumination options
• Actuator marking options

View Series

RA8 Series

RA8 Series Illuminated, Power Rocker Switch with PVC Cap

• 19.2mm x 13mm panel cutout
• Up to 16A, 125VAC; UL
• SPST or DPST; Off-On
• Quick connect, PC pin, or wires
• LED illumination options
• Actuator marking options
• IP54 with PVC cap:  ACC-P01

View Series

RA4 Series

RA4 Series Illuminated, Power Rocker Switch with PVC Cap

• 22mm x 19.2mm panel cutout
• Up to 16A, 125VAC; UL
• 1 or 2 pole; latching or mom.
• Quick connect, PC pin, or wires
• LED illumination options
• Actuator marking options
• IP54 with PVC cap:  ACC-P02

View Series

RA1 Series

RA1 Series Illuminated, Power Rocker Switch with PVC Cap

• 19.2mm x 13mm panel cutout
• Up to 16A, 125VAC; UL
• SPST or SPDT; latching or mom.
• QC-tabs, solder, PC pin, or wires
• LED illumination options
• Actuator marking options
• IP54 with PVC cap:  ACC-P01

View Series

R7 Series

R7 Series Sealed, Illuminated, Power Rocker Switch

• 37mm x 21.2mm panel cutout
• Up to 20A, 125VAC; UL; IP67
• 1 or 2 pole; latching or mom.
• QC-tabs, solder, screw, or wires
• Many actuator style options
• LED illumination options
• Custom actuator marking avail.

View Series

ULV8 Series

ULV8 Series UL Certified, Illuminated Anti-Vandal Switch

• 25mm panel cutout
• 3A, 125/250VAC, UL;  IP67 rated
• SPDT or DPDT; latching or mom.
• Flat actuator
• Solder, wire leads, or socket
• LED ring, ring/power, or graphic
• Stainless steel or black anodized

View Series

ULV7 Series

ULV7 Series UL Certified, Illuminated Anti-Vandal Switch

• 22mm panel cutout
• 3A, 125/250VAC, UL;  IP67 rated
• SPDT or DPDT; latching or mom.
• Flat actuator
• Solder, wire leads, or socket
• LED ring, ring/power, or graphic
• Stainless steel or black anodized

View Series

ULV4 Series

ULV4 Series UL Certified, Illuminated Anti-Vandal Switch

• 19mm panel cutout
• 3A, 125/250VAC, UL;  IP67 rated
• SPDT or DPDT; latching or mom.
• Flat, high, or domed actuator
• Solder, wire leads, or socket
• LED dot, ring, power, or graphic
• Nickel, stainless steel, or black

View Series

PVK4 Series

PVK4 Series Illuminated Anti-Vandal Switch

• 19mm panel cutout
• 2A, 24VDC;  IP65 or IP40 rated
• 1 or 2 poles; 2 or 3 positions
• Keylock or selector actuator
• Solder or wire leads
• Stainless steel finish
• LED illumination options

View Series

PVHC7 Series

PVHC7 Series Illuminated, High Current Anti-Vandal Switch

• 22mm panel cutout
• 20A, 250VAC, UL;  IP67 rated
• SPST; latching or momentary
• Flat actuator
• Solder or wire leads 300mm
• LED ring or ring/power symbol
• Stainless steel or black anodized

View Series

PVHC4 Series

PVHC4 Series Illuminated, High Current Anti-Vandal Switch

• 19mm panel cutout
• 20A, 250VAC, UL;  IP67 rated
• SPST; latching or momentary
• Flat actuator
• Solder or wire leads 300mm
• LED ring or ring/power symbol
• Stainless steel or black anodized

View Series

PV6 Series

PV6 Series Illuminated Anti-Vandal Switch

• 16mm panel cutout
• 2A, 48VDC;  IP65 rated
• SPST Off-(On) or Pilot Indicator
• High or flat actuator
• Solder or wire leads 300mm
• LED ring, dot, or power symbol
• Stainless steel, nickel or black

View Series

PV4 Series

PV4 Series Illuminated Anti-Vandal Switch

• 19mm panel cutout
• 2A, 24VDC;  IP67 rated*
• SPDT, DPDT, or DPDT-NO/NC
• High, or flat actuator
• Solder, screw, or wire leads
• LED ring, dot, or power symbol
• Stainless steel or black anodized

View Series

CS Series

CS Series Illuminated, Touch Sensor Anti-Vandal Switch

• 19mm or 22mm panel cutout
• 1A, 5-24VDC;  IP68 rated
• SPST; latching or momentary
• Touch sensor, capacitive switch
• Wire leads with connector
• LED ring, or ring/power symbol
• Aluminum, clear anodized finish

View Series
