Construction

PVB7 Series

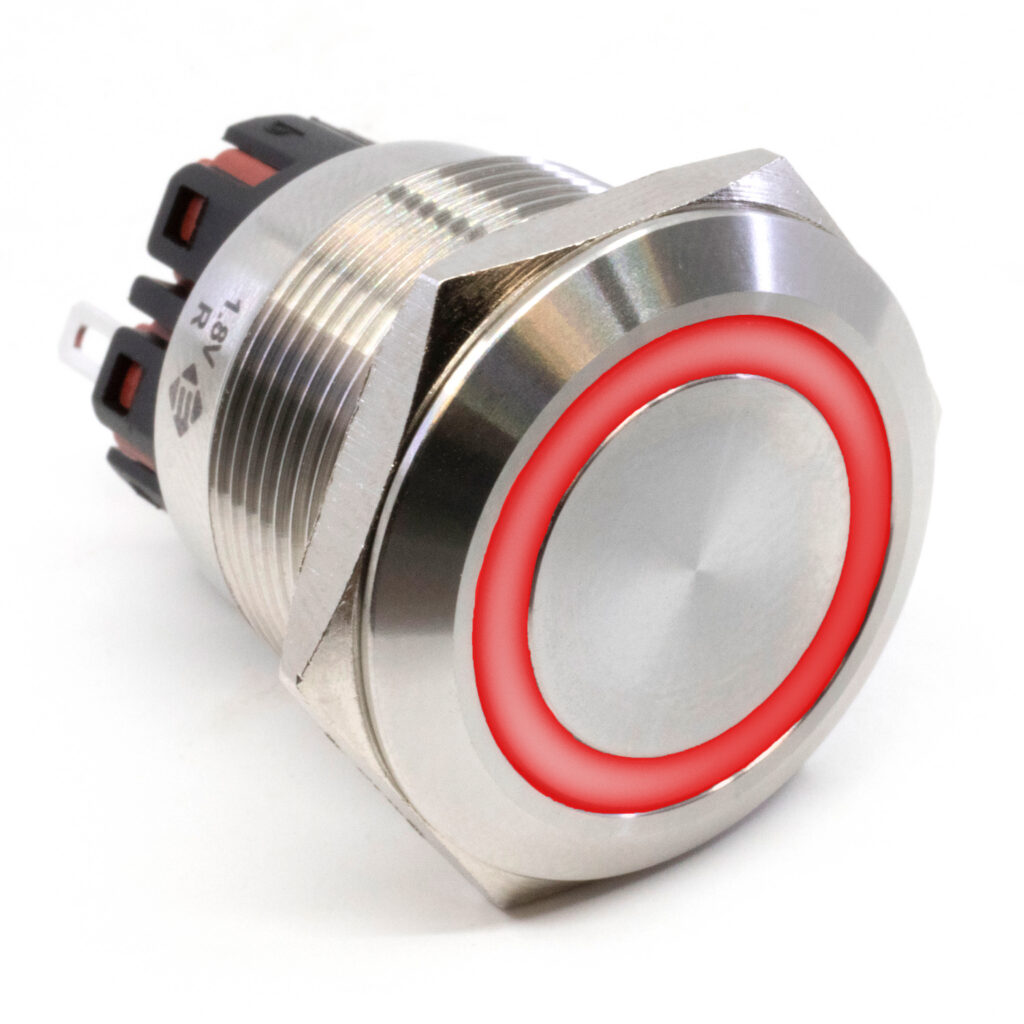

PVB7 Series Illuminated Anti-Vandal Switch

• 22mm panel cutout
• Up to 5A, 250VAC UL;  IP67 rated
• SPDT/DPDT;  latching/momentary
• Flat actuator
• Solder, wire leads, or w/ connector
• LED ring or ring/power symbol
• Stainless steel or black anodized

View Series

TL3220 Series

TL3220 Series Ultraminiature, RGB Illuminated, SMT Tactile Switch

• SMT
• 4.90mm x 4.90mm
• Gull wing termination
• LED, RGB illuminated
• 160g operating force
• Gold contact material
• 50mA @ 12VDC

View Series

LS25 Series

LS25 Series High Current Snap Action Switch

• Chassis mount
• High Current snap action switch
• Silver – 25A, 125/250VAC; UL
• SPDT; On-(Off)
• Solder or quick connect
• Pin plunger, or six lever options
• 90gf – 400gf operating force

View Series

TS1 Series

TS1 Series Subminiature Snap Action Switch

• Through hole
• 100mA, 125VAC or 48VDC
• PC Pin termination
• SPST Off-(On)
• Pin plunger actuator
• 70gf operating force
• Silver contact material

View Series

RA2 Series

RA2 Series Dual Power Rocker Switch with PVC Cap

• 22mm x 19.2mm panel cutout
• Dual rocker switch
• Up to 16A, 250VAC; UL
• SPST or SPDT; latching or mom.
• Quick-connect, solder, or wires
• Actuator marking options
• IP54 with PVC cap:  ACC-P02

View Series

R4 Series

R4 Series Illuminated, Power Rocker Switch

• 30mm x 11mm panel cutout
• Up to 20A, 125VAC; UL
• SPST or SPDT; latching or mom.
• Quick connect, or wire leads
• Housing and actuator color options
• LED or Neon illumination options
• Actuator marking options

View Series

R1973 Series

R1973 Series Illuminated, Power Rocker Switch

• 19.2mm x 13mm panel cutout
• 9A, 125VAC; UL
• SPST or DPST; latching or mom.
• QC-tabs, PC pin, or wire leads
• Housing and actuator color options
• LED or Neon illumination options
• Actuator marking options

View Series

R1966 Series

R1966 Series Illuminated, Power Rocker Switch

• 19.2mm x 13mm panel cutout
• 15A, 125VAC; UL
• SPST or SPDT; latching or mom.
• QC-tabs, solder, PC pin, or wires
• Housing and actuator color options
• LED illumination options
• Actuator marking options

View Series

400B Series

400B Series Sealed, Subminiature, SMT Right Angle Rocker Switch

• SMT right angle;  IP67
• Silver – 3A, 120VAC or 28VDC; UL
• Gold – 0.4VA, 20V max. (AC or DC)
• SPDT; latching or momentary
• Standard, black rocker actuator
• Epoxy sealed terminals
• Tape & reel packaged

View Series

400A Series

400A Series Sealed, Subminiature Rocker Switch

• Panel mount or through hole;  IP67
• Silver – 3A, 120VAC or 28VDC; UL
• Gold – 0.4VA, 20V max. (AC or DC)
• SPDT or DPDT; latching or mom.
• Straight, rt. angle, or rt. angle vert.
• PC Pin or Solder termination
• Actuator color options

View Series

300A Series

300A Series Sealed, Miniature Rocker Switch

• Panel mount or through hole;  IP67
• Silver – 5A, 120VAC or 28VDC; UL
• Gold – 0.4VA, 20V max. (AC or DC)
• SPDT or DPDT; latching or mom.
• Straight, rt. angle, or rt. angle vert.
• PC Pin, solder, or quick-connect
• Rocker or paddle actuator style

View Series

400 Series

400 Series Subminiature Rocker Switch

• Panel mount or through hole
• Silver – 3A, 120VAC or 28VDC; UL
• Gold – 0.4VA, 20V max. (AC or DC)
• SPDT, DPDT, or SPST; latch. or mom.
• Straight, rt. angle, or rt. angle vert.
• PC Pin or Solder termination
• Actuator color options

View Series

300 Series

300 Series Miniature Rocker Switch

• Panel mount or through hole
• Silver – 5A, 120VAC or 28VDC; UL
• Gold – 0.4VA, 20V max. (AC or DC)
• 1 – 4 pole; latching or mom.
• Straight, rt. angle, or rt. angle vert.
• PC Pin, solder, or quick-connect
• Rocker or paddle actuator style

View Series

ULP Series

ULP Series Illuminated Pushbutton Switch

• Through hole or panel mount
• 500mA, 25VDC (Silver)
• 100mA, 28VDC (Gold)
• SPDT or DPDT; latching or mom.
• PC pin or solder termination
• Variety of cap styles; clear diffuser
• LED illumination options

View Series

TL2230 Series

TL2230 Series Subminiature Pushbutton Switch

• Through hole
• 100mA, 30VDC
• Non-Shorting – BBM
• DPDT; latching or momentary
• PC pin termination
• Plunger actuator
• 100gf, 140gf, or 230gf

View Series

PB2 Series

PB2 Series Illuminated, Power Pushbutton Switch

• 30mm x 22mm cutout;  Snap-In
• Standard, or Safety Lock versions
• 15A, 250VAC; UL; IP54
• SPST, SPDT, DPST, DPDT; latching
• Quick connect termination
• Dual, square button actuator
• Illumination and marking options

View Series

PA5 Series

PA5 Series Power Pushbutton Switch

• Panel mount, rear or lateral
• 16A, 125/250VAC; UL
• SPST or DPST; latching or mom.
• Snap-in plunger actuator
• Solder or quick connect
• Non-illuminated
• Engineered for use at foot switch

View Series

PA4 Series

PA4 Series Illuminated, Power Pushbutton Switch

• 19mm x 13mm cutout;  Snap-In
• 16A, 125/250VAC; UL
• SPST or DPST; latching or mom.
• Std. button, or rubber cap (IP65)
• Solder or quick-connect
• LED illumination & marking options
• Actuator and body color options

View Series

LP1 Series

LP1 Series Illuminated, Round Pushbutton Switch

• 8mm panel cutout
• 100mA, 30VDC
• SPST Off-(On)
• LED illuminated
• Solder termination
• 5.4mm dia. actuator
• 50,000 cycle life

View Series

KS1100 Series

KS1100 Series Pushbutton Switch with Keyboard Functionality

• Keyboard functionality
• Through hole
• 10mA, 12VDC
• SPST Off-(On)
• PC Pin termination
• 60gf operating force
• 50,000,000 cycle life

View Series

KJE32 Series

KJE32 Series Heavy Duty, Industrial Power Pushbutton Switch

• 46mm x 22mm panel cutout
• Up to 20A, 127VAC; UL;  IP55
• Heavy Duty Industrial Design
• Variety of circuit function options
• Coil voltage & frequency options
• Black or yellow bezel
• Actuator marking options

View Series

FS5700 Series

FS5700 Series Pushbutton Foot Switch

• 12.2mm panel cutout
• Panel mount, rear
• 1A, 9VDC
• SPDT, DPDT or 3PDT
• Momentary or alternate action
• Solder lug or PC Pin termination
• High actuation force

View Series

KO Series

KO Series Keylock Switch

• 12mm or 19mm panel cutout
• Up to 4A, 125VAC available
• Variety of size & package options
• Variety of key types & pull options
• Variety of key code options
• Variety of termination options
• Angle of throw & position options

View Series

KAN Series

KAN Series Low Profile, Half Pitch DIP Switch

• SMT
• 25mA, 24VDC
• Slide actuator; recessed
• 2-10 positions; SPST each position
• 0.050″ (1.27mm) Half pitch
• Gold contact material
• Top tape seal option

View Series

WS2 Series

WS2 Series Sealed Snap Action Switch

• IP67 rated
• 2A, 30VDC or 250VAC; UL
• Panel mount or through hole
• SPDT On-On
• Solder, quick connect, or PC pin
• Pin plunger actuator
• 183gf max. operating force

View Series

TS2 Series

TS2 Series SMT Snap Action Switch

• SMT
• 100mA, 125VAC or 48VDC
• SPST Off-(On)
• Pin plunger actuator
• 70gf operating force
• 3,000,000 life cycles
• Tape & reel packaged

View Series

TS Series

TS Series Subminiature Snap Action Switch

• Thru hole or thru hole rt. angle
• 300mA, 6VDC
• SPDT On-(On)
• Straight lever actuator
• PC Pin termination
• 20gf operating force
• Silver contact material

View Series

LS Series

LS Series Snap Action Switch

• Chassis or thru hole rt. angle
• Gold – 0.4VA, 20V max. (AC or DC)
• Silver – 15A, 125/250VAC; UL, VDE
• SPDT, SPST-NC or SPST-NO
• Solder, quick connect or PC pin
• Pin plunger or six lever options
• 25gf – 250gf operating force

View Series

EGL2290 Series

EGL2290 Series Illuminated, SMT Slide Switch

• SMT
• 300mA, 6VDC
• DPDT On-On
• LED illumination; color options
• Compact 7.65mm x 5.5mm body
• 200gf operating force
• 2.0mm travel

View Series

600 Series

600 Series Miniature, Through Hole Slide Switch

• Thru hole, or thru hole rt angle
• Gold- 0.4VA, 20V max. (AC or DC)
• Silver- 3A, 120VAC; 1A, 250VAC; UL
• SPDT or DPDT; 2 or 3 positions
• Vertical or right angle actuation
• Recessed or raised actuator
• Epoxy sealed terminals

View Series

WB2 Series

WB2 Series Sealed, Power Rocker Switch

• 30mm x 22mm panel cutout
• Up to 20A, 125/250VAC; UL; IP55
• DPST or DPDT; latching or mom.
• Quick connect, or wire leads
• Housing and actuator color options
• Actuator marking options
• Non-illuminated

View Series

RSC Series

RSC Series Illuminated, Power Rocker Switch with Bi-Color Actuator

• Four panel cutout options
• Up to 20A, 125VAC; UL; IP54
• SPST or SPDT; latching or mom.
• Quick connect, solder, or wires
• Housing and actuator color options
• LED illumination options
• Actuator marking options

View Series

RB5 Series

RB5 Series Sealed, Illuminated, Power Rocker Switch

• 30.2mm x 22mm panel cutout
• IP67 rated
• Up to 25A, 125VAC; UL
• DPST or DPDT; latching or mom.
• Quick connect, or wire leads
• LED illumination options
• Actuator marking options

View Series

RB3 Series

RB3 Series Sealed, Illuminated, Power Rocker Switch

• 30.2mm x 13.8mm panel cutout
• IP67 rated
• Up to 25A, 125VAC; UL
• SPST or SPDT; latching or mom.
• Quick connect, or wire leads
• LED illumination options
• Actuator marking options

View Series

RA4 Series

RA4 Series Illuminated, Power Rocker Switch with PVC Cap

• 22mm x 19.2mm panel cutout
• Up to 16A, 125VAC; UL
• 1 or 2 pole; latching or mom.
• Quick connect, PC pin, or wires
• LED illumination options
• Actuator marking options
• IP54 with PVC cap:  ACC-P02

View Series

RA1 Series

RA1 Series Illuminated, Power Rocker Switch with PVC Cap

• 19.2mm x 13mm panel cutout
• Up to 16A, 125VAC; UL
• SPST or SPDT; latching or mom.
• QC-tabs, solder, PC pin, or wires
• LED illumination options
• Actuator marking options
• IP54 with PVC cap:  ACC-P01

View Series

R7 Series

R7 Series Sealed, Illuminated, Power Rocker Switch

• 37mm x 21.2mm panel cutout
• Up to 20A, 125VAC; UL; IP67
• 1 or 2 pole; latching or mom.
• QC-tabs, solder, screw, or wires
• Many actuator style options
• LED illumination options
• Custom actuator marking avail.

View Series

R6 Series

R6 Series Slim, Power Rocker Switch

• 19.2mm x 6.65mm panel cutout
• 10A, 125VAC; UL
• SPST; latching or mom.
• Quick connect, or wire leads
• Housing and actuator color options
• Non-illuminated
• Actuator marking options

View Series

R5 Series

R5 Series Illuminated, Power Rocker Switch

• 30mm x 22mm panel cutout
• Up to 20A, 125VAC; UL
• DPST or DPDT; latching or mom.
• Quick connect, or wire leads
• Actuator color options
• LED or Neon illumination options
• Actuator marking options

View Series

PVHC7 Series

PVHC7 Series Illuminated, High Current Anti-Vandal Switch

• 22mm panel cutout
• 20A, 250VAC, UL;  IP67 rated
• SPST; latching or momentary
• Flat actuator
• Solder or wire leads 300mm
• LED ring or ring/power symbol
• Stainless steel or black anodized

View Series

PVB3 Series

PVB3 Series Illuminated Anti-Vandal Switch

• 16mm panel cutout
• Up to 5A, 250VAC UL;  IP67 rated
• SPDT; latching or momentary
• High or flat actuator
• Solder or wire leads 300mm
• LED ring or ring/power symbol
• Stainless steel or black anodized

View Series
