SNAP ACTION SWITCHES
Snap action switches, also called micro switches, are devices that can open and/or close an electrical circuit at a rapid speed. They are triggered by an external force, either human or physical object, which is applied to the actuator, requiring very little pressure to operate.
They are characterized by their quick and decisive switching action, often producing a sharp “snap” sound when the contacts move from one position to another.
Find Your Product
If you need help finding what you're looking for, use our advanced parametric search to find your specific product.
Product Search
LS Series
LS Series Snap Action Switch
- Chassis or thru hole rt. angle
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 15A, 125/250VAC; UL, VDE
- SPDT, SPST-NC or SPST-NO
- Solder, quick connect or PC pin
- Pin plunger or six lever options
- 25gf – 250gf operating force
LS25 Series
LS25 Series High Current Snap Action Switch
- Chassis mount
- High Current snap action switch
- Silver – 25A, 125/250VAC; UL
- SPDT; On-(Off)
- Solder or quick connect
- Pin plunger, or six lever options
- 90gf – 400gf operating force
MS Series
MS Series Miniature Snap Action Switch
- Chassis, thru hole, or rt angle
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 5A, 125/250VAC; UL, VDE
- SPDT or SPST-NO
- Solder, quick connect, or PC pin
- Pin plunger, or seven lever options
- 10gf – 295gf operating force
SS Series
SS Series Subminiature Snap Action Switch
- Chassis, thru hole, or rt angle
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 3A or 0.1A options; UL
- SPDT On-(Off)
- Solder or PC Pin termination
- Pin plunger, or three lever options
- 15gf – 130gf operating force

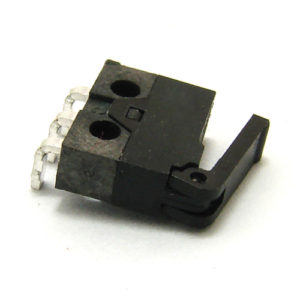

TS Series
TS Series Subminiature Snap Action Switch
- Thru hole or thru hole rt. angle
- 300mA, 6VDC
- SPDT On-(On)
- Straight lever actuator
- PC Pin termination
- 20gf operating force
- Silver contact material

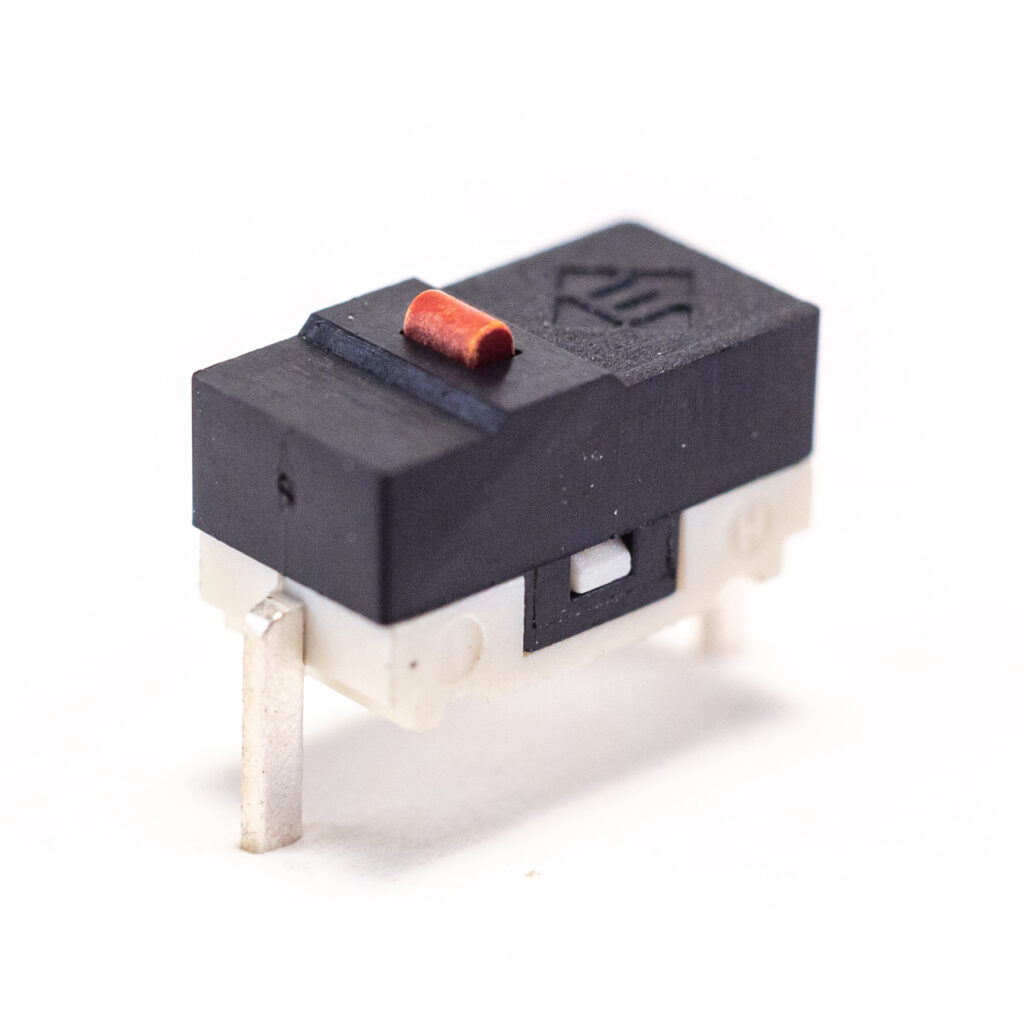

TS1 Series
TS1 Series Subminiature Snap Action Switch
- Through hole
- 100mA, 125VAC or 48VDC
- PC Pin termination
- SPST Off-(On)
- Pin plunger actuator
- 70gf operating force
- Silver contact material
TS2 Series
TS2 Series SMT Snap Action Switch
- SMT
- 100mA, 125VAC or 48VDC
- SPST Off-(On)
- Pin plunger actuator
- 70gf operating force
- 3,000,000 life cycles
- Tape & reel packaged
WS Series
WS Series Sealed Snap Action Switch
- IP67 rated
- Chassis mount, or through hole
- 1A 24VDC; 3A 125/250VAC; UL
- SPDT On-(On)
- Solder, PC pin, or wire leads
- Pin plunger, or two lever options
- 50gf or 70gf operating force
View Series
WS1 Series
WS1 Series Sealed Snap Action Switch
- IP67 rated
- 0.1A 48VDC or 125/250VAC; UL
- 3A 12VDC or 125/250VAC; UL
- SPDT On-On
- Solder or wire leads termination
- Pin plunger actuator
- 130gf max. operating force
WS2 Series
WS2 Series Sealed Snap Action Switch
- IP67 rated
- 2A, 30VDC or 250VAC; UL
- Panel mount or through hole
- SPDT On-On
- Solder, quick connect, or PC pin
- Pin plunger actuator
- 183gf max. operating force
