A toggle switch is actuated by a moving a lever back and forth to open or close an electrical circuit. Toggle switches offer a variety of switching functions - SPDT, SPST, DPDT, DPST and multiple actuator and bushing options. Our toggle switches also come in different sizes, from miniature PCB mount up to power rated panel mounted switches.

100A Series Sealed Miniature Toggle Switch

• IP67 sealed for protection from dust and moisture
• Up to 5A, 120VAC or 28VDC electrical rating with [cURus] approval
• Vertical and right angle mounting designs
• 1 or 2 poles and throws; momentary and maintained (latching) functions

100 Series Miniature Toggle Switch

• Up to 4 poles available
• Variety of switching functions
• Miniature
• Multiple actuator & bushing options

200A Series Subminiature, Sealed Toggle Switch

• IP67 ingress protection rating, sealed from dust and moisture
• 3A, 120VAC or 28VDC electrical rating
• Vertical and right angle mounting designs
• 1 or 2 poles and throws, momentary and maintained (latching) functions

200B Series Subminiature, Sealed Toggle Switch

• IP67 sealed for proction from dust and moisture
• 0.4VA, 20V max. (AC or DC) electrical rating
• Surface mount design
• 1 pole, momentary and maintained (latching) functions

200R Series Miniature Toggle Switch

• Multiple termination and mounting options
• Single or double pole
• Available in both 2 or 3 position circuits
• Miniature in size


200 Series Subminiature Toggle Switch

• Up to 3A, 120VAC or 28VDC electrical rating
• Vertical and right angle mounting designs
• 1 or 2 poles and throws; momentary and maintained (latching) functions

200U Series Ultra-miniature, Sealed Toggle Switch

• Sealed to IP67
• Life expectancy of 40,000 cycles
• Ultra-miniature in size: 4.5mm x 7mm
• Vertical right angle or right angle PCB mounting options

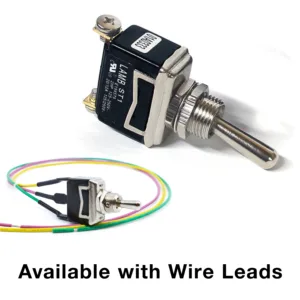

ST1 Series High Current, Power Toggle Switch

• Up to 20A, 125VAC 2HP electrical rating with multiple agency approvals
• 1 pole, 1 or 2 throws; maintained (latching) and momentary functions
• 12mm diameter panel cutout

ST2 Series High Current, Power Toggle Switch

• Up to 20A, 125VAC 2HP electrical rating with [cURus] approval
• 2 poles, 1 or 2 throws; maintained (latching) and momentary functions
• 12mm diameter panel cutout

ST3 Series High Current, Power Toggle Switch

• Up to 24A, 125VAC 2HP electrical rating with [cURus] approvals
• 3 poles, 1 or 2 throws; maintained and momentary functions
• 12mm diameter panel cutout

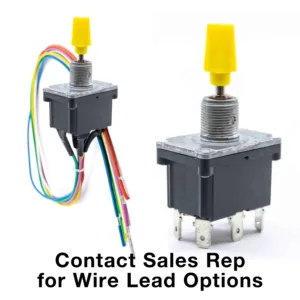

ST4 Series Sealed Toggle Switch

• IP68 ingress protection rating
• Multiple termination options
• Single or double pole
• Available in both 2 or 3 position circuits
• Multiple actuator options

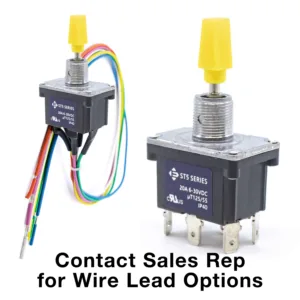

ST5 Series High Temperature Toggle Switch

• Operating temperature of -10°C to 125°C
• Multiple termination options
• Single or double pole circuits
• Available in both 2 or 3 position circuits
• Multiple actuator options
