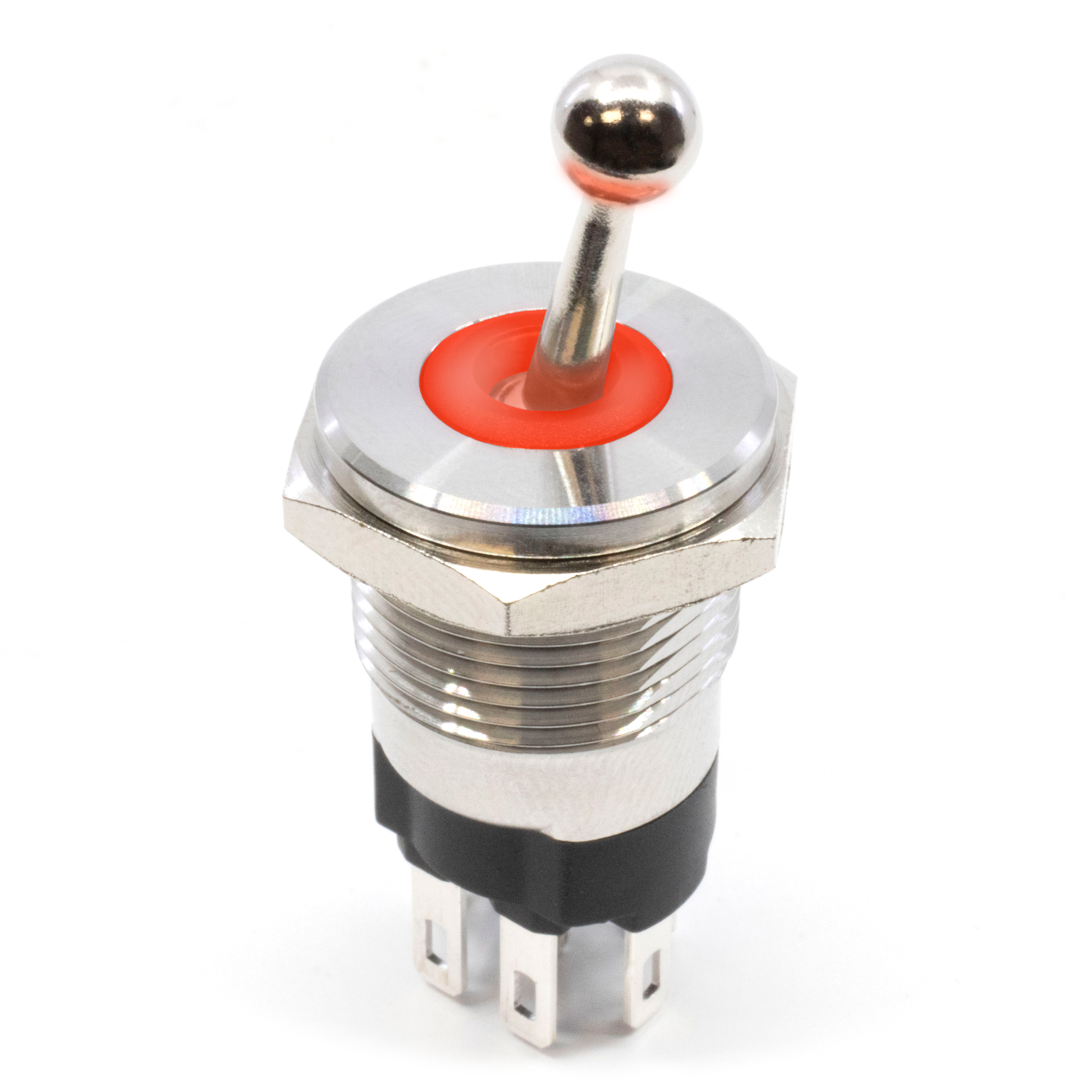

TAV16 Series Illuminated Anti-Vandal Toggle Switch

TAV16 Series: TAV16B23SSR1

Categories: ANTI-VANDAL

Series Data Sheet

TAV16 Series Illuminated Anti-Vandal Toggle Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

Series: Actuator: Terminal: Function: Body Finish: Actuator Finish: LED Color: Illumination Voltage: Graphic Option:

* If you need further customization, we can help!

Current Configuration:

TAV16B23SSR1

Spec Sheet (2D)

... in stock, available to buy now.

Quantity:

Additional Purchase Options:

Check Distributor Stock

Request Sample

Request Quote

Stock Check for TAV16B23SSR1

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the TAV16B23SSR1 from our authorized distributors.

In-Stock Distributors

ANTI-VANDAL, 3A, 250VAC, SPDT, On-On, Panel Mount, Front, Illuminated

Quantity:

About TAV16 Series

16mm diameter panel cutout
3A, 250VAC; IP67 rated
SPDT On-On
Toggle Actuator – Standard or Ball
Solder or wire leads 300mm termination
RGB illuminated ring, or non-illuminated
Many illumination voltage options
Stainless steel or black anodized finish
Silver contact material
-40°C to 85°C operating temperature

PV Series with Wire Leads

TAV16 Series Markets

Agricultural Appliance Audio Visual Automation Construction Fitness Food Industry Home Maintenance Industrial Marine Medical Personal Care Security Sustainable Energy Telecommunications Transportation

Product Specifications

TAV16B23SSR1

ANTI-VANDAL, 3A, 250VAC, SPDT, On-On, Panel Mount, Front, Illuminated

Series Name TAV16
PackagingBulk
Current Rating3A
Voltage Rating250VAC
CircuitSPDT
FunctionOn-On
Mounting TypePanel Mount, Front
Termination TypeSolder
Contact MaterialSilver
Actuator TypeToggle
Actuator ColorSilver
Actuator Height15.50mm
Illumination StyleRing
Illumination ColorLED, RGB
Illumination Voltage1.8, 2.8, 2.8VDC
Ingress ProtectionIP67
Panel Cutout DimensionsCircular - 16mm Dia.
Operating Temperature-40°C to 85°C
BushingM16 x 1
