Water Heater
Usage: Visual On/Off Power
The PV3 was the perfect design solution because of its illumination options, IP67 rating and pre-wired leads.
Switch Solutions for Appliance Applications
Switches are essential components in the appliance market, providing control, safety and automation functions across a wide range of household and commercial appliances. These switches help manage power flow, user input and system feedback, making appliances more efficient, user-friendly and reliable.
Switches allow users to turn appliances on/off, select modes or adjust settings like temperature, speed or time. Many appliances use switches to detect unsafe conditions (such as overheating or an open door) and shut down or alert the user. Switches can trigger actions based on internal conditions (water level, pressure or position), enabling smart operation and helping to reduce unnecessary power consumption.
Don’t hesitate to contact E-Switch with questions about your next project. Our dedicated customer service representatives, expert engineers and local sales support teams will be with you every step of the way.
What is your Appliance application?
Click on the Appliance applications below to see what E-Switch products were used for each application and what functions they perform.
Oven
Usage: On/Off Power for Light and Fan
The RRG3 was selected for its UL listed power ratings (up to 16A), snap-in panel mount design, custom actuator markings and robust operating temperature.
Water Softener System
Usage: Selection on Control Panel

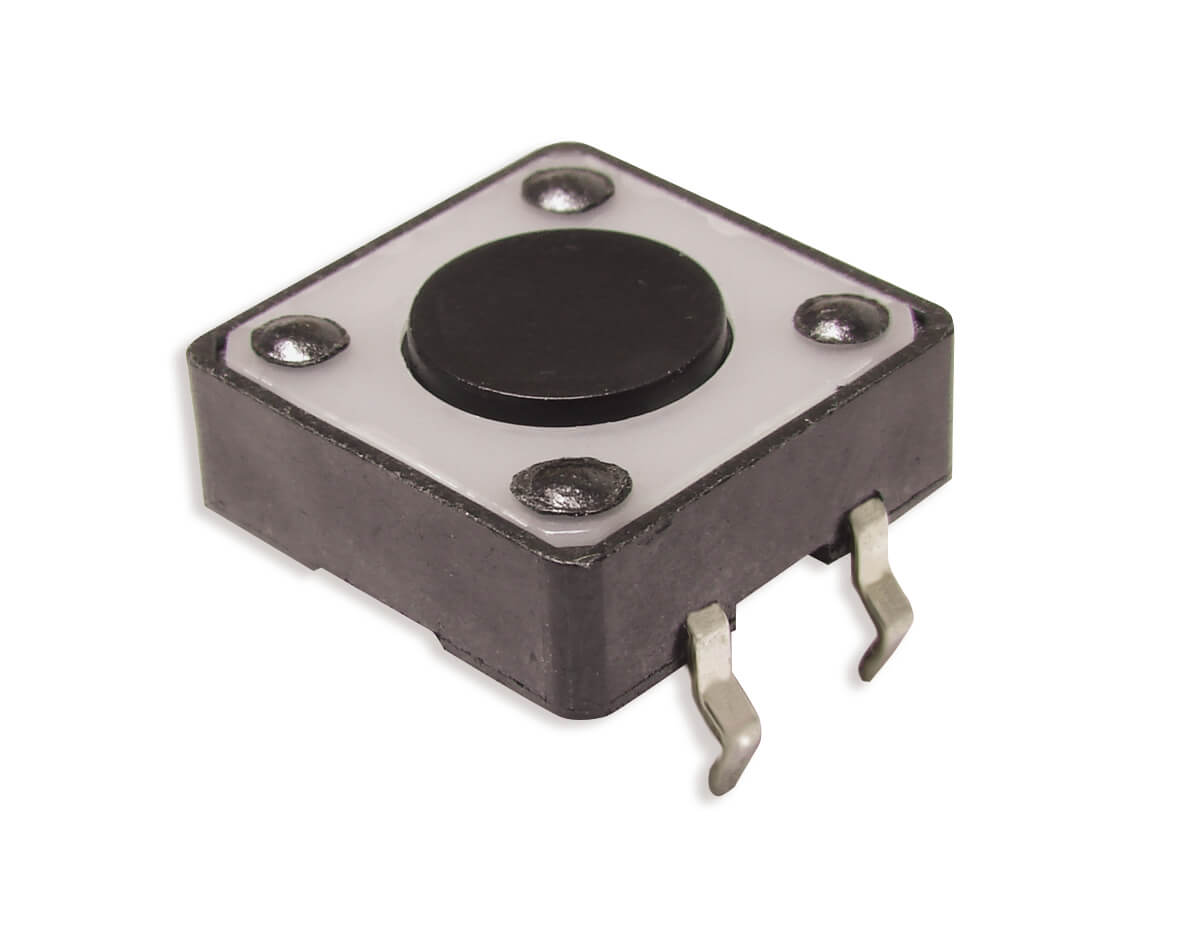

The TL1100 was required for its through hole design, reliable contact technology and strong tactile feedback with multiple operating force options.

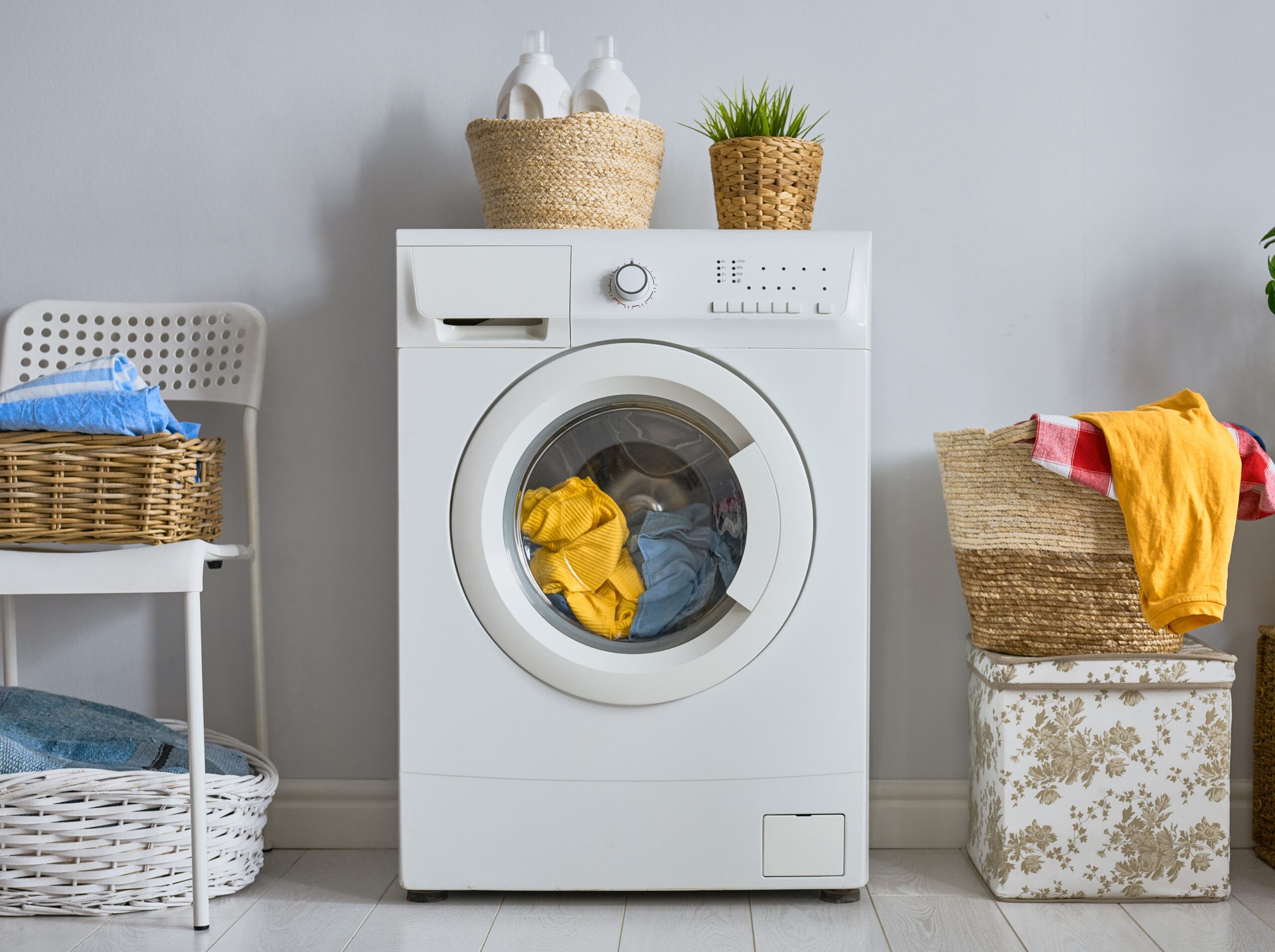

Commercial Clothes Dryer
Usage: Illuminated On/Off and Main Power

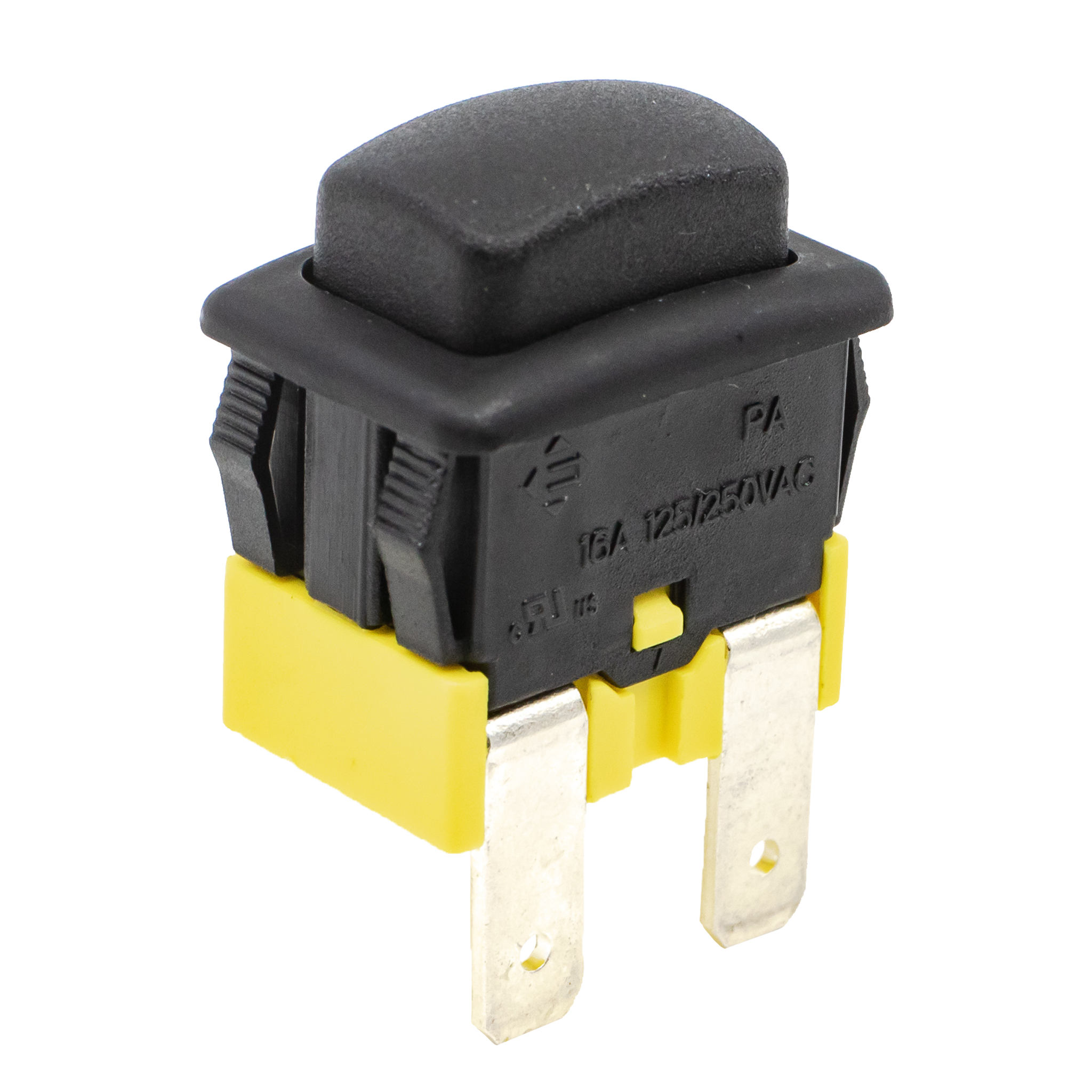

The PA4 was selected for its high power rating (16A; UL, cUL), IP54 rating and durability.
The RA8 also provided high power ratings (up to 16A), and IP54 rating and full LED illumination options.
Detergent Dispenser
Usage: Selector to Dispense Precise Amount of Detergent

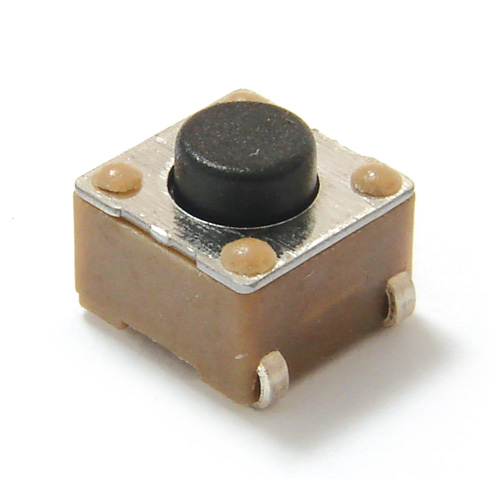

The TL3301 was vital in this application for its SMT design, 6mm x 6mm size and operating force options.
Floor Scrubber
Usage: Main On/Off Power

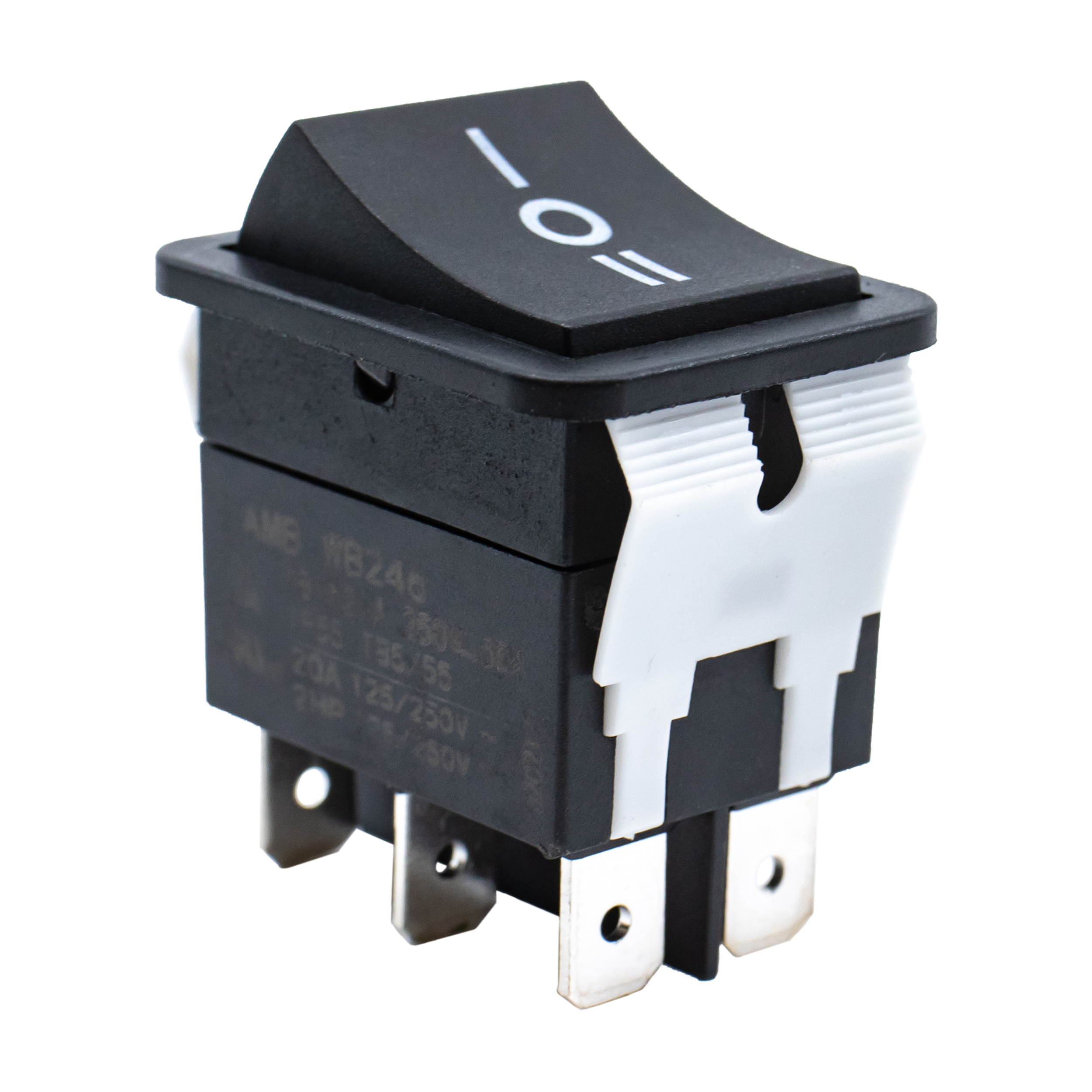

The WB2 power rocker switch provided an IP55 rating, high current ratings (up to 20A with UL approval) and a panel mount snap-in design.

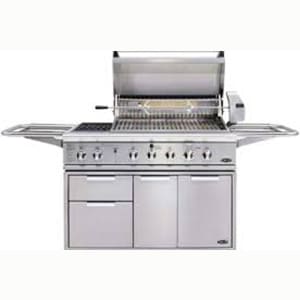

Grills
Usage: Main On/Off Power
The PV4 was selected for its IP65 rating, 19mm panel cutout, wire leads, LED illumination and laser etched power symbol.

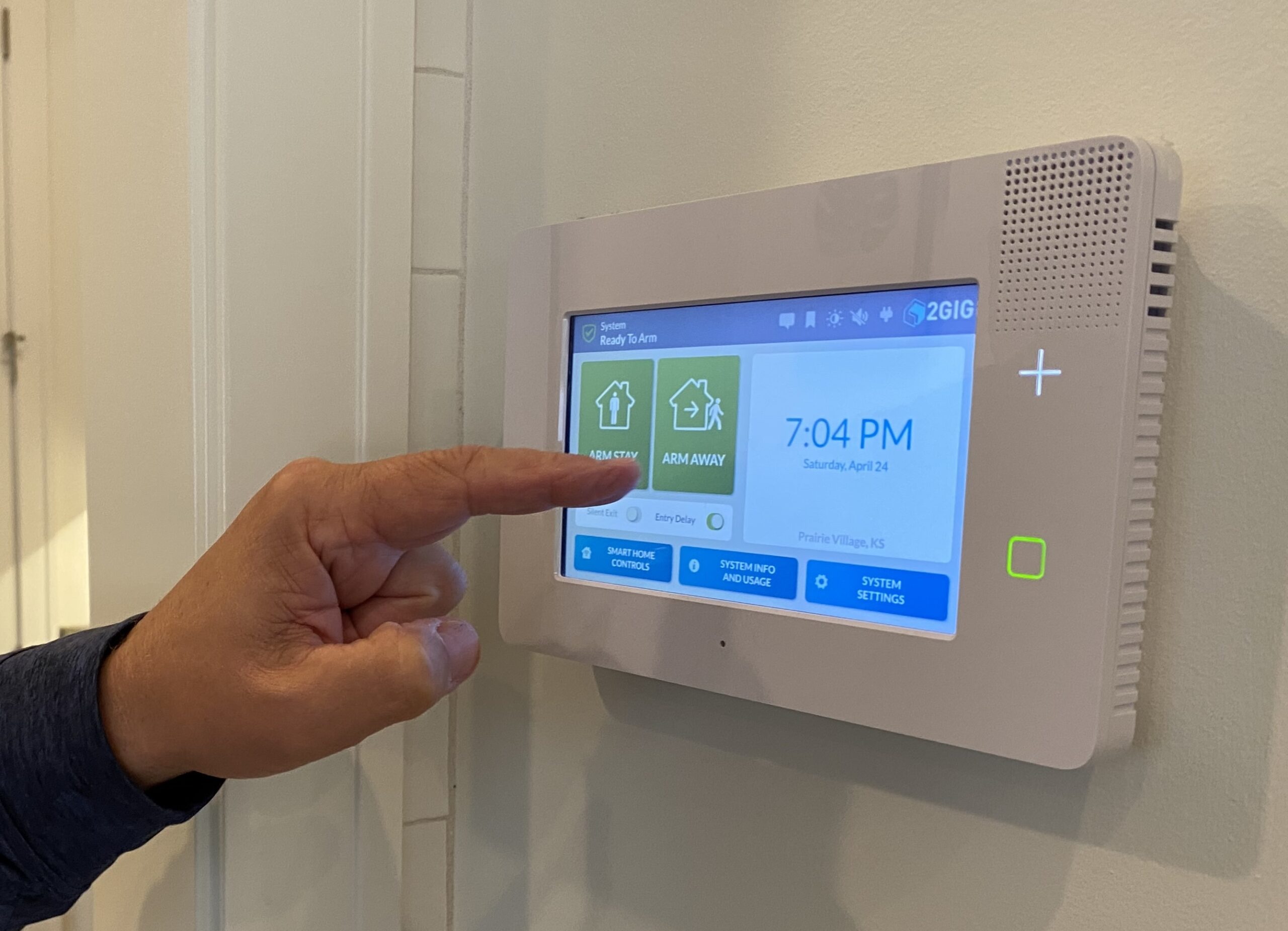

Home Automation
Usage: Selection on Control Panel
The TL1105 was chosen for this application because of its 6mm x 6mm size, through hole design and operating force options.

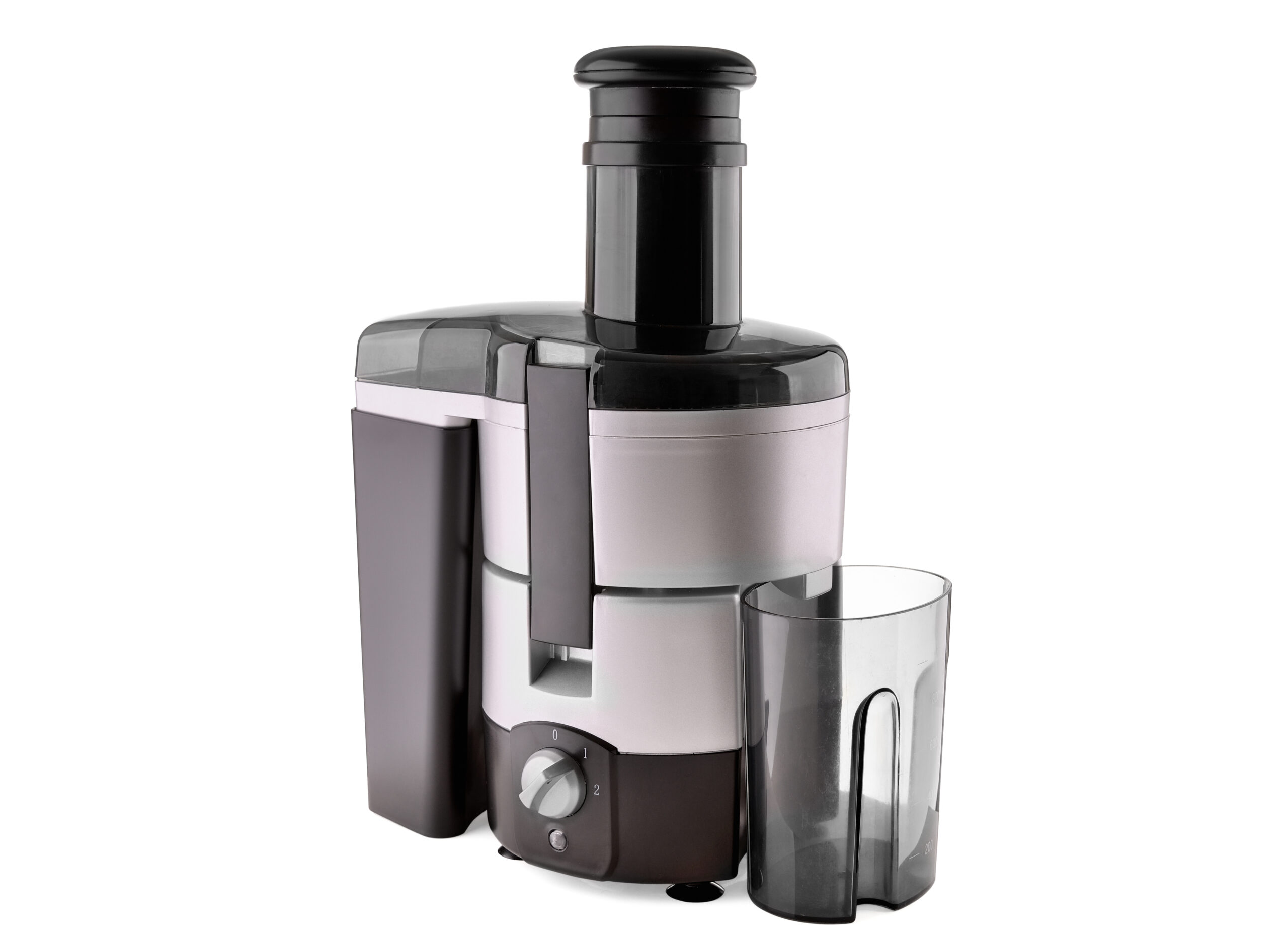

Juicer
Usage: On/Off Power

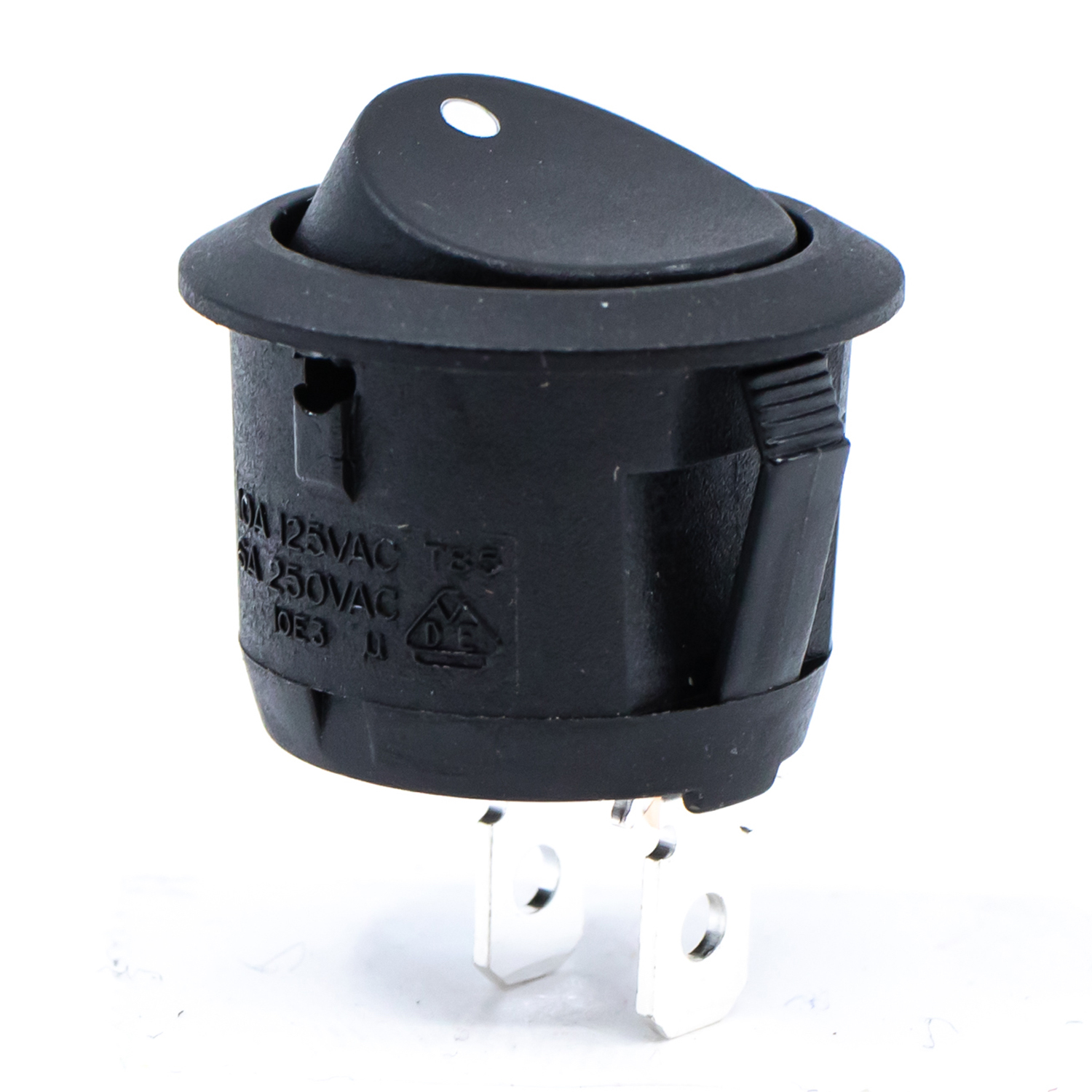

The RR3112 offered the perfect switch solution with its power ratings (up to 16A with UL approval), illumination potential and actuator marking options.

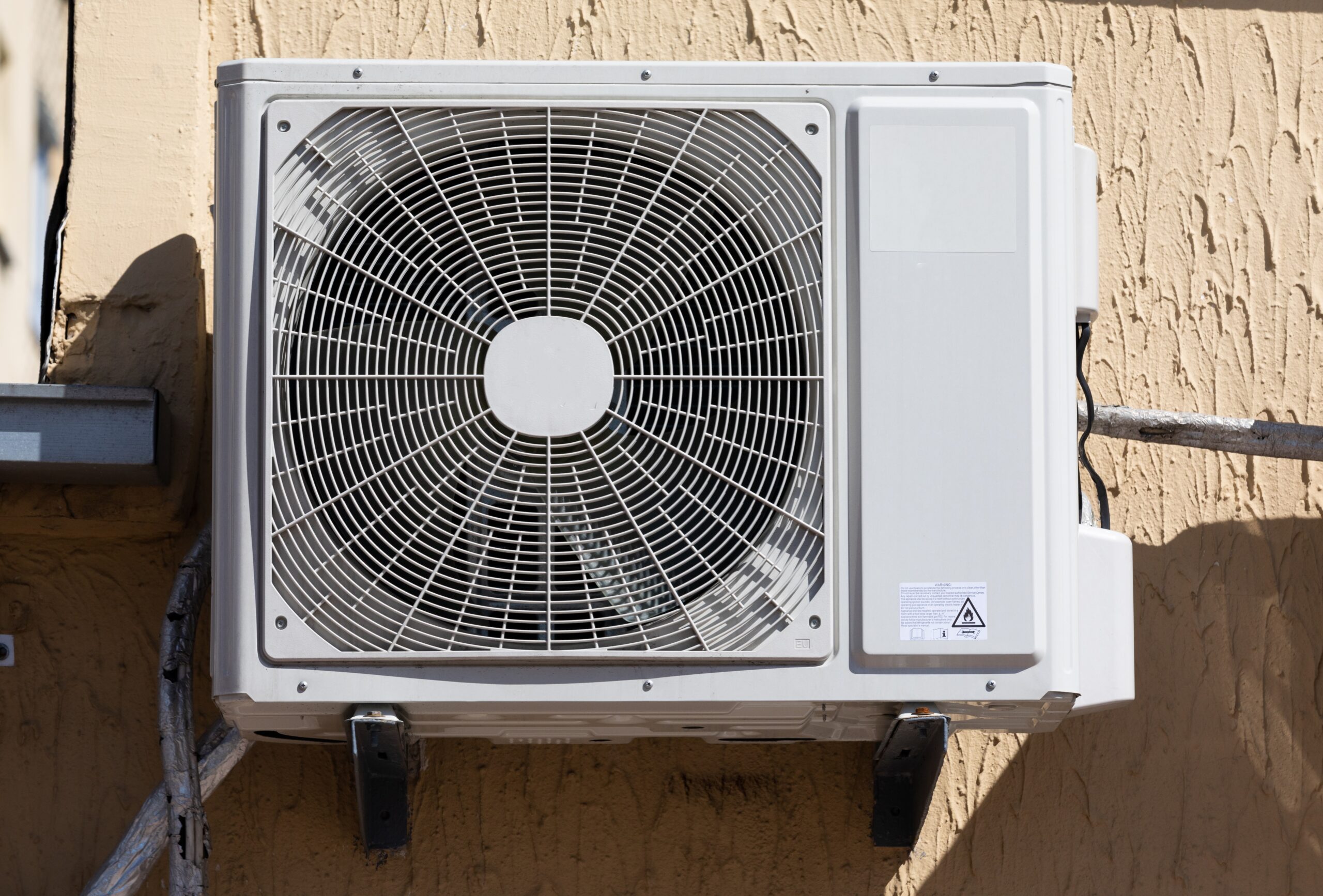

Air Cleaner
Usage: Main Power Switch

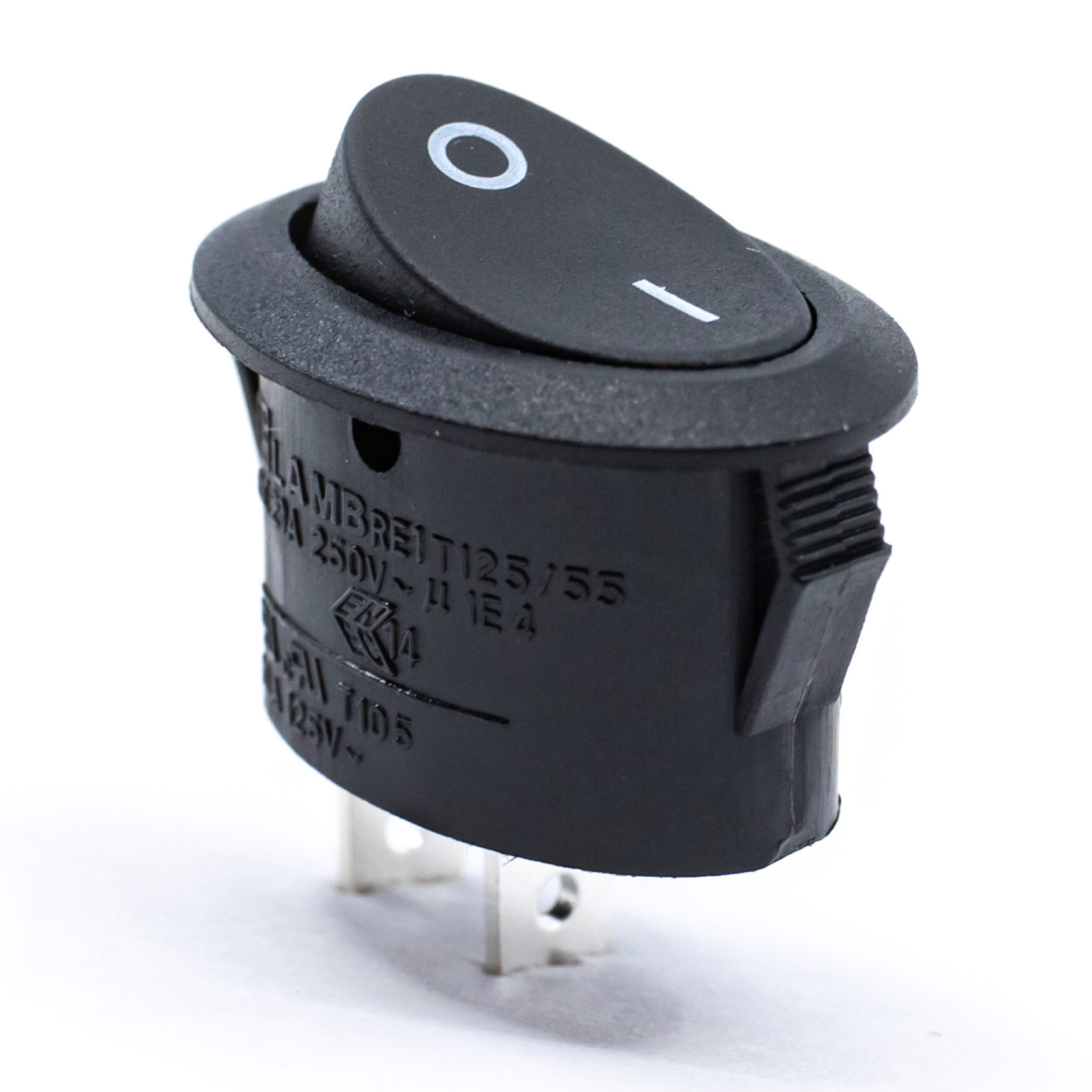

The RE1 was vital in this design because of its unique oval panel cutout, illumination options and power ratings (up to 16A, 125VAC, 1/3HP with UL approval).

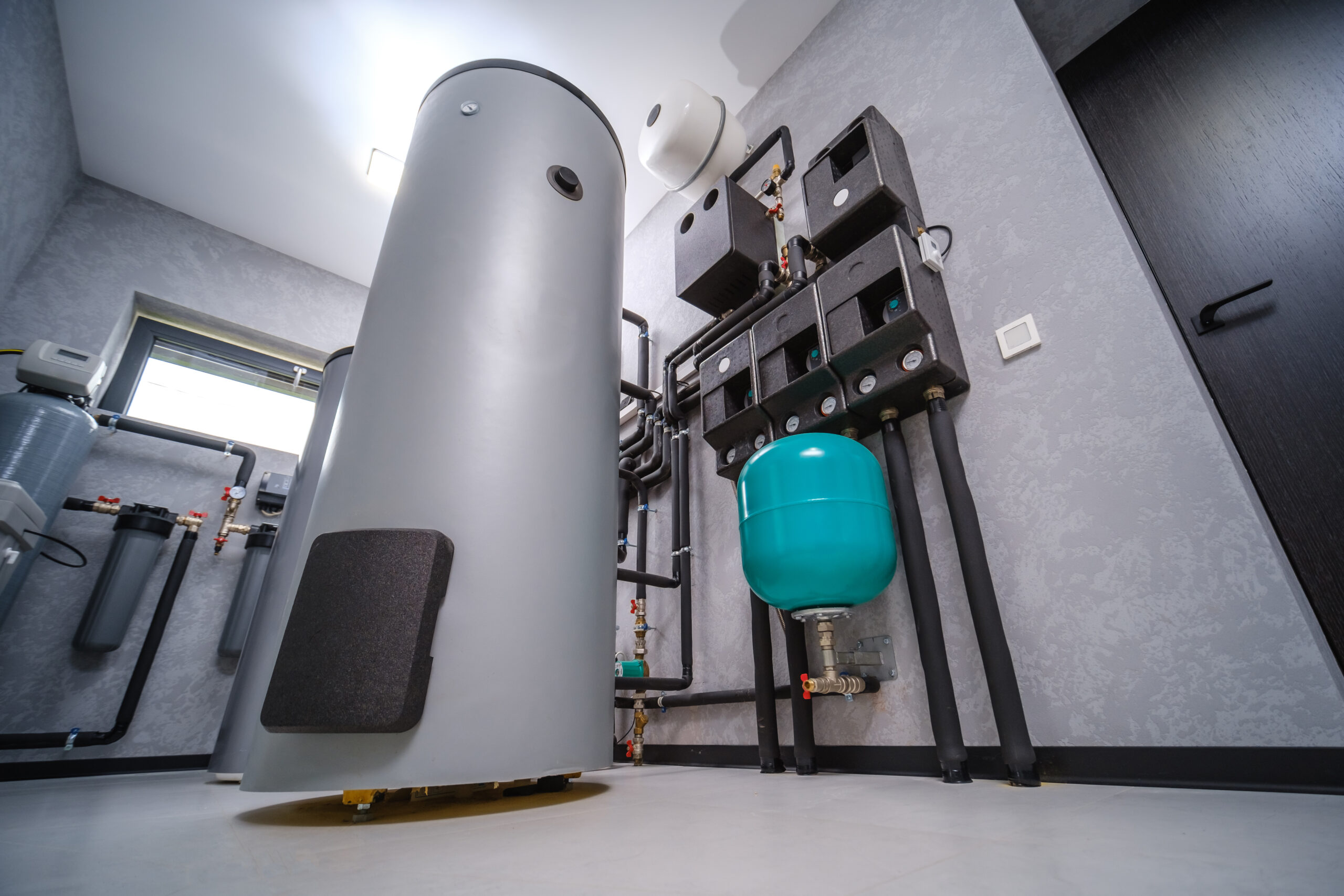

Boiler/Hot Water Heater
Usage: Main Power Switch
The R4 was needed for its UL listed ratings (up to 20A), illumination options and panel mount snap-in design.

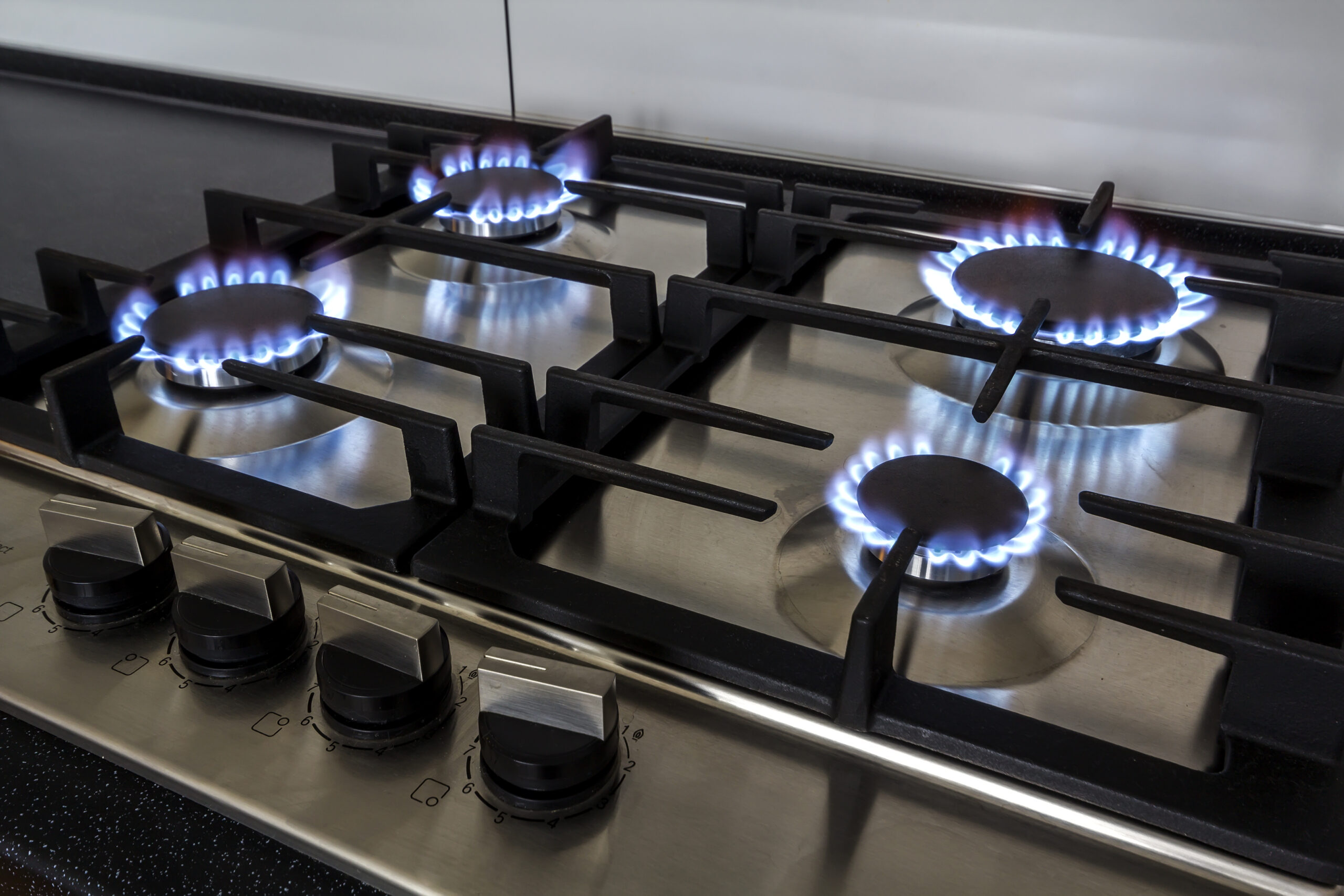

Burner Controls
Usage: Main Power Switch
The R5 was needed for its industry standard cutout (30mm x 22mm), UL listed power ratings (up to 20A) and full illumination options.

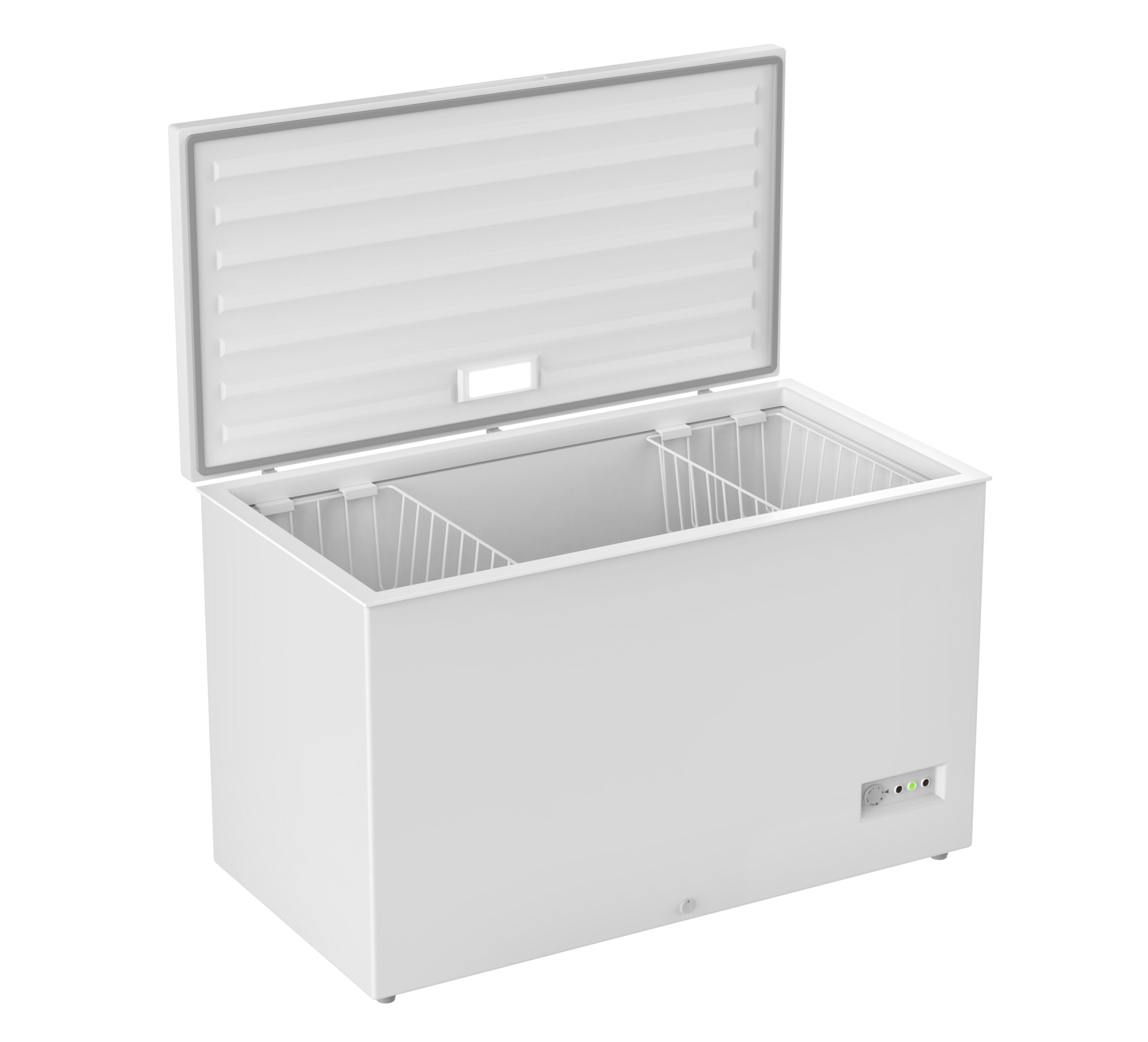

Chest Freezer
Usage: On/Off Power Recessed in Back Panel

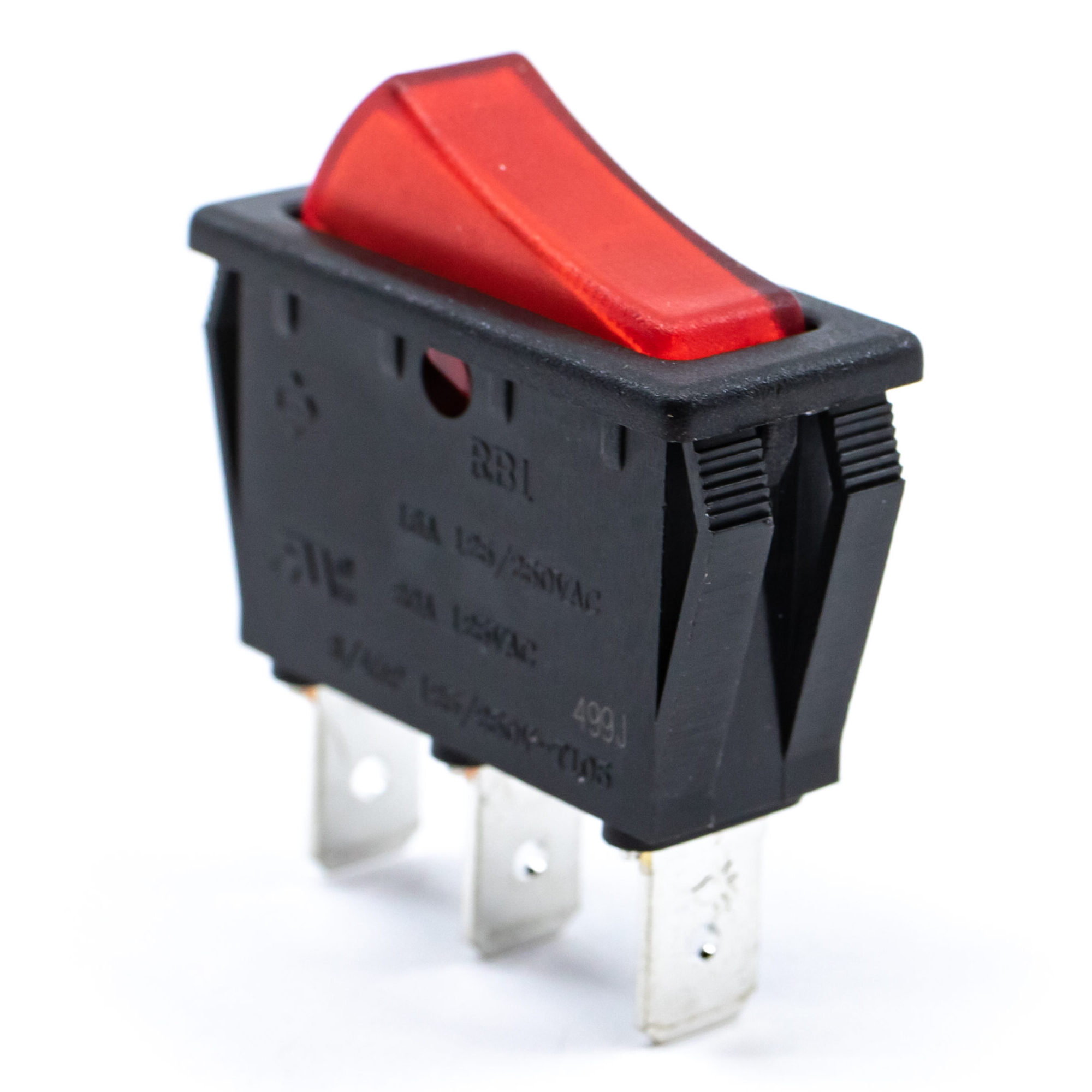

The RB1 was vital because of its IP54 rating (PVC cap), high power rating (up to 20A) and illumination options.

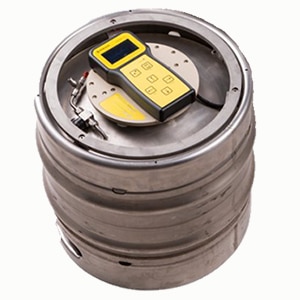

Clean Keg Monitor
Usage: Selection, Tracking, Washing Process, Temperature and Pressure
The TL1100 got the party started with its reliable dome contact technology, strong tactile feedback and multiple operating force options.

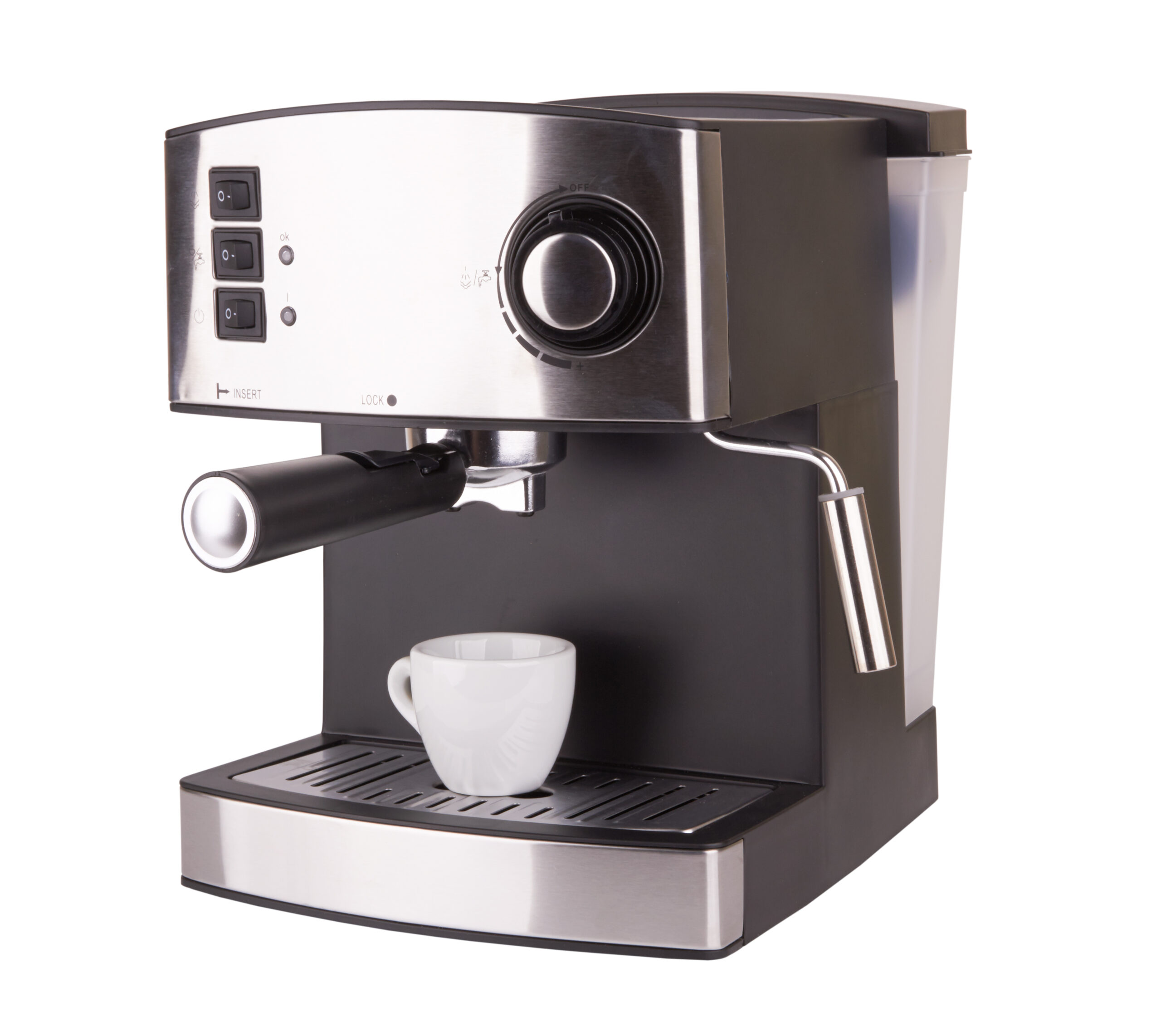

Coffee Makers
Usage: On/Off Power
The RR1 got coffee brewing with its high electrical rating (up to 16A), latching function, full illumination and IP54 seal rating (PVC cap).
Commercial Food Warmer
Usage: Temperature Control Selector
The KC Series was utilized for its ability to have one to 12 positions, one to four poles and no stop option.

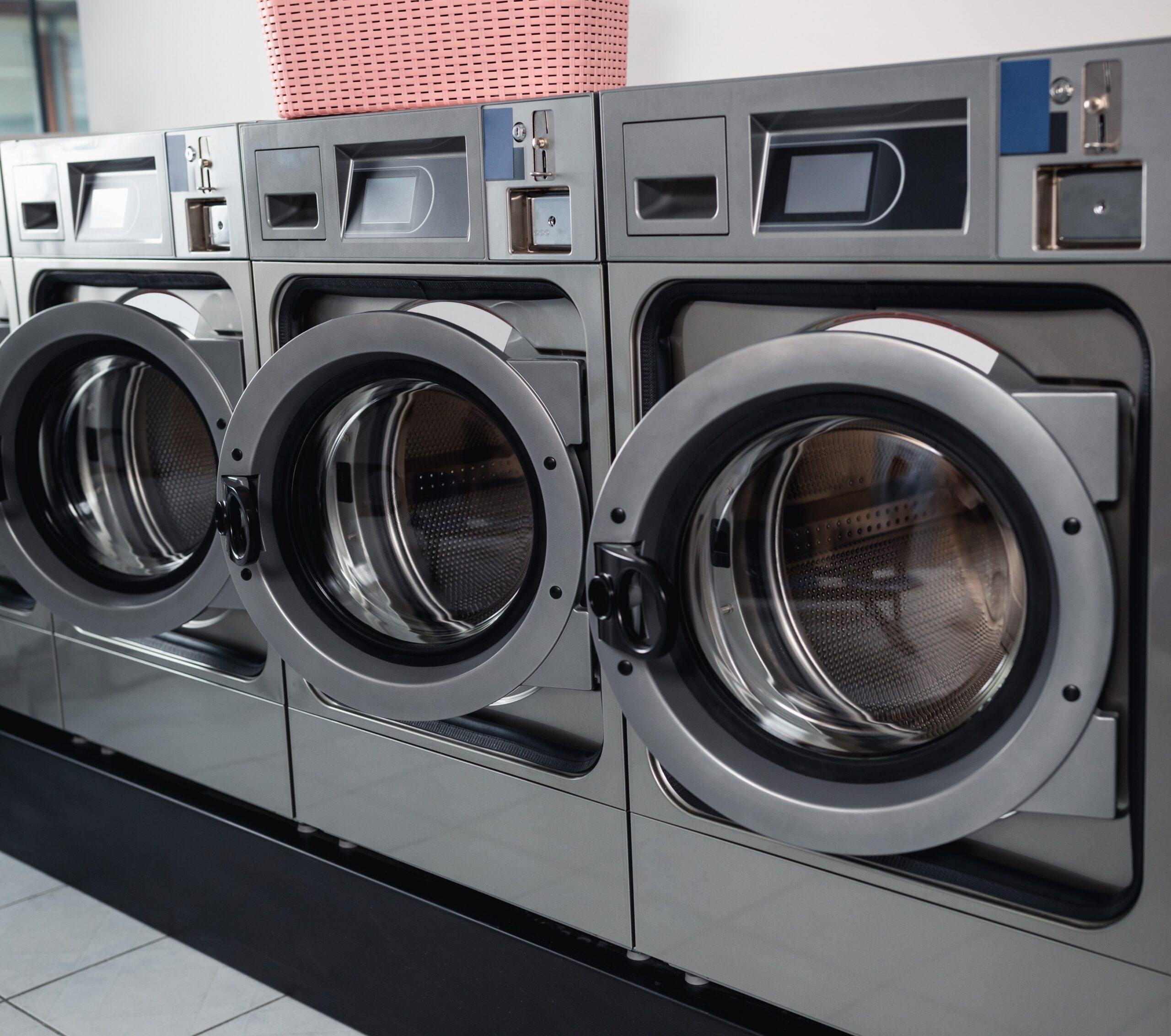

Washer/Dyer Combo
Usage: Main Power
The WB2 provided an IP55 seal rating, high electrical ratings (up to 20A) and custom housing and actuator options.

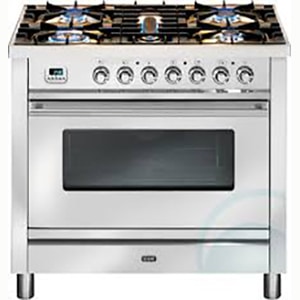

Commercial Stove
Usage: On/Off Power
The PV4 was selected for its IP65 rating, stainless steel finish, 19mm panel cutout, illumination options and pre-wired leads.

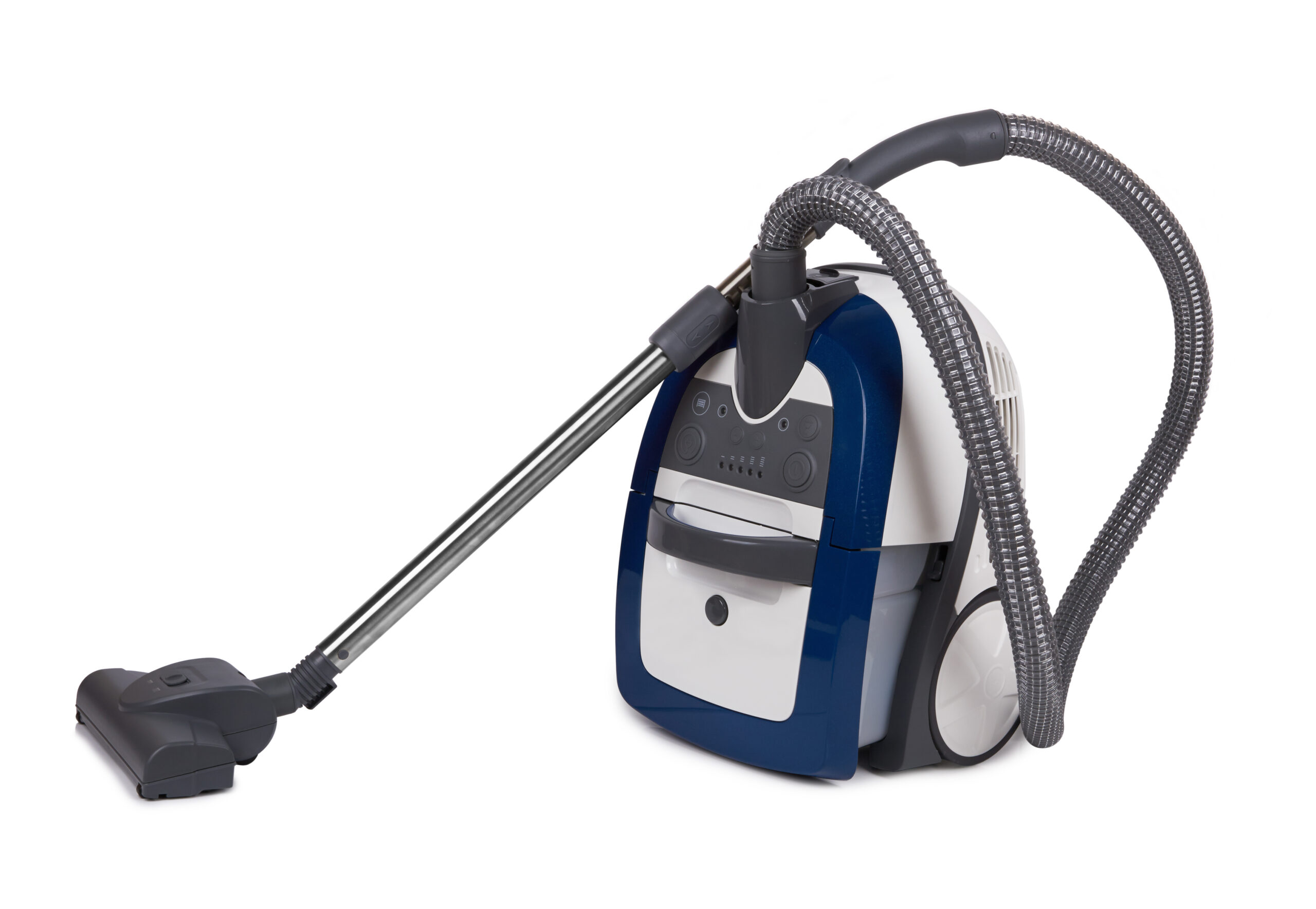

Commercial Vacuum
Usage: On/Off Power and On-On to Engage Brushes
The RR5 was selected for its power rating (up to 20A with UL approval), short body design for low clearance and various body and actuator customization options.
