Detector

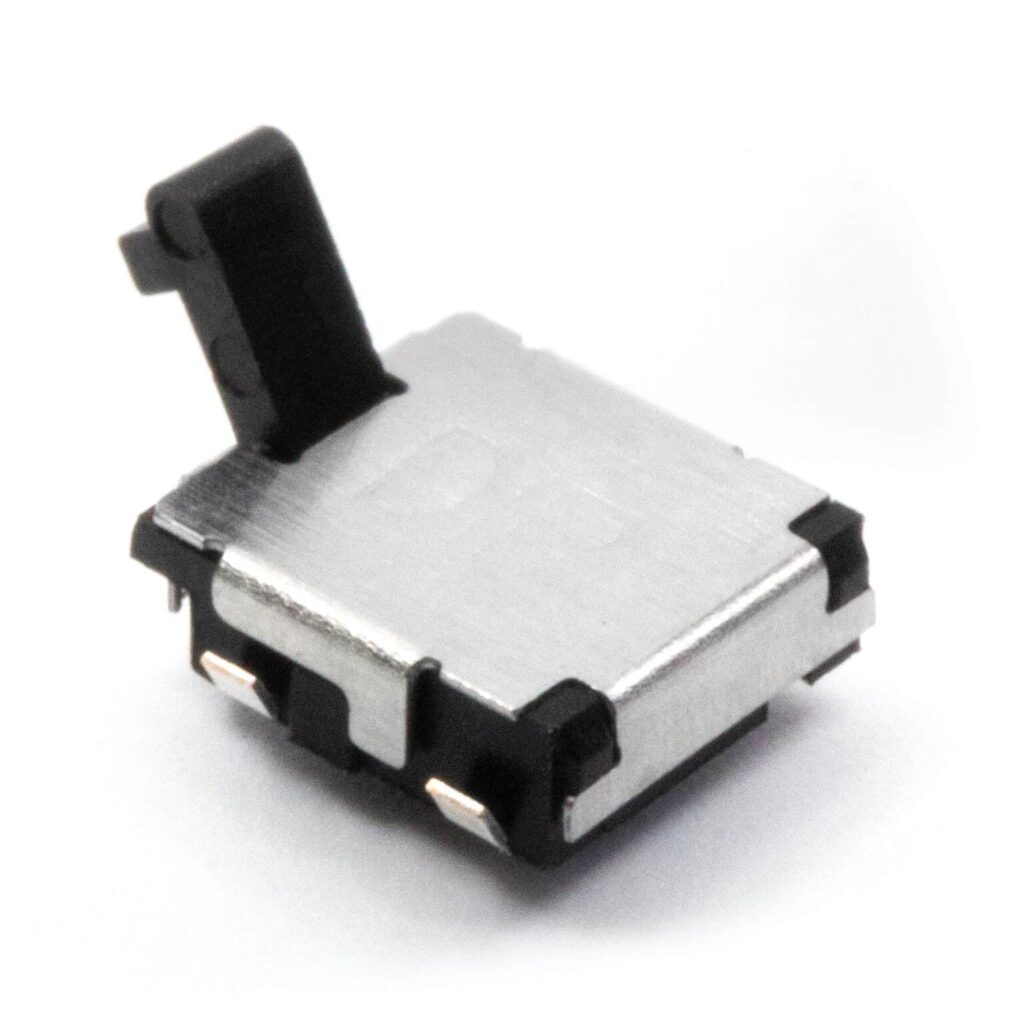

Subminiature surface mount detector switch with low operating force and right angle actuation. Silver contacts. Tape and reel packaging.

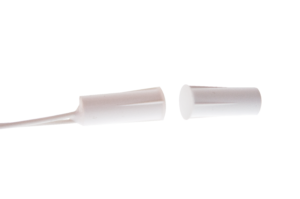

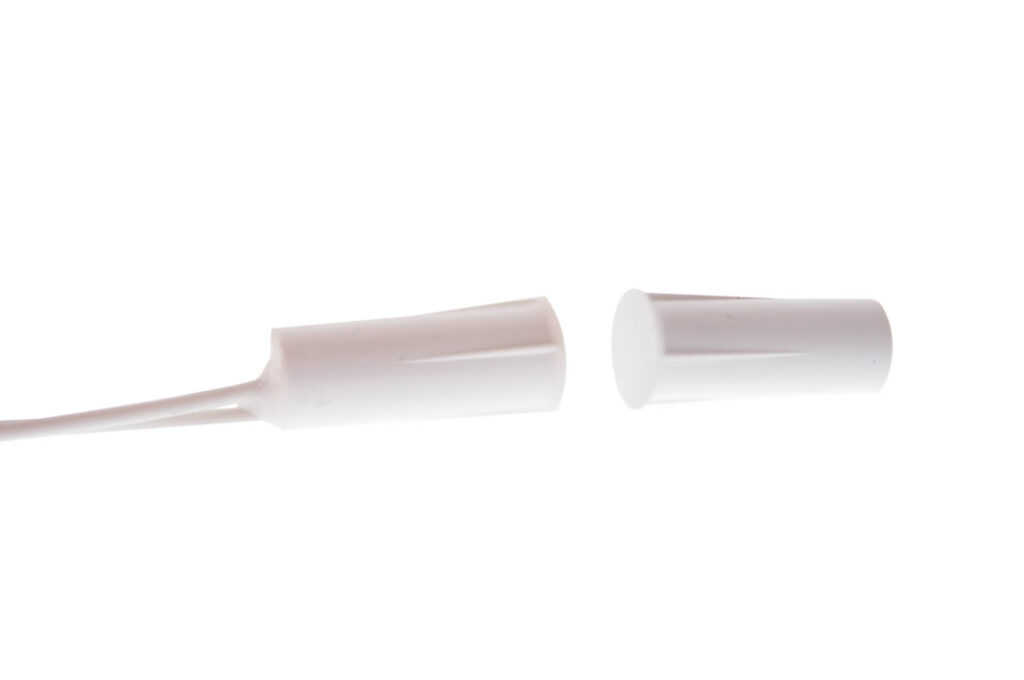

The MR1000 Series is a recessed magnetic or reed type switch which comes in a two-piece design. One piece contains the magnet and the other piece contains the reed switch.

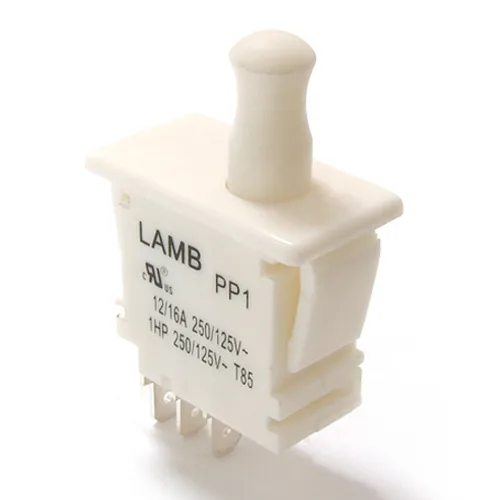

These are detector or door interlock switches and are available as push-pull or momentary pushbuttons. They have high UL power ratings of 16A.

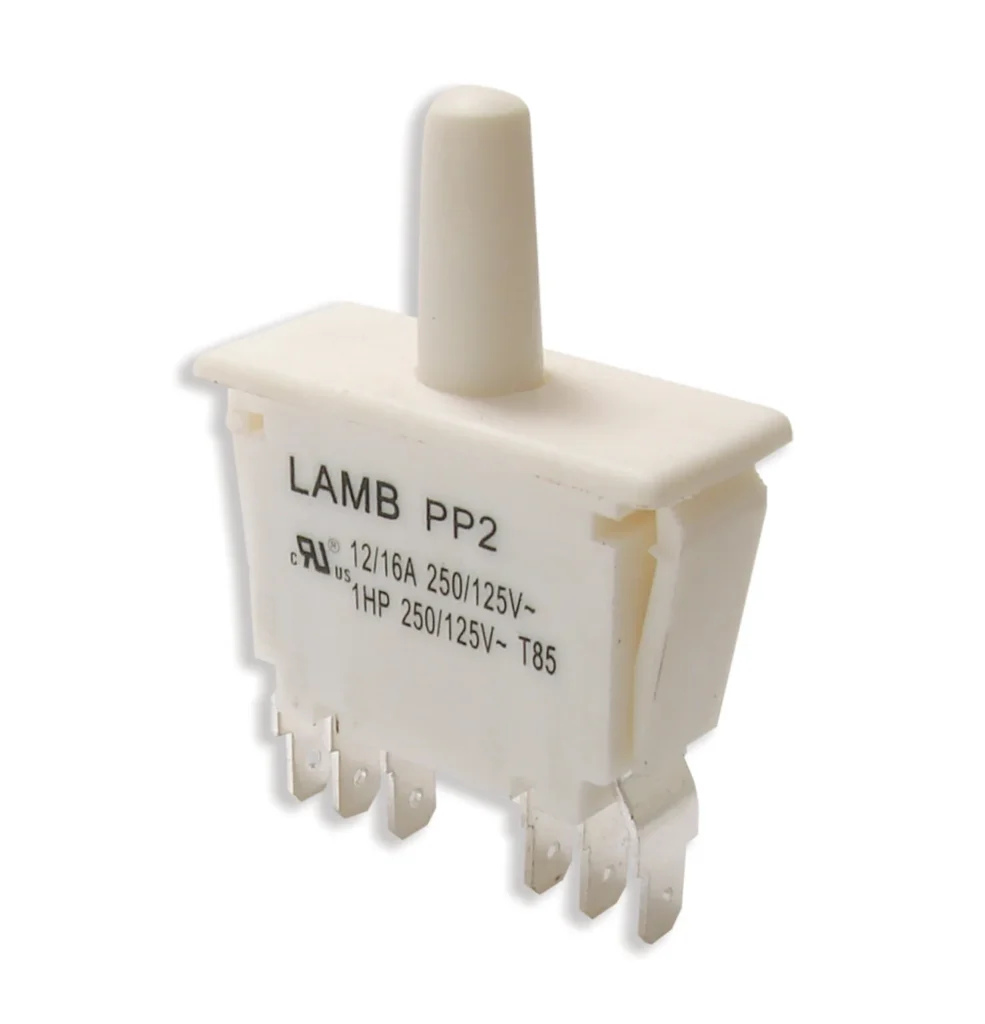

The PP2 Series pushbutton switch acts as a door interlock or detector switch and is available as a push-pull or momentary pushbutton. It\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\'s UL power rated.

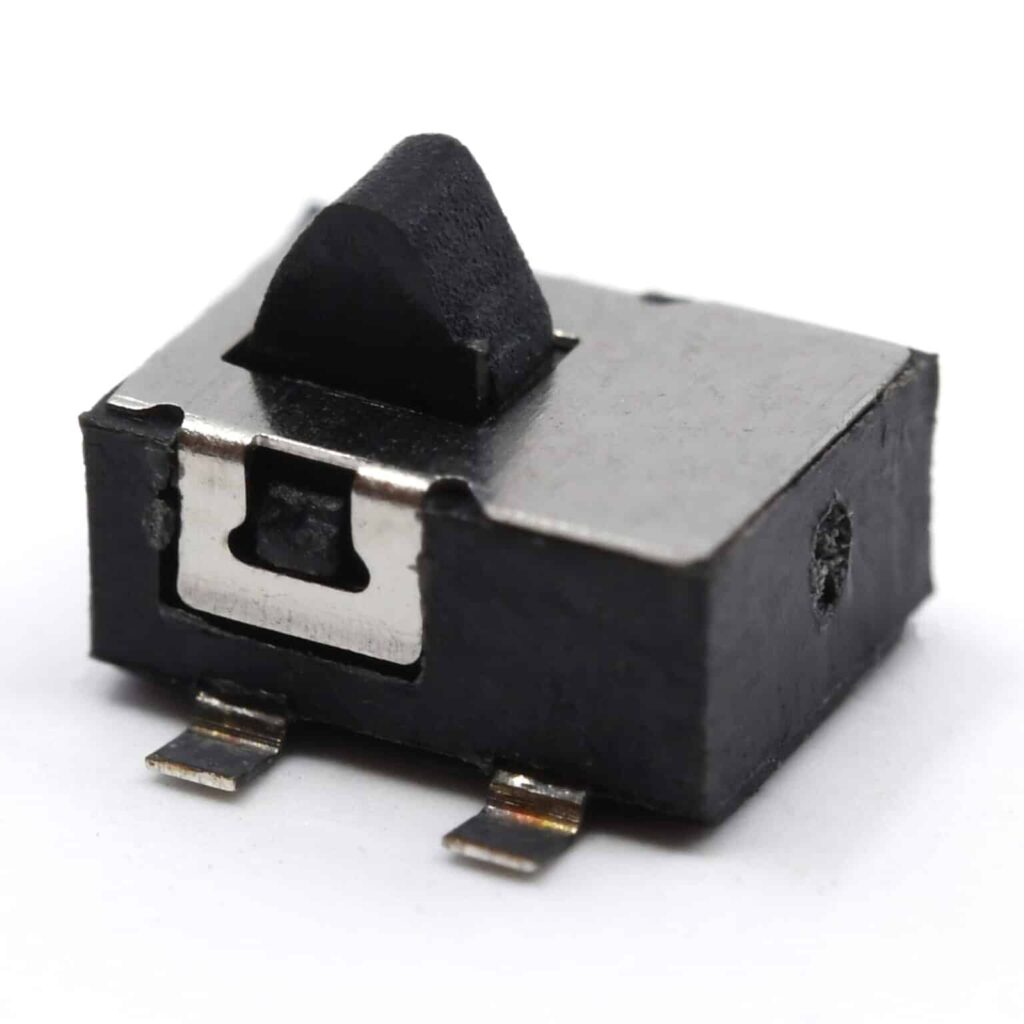

The TD1146 Series detector switch is ultraminiature in size with a 4.8mm x 3.5mm footprint and requires less than 50 grams of force to actuate.

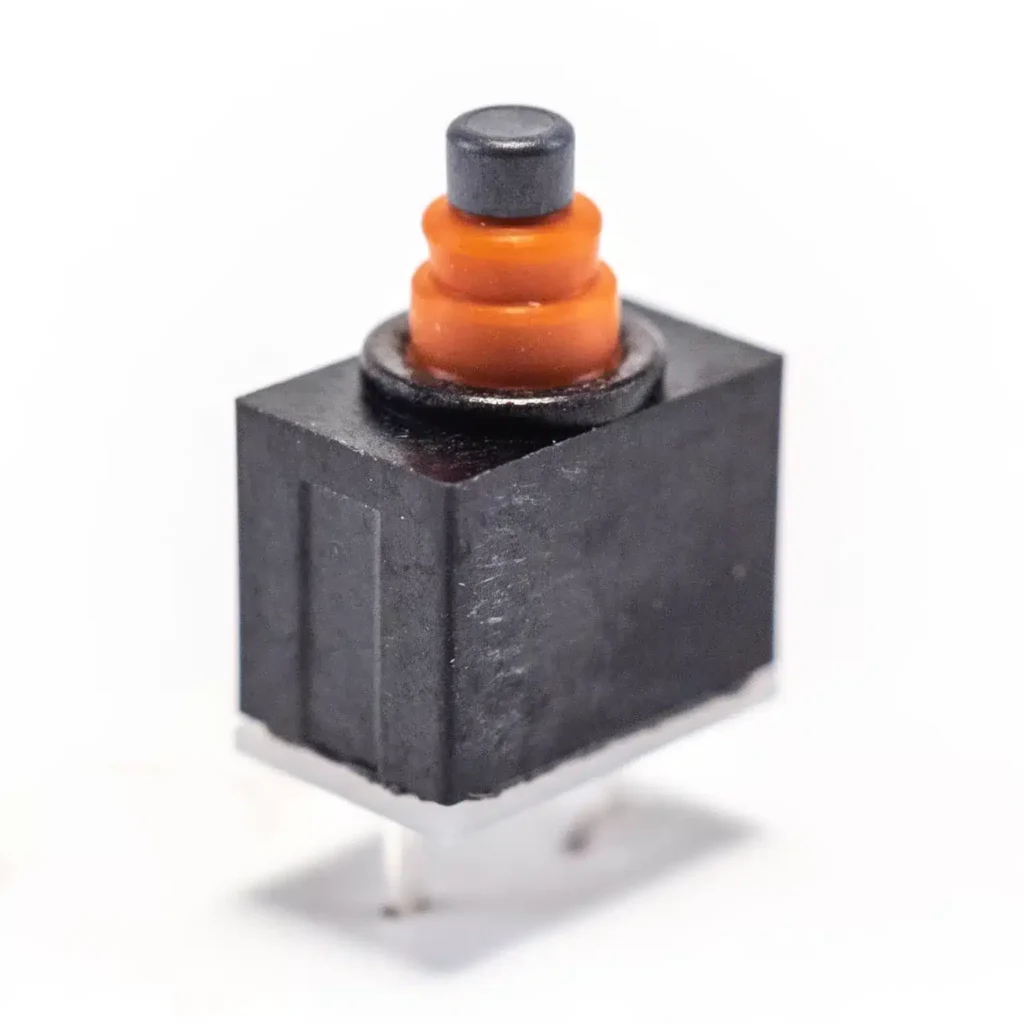

The TD1150 is a thru hole PCB mounted detector switch. It is IP65 rated for dust and moisture protection and provides full travel around 2.5mm with the electrical make around .5mm’s. Actuation force to the electrical make is only 35 grams.

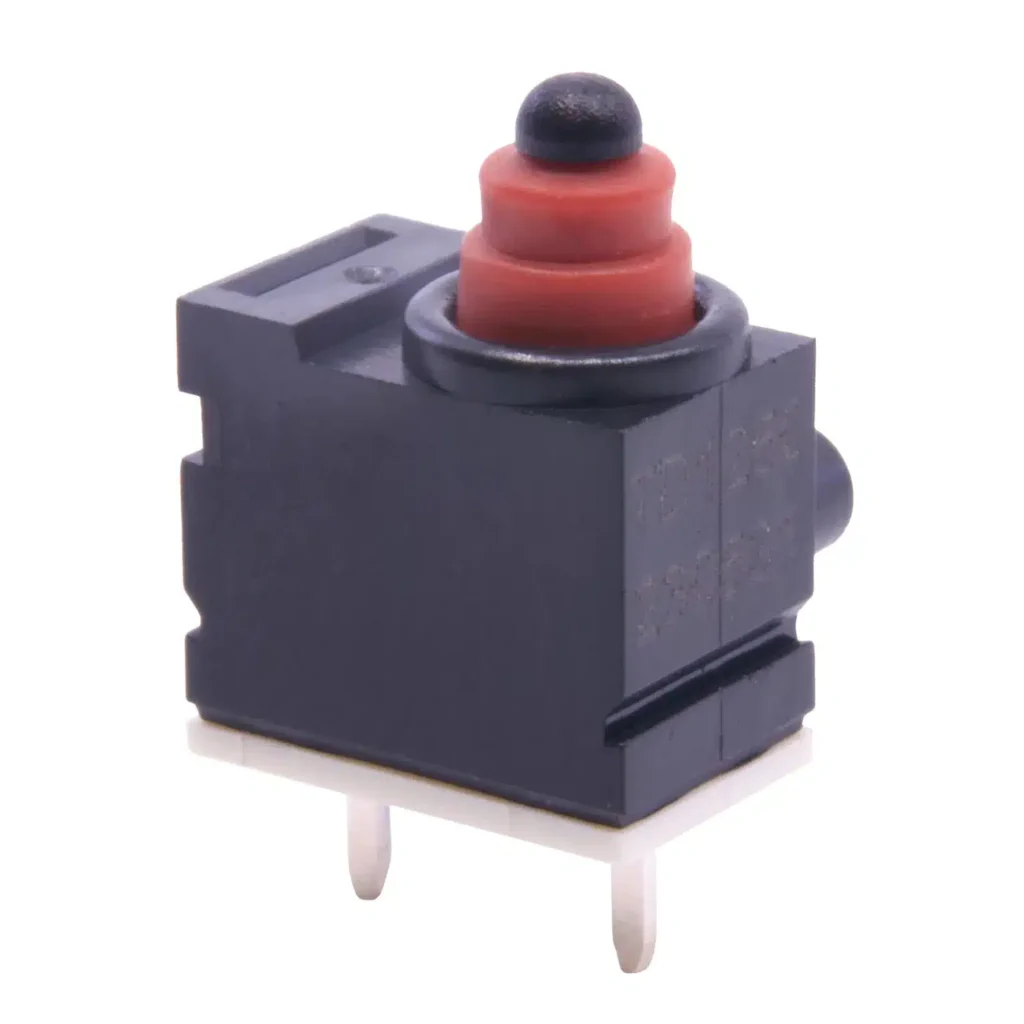

The TD1250 Series detector switches feature a 500,000-cycle mechanical life at minimum and are rated IP67 for dust and moisture protection. They come with mounting bosses and have three actuator options.

Ultraminiature surface mount detector switch with a very low profile and features a guiding post for easy orientation.

Inactive Parts / YTD Legacy Products for E-Switch; a parts list
