Slide

Slide switches are commonly used in many applications, including consumer electronics, computer servers, instrumentation, test and measurement, among others.

500A Series Sub-miniature Slide Switches

• 1 pole with up to 3 positions
• Surface mount, PCB mount or PCB right angle designs
• Vertical and horizontal actuation options

500R Series Slide Switch Sealed to IP67

• Offers IP67 sealing protection
• up to 3 positions
• SPDT and DPDT options
• Gold contacts

500 Series Miniature Slide Switches

• 1 or 2 poles with up to 3 positions
• Panel or PC board mounting designs
• Vertical and horizontal actuation options

600 Series Miniature Slide Switches

• 1 or 2 poles with up to 3 positions
• PCB mount design
• Vertical and horizontal actuation options

EG1215 Series Slide Switch

Surface mount PC board design
1.50mm travel
Compact design
150 gram force
SPDT function

EG1312 Slide Switch

Surface mount PC board design
1.50mm travel
Compact design
SP3T function

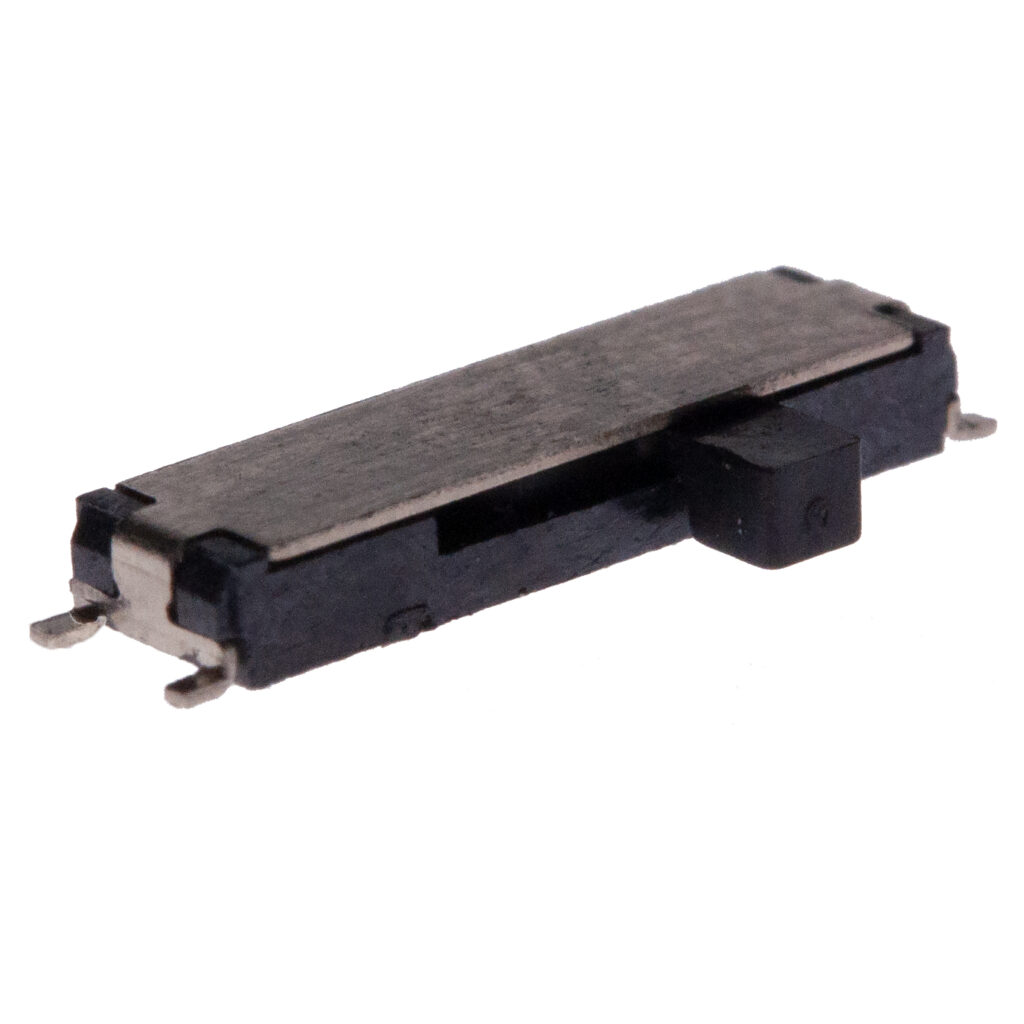

EG1315 Series Slide Switch

Surface mount PC board design
1.50mm travel
Compact design
150-200 gram force
SP3T function

EGL2290 Series Illuminated Slide Switch

LED illumination
SMT design
DPDT circuit - 2 position
Compact design

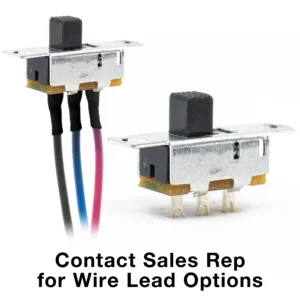

EG Series Sub-miniature Slide Switches

• Up to 6 poles available or up to 6 positions
• Panel and PC board mounting designs
• Vertical and horizontal actuation options
