Pushbutton

A Pushbutton switch is a switch featuring a button you push to open and close a circuit. Depending on the series, Pushbutton switches could perform momentary or maintained functions.

E-Switch carries numerous momentary and maintained pushbutton switches that can be non-illuminated or illuminated, with multiple LED colors and lens colors, with up to IP67 ratings for protection against dust and moisture. Some E-switch pushbutton switches even come pre-wired with wire leads to make installation easier and cheaper for you.

5500 Series Illuminated Pushbutton Switches (5501 and 5511)

• 300mA, 12VDC rating
• Through hole mounting design
• Single or dual LED options
• Momentary actuation

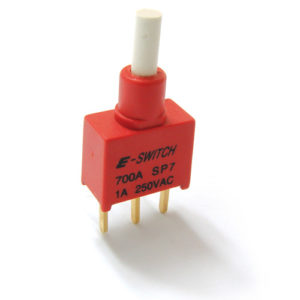

700A Series IP67 Sealed Pushbutton Switches

• IP67 sealed
• 3A 120VAC or 28VDC rating
• Through hole mounting design
• 1 or 2 poles momentary functions

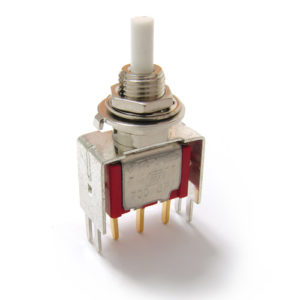

700C Series Alternate Action, Miniature Pushbutton Switch

• 3A 120VAC or 28VDC rating
• Through hole mounting design
• 1 pole latching function
• Variety of bushing and terminal options

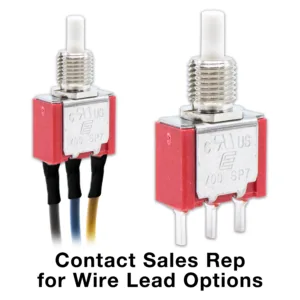

700 Series Snap-Acting, Panel Mount Pushbutton Switch

• SPDT or DPDT, large momentary push button
• Gold or silver termination options
• Panel mount design
• Solder lug and quick connect termination

700 Series Snap-Acting Pushbutton Switch

• 3A 120VAC or 28VDC rating
• Through hole mounting design
• 1 or 2 poles momentary functions
• Variety of bushing and terminal options

800A Series Sealed, Subminiature Pushbutton Switch

• IP67 sealed for protection against dust and moisture
• 3A, 120VAC or 28VDC
• Through-hole mounting design
• 1 pole; momentary functions

800B Series Sealed, Subminiature SMT Pushbutton Switches

• 0.4VA Max
• Surface mount design
• 1 pole, either in single or double throw options
• Tape and reel packaging available

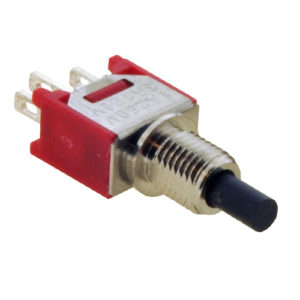

800C Series Alternating Action Miniature Pushbutton Switch

  • Miniature in size
  • Multiple termination options
  • Alternating action pushbutton

800 Series Subminiature Pushbutton Switches

• 3A, 120VAC or 28VDC rating
• Through-hole mounting design
• 1 pole; momentary functions
• Variety of bushing and terminal options

800U Series Caps

• Caps for the 800U series pushbutton
• Ultraminiature
• Red, black or white color options
• 4mm diameter in size

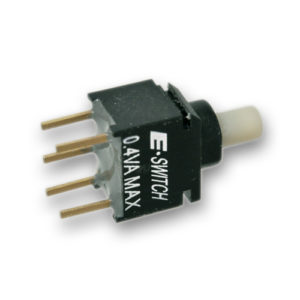

800U Series Ultraminiature, Sealed Pushbutton Switch

• Ultraminiature in size
• IP67 rated
• Multiple termination and color options
• Single or double pole

D16 Series Illuminated Pushbutton Switch

• UL, VDE, and ENEC power rated
• Circular, rectangular, and square panel mount designs
• SPDT, DPDT, 3PDT, 4PDT, maintained (latching) or momentary pushbuttons
• Exclusive solder lug design

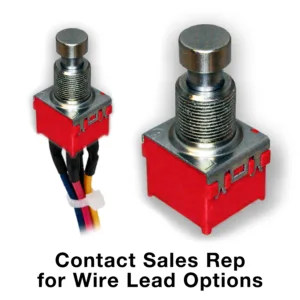

FS5700 Series Pushbutton Foot Switch

• SPDT, DPDT, or 3PDT circuits
• Momentary or alternate action functions
• High actuation force
• PC board mount or panel mount options

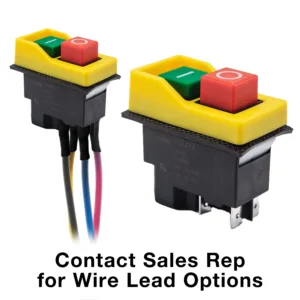

KJD17 Series Heavy Duty, Industrial Power Pushbutton Switch

• IP54 rating for protection against dust and moisture
• 16A, 120VAC, 1/2HP
• Off-On, Off-On with Remote Trip, and NO and NC with Remote Trip functions

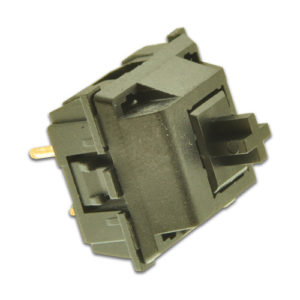

KS1100 Series Pushbutton Switch With Keyboard Functionality

  • 10mA 12VDC rating
  • SPST, momentary function
  • Long Travel
  • 50,000,000 Electrical Life
  • Low Actuator Force

L16 Series Illuminated Pilot Indicator

• Circular, rectangular, and square panel mount designs
• Signal light illumination with LED, neon, or incandescent lamps in multiple colors
• Exclusively a pilot indicator light

LA Series Sealed, Illuminated Pushbutton Switches

• IP65 rated for ingress protection from dust and moisture
• [cURus] power rated for direct and alternating currents
• Signal light illumination with LED, neon, or incandescent lamps in multiple colors
• Momentary, maintained and pilot functions

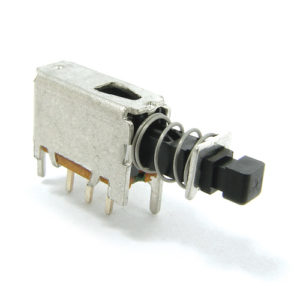

LC Series Pushbutton Switches

• -20 to 85°C operating temperature
• 300mA, 30VDC rating
• Through hole mounting design
• Momentary and maintained functions
• Shorting and non-shorting versions

LP11 Series Illuminated Pushbutton Switch

• RGB or multiple bi-color illumination options
• Tactile or non tactile feel
• Multiple cap sizes
• Long electrical life of a million cycles
• Latching and momentary functions

LP15 Series Illuminated Pushbutton Switch

• 1mA, 20VDC electrical rating
• Through-hole mounting design
• Full LED illumination options
• Single pole, single throw momentary pushbuttons

LP16 Series Long Life, Illuminated Pushbutton Switch

• 50,000,000 cycle life expectancy
• Long travel of 3.3mm
• Multiple illumination options
• Two cap sizes

LP1 Series Illuminated, Round Pushbutton Switch

• Full LED illumination options in multiple colors
• Operates and stores at -40 to 85°C
• Panel mount, round cutout of 8mm
• SPST, momentary pushbuttons

LP2 Series Illuminated Pushbutton Switch

• Customizable graphics for caps in six colors
• Through hole mounting design
• Full LED illumination options
• Single pole, momentary pushbuttons

LP37 Series Illuminated, Right Angle Pushbutton Switch

• 10mA 20mVDC to 250mA 50VDC
• Right angle surface mount design
• Multiple LED illumination options
• SPDT momentary function

LP4 Series Illuminated Pushbutton Switch

• Multiple bezel and button design choices
• Right angle and vertical through hole mounting design
• Full LED illumination options
• 2 poles, momentary and maintained functions

LP6 Series Illuminated Pushbutton with Multiple LED Color Options

• Life expectancy of 200,000 cycles
• Through hole mount design
• Full LED illumination options
• 1 or 2 poles, momentary functions

P16 Series Illuminated Pushbutton Switch

• cURus and VDE power rated for direct and alternating currents
• Circular, rectangular, and square panel mount designs
• SPDT, DPDT, 3PDT, 4PDT circuits; maintained (latching) or momentary pushbuttons
• Exclusive socket terminal design

PA4 Series Illuminated, Power Pushbutton Switch

• Water resistant version with IP54 ingress protection rating
• cURus and ENEC power rated
• 13mm x 19mm panel cutout
• Full illumination options

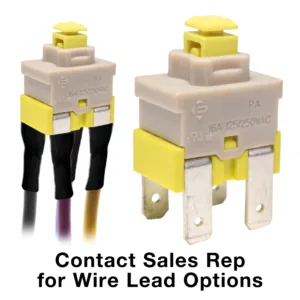

PA5 Series Power Pushbutton Switch

• cURus and ENEC power rated for 16A
• Operate in temperatures ranging from -20 to 125°C
• SPST or DPST circuits, maintained (latching) or momentary pushbuttons

PB1973 Series Illuminated, Snap-in Pushbutton Switch

• 15A, 250VAC rating
• 13mm x 19.2mm panel cutout
• Full illumination options and multiple actuator colors
• SPST or DPST circuits; maintained (latching) or momentary functions

PB2 Series Illuminated, Power Pushbutton Switch

• High power rating of 20A, 125VAC
• IP54 rating for water resistance
• 22mm x 30mm panel cutout
• Spot illumination options

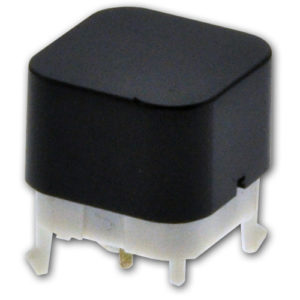

PB300 Series Double Action Pushbutton Switch

  • SPST or SPDT/Double Action
    • Double action: First circuit closes mid travel, second at full travel
  • Long travel, momentary pushbutton switch
  • High actuation force
  • Firm tactile response

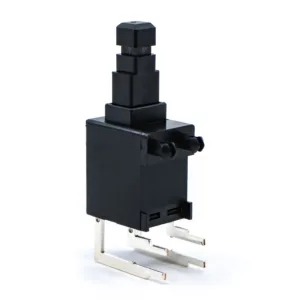

PB400 Series Pushbutton Switch

• Affordable
• Right Angle pushbutton switch
• DPST, momentary or latching functionality
• Optional black cap

PBH Series Right Angle Pushbutton Switch

• 100mA, 30VDC electrical rating
• PC board, right angle mounting design
• Up to 6 poles with momentary and maintained functions

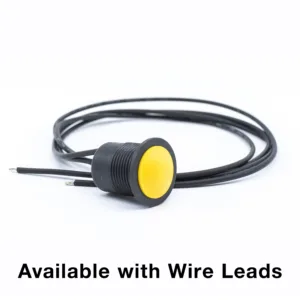

PMV6 Series Anti-vandal Switch

  • 16mm panel cutout
  • UL3385 20AWG pre-stripped and tinned wire leads
  • Multiple Cap Colors
  • 10,000 Cycle Electrical Life
  • Crisp tactile response
  • IP67 rated

PP1 Series Push-pull Pushbutton Detector Switch

• 16A 125VAC 1HP rating
• 13.3mm x 28.2mm panel cutout
• SPDT, push-pull or momentary pushbutton

PP2 Series Push-pull Pushbutton Detector Switch

• Up to 16A 125VAC 1HP rating
• 13.5mm x 36mm panel cutout
• 2 poles; push-pull or momentary pushbutton

PV0 Series Sealed, Illuminated Anti-vandal Switch

  • IP65 rated for protection against dust and moisture
  • 12mm panel cutout
  • Ring or dot illumination options
  • Multiple LED color options

PV10 Series Illuminated Anti-vandal Switch

• 40mm diameter panel cutout
• Dot or ring illumination options available
• Multiple switch functions available
• Multiple illumination voltage options
• IP65 rated
• SPDT or DPDT

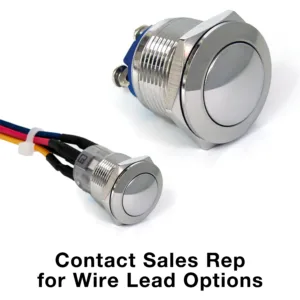

PV1 Series Long Life, Water Resistant Anti-vandal Switch

• IP65 rating for protection against dust and moisture
• 19mm diameter panel cutout
• 1 pole, Off-(On)
• Solder and screw terminal options available

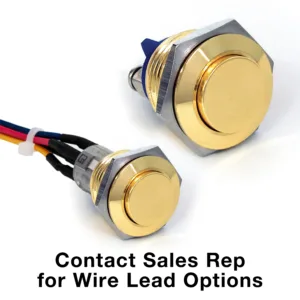

PV2 Series Sealed, Long Life Anti-vandal Switch

• IP65 rating for protection against dust and moisture
• 16mm diameter panel cutout
• 1 pole Off-(On) circuit
• Solder and screw terminal options available

PV3 Series Illuminated, Sealed, Long Life Anti-vandal Switch

• Non-sealed (IP40) and sealed (IP67) options
• 16mm diameter panel cutout
• Dot and ring illumination options available
• 1 or 2 poles; momentary functions

PV4 Series Illuminated, Long Life, Sealed Anti-vandal Switch

• IP65 rating for dust and moisture protection
• 19mm diameter panel cutout
• Dot and ring illuminated; RGB LED illumination available
• 1 or 2 poles; maintained, momentary, and double break functions

PV5 Series Sealed, Long Life Anti-vandal Switch

• IP65 rated for protection against dust and moisture
• Solder lug or screw terminal options available
• 1 pole; momentary functions

PV6 Series Illuminated, Sealed, Long Life Anti-vandal Switch

• IP65 rating for protection against dust and moisture
• 16mm diameter panel cutout
• 1 pole; Off-(On) functionality
• Dot and ring illumination options available with RGB multicolor LED indicator light
• Solder lug or wire lead terminals

PV7 Series Illuminated Anti-vandal Switch

  • 22mm diameter panel cutout
  • Dot or ring lens options
  • Multiple LED colors
  • 1 pole double break function
  •  IP65 rated

PV8 Series Illuminated, Sealed Anti-vandal Switch

• IP65 rated for dust and moisture protection
• 25mm diameter panel cutout
• Dot and ring illumination options available
• 1 or 2 poles; maintained (latching) and momentary double break functions

PV9 Series Sealed Illuminated Anti-vandal Switch

  • IP66 rated for dust and moisture protection
  • Dot or ring illumination options available
  • Multiple switch functions available
  • SPDT or DPDT

PVA3 Series Anti-vandal Switch

• IP65 rated for dust and moisture protection
• 16mm panel cutout
• Ring illumination option
• Multiple LED color options
• Momentary or maintained (latching) functions

PVA6 Series Illuminated, Long Life Anti-vandal Switch

  • IP67 rated for dust and moisture protection
  • Solder lug or wire leads (500mm long) termination
  • Ring or power symbol illumination options
  • SPST, Off-(On) functionality
  • Refer to Detail Specs for PVA6L latching version

PVS7 Series Illuminated Anti-vandal Switch

  • IP65 rated for dust and moisture protection
  • RGB LED illumination option
  • Ring illumination avaliable
  • Multiple function options
  • SPDT & DPDT
  • Soldered wire leads (300mm long) optional

PVT4 Series Illuminated, Tactile Response Anti-vandal Switch

  • IP65 protection from dust and moisture
  • Solder lug or wire lead termination options
  • Ring illumination
  • LED color options
  • Crisp tactile response

RP3508 Series Round, Illuminated Pushbutton Switch

• 3A, 125VAC rating
• 15mm x 16mm rounded edge panel cutout
• Full LED illumination options
• SPST; maintained (latching) or momentary pushbuttons

RP8100 Series Round, Illuminated Pushbutton Switch

• IP67 ingress protection rating
• 125mA 125VAC rating
• SPST, momentary pushbutton
• Life expectancy of 500,000 cycles
• Nylon housing and actuator

RP8200 Series Illuminated, Round Pushbutton Switch

• Sealed pushbutton with an IP67 rating
• 200,000 life expectancy
• 100mA 24VDC rating
• SPST, maintained (latching) function

RP8300 Series Round, Illuminated Pushbutton Switch

• Sealed at an IP67 rating
• Life expectancy of 500,000 cycles
• 500mA @ 48 VAC, 200mA @ 50 VDC, 200mA @ 250 VAC power ratings
• SPST, momentary pushbuttons

RP8400 Series Square, Illuminated Pushbutton Switch

• IP67 sealed, die cast housing with nylon actuator
• Life expectancy of 500,000 cycles
• 500mA @ 48 VAC, 200mA @ 50 VDC, 200mA @ 250 VAC power ratings
• SPST, momentary pushbuttons

RP8500 Series Square Illuminated Panel Mount Pushbutton

• 100mA 50VDC rating; 125mA 125VAC rating
• 13.6mm diameter panel cutout
• SPST momentary (500,000 life cycles)
• IP67 sealed, nylon housing & actuator

RP8600 Series Square, Sealed Pushbutton Switch

• IP67 sealed, nylon housing
• Life expectancy of 100,000 cycles
• 0.4VA Max @ 20V Max (AC or DC) power rating
• SPST, momentary pushbuttons

SAV4 Series Anti-Vandal Switch

  • 19mm diameter panel cutout
  • Dot, ring, power, or ring/power illumination options
  • Multiple illumination voltage options
  • Momentary and latching functions
  • 15A high current rating

SAV7 Series Anti-Vandal Switch

  • 22mm diameter panel cutout
  • Ring or ring/power illumination options
  • Multiple illumination voltage options
  • Momentary and latching functions
  • 15A high current rating

SAV8 Series Anti-Vandal Switch

  • 25mm diameter panel cutout
  • Ring or ring/power illumination options
  • Multiple illumination voltage options
  • Momentary and latching functions
  • 15A high current rating

SV4 Series Anti-Vandal Switch

  • Short body design
  • 19mm diameter panel cutout
  • Ring or Ring/Power Symbol combo illumination
  • IP67
  • SPST
  • Optional soldered wire leads (500mm long)

SV7 Series Illuminated Anti-Vandal Switch

  • Short body design
  • 22mm diameter panel cutout
  • Ring or Ring/Power Symbol combo illumination
  • IP67
  • SPST
  • Optional soldered wire leads (500mm long)

SV8 Series Illuminated Anti-vandal Switch

  • Short body design
  • 25mm diameter panel cutout
  • Multiple LED options
  • Ring or Ring/Power Symbol combo illumination
  • IP67
  • SPST
  • Optional soldered wire leads (500mm long)

TL2201 and TL4201 Series Subminiature Pushbutton Switches

• Long travel, with actuator and cap options
• 100mA, 30VDC electrical rating
• PC board mount design
• Up to 4 poles, momentary and maintained (latching) functions

TL2202 Series Pushbutton Switch

• 100mA 30VDC rating
• PC board mount design
• Up to 4 poles momentary and maintained functions

TL2203 Series Subminiature Pushbutton Switch

• DPDT, maintained (latching) or momentary pushbuttons
• 100mA, 30VDC rating
• PC board mounting design
• Long travel

TL2205 Series Illuminated Pushbutton Switch

• Multiple LED illumination colors
• Optional cap with LED window
• 100mA, 30VDC
• Through hole mount design
• DPDT, maintained (latching) or momentary push buttons

TL2230 Series Subminiature Pushbutton Switch

• DPDT, maintained (latching) or momentary pushbuttons
• 100mA, 30VDC electrical rating
• PC board mount design

TL2233 Series Subminiature Pushbutton Switch

• DPDT, momentary contact push button
• Wave solderable
• Surface mount design
• Long electrical life

TL2285 Series Subminiature Pushbutton Switches

• DPDT, maintained (latching) or momentary pushbuttons
• 100mA, 30VDC electrical rating
• PC board mount design

ULP Series Long Life, Illuminated Pushbutton Switch

• Long life of one million cycles for mechanical components and 200,000 cycle electrical life
• PC board or panel mount design with several button options
• Full LED illumination options
• SPDT or DPST, maintained (latching) or momentary pushbuttons

ULV4 Series UL Certified, Long Life Anti-vandal Switch

• Dot, ring, or power symbol illuminated
• IP67 rated for dust and moisture protection; UL certified
• Long life; maintained (latching) or momentary
• Three wire lead options available

ULV7 Series UL Certified Anti-Vandal Switch

• Ring illuminated; 22mm panel cutout
• IP67 rated for dust and moisture protection; UL Certified
• Long life; maintained (latching) or momentary
• Three wire lead options available: 300m long wire leads, detachable socket with wire leads 500mm long, or molded back with wire leads 500mm long

ULV8 Series UL Certified, Sealed Anti-vandal Switch

• Ring illuminated; 25mm panel cutout
• IP67 rated for dust and moisture protection; UL Certified
• Long life; maintained (latching) or momentary
• SPDT or DPDT with multiple functions
• Three wire lead options available

WBL Series Illuminated, Right Angle Pushbutton Switch

• DPDT or 4PDT, maintained (latching) or momentary pushbuttons
• Multiple LED illumination colors, including bi-color LEDs
• Right angle, through-hole PCB mounting design
• 300mA, 30VDC electrical rating
• Optional transparent cap

YTD-Legacy Products

  • Product Change Notifications
  • E-Switch Replacement Series
  • Active Drawing Reference
