E-Switch's miniature and ultra-miniature switches are perfect for those smaller applications. With a growing assortment of miniature switches to choose from, E-Switch is sure to have one for you!

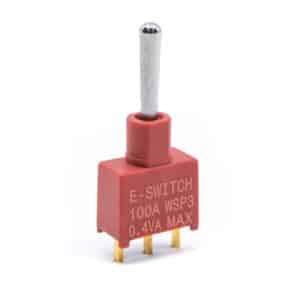

100A Series Sealed Miniature Toggle Switch

• IP67 sealed for protection from dust and moisture
• Up to 5A, 120VAC or 28VDC electrical rating with [cURus] approval
• Vertical and right angle mounting designs
• 1 or 2 poles and throws; momentary and maintained (latching) functions

100 Series Miniature Toggle Switch

• Up to 4 poles available
• Variety of switching functions
• Miniature
• Multiple actuator & bushing options

200A Series Subminiature, Sealed Toggle Switch

• IP67 ingress protection rating, sealed from dust and moisture
• 3A, 120VAC or 28VDC electrical rating
• Vertical and right angle mounting designs
• 1 or 2 poles and throws, momentary and maintained (latching) functions

200B Series Subminiature, Sealed Toggle Switch

• IP67 sealed for protection from dust and moisture
• 0.4VA, 20V max. (AC or DC) electrical rating
• Surface mount design
• 1 pole, momentary and maintained (latching) functions

200R Series Miniature Toggle Switch

• Multiple termination and mounting options
• Single or double pole
• Available in both 2 or 3 position circuits
• Miniature in size


200 Series Subminiature Toggle Switch

• Up to 3A, 120VAC or 28VDC electrical rating
• Vertical and right angle mounting designs
• 1 or 2 poles and throws; momentary and maintained (latching) functions

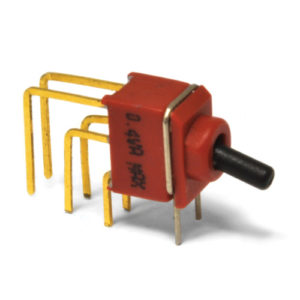

200U Series Ultra-miniature, Sealed Toggle Switch

• Sealed to IP67
• Life expectancy of 40,000 cycles
• Ultra-miniature in size: 4.5mm x 7mm
• Vertical right angle or right angle PCB mounting options

300A Series Sealed, Miniature Rocker Switch

• Sealed at an IP67 rating for protection against dust and moisture
• Up to 5A, 120VAC or 28VDC electrical rating, also available in gold
• Panel or PC board mount design
• Up to 2 poles; momentary and maintained functions

300 Series Subminiature Rocker Switch

• Up to 5A, 120VAC or 28VDC rating; also available with gold contacts
• Panel or PC board mount design
• Up to 4 poles; momentary and maintained functions

400A Series Sealed, Sub-Miniature Rocker Switches

• Up to 3A, 120VAC or 28VDC rating, also available in gold
• PC board mount design
• 1 or 2 poles; momentary and maintained functions
• IP67 sealed for protection against dust and moisture

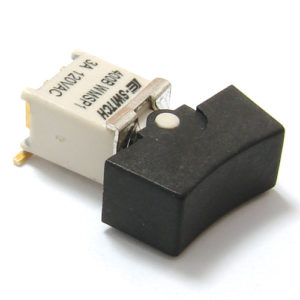

400B Series Subminiature, Sealed Rocker Switch

• IP67 sealed against dust and moisture
• 3A ,120VAC electrical rating, or 1A, 250VAC
• Surface mount design
• 1 pole; momentary and maintained (latching) functions

400 Series Subminiature Rocker Switch

• Up to 3A, 120VAC or 28VDC rating, also available in gold contacts
• PC board or panel mount design
• 1 or 2 pole circuits; momentary and maintained (latching) functions

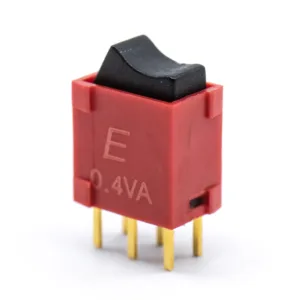

400U Series Ultra-miniature Rocker Switch

• Ultra-miniature in size
• Lever or rocker actuator options
• Multiple termination and color options
• Double pole

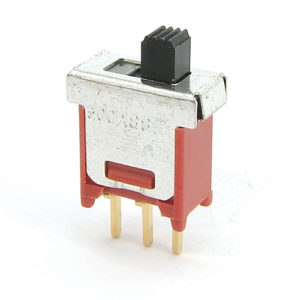

500A Series Subminiature Slide Switch

• 1 pole circuits with up to 3 actuator positions for maintained (latching) functions
• Surface mount, PCB mount, or PCB right angle designs
• Vertical and horizontal actuation options

600 Series Miniature Slide Switch

• 1 or 2 poles with up to 3 actuator positions
• PC board mount design with surface mountable option
• Vertical and horizontal actuation options

700A Series IP67 Sealed Pushbutton Switches

• IP67 sealed
• 3A 120VAC or 28VDC rating
• Through hole mounting design
• 1 or 2 poles momentary functions

700C Series Alternate Action, Miniature Pushbutton Switch

• 3A 120VAC or 28VDC rating
• Through hole mounting design
• 1 pole latching function
• Variety of bushing and terminal options

800C Series Alternating Action Miniature Pushbutton Switch

  • Miniature in size
  • Multiple termination options
  • Alternating action pushbutton

800 Series Subminiature Pushbutton Switches

• 3A, 120VAC or 28VDC rating
• Through-hole mounting design
• 1 pole; momentary functions
• Variety of bushing and terminal options

800U Series Ultraminiature, Sealed Pushbutton Switch

• Ultraminiature in size
• IP67 rated
• Multiple termination and color options
• Single or double pole

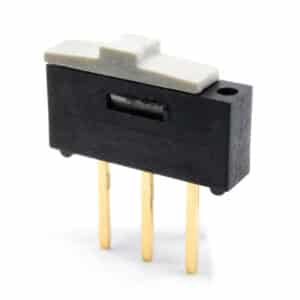

EG Series Subminiature Slide Switch

• Up to 6 poles available and up to 6 actuator positions
• Panel and PC board mounting designs
• Vertical and horizontal actuation options

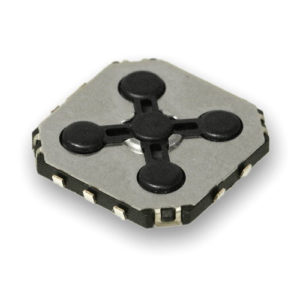

JS1300 Series 5-position Navigation Switch

• 5-position navigation switch
• Long life expectancy of up to 200,000 cycles
• 9.8mm x 9.8mm base; low profile, 1.55mm height
• Surface mount design

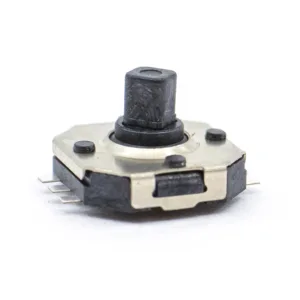

JS1400 Series 5-position, Joystick Navigation Switch

• 5-position, joystick navigation switch
• 7.4mm x 7.7mm with 3 different actuator height options
• Long mechanical life expectancy of 100,000 cycles
• Surface mount design

PBH Series Right Angle Pushbutton Switch

• 100mA, 30VDC electrical rating
• PC board, right angle mounting design
• Up to 6 poles with momentary and maintained functions

TD1146 Series SMT Ultraminiature Detector Switch

• Surface mount detector switch
• Ultraminiature 4.8mm x 3.5mm footprint
• Very low profile

TD4700 Series Ultraminiature Detector Switch

• Long life expectancy of 100,000 cycles
• Ultraminiature
• Very low profile

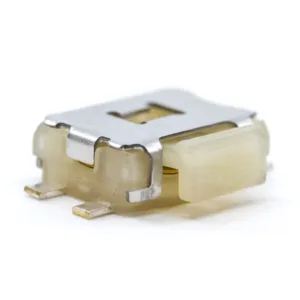

TL1014 Series Subminiature, Right Angle Tactile Switch

• Long life expectancy of up to 200,000 cycles
• 160 or 220 gram force options
• Right angle, surface mount design
• Silver plated contacts

TL1015 Series Ultraminiature Tactile Switch

• 3mm x 4mm tactile switch
• 160 ± 50 gram force
• Surface mount design
• Silver plated contacts

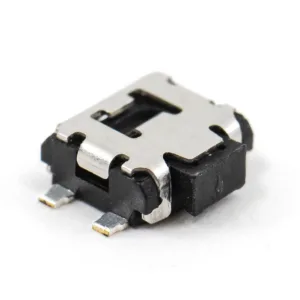

TL1016 Series Micro-Miniature Right Angle SMT Tact Switch

  • 3.55 x 3.5mm tactile switch
  • 160 or 220 gram force options
  • Right angle surface mount design
  • Up to 100,000 cycle life expectancy
  • Ground terminal option

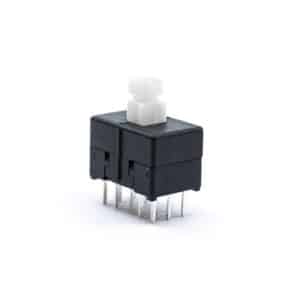

TL2201 and TL4201 Series Subminiature Pushbutton Switches

• Long travel, with actuator and cap options
• 100mA, 30VDC electrical rating
• PC board mount design
• Up to 4 poles, momentary and maintained (latching) functions

TL2203 Series Subminiature Pushbutton Switch

• DPDT, maintained (latching) or momentary pushbuttons
• 100mA, 30VDC rating
• PC board mounting design
• Long travel

TL2205 Series Illuminated Pushbutton Switch

• Multiple LED illumination colors
• Optional cap with LED window
• 100mA, 30VDC
• Through hole mount design
• DPDT, maintained (latching) or momentary push buttons

TL2230 Series Subminiature Pushbutton Switch

• DPDT, maintained (latching) or momentary pushbuttons
• 100mA, 30VDC electrical rating
• PC board mount design

TL2233 Series Subminiature Pushbutton Switch

• DPDT, momentary contact push button
• Wave solderable
• Surface mount design
• Long electrical life

TL2285 Series Subminiature Pushbutton Switches

• DPDT, maintained (latching) or momentary pushbuttons
• 100mA, 30VDC electrical rating
• PC board mount design

TL3210 Series Miniature, LED Illuminated Tact Switch

• 5.6mm x 3.4mm tactile switch
• 160 ± 50 gram force options
•  Illuminated SMT
• Tape & reel packaging

TL3301 Series SMT Tactile Switch

• 6mm x 6mm tactile switch
• 100, 160, and 260 gram force options
• Surface mount design
• Silver or gold plated contacts

TL3302 Series 3.5mm x 6mm SMT Tactile Switch

• 3.5mm x 6mm tactile switch
• 130 ± 50; 180 ± 50; 260 ± 50 gram force options
• Surface mount design
• Silver plated contacts

TL3303 Series SMT Tactile Switch

• 6mm x 6mm tactile switch
• 100 ± 50; 160 ± 50; 260 ± 50 gram force options
• Surface mount design
• Silver plated contacts

TL3305 Series Ultraminiature, SMT Tactile Switch

  • Ultraminiature, 4.5 x 4.5mm
  • Multiple actuator options
  • Surface mount
  • Multiple operating force options

TL3312 Series Miniature, Low Profile, SMT Tactile Switch

  • Ultraminiature, 3.7mm x 3.7mm in size
  • Surface mount termination
  • Very low profile of 0.35mm

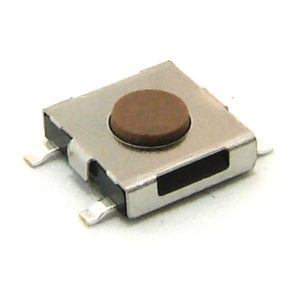

TL3313 Series Subminiature, SMT Tactile Switch

• 4.8mm x 4.8mm tactile switch
• 100 ± 50; 160 ± 50; 250 ± 50 gram force options
• Surface mount design
• Silver plated contacts

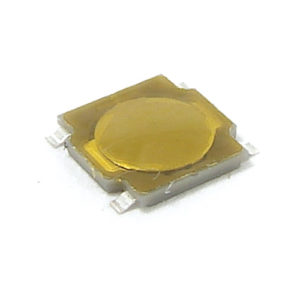

TL3315 Series Ultra Low Profile, SMT Tactile Switch

• 4.5mm x 4.5mm tactile switch
• Ultra low profile with 0.55mm height
• 100 ± 30; 160 ± 50; 250 ± 50 gram force options
• Surface mount design

TL3330 Series SMT, Right Angle Tactile Switch

• 6.9mm x 3.3mm tactile switch
• 100 ± 40; 200 ± 50 gram force options
• Right angle surface mount design
• Silver plated contacts

TL3340 Series Right Angle SMT, Subminiature Tactile Switch

• 4.25mm x 3.3mm tactile switch
• 160 ± 50gf and 130gf ± 30gf options
• Right angle surface mount design
• Silver plated contacts

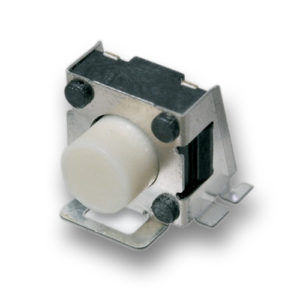

TL3360 Series Right Angle, SMT Tactile Switch

• Right angle surface mount
• 185 or 260 gram operating force
• Multiple actuation options
• SPST

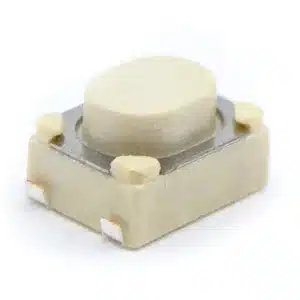

TL3365 Series Ultraminiature, SMT Tactile Switch

  • Ultraminiature size: 3.2mm x 4.2mm
  • Surface mount
  • 100,000 electrical / mechanical life
  • SPST, 180gf, 250gf, or 400gf

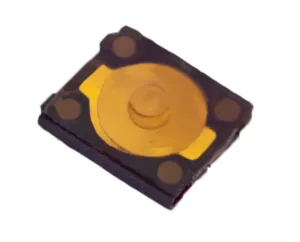

TL3701 Series Ultraminiature Micro Tactile SMT Switch

• 3.0mm x 2.6mm x 0.65mm tactile switch
• Up to 100,000 cycles life expectancy
• 100gf and 160gf options
• Surface mount design

TL3780 Series Ultraminiature, Low Profile SMT Tactile Switch

• Ultraminiature 2.0mm x 3.0mm size
• Surface mount termination
• Very low profile of 0.60mm
• Multiple operating forces

TL3901 Series Subminiature Right Angle, Edge Mounted SMT Tactile Switch

• 4.3mm x 6.10mm tactile switch
• 180 ± 50 gram force
• Right angle surface mount design
• Silver plated contacts

TL4100 Series Miniature, Right Angle Edge Tactile Switch

• 1,000,000 cycle life expectancy
• 120 and 240 gram force options
• Unique pcb edge-mounting design

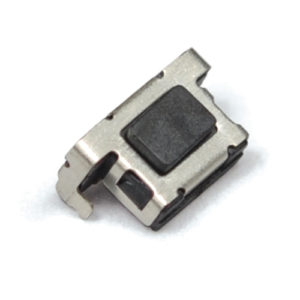

TL4105 Series Right Angle Edge, Ultraminiature Tactile Switch

• 200,000 cycle life expectancy
• 160 gram force option
• Unique PCB, edge-mounting design

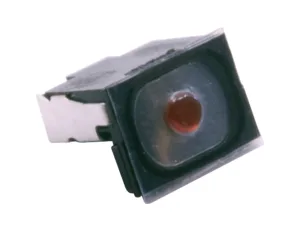

TL4110 Series Low Profile, SMT Tactile Switch

• Surface Mount Switch
• Long Cycle Life of 300,000 Cycles
• Extremely Small Surface profile of 2.0mm x 2.8mm
• Switch Mounts along the edge of the PCB for Right Angle Actuation

TL6120 Series Process Sealed, SMT Tactile Switch

• Process sealed tactile switch
• 130, 160, 300, and 500 gram force options
• Surface mount design
• Long life of up to a million cycles

TL6330 Series High-Temperature, SMT Tactile Switch

• IP67 rating for dust and moisture protection
• Surface mount, PC board design
• Long life up to 200,000 cycles
• Small package size of 2.80mm x 4.60mm, with two actuator height options
• 200gf, 300gf, 400gf options

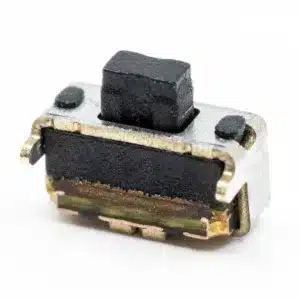

TL6340 Series Right Angle, SMT Tactile Switch

  • IP67 rated moisture and dust protection
  • SPST contact arrangement
  • 2.90mm (W) x 3.85mm (L) x 2.00mm (H) dimensions
  • Up to 200,000 cycle life expectancy
  • Right angle surface mount design

TL9210 Series Long Travel, SMT J-bend Tactile Switch

  • Surface mount termination
  • Multiple operating force options
  • Long travel and quiet tactile feel
  • Low contact resistance

TL9320 Series Sealed Tactile Switch

  • IP67 rated for dust and moisture protection
  • SPST contact arrangement
  • 8.4mm (W) x 8.4mm (L) x 3.95mm (H) dimensions
  • Long life expectancy up to 500,000 cycles

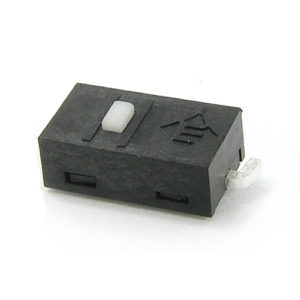

TS2 Series Surface Mount, Snap Action Switch

• 3,000,000 cycle life
• 100mA, 125VAC or 48VDC electrical rating
• Subminiature size
• Surface mount design

TS Series Subminiature, Snap Action Switch

• 300mA, 6VDC electrical rating
• Minimum 50,000 cycle electrical life
• Subminiature size
• Multiple termination options

WS1 Series Sealed, Snap Action Switch

• IP67 rated for dust and moisture protection
• UL Certified
• Multiple current rating options
• Solder lug or wire leads termination options
