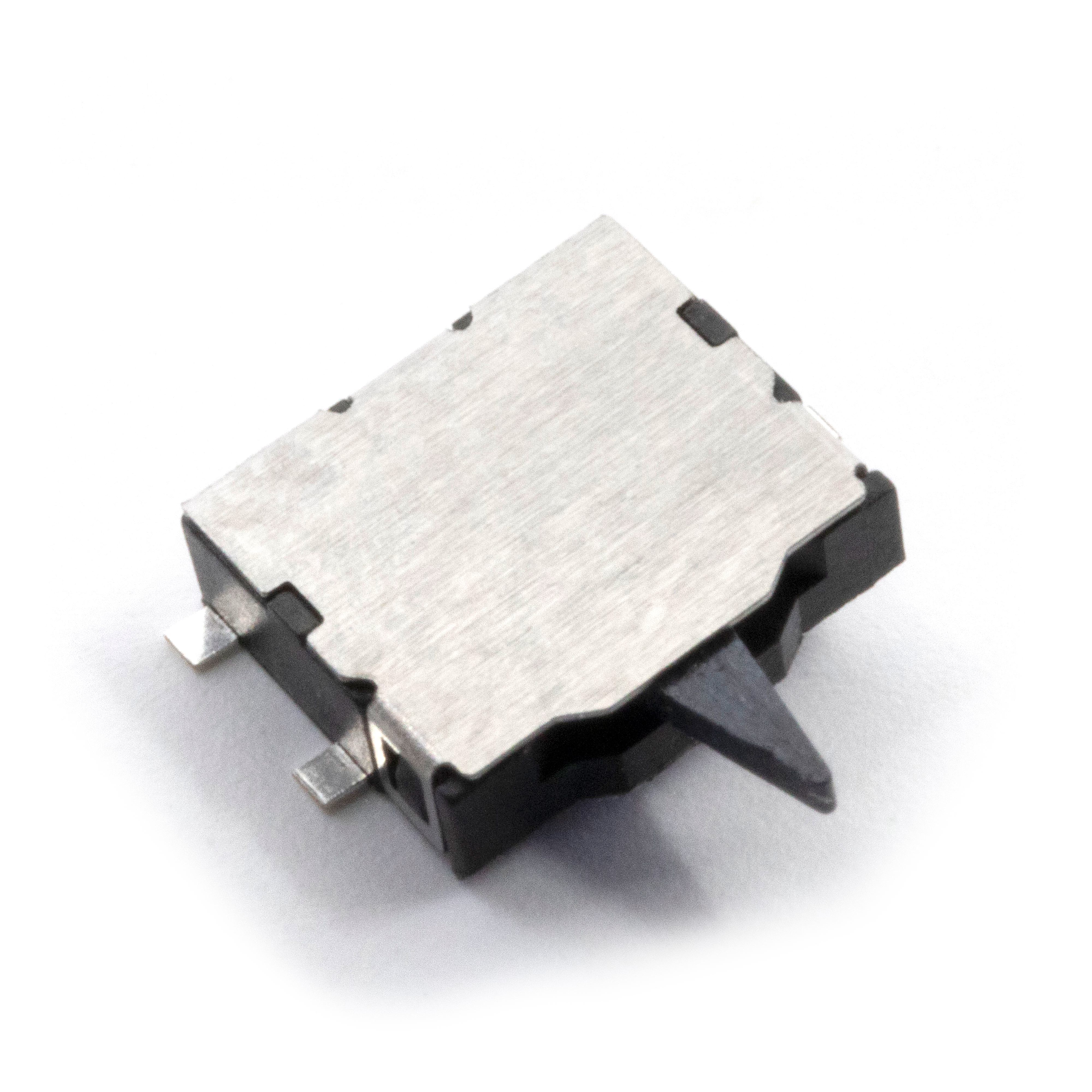

TD1270 Series Ultraminiature SMT Right Angle Detector Switch
Stock Check for TD1270BGQGR
Not the product you are looking for? Configure your product
DETECTOR, 10mA, 5VDC, SPDT, (On)-Off-(On), Surface Mount, Right Angle
About TD1270 Series
- 10mA @ 5VDC
- Surface mount, right angle (SMT) design
- SPDT (On)-Off-(On)
- Angled toggle detector
- Gull wing termination
- Mounting boss
- 30gf max. operating force; 1.5mm travel
- Silver contact material
- -40°C to 85°C operating temperature
- Tape & reel packaging
Product Specifications
TD1270BGQGR
DETECTOR, 10mA, 5VDC, SPDT, (On)-Off-(On), Surface Mount, Right Angle
- Series Name TD1270
- PackagingTape & Reel
- Current Rating10mA
- Voltage Rating5VDC
- CircuitSPDT
- Function(On)-Off-(On)
- Mounting TypeSurface Mount, Right Angle
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeAngled Toggle (Detector)
- Actuator Height1.70mm
- Ingress ProtectionIP40
- Operating Force30gf
- Operating Temperature-40°C to 85°C
