Food Industry

Usage: On/Off Power Switch

A bread slicing machine is used to consistently cut a bread loaf into a specific number of slices, each at an accurate width. Not only does this machine reduce cost of labor, it eliminates human error and helps to control cost by delivering a consistent product each time.

The ST1 toggle was selected for its precise switching ability and control, high current ratings (up to 20A with UL approval), momentary or latching functions and versatile termination options (tab, solder, screw or wire leads).

Usage: Start/Stop Control Switch

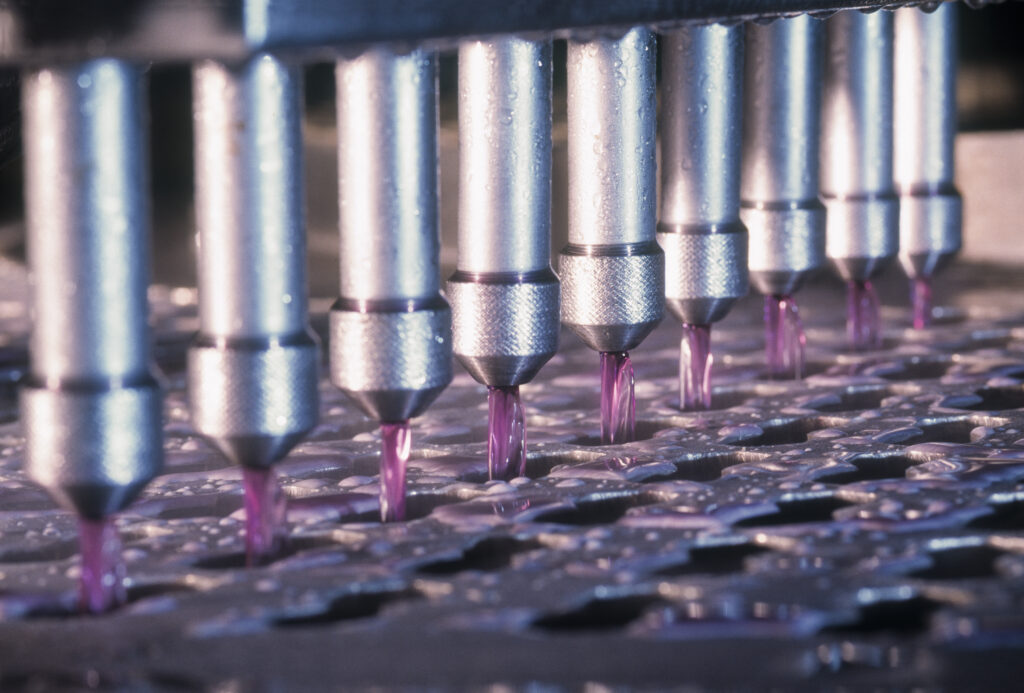

A beverage filling machine is used to accurately measure and dispense liquid into the prepared container, whether it be soda cans, milk, juice cartons or bottled beverages. This eliminates human error and helps to control cost by delivering a consistent product each time.

The KJE32 was selected for its heavy duty design (an electromagnet provides safety protection against power outages and restarts), UL listed power ratings (up to 25A), IP55 rating and actuator marking styles.

Usage: Panel Door Open Detector Switch

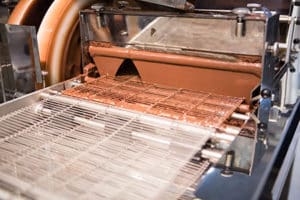

Commercial confectionery manufacturers produce thousands of candy pieces per day. Chocolate enrobing can be a messy task and very time consuming to dip a single piece of candy. This type of automated equipment accurately measures liquid product and provides a consistent chocolate coating over each piece.

The PP2 was utilized for its ability to act as a door interlock/detector switch, its high ratings with UL approval and IP40 seal rating.

Usage: On/Off Power Switch

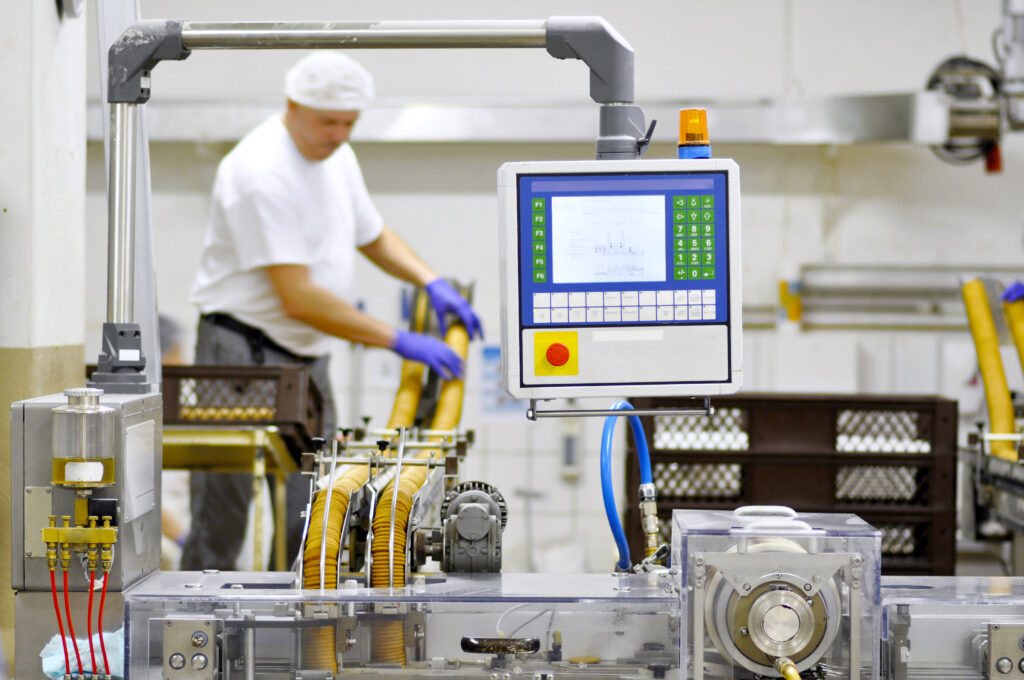

Automated equipment efficiently manages production of cookies, crackers and biscuits. Not only are these food items mixed, deposited and baked, they are often packaged in a wrapper sleeve or placed in a tray by rows. A stacking machine positions the food product in place and accurately counts the precise number to go in each tray row or package sleeve.

The PV2 perfectly served this application because of its IP65 seal rating, 16mm panel cutout, power symbol marking option, variety of finishes (including polished stainless steel) and SPST circuit with momentary functionality.

Usage: Stop/Start Control Switch

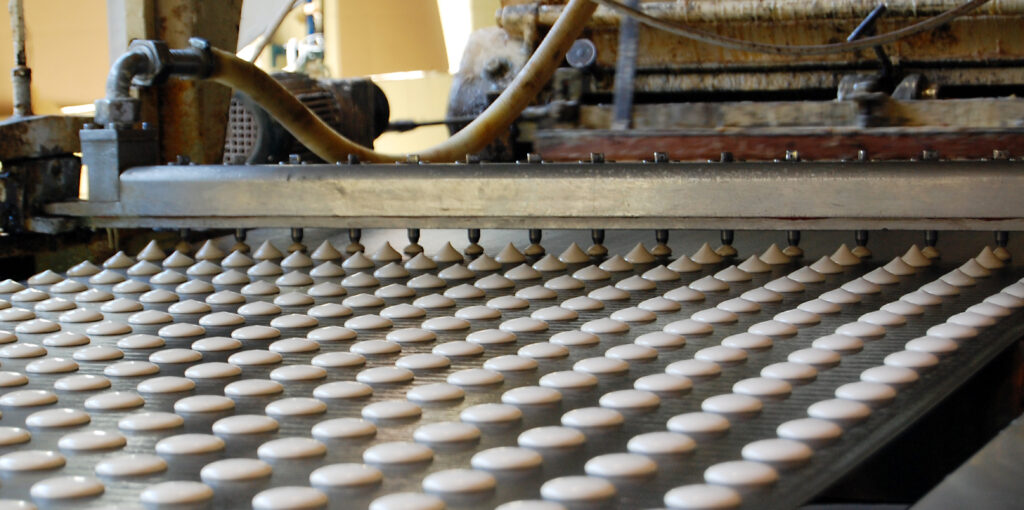

Dough depositing equipment accurately measures, cuts and drops dough on a conveyor for baking. This automated function reduces human error and labor costs while producing a consistent product each and every time.

The PV4 was utilized for its IP65 seal rating, 19mm panel cutout, illumination options (many LED color choices, including bi-color and RGB) and variety of terminations (solder, screw or wire leads).

Usage: Security Function

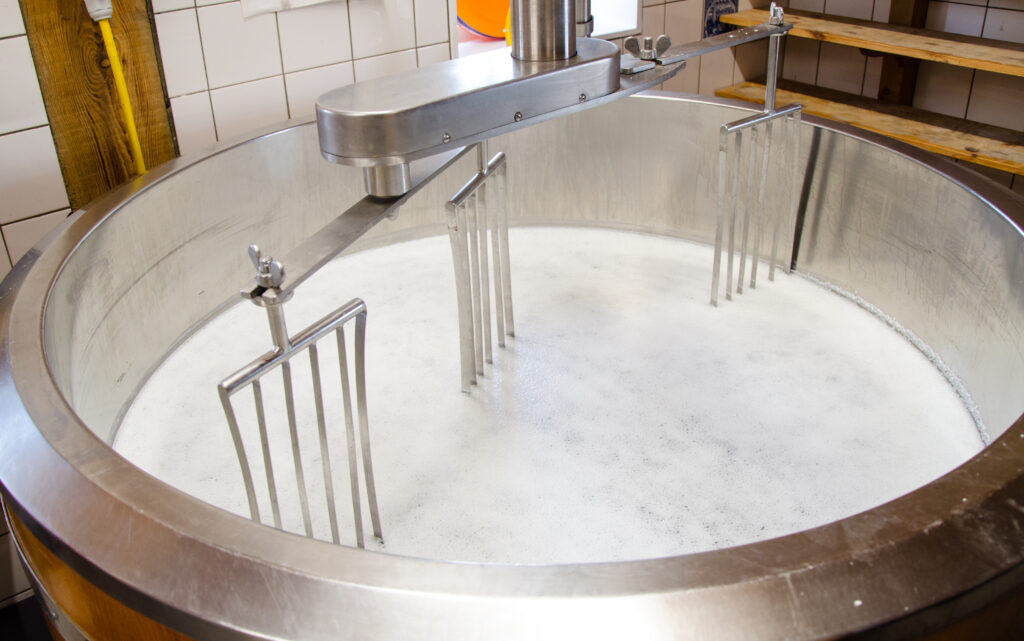

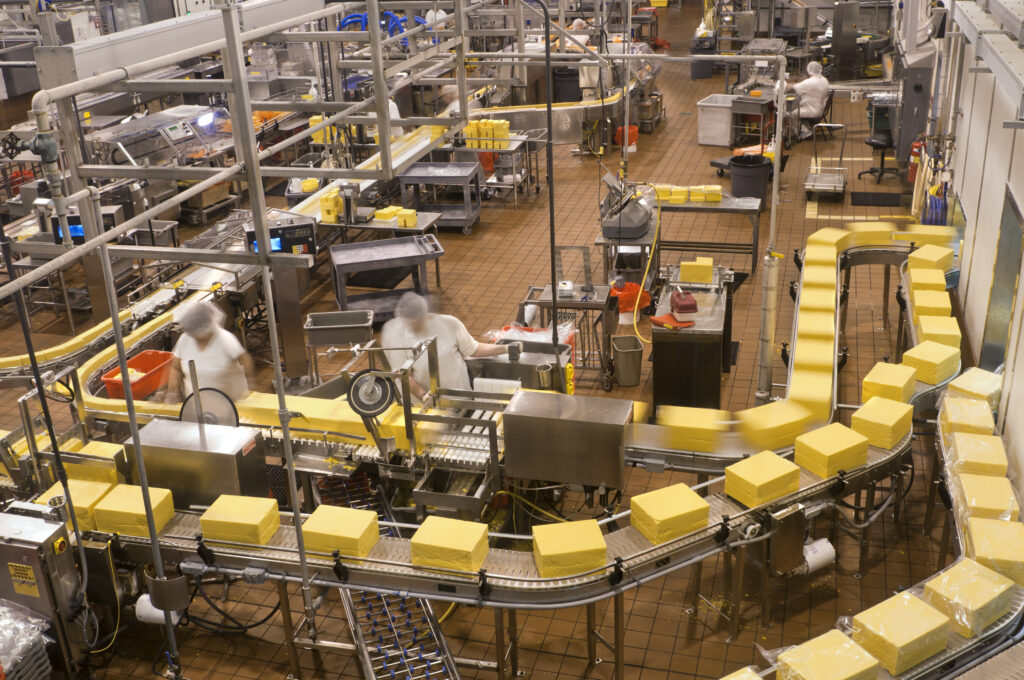

The commercial production of butter or cheese products requires a well thought out production line. Butter and cheese products are formed in large quantities and cut into various portions to be packaged.

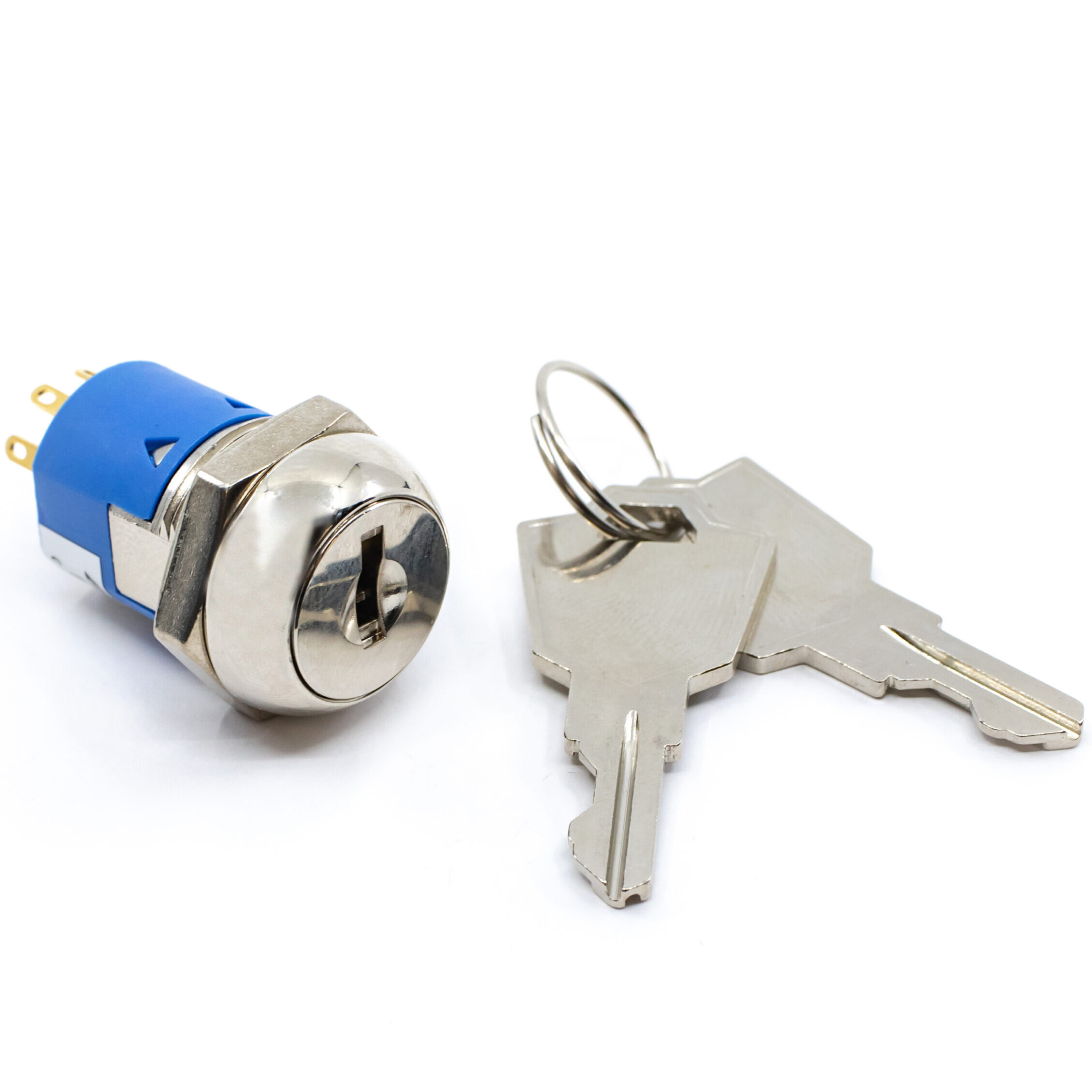

The KO Series keylock switch is designed for security purposes and to prohibit unauthorized usage. It’s available in a variety of size, product package, key type and key pull options.

Usage: Power ON/OFF

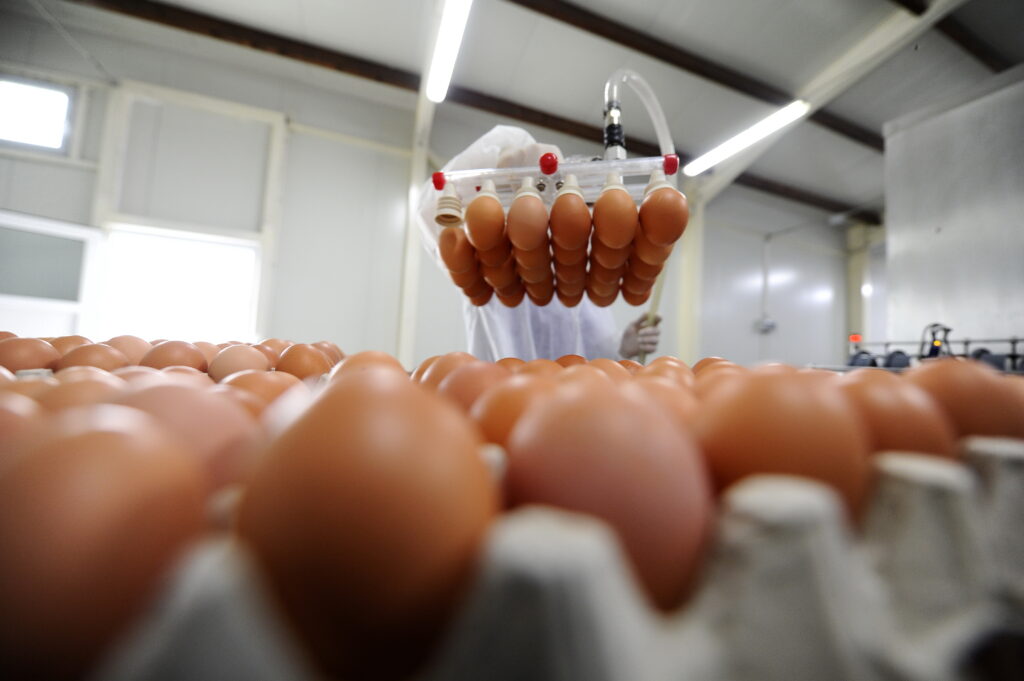

Sorting and packaging eggs requires a delicate process. Vacuum cups pick up the precise number of eggs to go in a specific size carton.

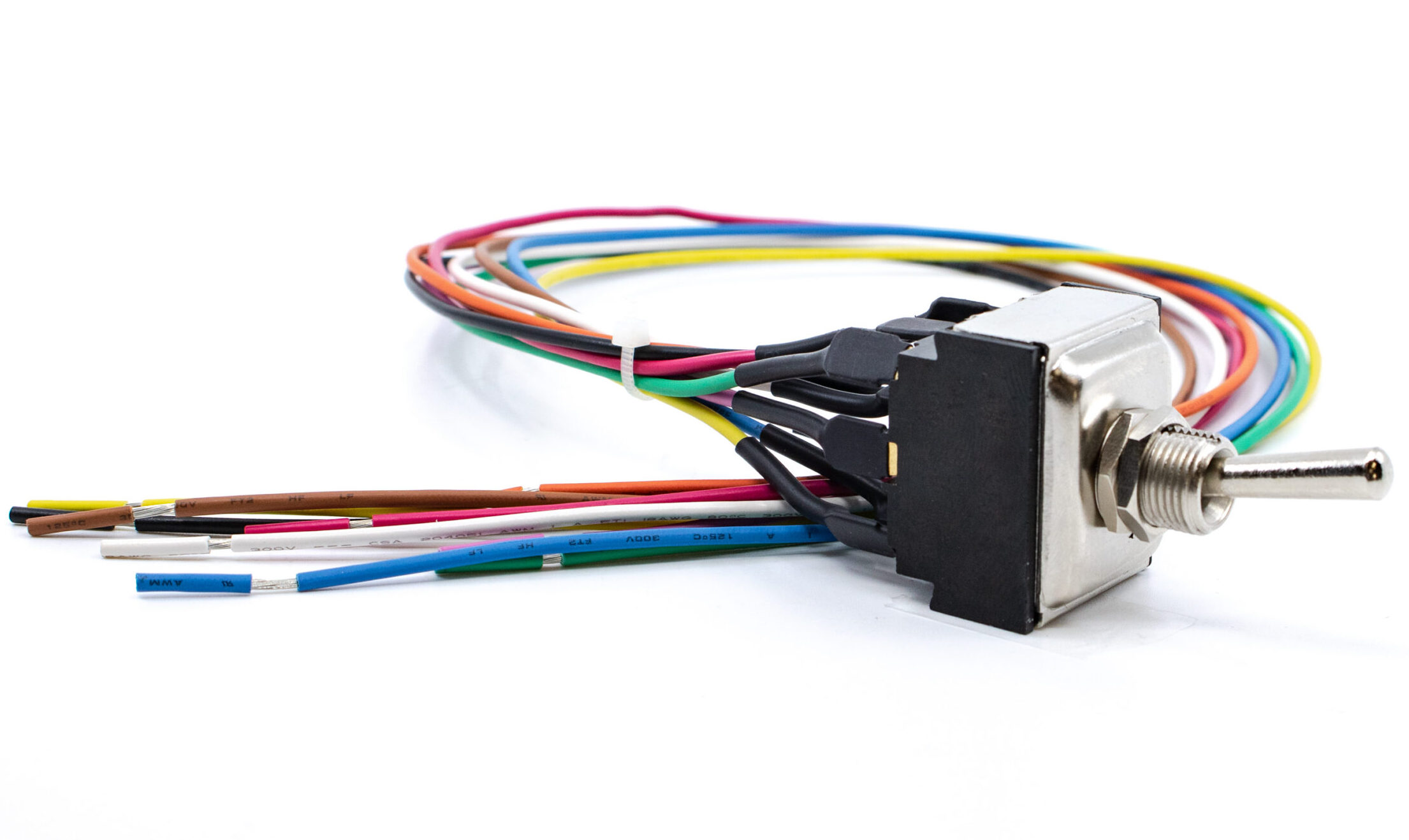

The ST3 was utilized because of its 12mm panel cutout, high electrical ratings (up to 20A with UL approval) and three different function options.

Usage: Light Signal Control Switch

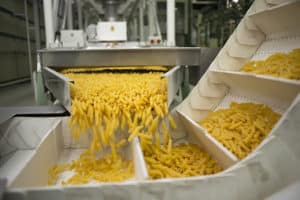

Automation drives efficiency and accuracy in the food processing industry. Equipment in pasta manufacturing plants portions a predetermined weight into each bin to be transferred into the box packaging.

The LS Series was preferred for its rapid switching ability, UL approved power ratings (up to 15A), multiple function/termination options and operating forces ranging from 25gf up to 250gf.

Usage: Control Panel Switch

Healthy eating habits have put more focus on non-processed foods such as raw vegetables and fresh fruit. These types of food items need to washed before any further handling and packaging. Automated washing equipment funnels food products through the bath process as it moves to the next step.

The RP8600 was selected for its fully sealed IP67 rating, 16mm panel cutout, threaded mount and 100,000-cycle life expectancy.

Usage: Function Control Switch

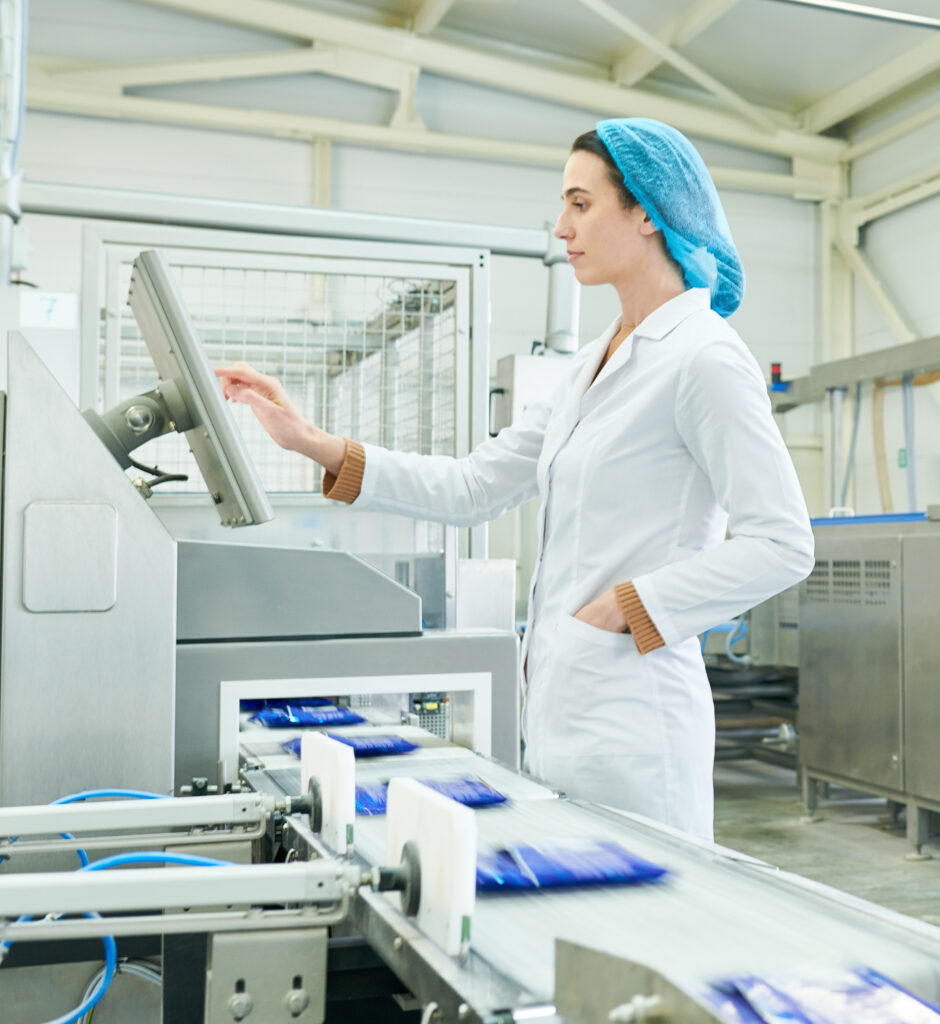

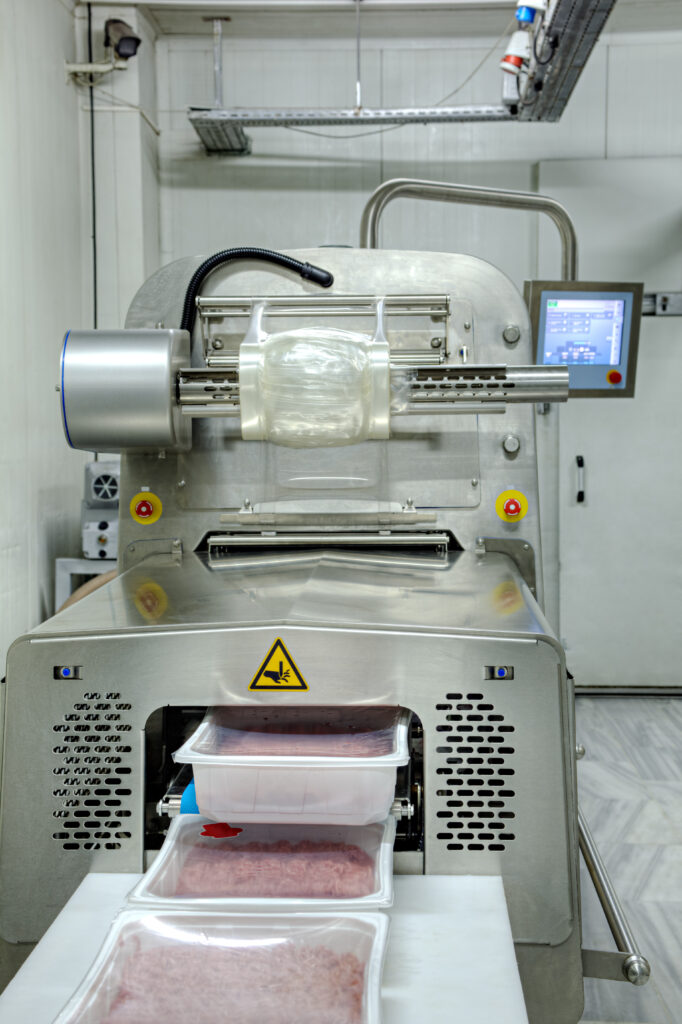

Many different food products are packaged on a tray with protective clear wrapping film to keep product safe and fresh. Foods include bakery goods, cheese, meat and seafood.

The TL6120 offers a fully sealed IP67 rating, SMT design with a 7.4mm x 7.4mm footprint and four different operating force options delivering a life expectancy of up to 1,000,000 cycles.

Usage: ON/OFF Switch

Many industries use automated equipment to accurately measure liquid solutions. This reduces human error when making dyes or other liquids used in testing for diagnostic clinics, agriculture and the production of cloth and yarns.

The RBW2 Series provides an IP66 seal rating, power ratings of up to 16A (UL listed) and full illumination potential with six actuator marking options.
