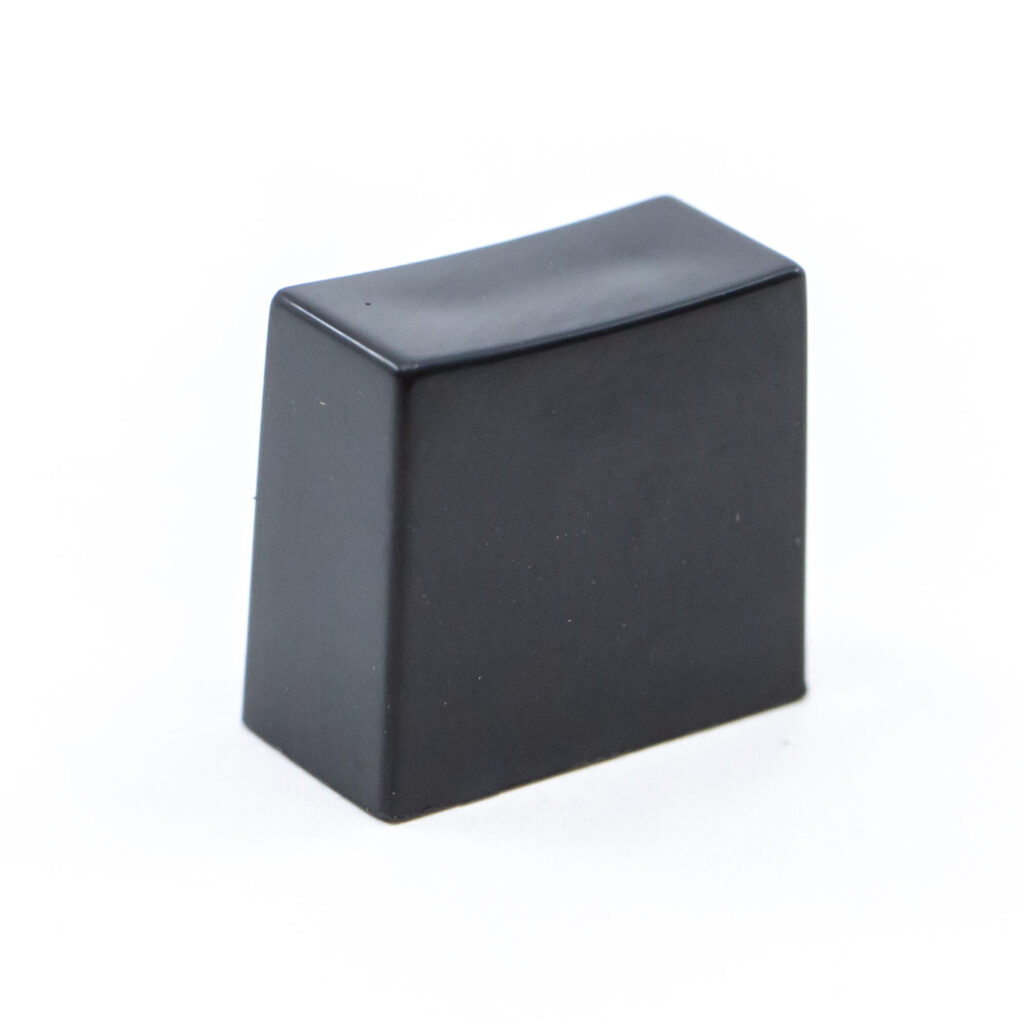

1C

Color:Black (BLK), Light Grey (LGR), Dark Grey (DGR), White (WHT), Blue (BLU), Red (RED) - Horiz or Vertical?

Dimension: Length: 9.90mm Width: 5.00mm Height: 9.00mm

Supported Switch Series: LC, PBH, TL2201, LL1105, TL1105, TL3301, TL58, TL59

Notes: These caps are for certain switches within these designated series: TL4201Z, TL2201Z, TL3301SP, LL3301SP, TL1105JA, TL1105SP plus the switches in the other listed series.

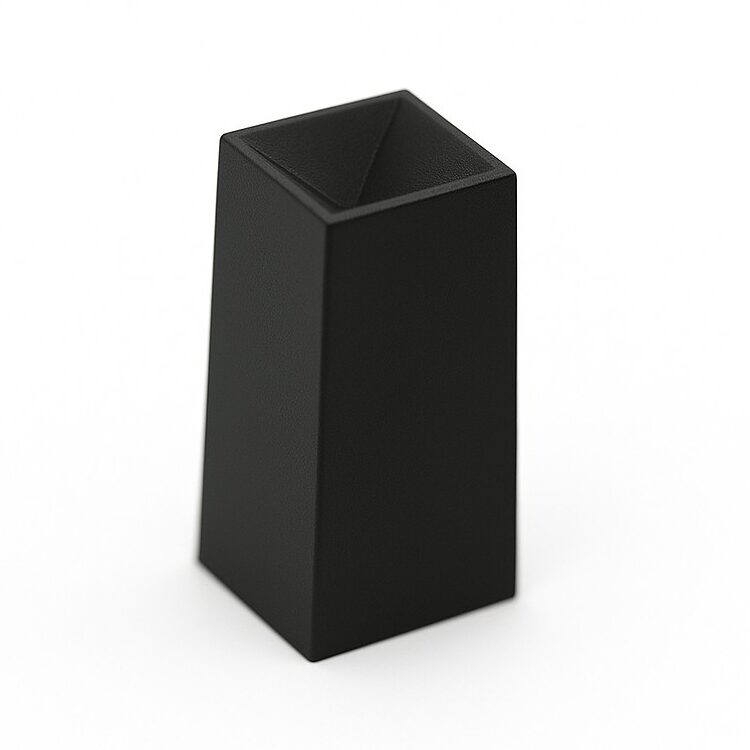

1D

Color: Black (BLK), Light Grey (LGR), Dark Grey (DGR), White (WHT), Blue (BLU), Red (RED)

Dimension: SQ: 5.00mm Height: 9.00

Supported Switch Series: LC, PBH, TL2201, LL1105, TL1105, TL3301, TL58, TL59

Notes: These caps are for certain switches within these designated series: TL4201Z, TL2201Z, TL3301SP, LL3301SP, TL1105JA, TL1105SP plus the switches in the other listed series.

1J

Color:Black (BLK), White (WHT), Clear(CLR)

Dimension: SQ: 7.50mm Height: 2.30mm

Supported Switch Series: TL1240

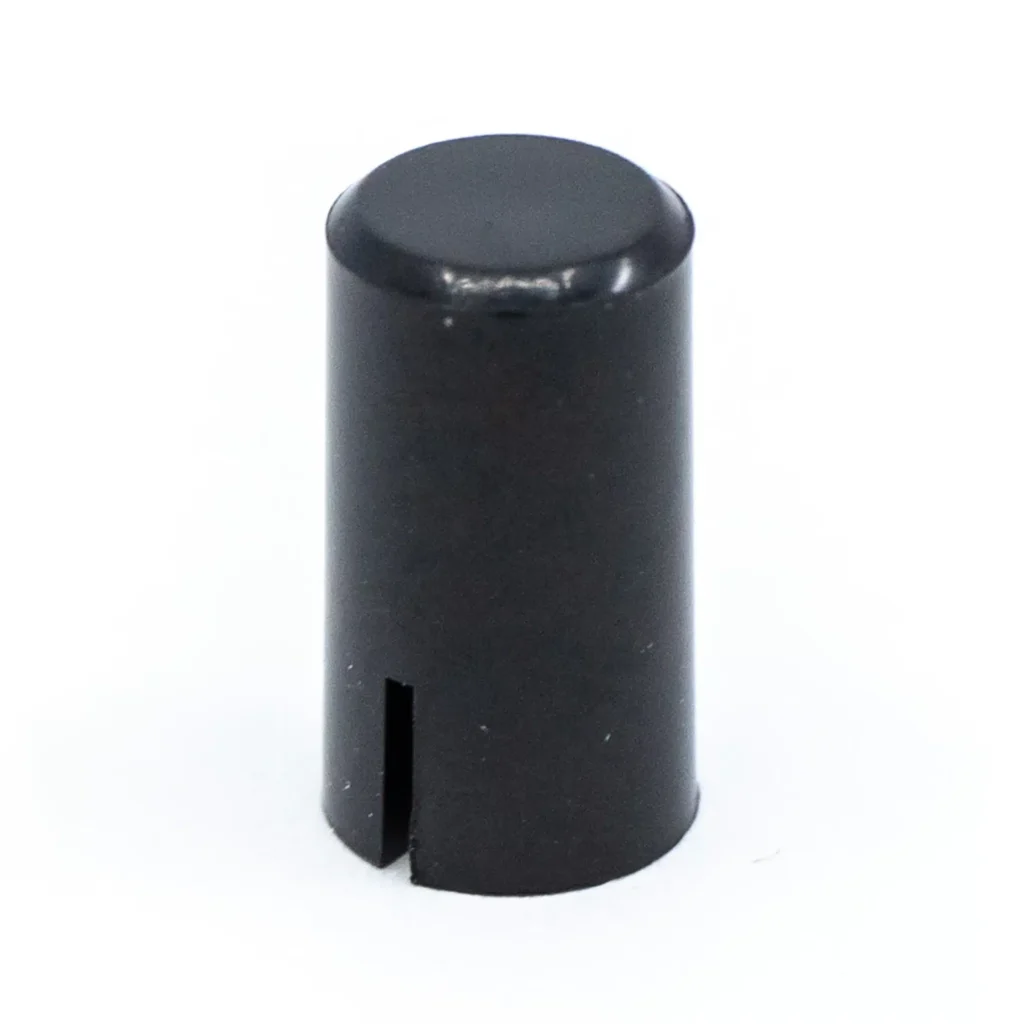

1R

Color:Black (BLK), White (WHT), Red (RED)

Dimension: Diameter: 5.0mm Height: 9.00mm

Supported Switch Series: LC, PBH, TL2201, LL1105, TL1105, TL3301, TL58, TL59

Notes: These caps are for certain switches within these designated series: TL4201Z, TL2201Z, TL3301SP, LL3301SP, TL1105JA, TL1105SP plus the switches in the other listed series.

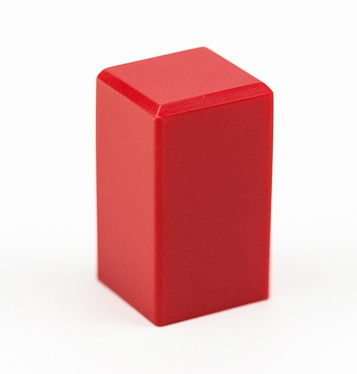

1S

Color:Black (BLK), White (WHT), Red (RED)

Dimension: SQ: 5.00mm Height: 9.0mm

Supported Switch Series: LC, PBH, LL1105, TL1105, TL3301, TL58, TL59

Notes: These caps are for certain switches within these designated series: TL3301SP, LL3301SP, TL1105JA, TL1105SP plus the switches in the other listed series.

2J

Color:Black (BLK), Red (RED)

Dimension: SQ: 7.50mm Height: 2.30mm

Supported Switch Series: TL1240

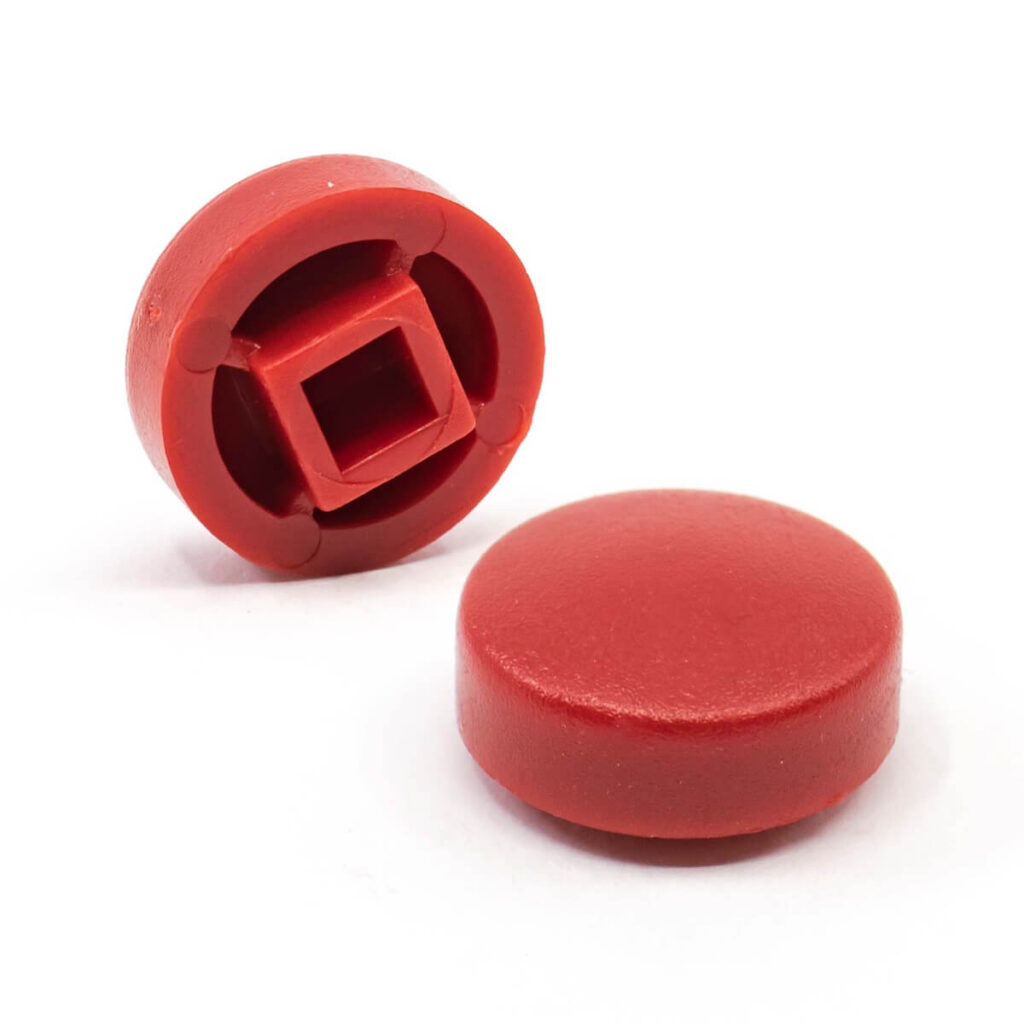

320.08

Color: Black (BLK), Grey( GRY), White (WHT), Blue (BLU), Red (RED), Yellow (YEL), Green (GRN)

Dimension: Diameter: 11.94mm Height: 5.97mm

Supported Switch Series: LC, TL2201, 320, TL1100

Notes: These caps are for certain switches within these designated series: 320.02, 320.03, TL4201Y, TL2201Y, TL1100C, plus the switches in the other listed series.

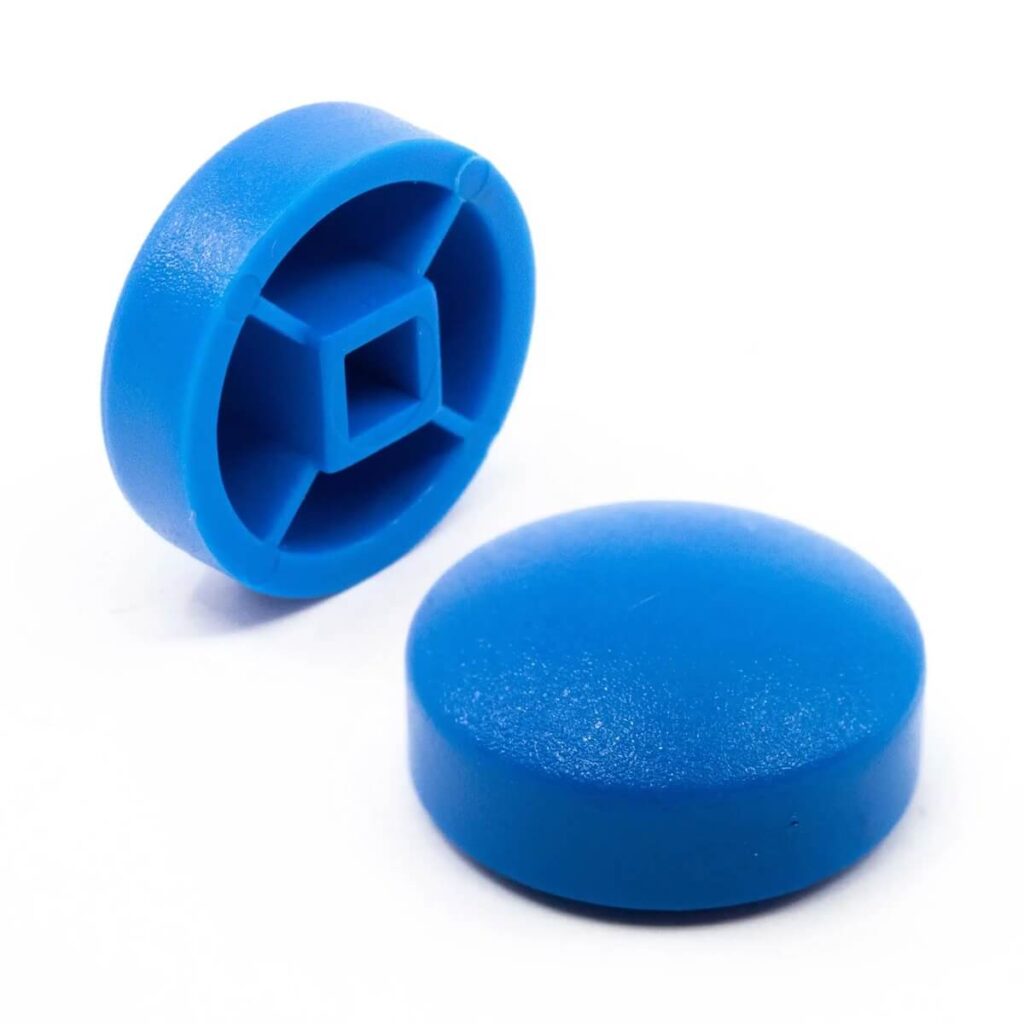

320.09

Color:Black (BLK), Grey( GRY), White (WHT), Blue (BLU), Red (RED), Yellow (YEL), Green (GRN)

Dimension: Diameter: 15.87mm Height: 7.78mm

Supported Switch Series: LC, TL2201, 320, TL1100

Notes: These caps are for certain switches within these designated series: 320.02, 320.03, TL4201Y, TL1100C, plus the switches in the other listed series.

320.094

Color:Black (BLK), Grey( GRY)

Dimension: SQ: 11.85mm Height: 7.55mm

Supported Switch Series: LC, TL2201, 320, TL1100

Notes: These caps are for certain switches within these designated series: 320.02, 320.03, TL4201Y, TL1100C, plus the switches in the other listed series.

3J

Color:Translucent White

Dimension: None

Supported Switch Series: TL1240

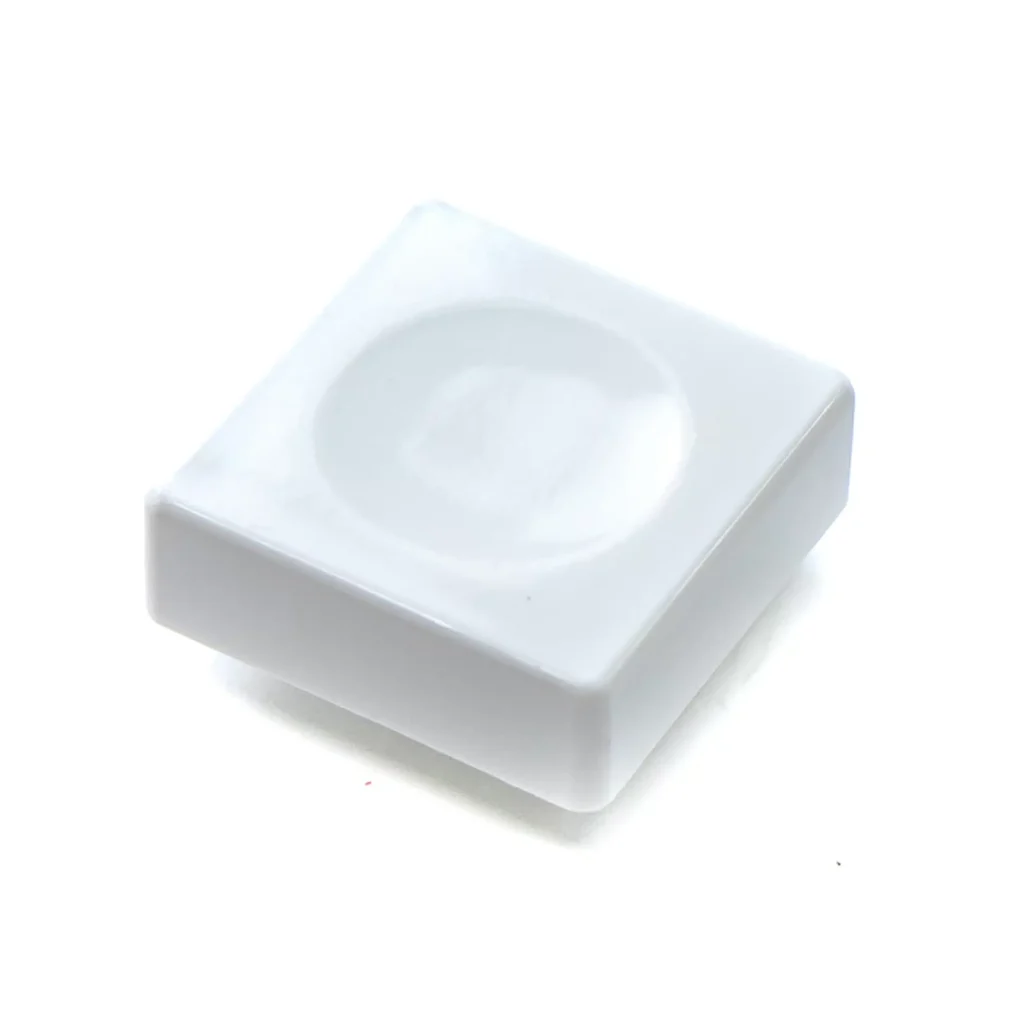

4J

Color:Black (BLK), Grey (GRY), White (WHT), Red (RED)

Dimension: SQ: 12.00mm Height: 5.60mm

Supported Switch Series: LC, 320, TL1100

Notes: These caps are for certain switches within these designated series: 320.02, 320.03, TL2201Y, TL4201Y, TL1100C, plus the switches in the other listed series.

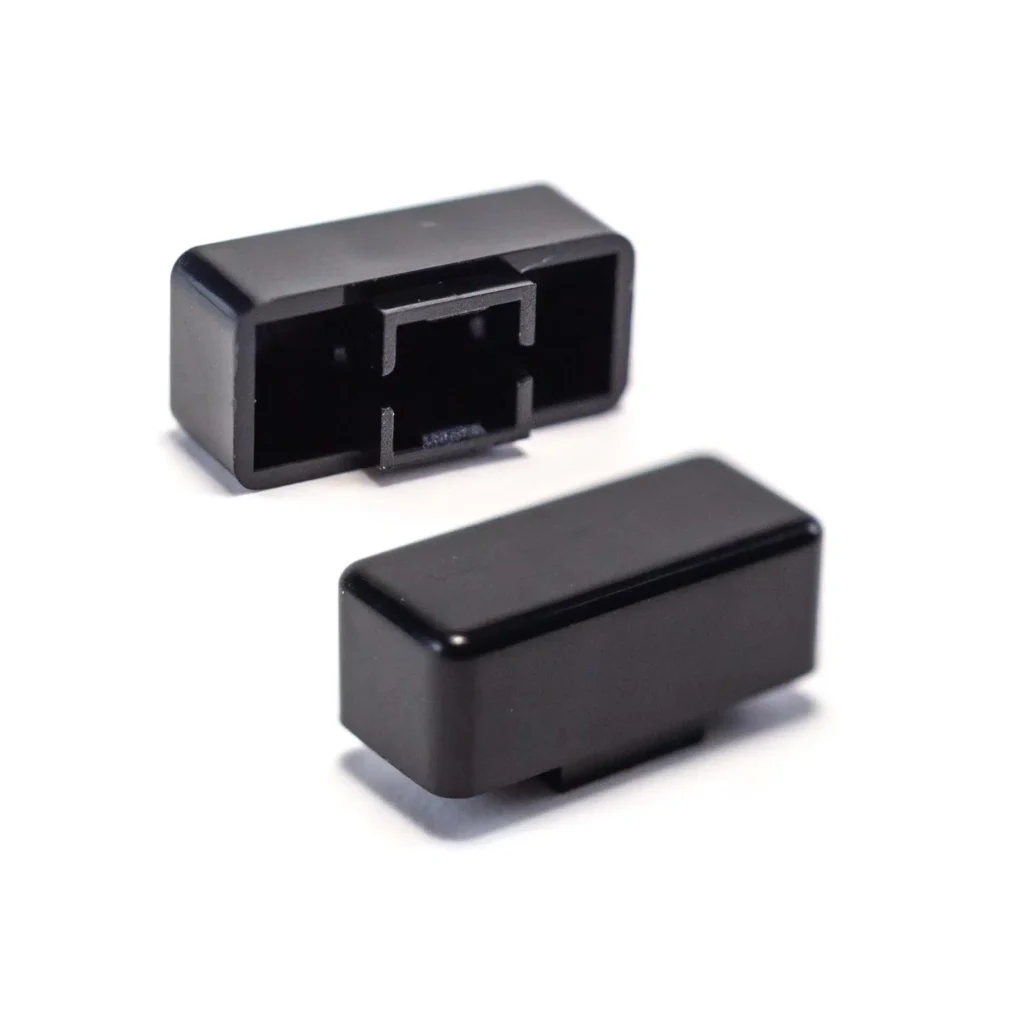

5J

Color:Black (BLK), Grey (GRY), White (WHT), Red (RED), Blue (BLU) - Horiz or Vertical?

Dimension: Length: 11.00mm Width: 5.00mm Height: 4.95mm

Supported Switch Series: LC, 320, TL1100

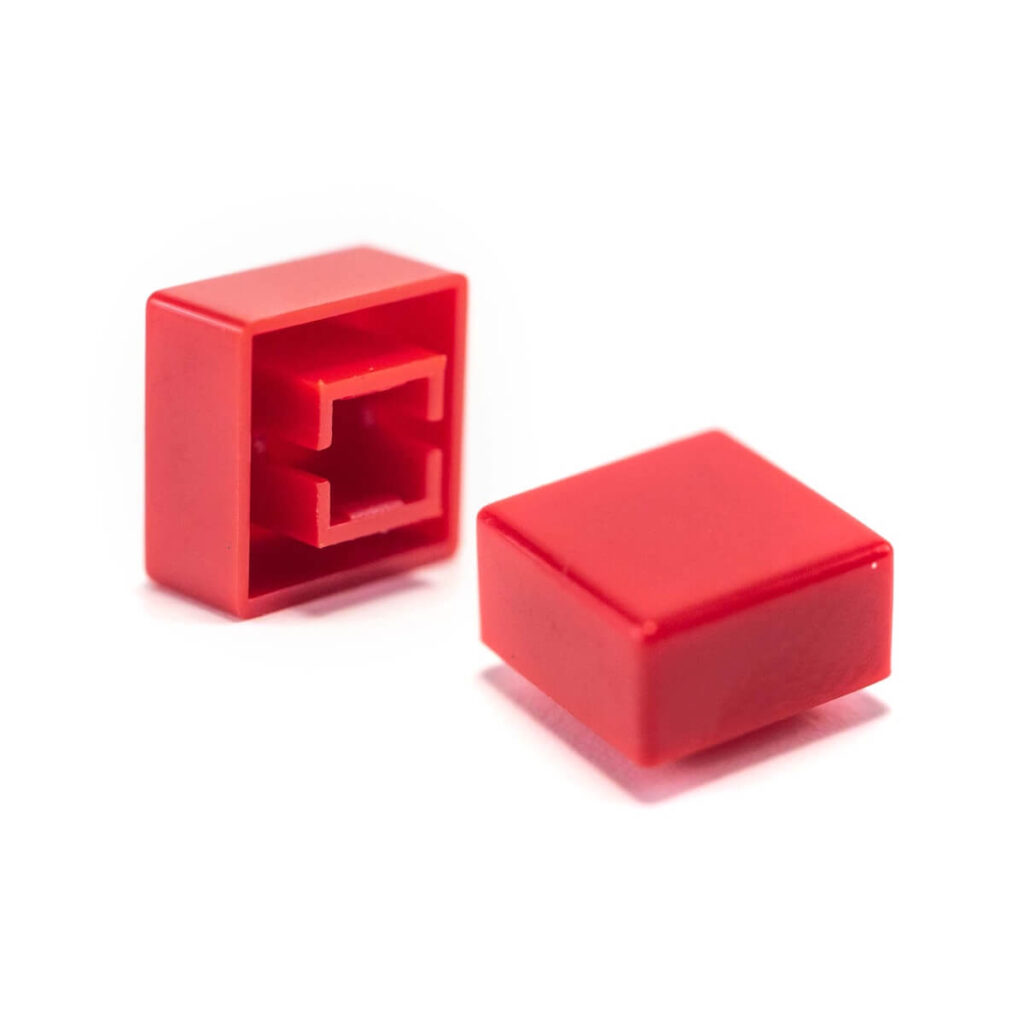

6J

Color:Black (BLK), Grey (GRY), White (WHT), Red (RED)

Dimension: SQ: 8.00mm Height: 5.00mm

Supported Switch Series: LC, 320, TL1100

Notes: These caps are for certain switches within these designated series: 320.02, 320.03, TL2201Y, TL4201Y, TL1100C, plus the switches in the other listed series.

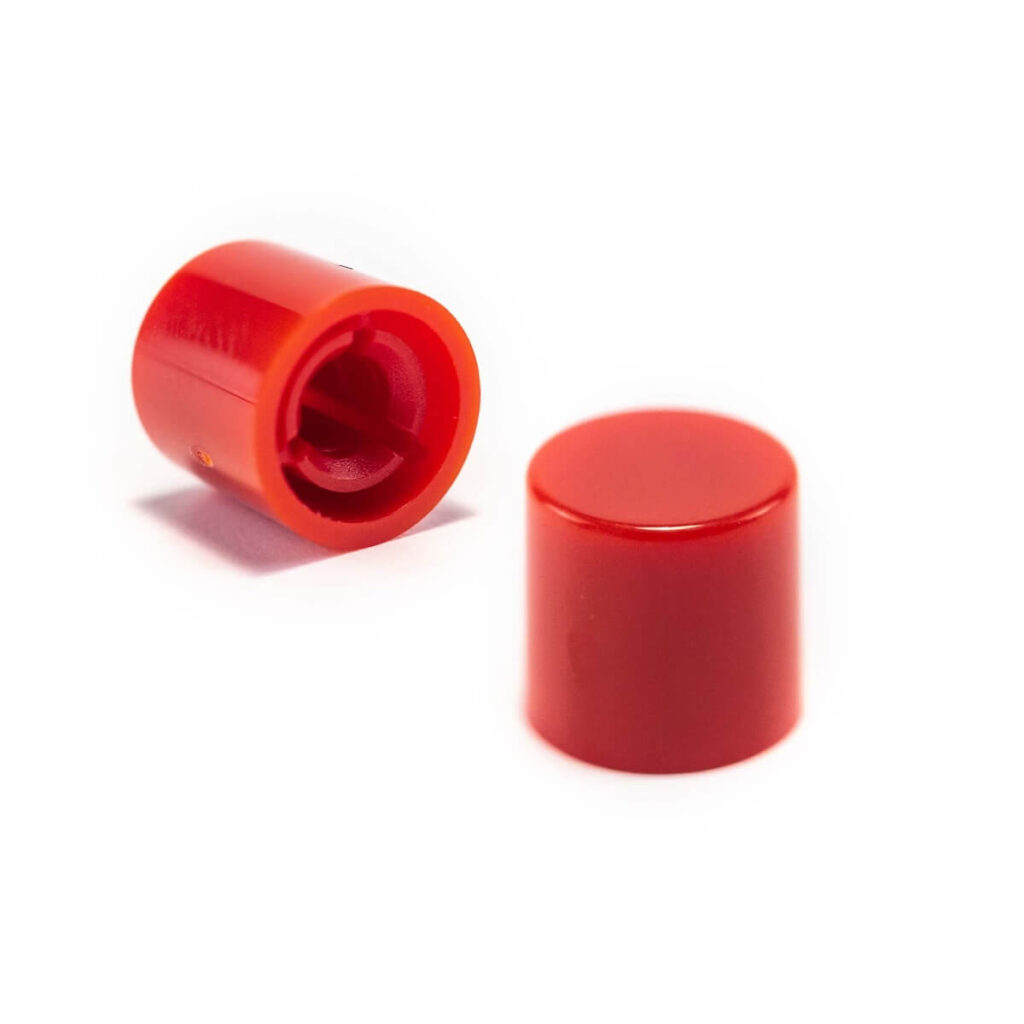

700C1

Color:(7.7ø) Black (BLK), Grey (GRY), White (WHT), Red (RED), Green (GRN)

Dimension: Diameter: 7.70mm Height: 7.60mm

Supported Switch Series: 700

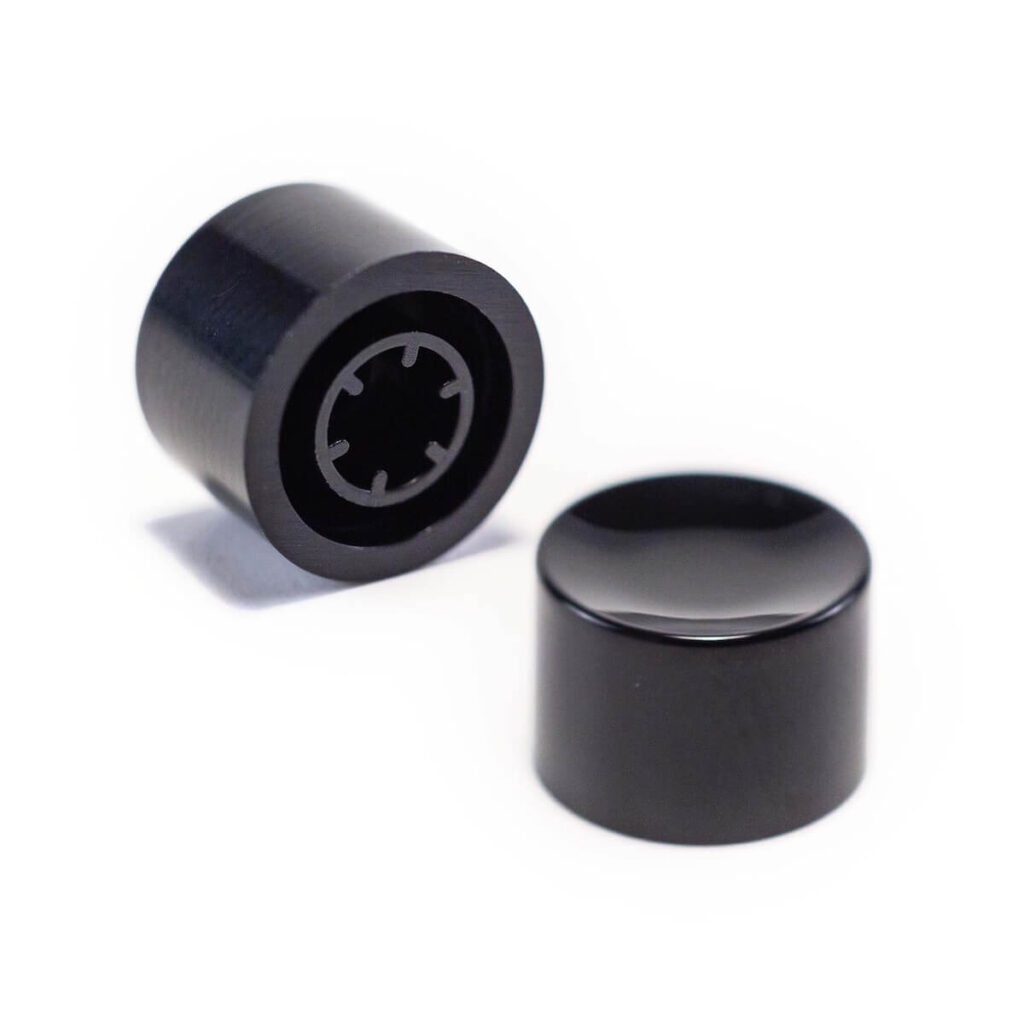

700C2

Color:(9.5ø) Black (BLK), Grey (GRY), White (WHT), Red (RED), Green (GRN)

Dimension: Diameter: 9.50mm Height: 6.54mm

Supported Switch Series: 700

700C3

Color:[11.7 sq.] Black (BLK), Grey (GRY), White (WHT), Red (RED), Green (GRN)

Dimension: None

Supported Switch Series: 700, 800

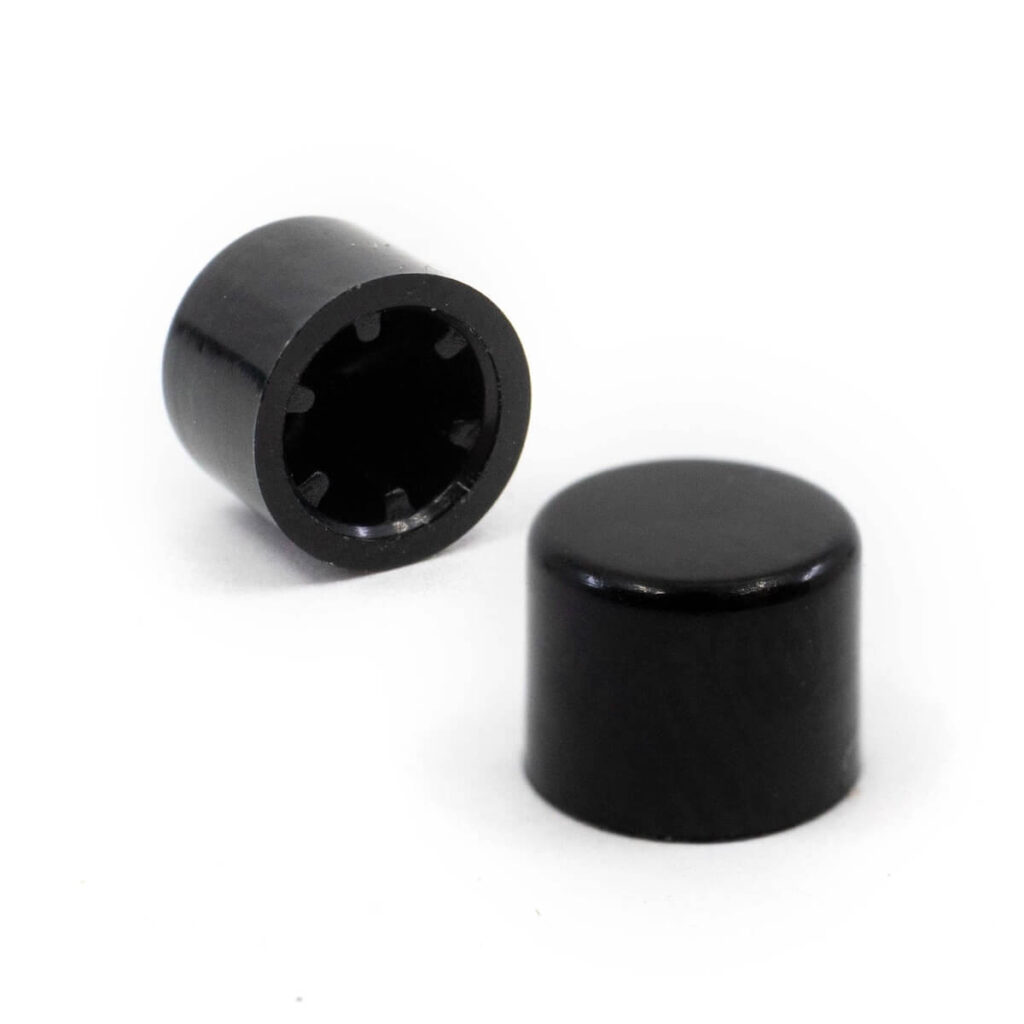

800A C1

Color:BLACK (BLK), RED (RED), WHITE (WHT), GREEN (GRN)

Dimension: Diameter: 5.00 Height: 4.03

Supported Switch Series: 800, 800A, 800B

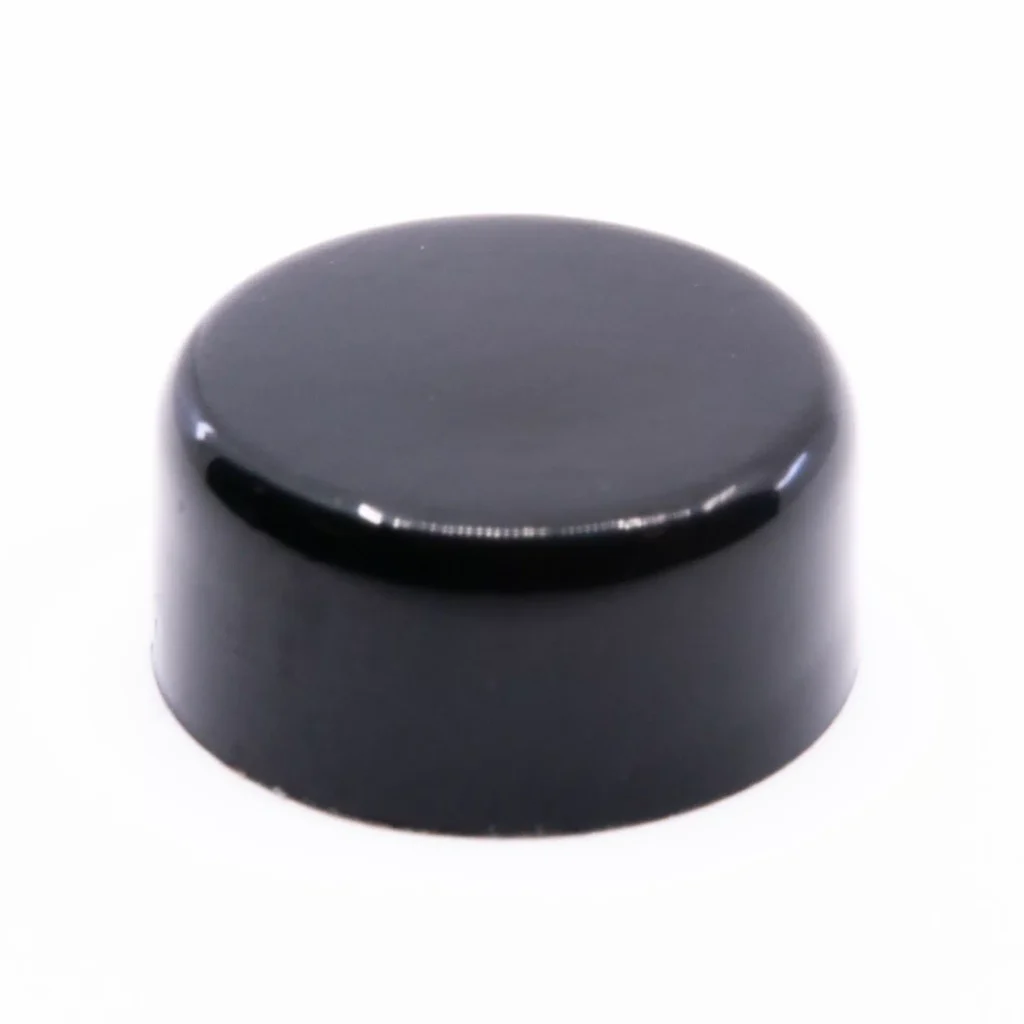

800A C2

Color:BLACK (BLK), RED (RED), WHITE (WHT), GREEN (GRN)

Dimension: Diameter: 7.35 Height: 3.5

Supported Switch Series: 800A, 800B

800C1

Color:Black (BLK), White (WHT), Red (RED), Green (GRN)

Dimension: Diameter: 5.0mm Height: 4.03mm

Supported Switch Series: 800, 800B

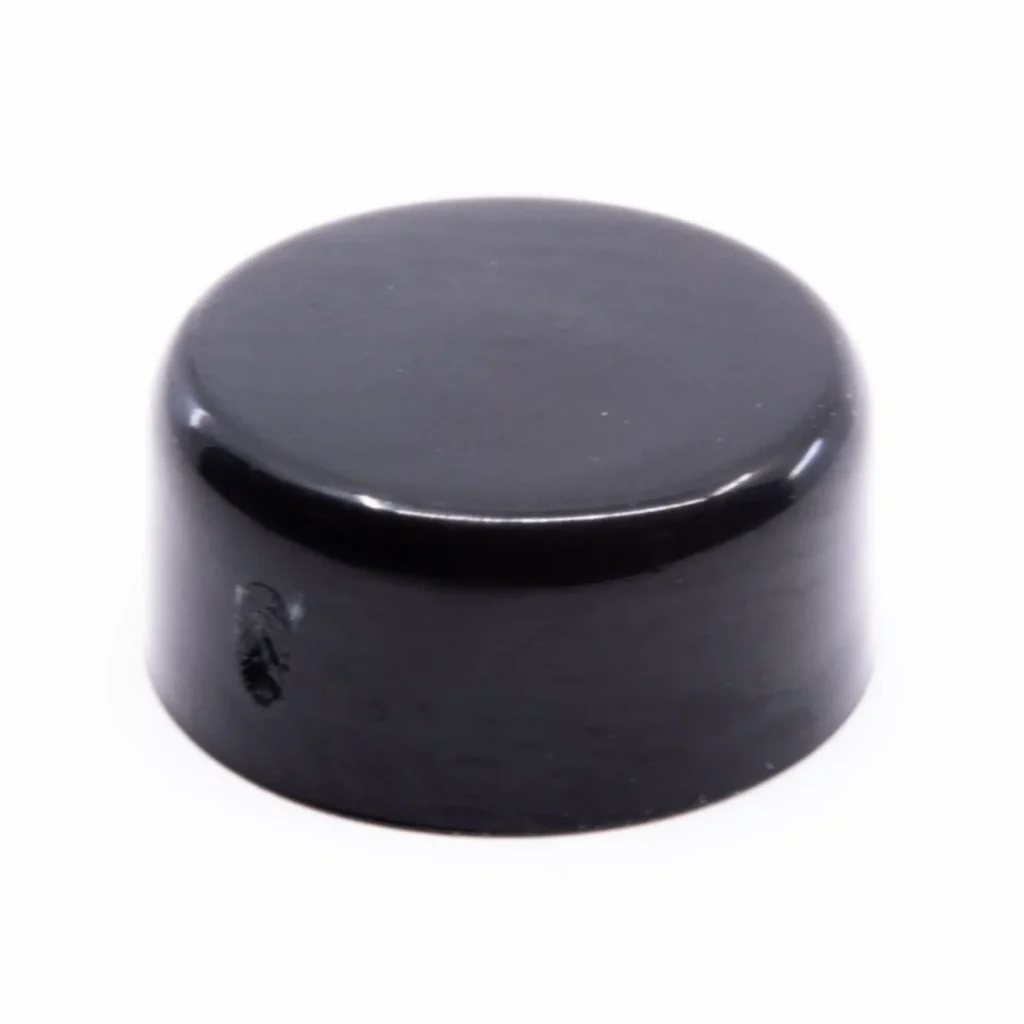

800C2

Color:Black (BLK), White WHT), Red (RED), Green (GRN)

Dimension: Diameter: 7.45mm Height: 3.50mm

Supported Switch Series: 800

Notes: These switches work with the 800A series except those with the B8 or B9 bushing

800C3

Color:BLACK (BLK)

Dimension: None

Supported Switch Series: 800

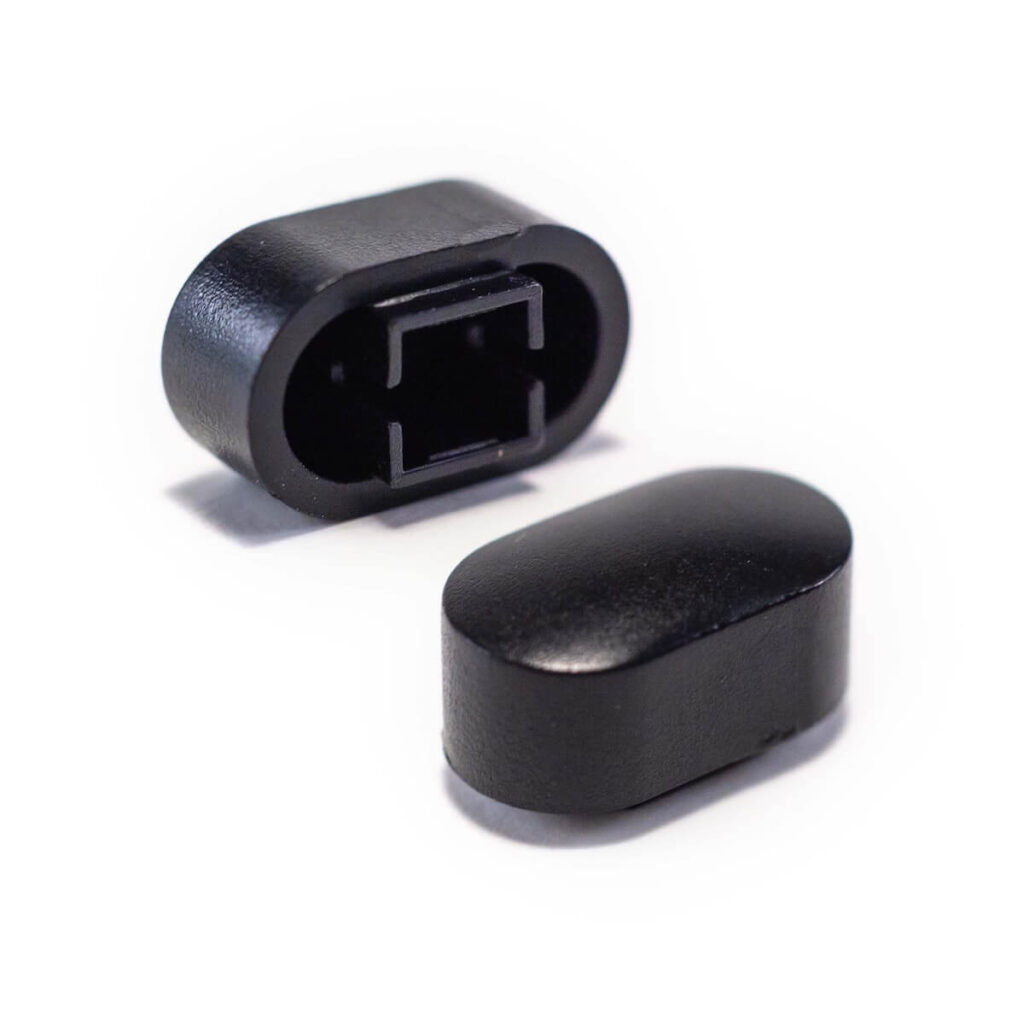

8J

Color:Black (BLK) - Horiz or Vertical?

Dimension: Length: 10.40mm Width: 6.05mm Height: 5.66mm

Supported Switch Series: LC, 320, TL1100

Notes: These caps are for certain switches within these designated series: 320.02, 320.03, TL2201Y, TL4201Y, TL1100C, plus the switches in the other listed series.

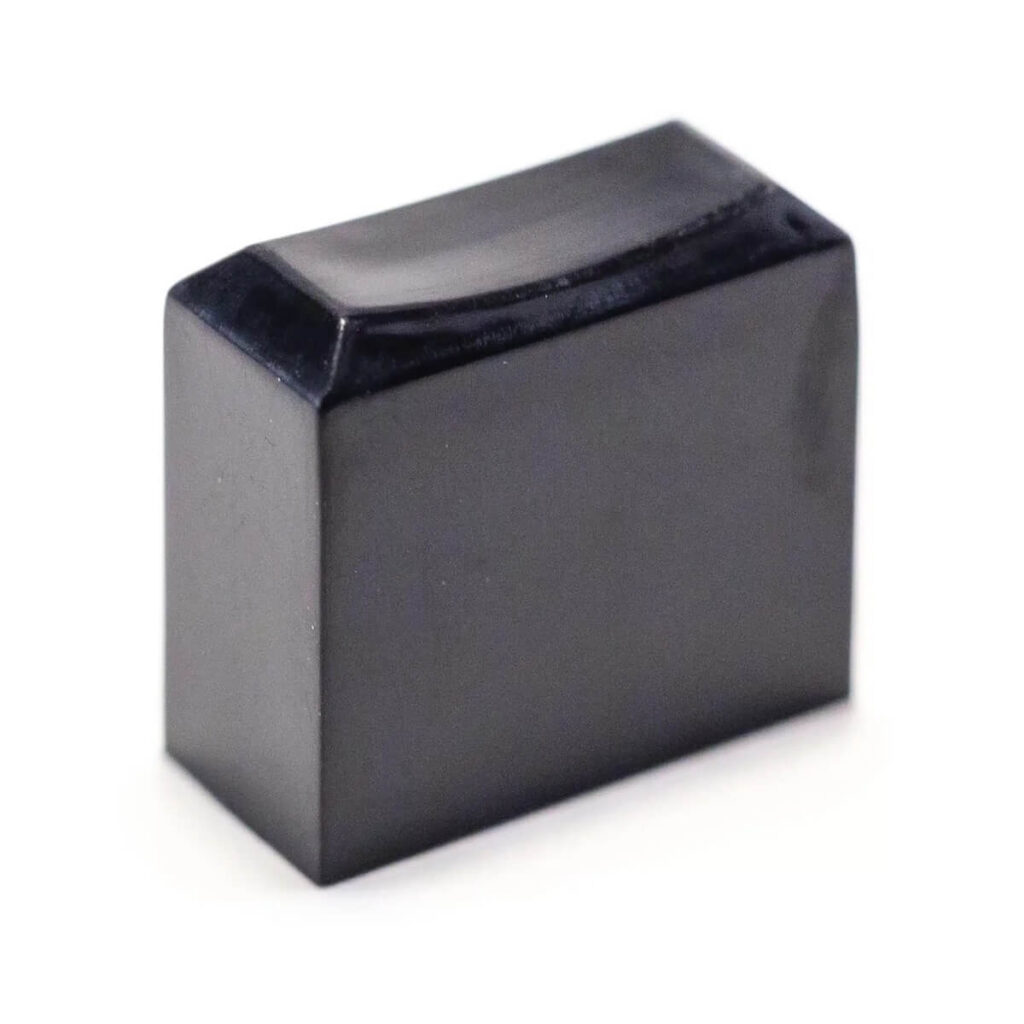

TA12

Color:Black (BLK), Grey(GRY), White (WHT), Red (RED) - Horiz or Vertical?

Dimension: Width: 5.70mm Height: 11.10mm

Supported Switch Series: LC, 320

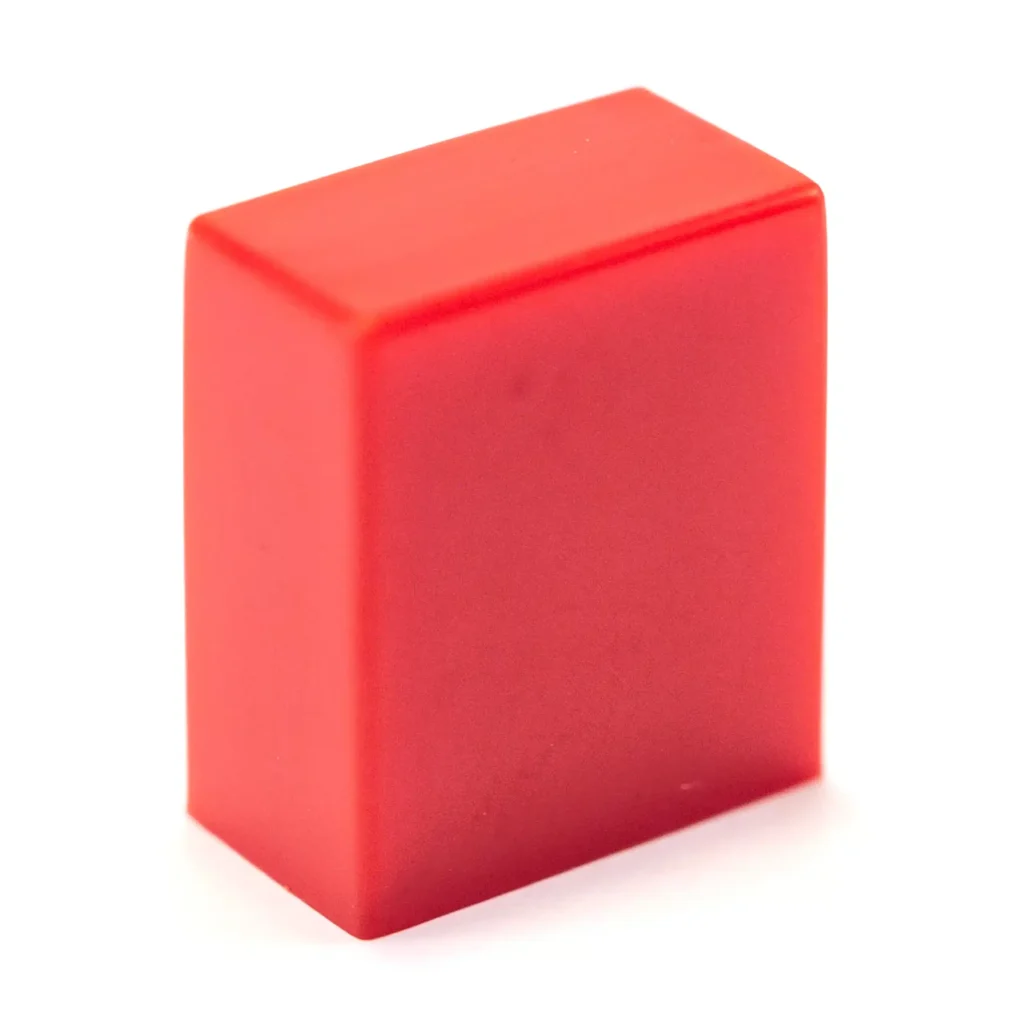

TAC

Color:Black (BLK), Grey(GRY), White WHT), Red (RED) - Horiz or Vertical?

Dimension: Length: 9.80mm Width: 5.50mm Height: 11.20mm

Supported Switch Series: LC, 320

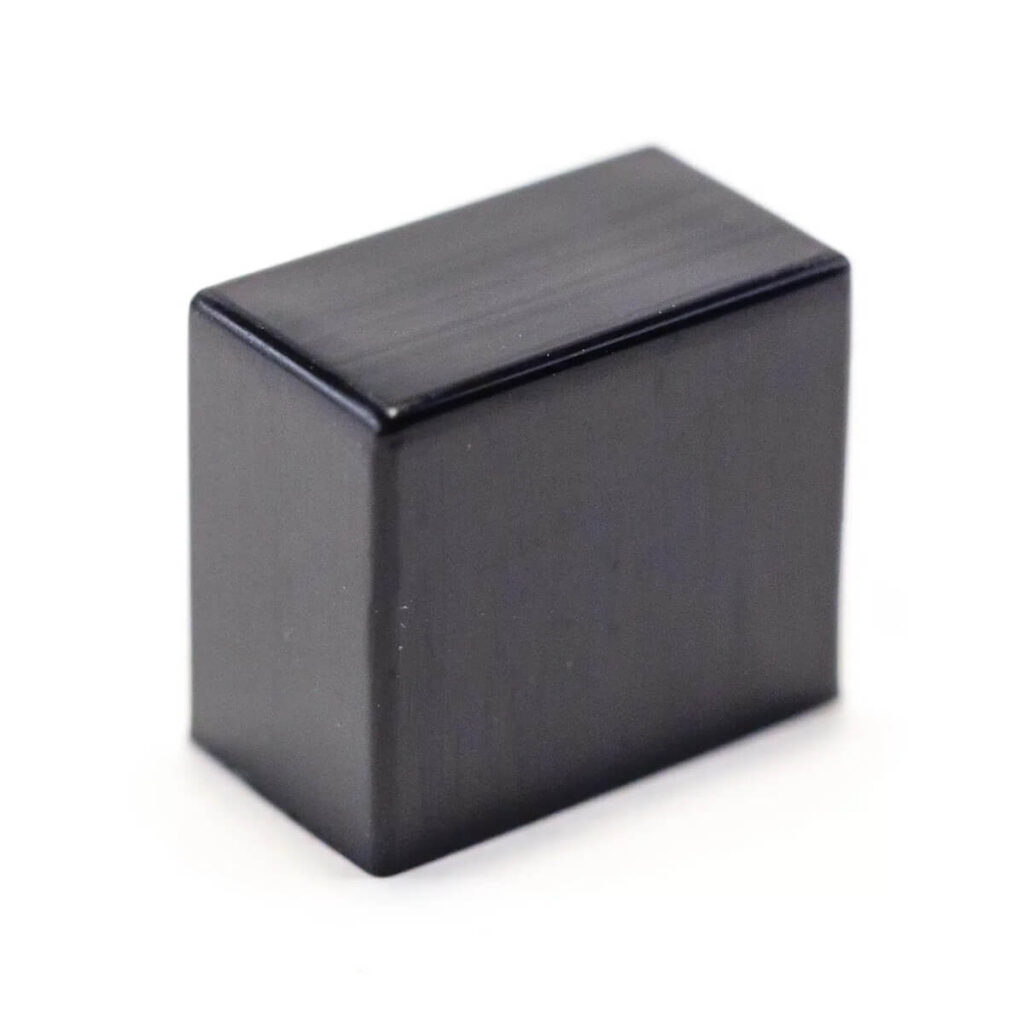

TAD

Color:Black (BLK), Grey(GRY), White (WHT), Red (RED) - Horiz or Vertical?

Dimension: Length: 12.29mm Width: 7.18mm Height: 10.41mm

Supported Switch Series: LC

TAG

Color:Black (BLK), Grey(GRY), White (WHT), Red (RED)

Dimension: Diameter: 8.80mm Height: 10.50mm

Supported Switch Series: LC

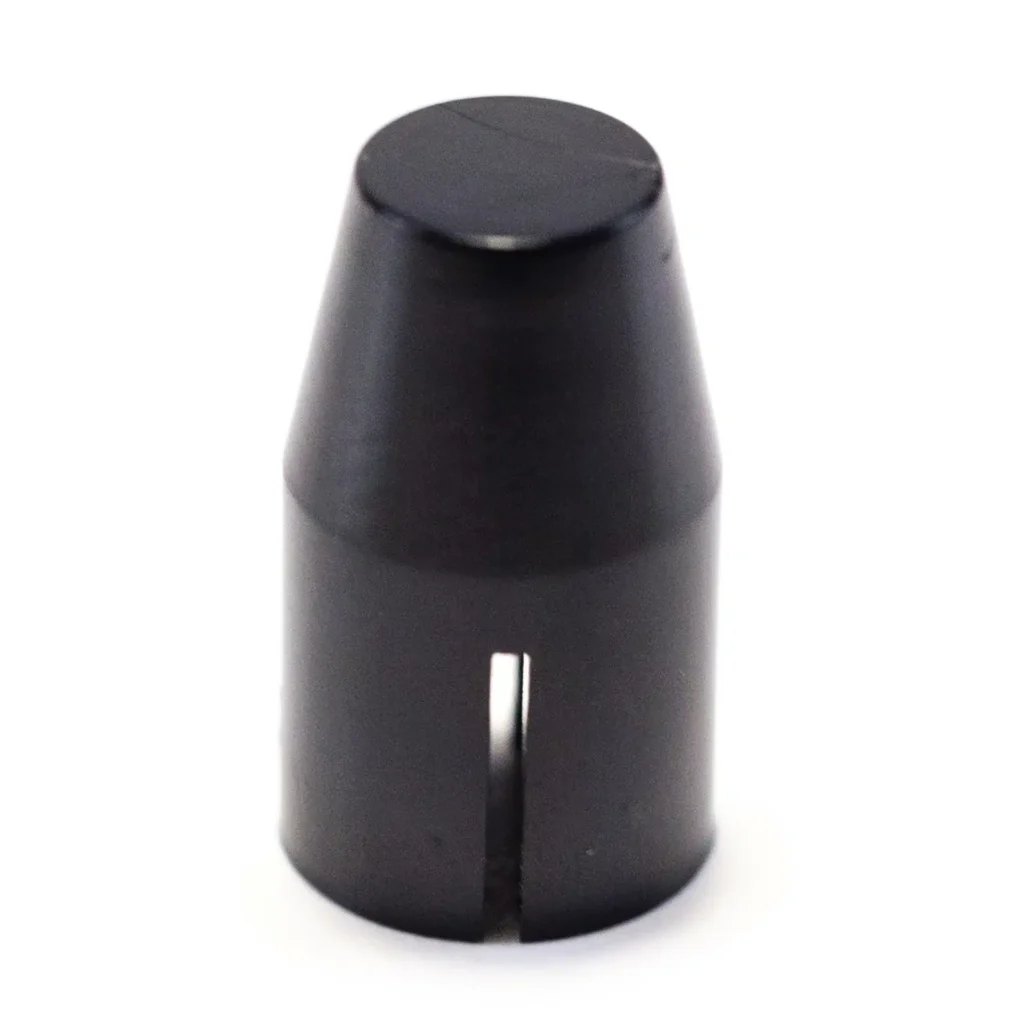

TAM

Color:Black (BLK), Grey(GRY), White (WHT)

Dimension: Diameter: 7.20mm Height: 12.50mm

Supported Switch Series:

Notes: These caps are for certain switches within the TL1100C series, plus the switches in the other listed series.

TAM-JN

Color:BLACK (BLK), RED (RED), WHITE (WHT), GREEN (GRN)

Dimension: None

Supported Switch Series:

TAO-BLK

Color:Black (BLK)

Dimension: Diameter: 12.00mm Height: 14.50

Supported Switch Series: LC

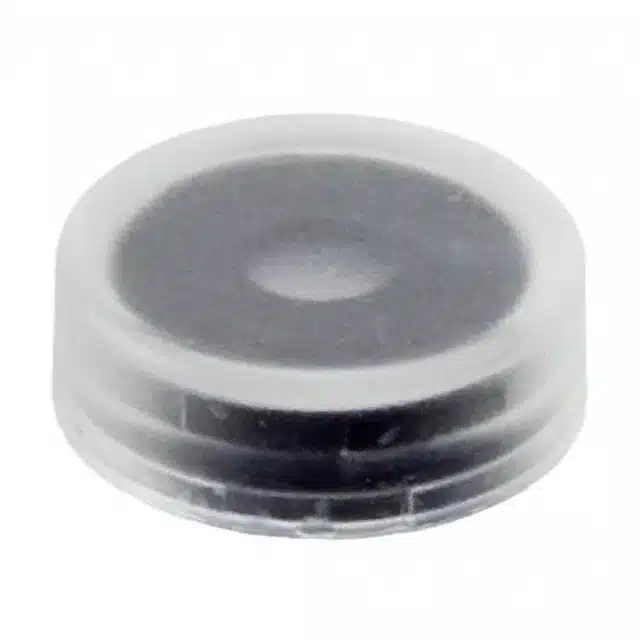

TL3240R1CAPBLK

Color:Black

Dimension: Diameter: 10.2mm; Height: 3.5mm

Supported Switch Series: TL3240

TL3240R1CAPBLU

Color:Blue

Dimension: Diameter: 10.2mm; Height: 3.5mm

Supported Switch Series: TL3240

TL3240R1CAPGRN

Color:Green

Dimension: Diameter: 10.2mm; Height: 3.5mm

Supported Switch Series: TL3240

TL3240R1CAPIVR

Color:Ivory

Dimension: Diameter: 10.2mm; Height: 3.5mm

Supported Switch Series: TL3240

TL3240R1CAPRED

Color:Red

Dimension: Diameter: 10.2mm; Height: 3.5mm

Supported Switch Series: TL3240

TL3240R1CAPYEL

Color:Yellow

Dimension: Diameter: 10.2mm; Height: 3.5mm

Supported Switch Series: TL3240

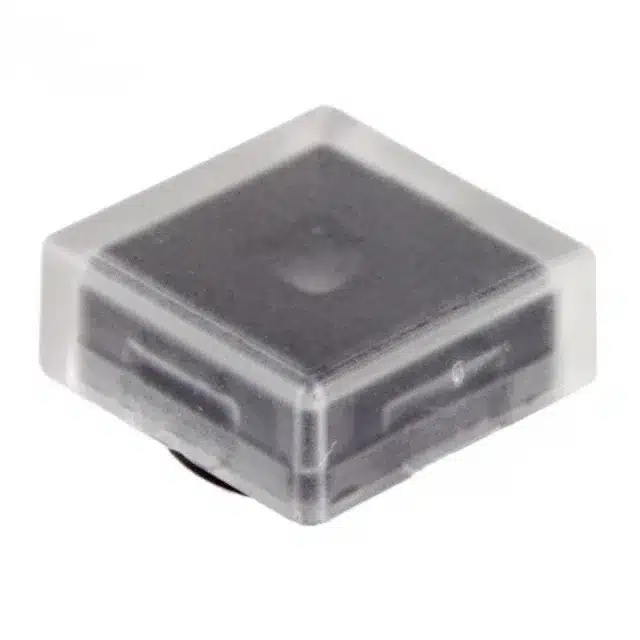

TL3240S1CAPBLK

Color:Black

Dimension: Square: 10.2mm; Height: 3.5mm

Supported Switch Series: TL3240

TL3240S1CAPBLU

Color:Blue

Dimension: Square: 10.2mm; Height: 3.5mm

Supported Switch Series: TL3240

TL3240S1CAPGRN

Color:Green

Dimension: Square: 10.2mm; Height: 3.5mm

Supported Switch Series: TL3240

TL3240S1CAPIVR

Color:Ivory

Dimension: Square: 10.2mm; Height: 3.5mm

Supported Switch Series: TL3240

TL3240S1CAPRED

Color:Red

Dimension: Square: 10.2mm; Height: 3.5mm

Supported Switch Series: TL3240

TL3240S1CAPYEL

Color:Yellow

Dimension: Square: 10.2mm; Height: 3.5mm

Supported Switch Series: TL3240

800UR1RED

Color:Red

Dimension: Round 4mm dia.

Supported Switch Series: 800U

Notes: 800U series caps can be ordered separately or with the switch.

800UR1WHT

Color:White

Dimension: Round 4mm dia.

Supported Switch Series: 800U

Notes: 800U series caps can be ordered separately or with the switch.

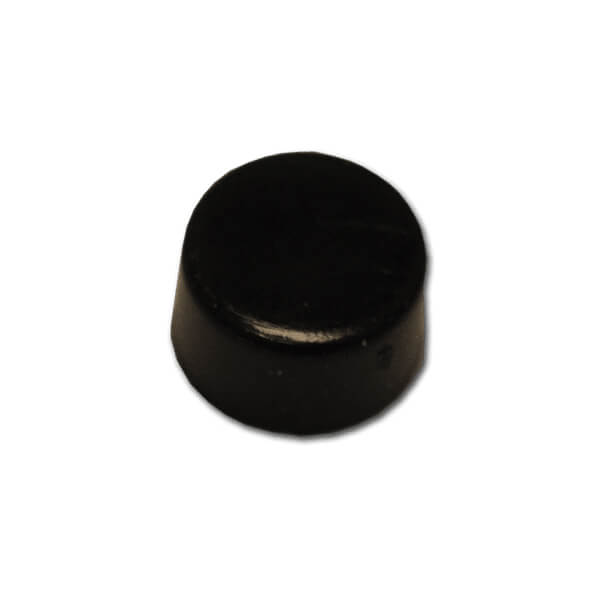

800UR1BLK

Color:Black

Dimension: Round 4mm dia.

Supported Switch Series: 800U

Notes: 800U series caps can be ordered separately or with the switch.

LC Series Pushbutton Switches

Cap Option: 1C, 1D, 1R, 1S, 320.08, 320.09, 320.094, 4J, 5J, 6J, 8J, TA12, TAC, TAD, TAG, TAO-BLK

PBH Series Miniature Pushbutton Switch

Cap Option: 1C, 1D, 1R, 1S

TL2201 and TL4201 Series Sub-miniature Pushbuttons

Cap Option: 1C, 1D, 1R, 320.08, 320.09, 320.094

Notes: The caps options 1C, 1D, 1R for the TL2201 and TL4201 series work with the Z actuator option only. The cap options 320.08, 320.09, 320.94, 4J, 5J, 6J for the TL2201 and TL4201 series work with the Y actuator option only.

TL1105 and TLE1105 Series Tact Switches

Cap Option: 1C, 1D, 1R, 1S

TL3301 Series SMT Tactile Switches

Cap Option: 1C, 1D, 1R, 1S

TL58 Series Radial Lead Tact Switches

Cap Option: 1C, 1D, 1R, 1S

TL59 Series Radial Lead Tact Switch

Cap Option: 1C, 1D, 1R, 1S

320 Series Tactile | Pushbutton Switches

Cap Option: 320.08, 320.09, 320.094, 4J, 5J, 6J, 8J, TA12, TAC

TL1100 Series Tact Switches

Cap Option: 320.08, 320.09, 320.094, 4J, 5J, 6J, 8J

700 Series Snap-Acting Push Button Switches

Cap Option: 700C1, 700C2, 700C3

800 Series Sub-Miniature Pushbutton Switches

Cap Option: 700C3, 800A C1, 800C1, 800C2, 800C3

Notes: For all switches EXCEPT those with bushings B8 or B9: cap options are 800AC1 and 800AC2. For switches WITH bushings B8 or B9: cap options are 800C3 and 700C3

TL3240 Series Illuminated SMT Tact Switch

Cap Option: TL3240R1CAPBLK, TL3240R1CAPBLU, TL3240R1CAPGRN, TL3240R1CAPIVR, TL3240R1CAPRED, TL3240R1CAPYEL, TL3240S1CAPBLK, TL3240S1CAPBLU, TL3240S1CAPGRN, TL3240S1CAPIVR, TL3240S1CAPRED, TL3240S1CAPYEL

800U Ultraminiature Pushbutton Switch

Cap Option: 800UR1RED, 800UR1WHT, 800UR1BLK
