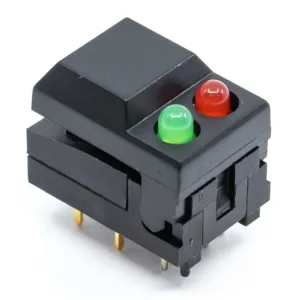

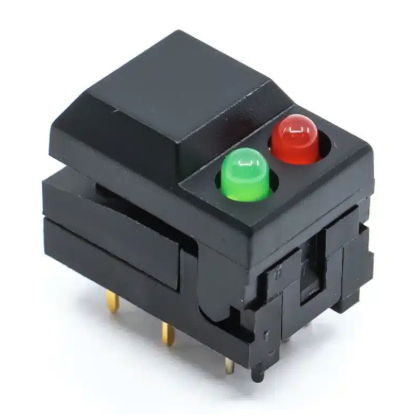

5500 Series Illuminated Pushbutton Switches (5501 and 5511)

• 300mA, 12VDC rating
• Through hole mounting design
• Single or dual LED options
• Momentary actuation

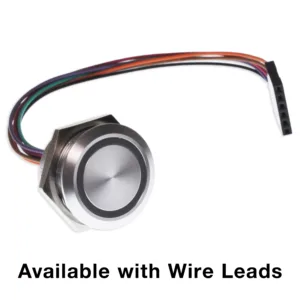

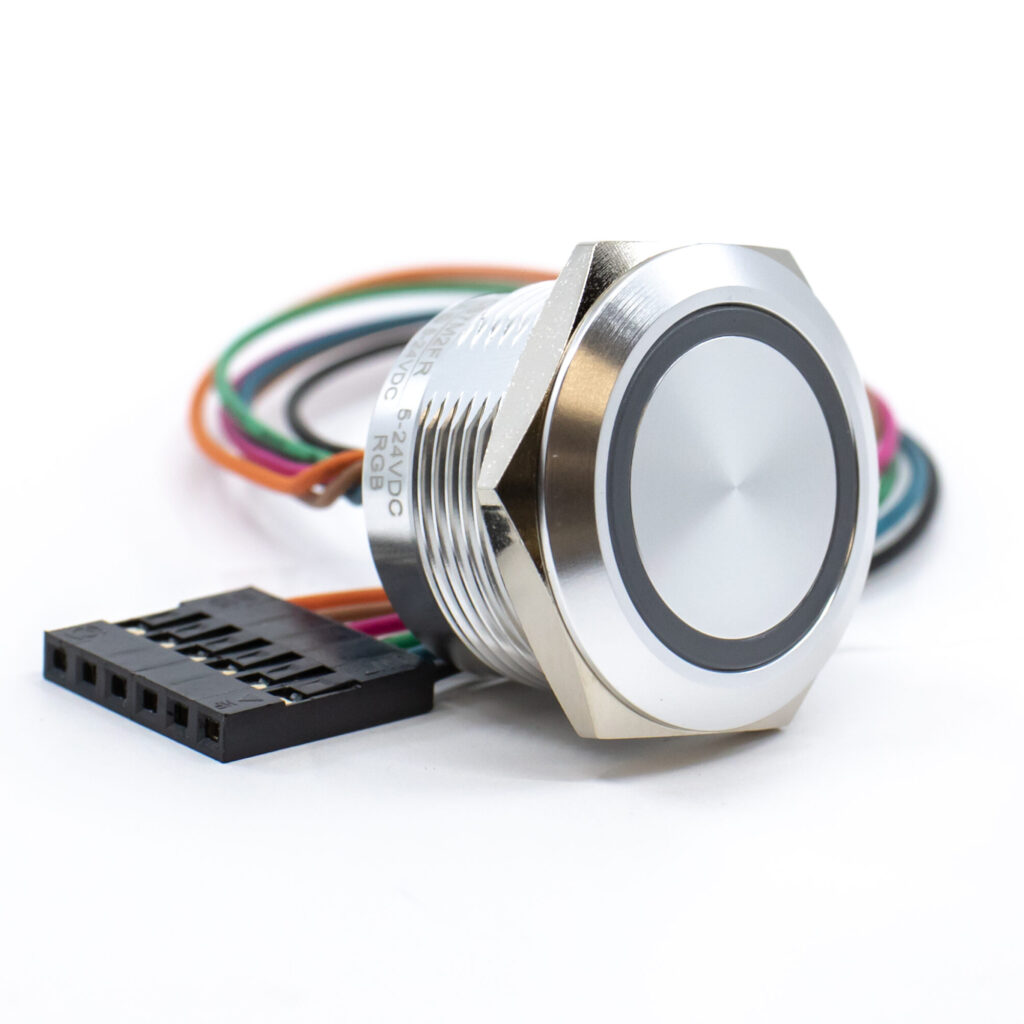

CS Series Illuminated, Touch Sensor Anti-vandal Switch

• 19mm or 22mm panel cutouts
• Latching or Momentary Function options
• Ring or Ring/Power Symbol lens options
• Illuminated color options: red, green, or blue
• Capacitive switching technology (Touch Sensor)

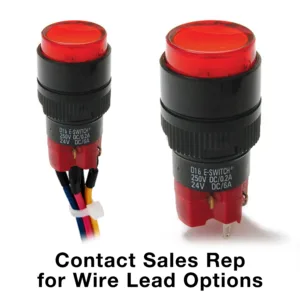

D16 Series Illuminated Pushbutton Switch

• UL, VDE, and ENEC power rated
• Circular, rectangular, and square panel mount designs
• SPDT, DPDT, 3PDT, 4PDT, maintained (latching) or momentary pushbuttons
• Exclusive solder lug design

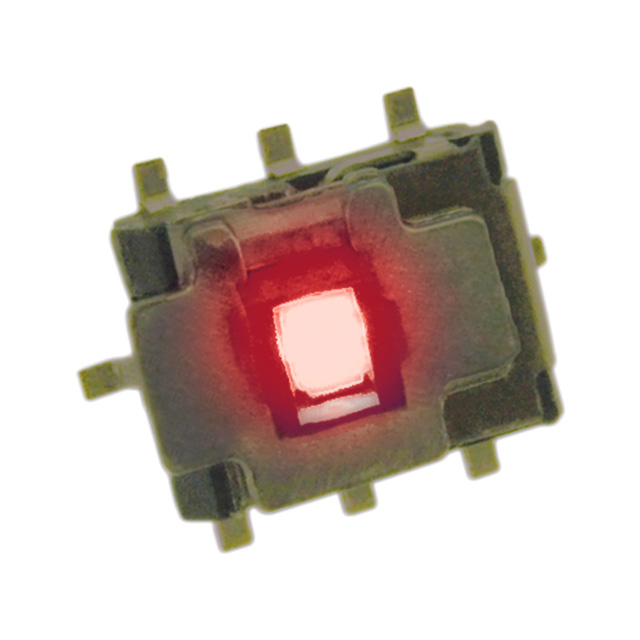

EGL2290 Series Illuminated Slide Switch

  • LED illumination
  • SMT design
  • DPDT circuit; 2 position actuator
  • Compact design

L16 Series Illuminated Pilot Indicator

• Circular, rectangular, and square panel mount designs
• Signal light illumination with LED, neon, or incandescent lamps in multiple colors
• Exclusively a pilot indicator light

LA Series Sealed, Illuminated Pushbutton Switches

• IP65 rated for ingress protection from dust and moisture
• [cURus] power rated for direct and alternating currents
• Signal light illumination with LED, neon, or incandescent lamps in multiple colors
• Momentary, maintained and pilot functions

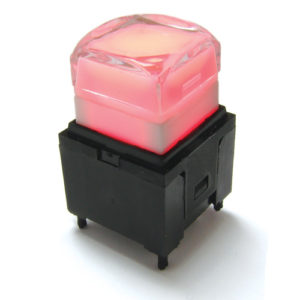

LP11 Series Illuminated Pushbutton Switch

• RGB or multiple bi-color illumination options
• Tactile or non tactile feel
• Multiple cap sizes
• Long electrical life of a million cycles
• Latching and momentary functions

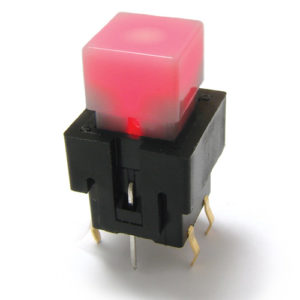

LP15 Series Illuminated Pushbutton Switch

• 1mA, 20VDC electrical rating
• Through hole mounting design
• Full LED illumination options
• Single pole, single throw momentary pushbuttons

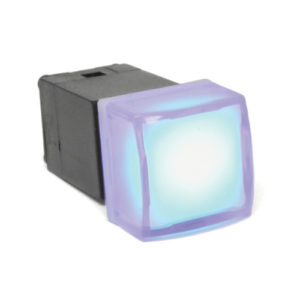

LP16 Series Long Life, Illuminated Pushbutton Switch

• 50,000,000 cycle life expectancy
• Long travel of 3.3mm
• Multiple illumination options
• Two cap sizes

LP1 Series Illuminated, Round Pushbutton Switch

• Full LED illumination options in multiple colors
• Operates and stores at -40 to 85°C
• Panel mount, round cutout of 8mm
• SPST, momentary pushbuttons

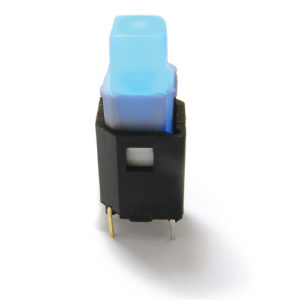

LP2 Series Illuminated Pushbutton Switch

• Customizable graphics for caps in six colors
• Through hole mounting design
• Full LED illumination options
• Single pole, momentary pushbuttons

LP37 Series Illuminated, Right Angle Pushbutton Switch

• 10mA 20mVDC to 250mA 50VDC
• Right angle surface mount design
• Multiple LED illumination options
• SPDT momentary function

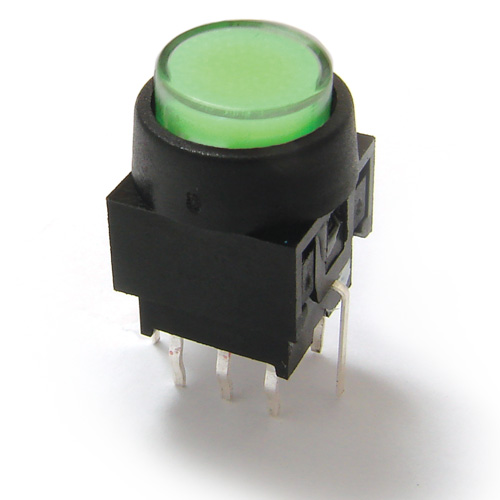

LP4 Series Illuminated Pushbutton Switch

• Multiple bezel and button design choices
• Right angle and vertical through hole mounting design
• Full LED illumination options
• 2 poles, momentary and maintained functions

LP6 Series Illuminated Pushbutton with Multiple LED Color Options

• Life expectancy of 200,000 cycles
• Through hole mount design
• Full LED illumination options
• 1 or 2 poles, momentary functions

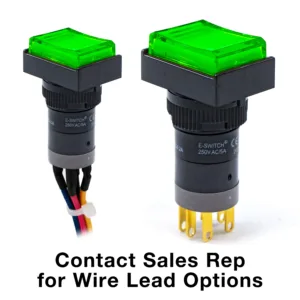

P16 Series Illuminated Pushbutton Switch

• cURus and VDE power rated for direct and alternating currents
• Circular, rectangular, and square panel mount designs
• SPDT, DPDT, 3PDT, 4PDT circuits; maintained (latching) or momentary pushbuttons
• Exclusive socket terminal design

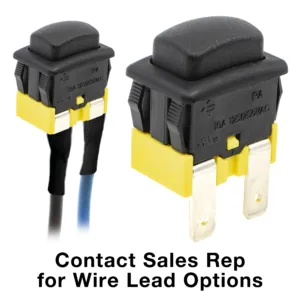

PA4 Series Illuminated, Power Pushbutton Switch

• Water resistant version with IP54 ingress protection rating
• cURus and ENEC power rated
• 13mm x 19mm panel cutout
• Full illumination options

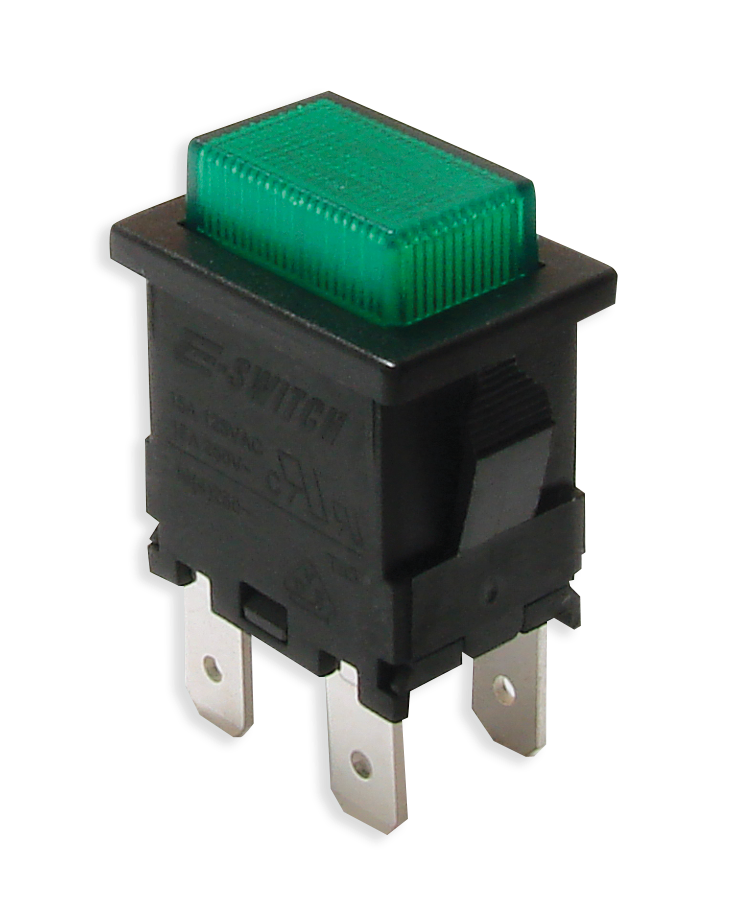

PB1973 Series Illuminated, Snap-in Pushbutton Switch

• 15A, 250VAC rating
• 13mm x 19.2mm panel cutout
• Full illumination options and multiple actuator colors
• SPST or DPST circuits; maintained (latching) or momentary functions

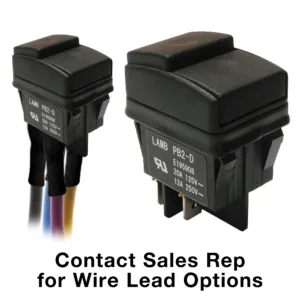

PB2 Series Illuminated, Power Pushbutton Switch

• High power rating of 20A, 125VAC
• IP54 rating for water resistence
• 22mm x 30mm panel cutout
• Spot illumination options

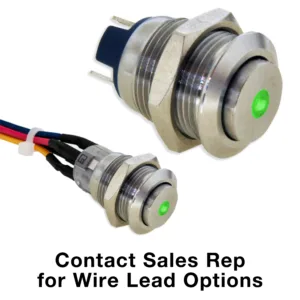

PV0 Series Sealed, Illuminated Anti-vandal Switch

  • IP65 rated for protection against dust and moisture
  • 12mm panel cutout
  • Ring or dot illumination options
  • Multiple LED color options

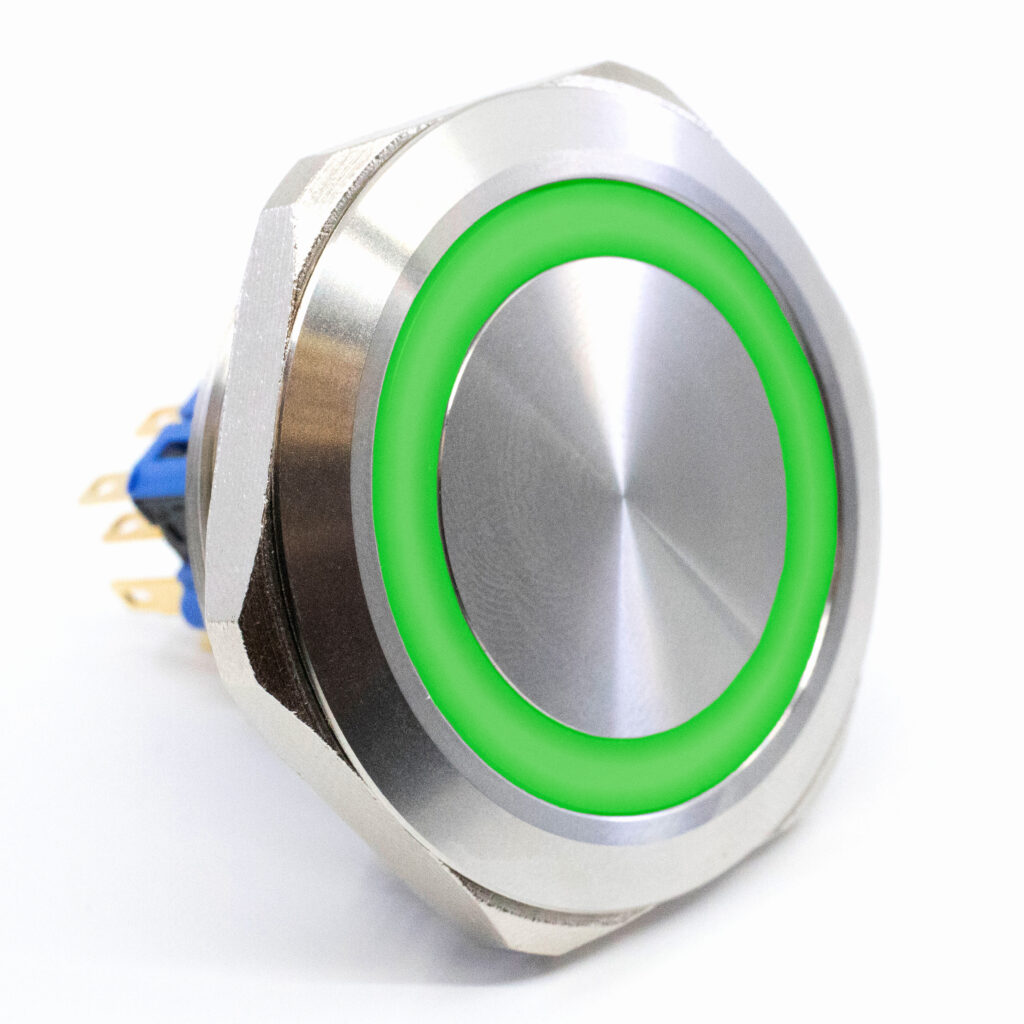

PV10 Series Anti-vandal Switch

• 40mm diameter panel cutout
• Dot or ring illumination options available
• Multiple switch functions available
• Multiple illumination voltage options
• IP65 rated
• SPDT or DPDT

PV3 Series Illuminated, Sealed, Long Life Anti-vandal Switch

• Non-sealed (IP40) and sealed (IP67) options
• 16mm diameter panel cutout
• Dot and ring illumination options available
• 1 or 2 poles; momentary functions

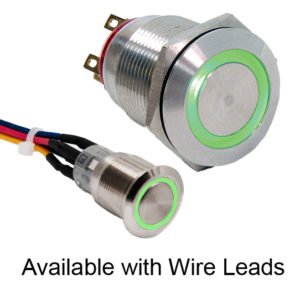

PV4 Series Illuminated, Long Life, Sealed Anti-vandal Switch

• IP65 rating
• 19mm diameter panel cutout
• Dot and ring illuminated; RGB LED illumination available
• 1 or 2 poles; maintained, momentary, and double break functions

PV6 Series Illuminated, Sealed, Long Life Anti-vandal Switch

• IP65 rating for protection against dust and moisture
• 16mm diameter panel cutout
• 1 pole; Off-(On) functionality
• Dot and ring illumination options available with RGB multicolor LED indicator light
• Solder lug or wire lead terminals

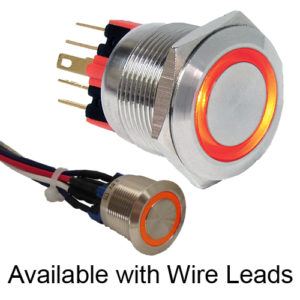

PV7 Series Anti-Vandal Switches

  • 22mm diameter panel cutout
  • Dot or ring lens options
  • Multiple LED colors
  • 1 pole double break function
  •  IP65 rated

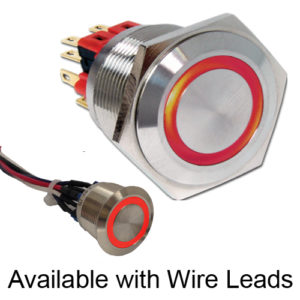

PV8 Series Illuminated, Sealed Anti-vandal Switches

• 25mm diameter panel cutout
• Dot and ring illumination options available
• 1 or 2 poles maintained and momentary double break functions
• IP65 rated

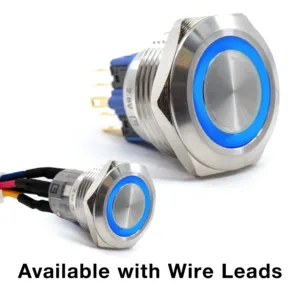

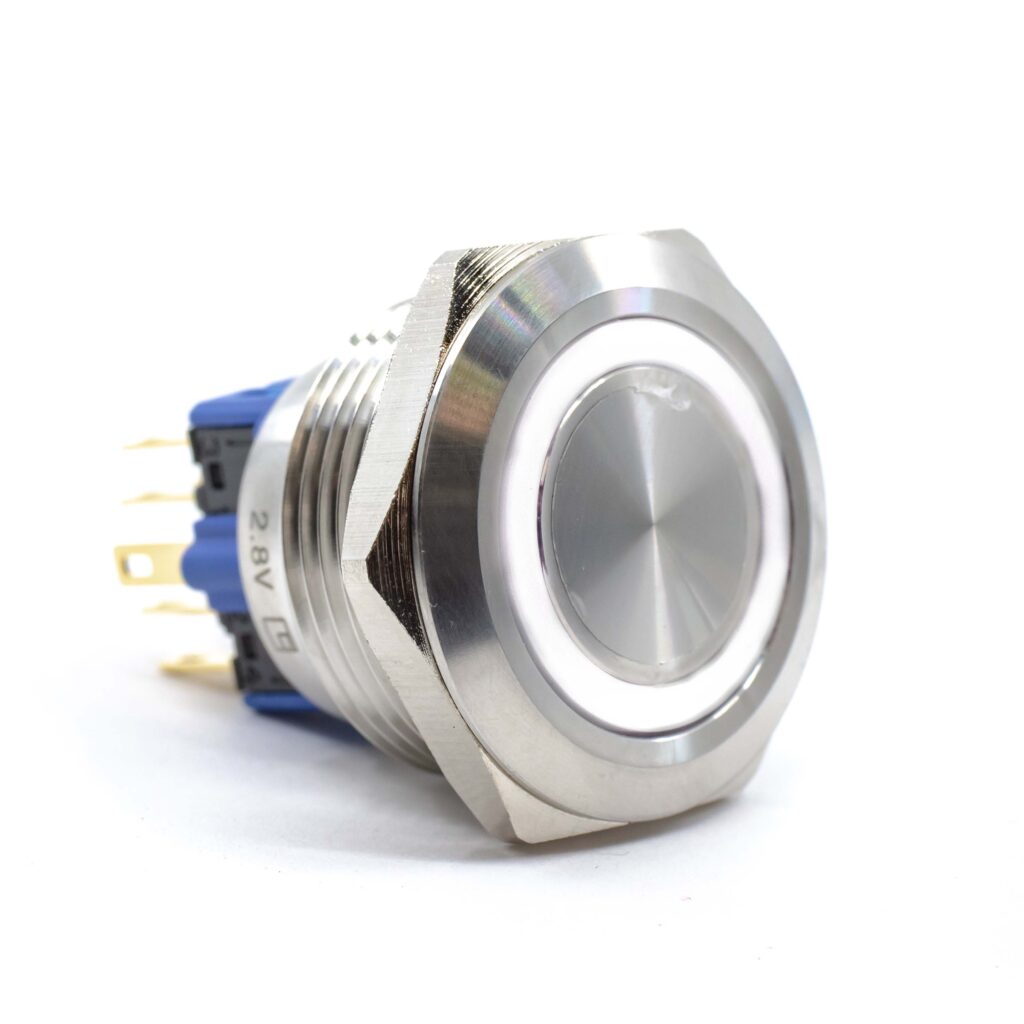

PV9 Series Sealed Illuminated Anti-vandal Switch

  • 28mm diameter panel cutout
  • Dot or ring illumination options available
  • Multiple switch functions available
  • IP66 rated, SPDT or DPDT

PVA3 Series Anti-vandal Switch

• 16mm panel cutout
• Ring illumination option
• Multiple LED color options
• IP65 rated
• Momentary or Latching functions

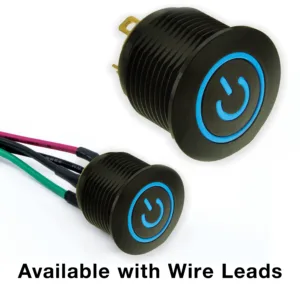

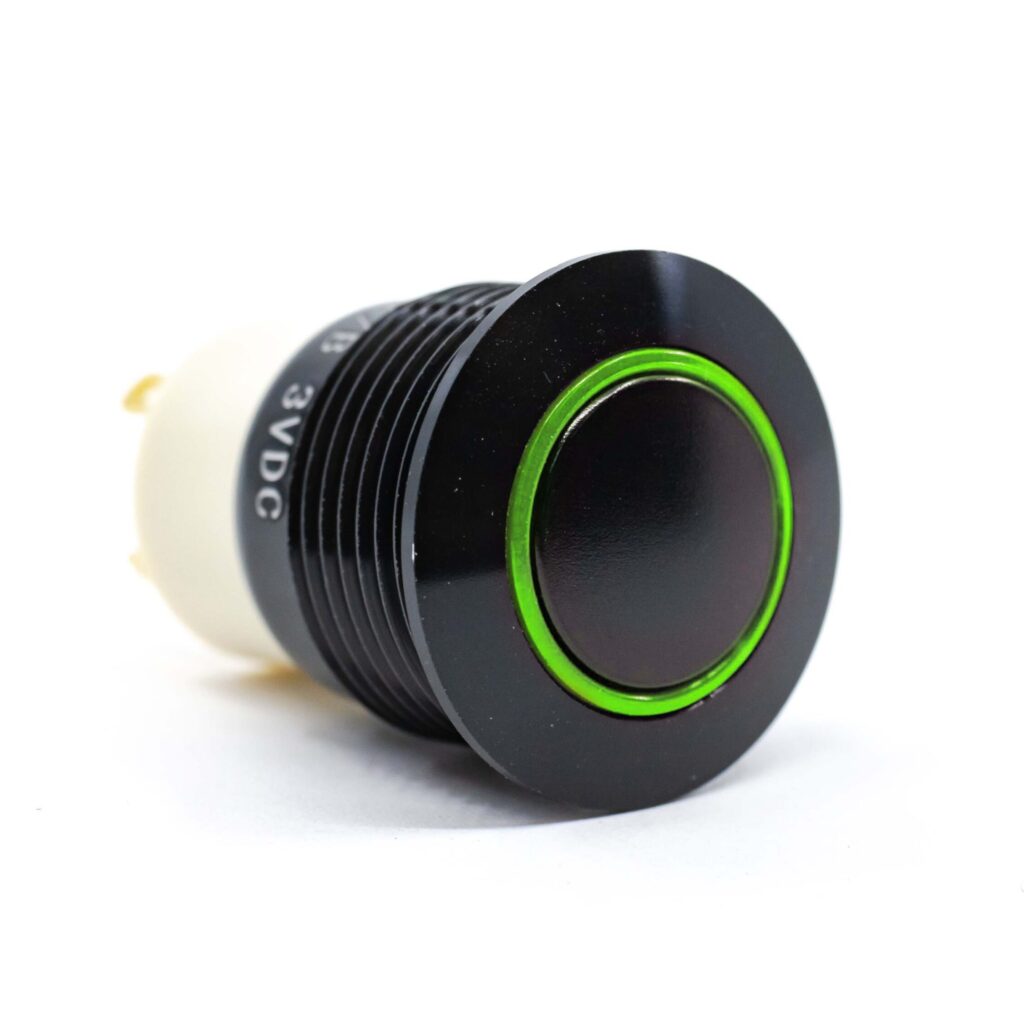

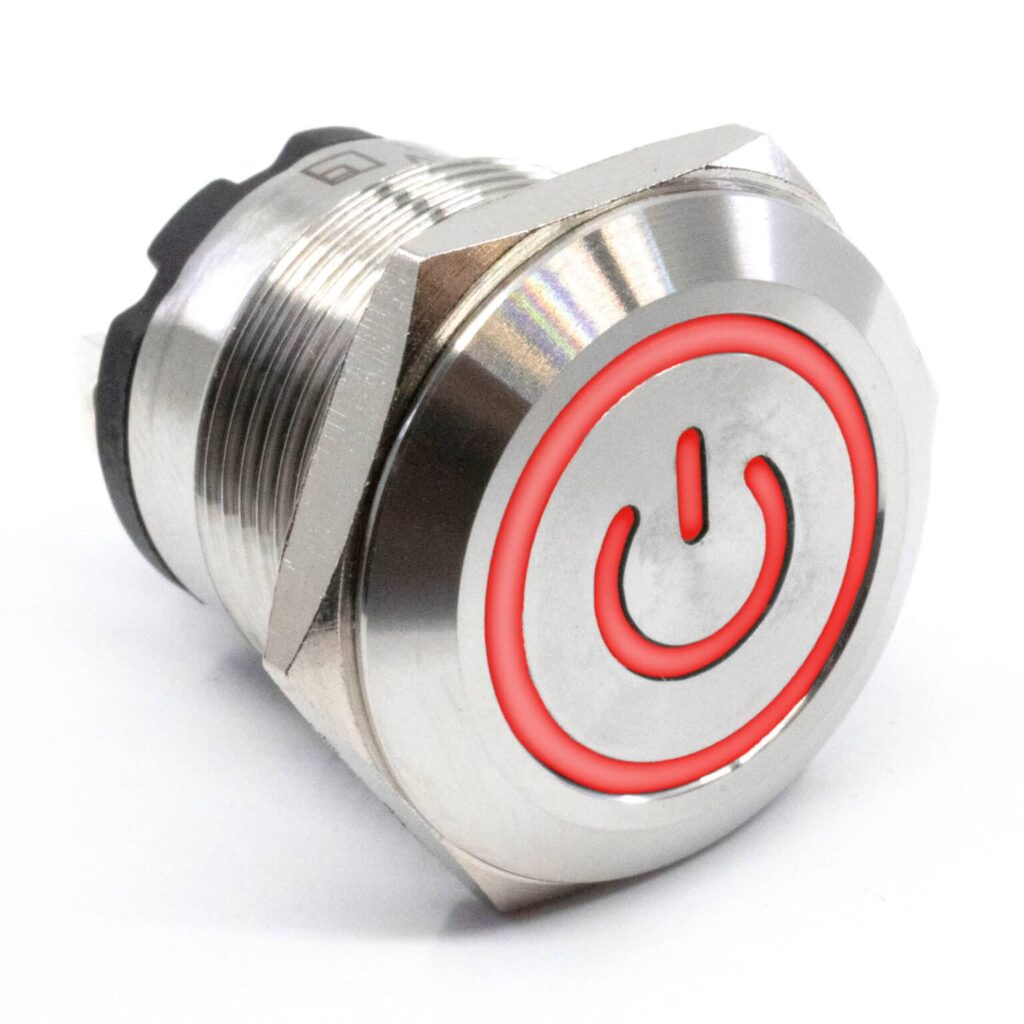

PVA6 Series Anti-vandal Switch

  • 16mm diameter panel cutout
  • Solder lug or wire leads (500mm long) termination
  • Ring or power symbol illumination options
  • IP67 rated, Off-(On), SPST
  • Refer to Detail Specs for PVA6L - latching version

PVL Series Pilot Lamp Indicator

  • Pilot lamp indicator
  • IP67 rated
  • Multiple panel cutout sizes ranging from 6mm to 19mm
  • Mulitple illumination volt options
  • Multiple LED color options
  • 40,000 hours nominal lamp life
  • 150mm long wire lead option

PVS7 Series Anti-vandal Switch

  • 22mm diameter panel cutout
  • Wire leads available
  • RGB LED option
  • Ring illumination avaliable
  • Multiple function options
  • IP65 rated
  • SPDT & DPDT
  • Soldered wire leads (300mm long) optional

PVT4 Series Illuminated, Tactile Response Anti-vandal Switch

  • 19mm panel cutout
  • Solder lug or wire lead termination options
  • Ring illumination
  • LED color options
  • Crisp tactile response
  • IP65 rated

PZ Series Anti-vandal, Illuminated Piezo Switch

• Electrical life of 50 million cycles
• Ring illumination options
• RGB color options
• Bezel options

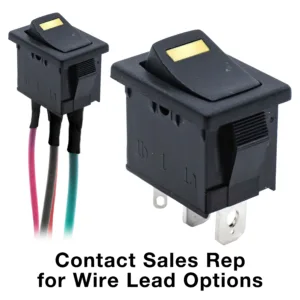

R1966 Series Illuminated Rocker Switch

• 15A, 125VAC electrical rating with cURus agency approval
• Industry standard 13mm x 19.2mm panel cutout
• Lens LED illumination options and actuator marking options

R1973 Series Illuminated Power Rocker Switch

• 9A, 125VAC electrical rating
• 13mm x 19.2mm panel cutout
• Full illumination options and actuator marking options
• 1 or 2 pole circults; maintained (latching) functions

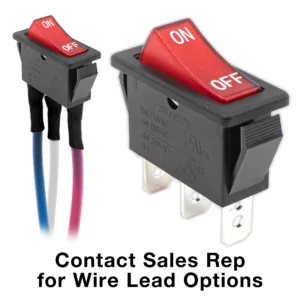

R4 Series Illuminated, High Current Rocker Switch

• 20A, 125VAC electrical rating
• 11mm x 30mm panel cutout
• Full or dot illumination options; also non-illuminated options

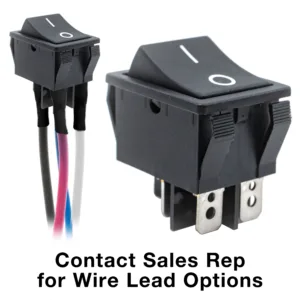

R5 Series Illuminated, High Current Rocker Switch

• 20A, 125VAC electrical rating [cURus]
• 22mm x 30mm panel cutout
• Full illumination or non-illuminated options and actuator marking options

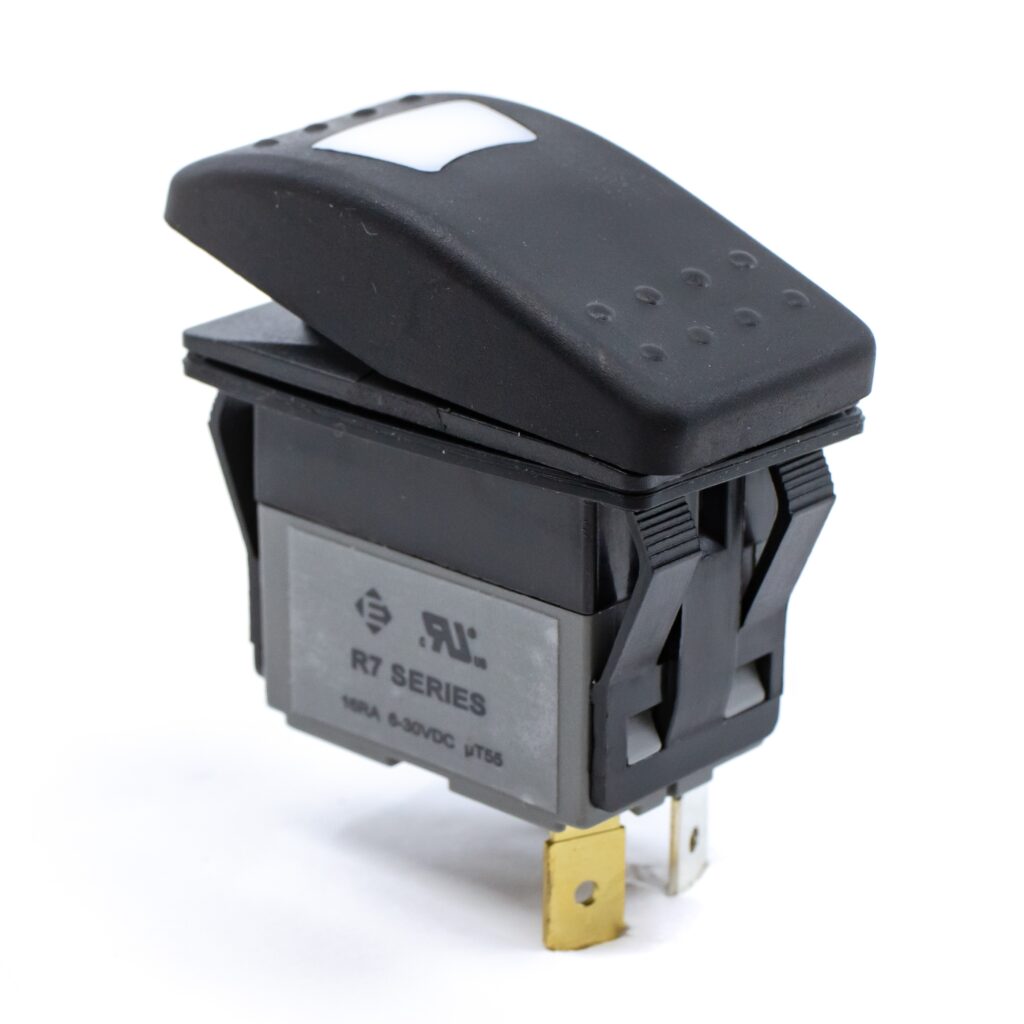

R7 Series Illuminated, Sealed Rocker Switch

• IP67 rated & UL Listed
• LED illumination options
• Custom actuator marking available
• Ergonomic design

R7 Series Rocker Actuator - Actuator Only

• IP67 rated & UL Listed
• LED illumination options
• Custom actuator marking available
• Ergonomic design

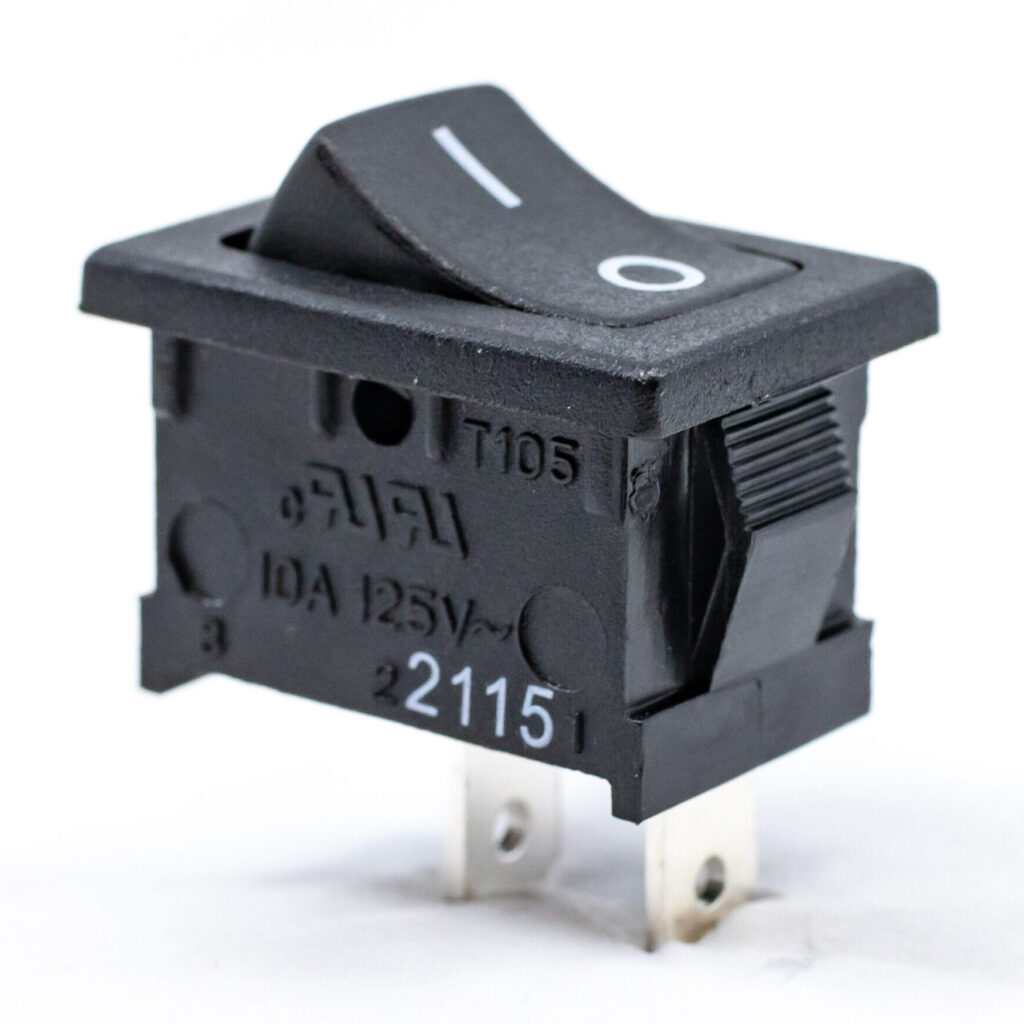

RA1 Series Illuminated, Power Rocker Switch with PVC Cap

• Up to 16A, 125VAC electrical rating
• PVC cap provides protection from dust and moisture at IP54 rating
• 13mm x 19.2mm panel cutout
• Full or signal light illumination options

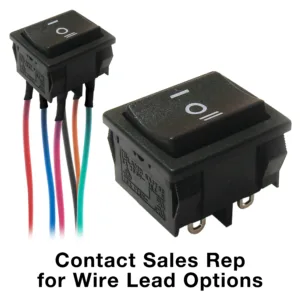

RA4 Series Illuminated, Power Rocker Switch with PCV Cap

• Up to 16A, 125VAC 1/3HP electrical rating
• IP54 protection against dust and moisture with PVC cap
• 22mm x 19.2mm panel cutout
• 1 or 2 pole; maintained and momentary functions

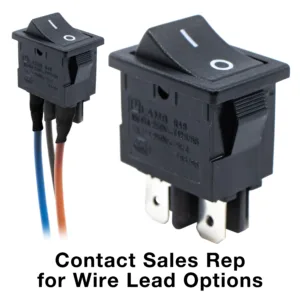

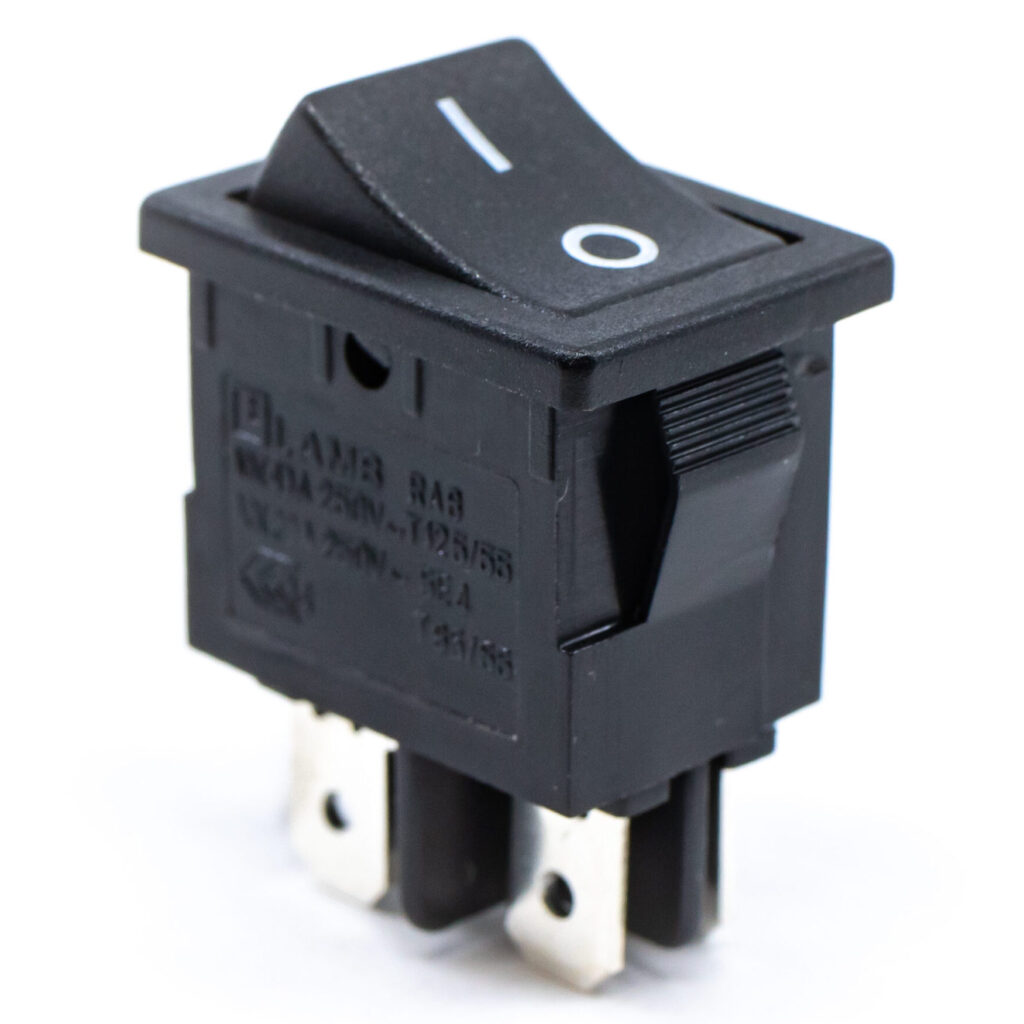

RA8 Series Illuminated, Power Rocker Switch

• 16A, 125VAC electrical rating with [cURus] approval
• Full or signal light illumination with multiple LED lens colors
• IP54 ingress protection from dust and moisture with optional cap
• 1 or 2 pole, maintained functions

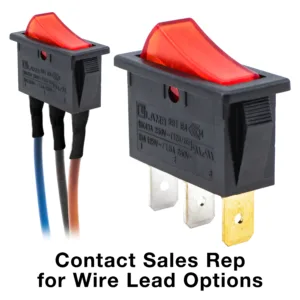

RB1 Series Illuminated, Power Rocker Switch

• 20A, 125VAC 3/4HP electrical rating with [cURus] approval
• Optional cap provides protection from dust and moisture at IP54 rating
• Full, dot, or signal light illumination and actuator marking options

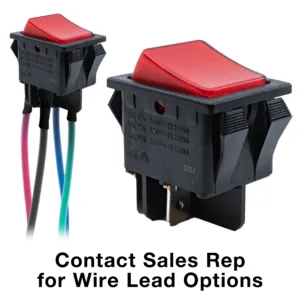

RB2 Series High Current, Power Rocker Switch

• 20A, 125VAC 1/4HP electrical rating with [cURus] approval
• IP54 protection from dust and moisture with optional cap
• Full, dot, or signal light illumination options

RBW2 Series Illuminated, Sealed Rocker Switch

• 16(16)A, 125VAC 1/3HP electrical rating with UL and [cURus] approval
• IP66 rated for protection from dust and moisture
• Full illumination options

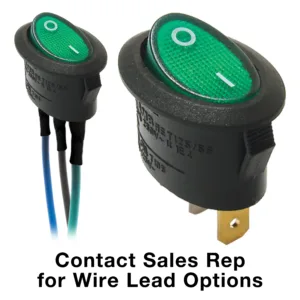

RE1 Series Oval, Illuminated Power Rocker Switch

• Up to 16A, 125VAC 1/3HP electrical rating, with multiple rating options
• Operate in temperatures ranging from -20 to at least 105°C and up to 125°C, depending on electrical rating option
• Full illumination options, multiple marking options and lens colors

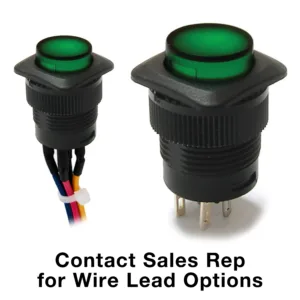

RP3508 Series Round, Illuminated Pushbutton Switch

• 3A 125VAC rating
• 15mm x 16mm rounded edge panel cutout
• Full LED illumination options
• SPST, maintained (latching) or momentary pushbuttons

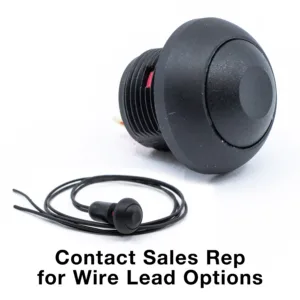

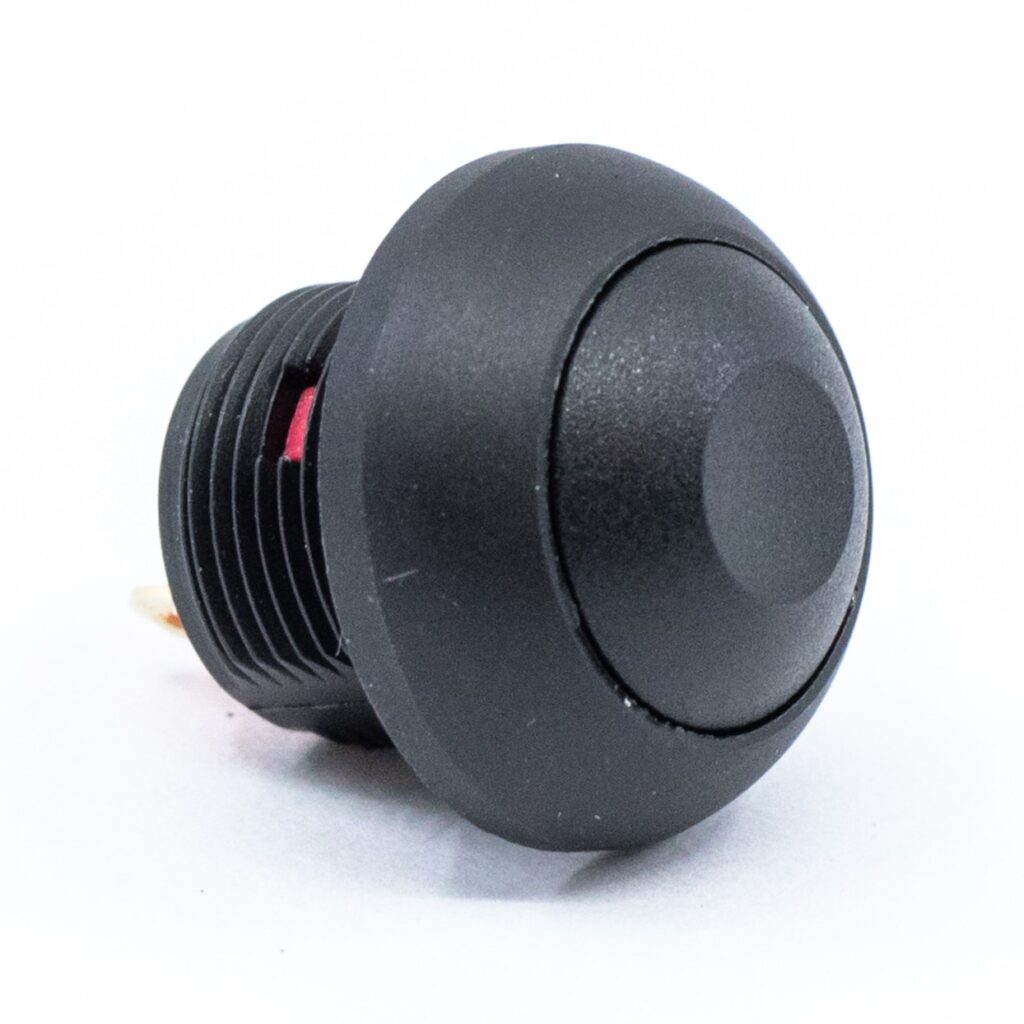

RP8100 Series Round, Illuminated Pushbutton Switch

• IP67 ingress protection rating
• 125mA 125VAC rating
• SPST, momentary pushbutton
• Life expectancy of 500,000 cycles
• Nylon housing and actuator

RP8200 Series Illuminated, Round Pushbutton Switch

• Sealed pushbutton with an IP67 rating
• 200,000 life expectancy
• 100mA 24VDC rating
• SPST, maintained (latching) function

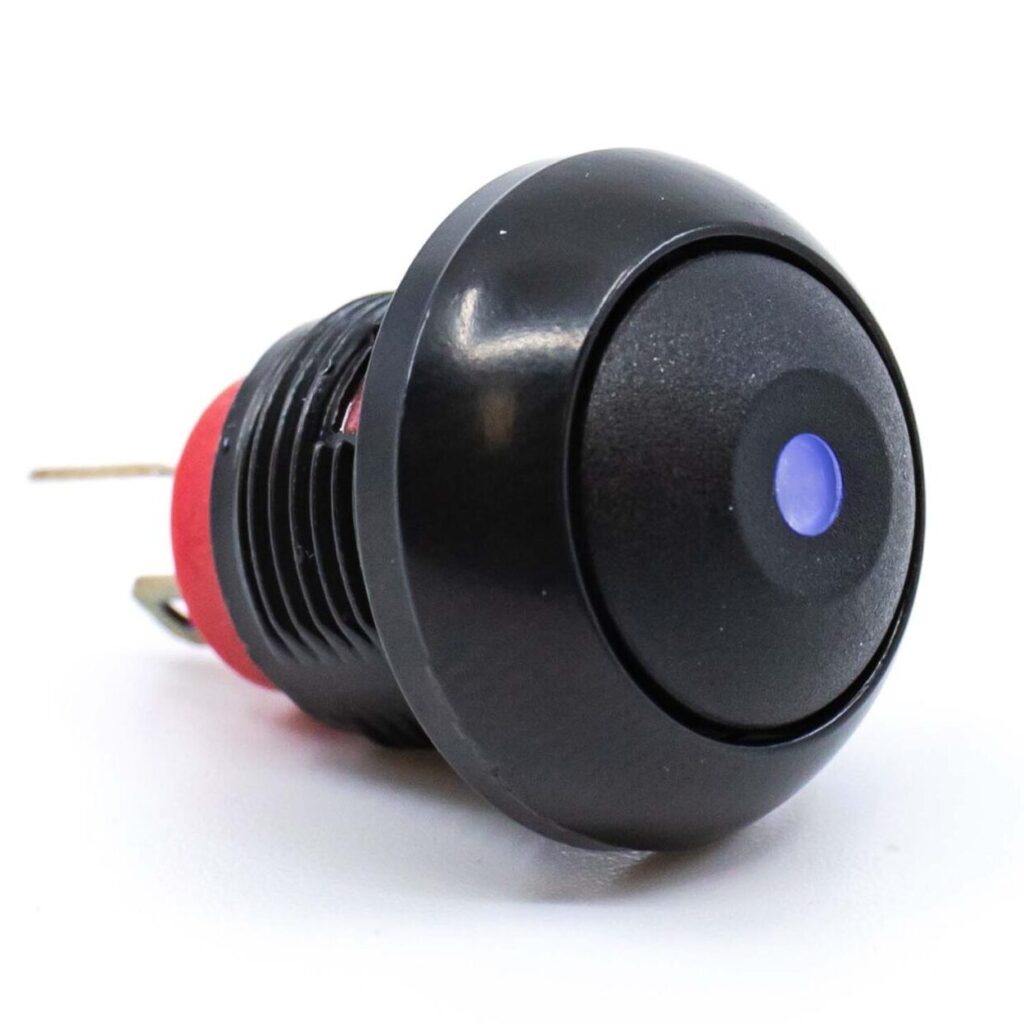

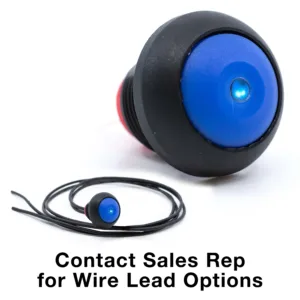

RP8300 Series Round, Illuminated Pushbutton Switch

• Sealed at an IP67 rating Die cast housing with nylon actuator
• Life expectancy of 500,000 cycles
• 500mA @ 48 VAC, 200mA @ 50 VDC, 200mA @ 250 VAC power ratings
• SPST, momentary pushbuttons

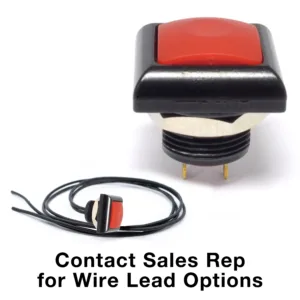

RP8400 Series Square, Illuminated Pushbutton Switch

• IP67 sealed, die cast housing with nylon actuator
• Life expectancy of 500,000 cycles
• 500mA @ 48 VAC, 200mA @ 50 VDC, 200mA @ 250 VAC power ratings
• SPST, momentary pushbuttons

RP8500 Series Square Illuminated Panel Mount Pushbutton

• 100mA 50VDC rating; 125mA 125VAC rating
• 13.6mm diameter panel cutout
• SPST momentary (500,000 life cycles)
• IP67 sealed, nylon housing & actuator

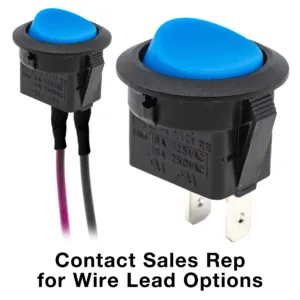

RR1 Series Round, Illuminated Power Rocker Switch with Cap

• Up to 16A, 125VAC 1/3HP electrical rating
• IP54 protection from dust and moisture with cap
• Full, dot, and signal light illumination options

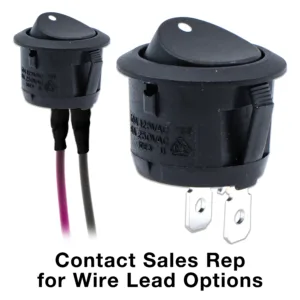

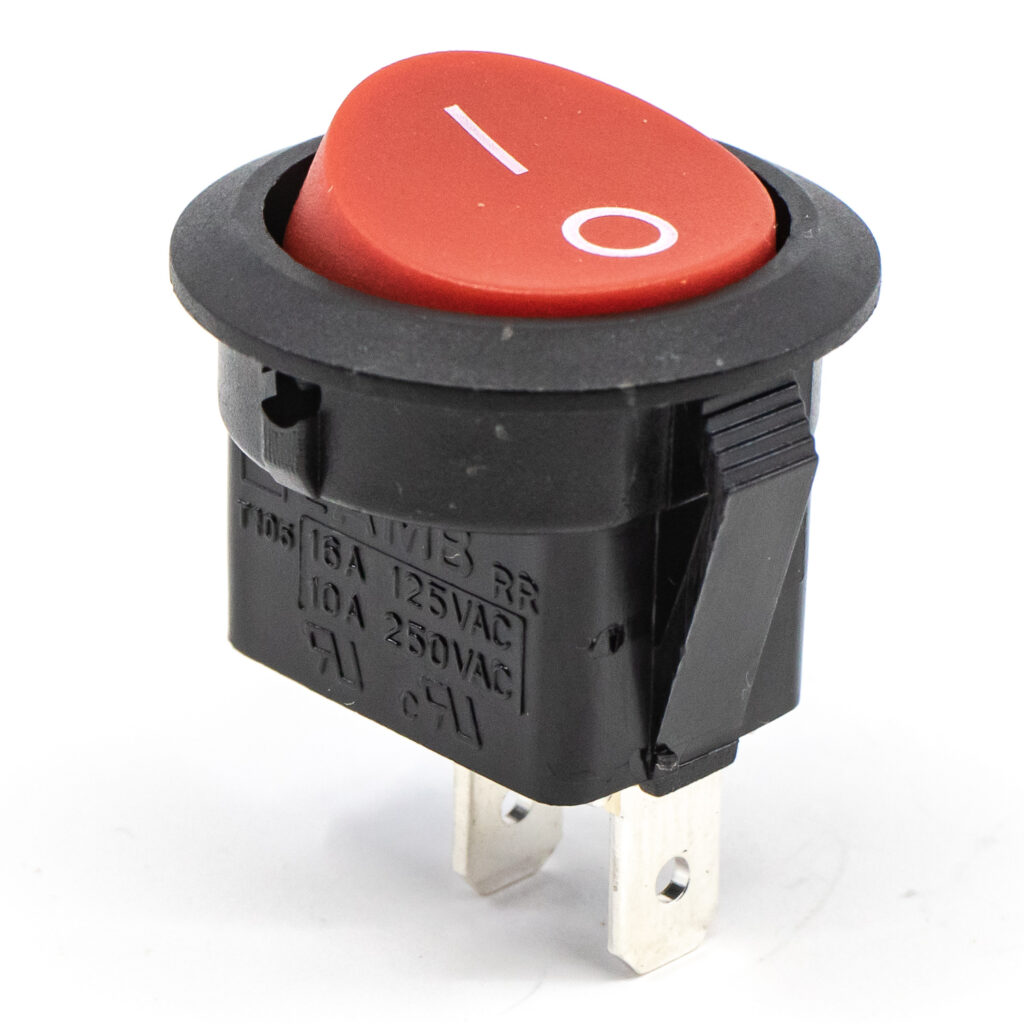

RR3112 Series Round, Illuminated Power Rocker Switch

• 16A, 125VAC or 10A, 250VAC electrical ratings with [cURus] approval
• Ergonomic, visually appealing actuator design
• Full illumination options, with neon or LED options
• 1 pole, momentary and maintained (latching) functions

RR8 Series Round, Illuminated Power Rocker Switch

• Up to 16A, 125VAC, 1/3HP electical rating with multiple agency approvals
• Meant for round, 20mm diameter panel cutout
• Full illumination options

RRA Series Round, Illuminated Power Rocker Switch with Cap

• Up to 15A, 125VAC 1/3HP electrical rating with approvals from multiple agencies
• IP54 protection from dust and moisture with cap
• Full illumination options

RSC Series High Current Rocker Switch with Bi-color Actuator

• 20A, 125VAC 1/4HP electrical rating with [cURus] approval
• Full or signal light illumination options
• 4 different panel cutouts ranging between 12.1mm and 13.9mm x 27.2mm and 28.6mm

SAV4 Series Anti-Vandal Switch

  • 19mm diameter panel cutout
  • Dot, ring, power, or ring/power illumination options
  • Multiple illumination voltage options
  • Momentary and latching functions
  • 15A high current rating

SAV7 Series Anti-Vandal Switch

  • 22mm diameter panel cutout
  • Ring or ring/power illumination options
  • Multiple illumination voltage options
  • Momentary and latching functions
  • 15A high current rating

SAV8 Series Anti-Vandal Switch

  • 25mm diameter panel cutout
  • Ring or ring/power illumination options
  • Multiple illumination voltage options
  • Momentary and latching functions
  • 15A high current rating

SV4 Series Anti-Vandal Switch

  • Short body design
  • 19mm diameter panel cutout
  • Ring or Ring/Power Symbol combo illumination
  • IP67
  • SPST
  • Optional soldered wire leads (500mm long)

SV7 Series Anti-Vandal Switch

  • Short body design
  • 22mm diameter panel cutout
  • Ring or Ring/Power Symbol combo illumination
  • IP67
  • SPST
  • Optional soldered wire leads (500mm long)

SV8 Series Anti-vandal Switch

  • Short body design
  • 25mm diameter panel cutout
  • Multiple LED options
  • Ring or Ring/Power Symbol combo illumination
  • IP67
  • SPST
  • Optional soldered wire leads (500mm long)

TL1220 Series Illuminated Multi-Option Tact Switch

• Multiple illuminated cap options
• Single color LED options
• 180 ± 50 gram force
• PC board mount design

TL1240 Series Illuminated Tact Switches

• 6mm x 6mm tactile switch
• 160 ± 50 gram force
• Multiple LED color options
• Silver plated contacts

TL1250 Series Illuminated Right Angle Tact Switch

• 6.8mm x 8.3mm tactile switch
• 120 ± 60; 180 ± 60; 280 ± 70 gram force options
• Right angle through hole mount design
• Silver or gold plated contacts

TL1260 Series Right Angle Illuminated Tactile Switch

• 6.8mm x 7mm tactile switch
• 160 ± 50 gram force option
• LED illumination options
• Right angle, through hole mount design

TL1265 Series Illuminated Vertical Tactile Switch

• 6.8mm x 7mm tactile switch
• 160 ± 50 gram force option
• LED illumination options
• Vertical through hole mount design

TL1275 Series Tactile Switch with Wire Leads & Connectors

• 500mm long wire leads with connectors
• Single color and bi-color LED options
• Sharp tactile response
• Panel Mount

TL2205 Series Illuminated Pushbutton Switch

• Multiple LED illumination colors
• Optional cap with LED window
• 100mA, 30VDC
• Through hole mount design
• DPDT, maintained (latching) or momentary push buttons

TL3200 Series SMT, Dual LED Illuminated Tactile Switch

• 6.8mm x 4.5mm tactile switch
• 160 +75/-30 gram force
• Single or dual illumination options
• Surface mount design

TL3210 Series Miniature, LED Illuminated Tact Switch

• 5.6mm x 3.4mm tactile switch
• 160 ± 50 gram force options
•  Illuminated SMT
• Tape & reel packaging

TL3215 Series Ultraminiature SMT, LED Illuminated Tactile Switch

• 50mA 12VDC rating
• Multiple LED colors
• Long life: 1M cycles
• SMT, low profile, ultra miniature

TL3240 Series LED Illuminated, SMT Tactile Switch

• 6mm x 7.8mm tactile switch
• 100, 160 & 260 gram force options
• Surface mount design
• Tactile tape & reel packaging

TL3253 Series Dual LED Illuminated Tactile Switch

• 7.5mm x 22.6mm tactile switch
• 160 gram force
• Dual LEDs
• Right angle mount

TL3265 Series LED Illuminated, SMT Tactile Switch

• 500,000 cycle life expectancy
• Multiple cap options
• Surface mount design
• Illumination options

TL6210 Series Miniature, Sealed, Illuminated SMT Tactile Switch

  • Surface mount termination
  • IP67 rated
  • Multiple LED color options
  • Small package size

TL6215 Series Right Angle, Illuminated and Sealed Tactile Switch

• 50mA @12VDC contact rating
• Illuminated with cap options
• SPST momentary (500,000 life cycles)
• IP67 sealed; right angle or vertical

TL6275 Series Subminiature, LED Illuminated Tactile Switch

  • PCB Mount
  • Illumination options
  • Multiple cap/lens options
  • 100,000 cycle life expectancy
  • Capable to withstand a typical water wash

ULP Series Long Life, Illuminated Pushbutton Switch

• Long life of one million cycles for mechanical components and 200,000 cycle electrical life
• PC board or panel mount design with several button options
• Full LED illumination options
• SPDT or DPST, maintained (latching) or momentary pushbuttons

ULV4 Series Anti-vandal Switch UL Certified

• Dot, ring or power symbol illuminated
• IP67 rated, UL certified
• Long life; latching or momentary
• Three wire lead options available:

  • 300mm long wire leads
  • Detachable socket with wire leads 500mm long
  • Molded Back with wire leads 500mm long

ULV7 Series Anti-Vandal Switch

• Ring illuminated, 22mm panel cutout
• IP67 rated, UL Certified
• Long life; latching or momentary
• SPDT or DPDT with multiple functions
• Three wire lead options available:

• 300m long wire leads
• Detachable socket with wire leads 500mm long
• Molded Back with wire leads 500mm long

ULV8 Series UL Certified Sealed Anti-vandal Switch

• Ring illuminated, 25mm panel cutout
• IP67 rated, UL Certified
• Long life; latching or momentary
• SPDT or DPDT with multiple functions
• Three wire lead options available:

  • Wire Leads 300mm long
  • Detachable Socket with wire leads 500mm long
  • Molded Back with wire leads 500mm long

WBL Series Illuminated, Right Angle Pushbutton Switch

• DPDT or 4PDT, maintained (latching) or momentary pushbuttons
• Multiple LED illumination colors, including bi-color LEDs
• Right angle, through hole PCB mounting design
• 300mA, 30VDC electrical rating
• Optional transparent cap
