Sealed

E-Switch offers a variety of switches with various stages of protection against water, elements, dust, etc. Rated up to IP67 standards, you can find one for your application here!

Small 100a series

100A Series Sealed Miniature Toggle Switches

• Up to 5A 120VAC or 28VDC rating, also available in gold
• Vertical and right angle mounting designs
• 1 or 2 poles and throws momentary and maintained functions
• IP67 sealed

Small 200a series

200A Series Sealed Sub-miniature Toggle Switches

• 3A 120VAC or 28VDC rating, also available in gold
• Vertical and right angle mounting designs
• 1 or 2 poles and throws momentary and maintained functions
• IP67 sealed

Small 200b series

200B Series Sealed SMT Sub-miniature Toggle Switches

• 3A 120VAC rating, also available in gold
• Surface mount design
• 1 pole momentary and maintained functions
• IP67 sealed

Small 200u series

200U Series Sealed Ultra-miniature PCB Toggle Switches

• 40,000 cycle life expectancy
• Ultra-miniature in size - 4.5mm x 7mm
• Vertical or right angle PCB mounting
• Sealed to IP67

Small 400a series

400A Series Sealed, Sub-Miniature Rocker Switches

• Up to 3A 120VAC or 28VDC rating, also available in gold
• PC board mount design
• 1 or 2 pole momentary and maintained functions
• IP67 sealed

Small 400b series

400B Series Sub-miniature SMT, Sealed Rocker

• 3A 120VAC rating, also available in gold
• Surface mount design
• 1 pole momentary and maintained functions
• IP67 sealed

Small 500r series

500R Series Slide Switch Sealed to IP67

• Offers IP67 sealing protection
• up to 3 positions
• SPDT and DPDT options
• Gold contacts

Small 700a series

700A Series IP-67 Sealed Pushbutton Switches

• 3A 120VAC or 28VDC rating
• Through hole mounting design
• 1 or 2 poles momentary functions
• IP67 sealed

Small 800a series

800A Series Sealed, Sub-miniature Pushbutton Switches

• 120 VAC rating
• Through hole mounting design
• 1 pole momentary functions
• IP67 sealed

Small 800b series

800B Series SMT, Sealed, Sub-Miniature Pushbutton Switches

• 3A 120VAC or 28VDC rating
• Surface mount design
• 1 pole either in single or double throw options
• Tape and reel packaging available

Small 800u series

800U Ultraminiature Pushbutton Switch

• Ultra-miniature in size
• IP67 rated
• Multiple termination and color options
• Single or double pole

Small kae series

KAE Series Low Profile DIP Switches

  • Replaced KAJ series, 2012
  • KAJ replaced KAW series, 2006
  • 1 to 12 positions, both PCB pin and SMT termination options
  • Top Tape seal optional, Tube or Tape and Reel packaging
Small kan series

KAN Series Half-Pitch Low Profile DIP Switches

• Replaced KAD series, 2006
• Half-Pitch surface mount DIP Switch
• 2 to 10 positions, Top Tape seal optional
• Tube or Tape and Reel packaging

Small kap series

KAP Series Piano DIP Switches

• Piano style through hole (PCB Pin) termination
• From 2 to 12 positions
• Top tape seal optional
• Tube packaging

Small kas series

KAS Series Slide DIP Switches

• Through hole (PCB Pin) termination
• From 2 to 12 positions
• Top tape seal optional
• Tube packaging

Small la series

LA Series Sealed, Illuminated Pushbutton Switches

• 8A 125VAC rating
• Circular panel cutouts from 22mm to 30.5mm in diameter
• Full illumination options
• Momentary, maintained and pilot functions

Small pv0 series

PV0 Series IP65 Illuminated Anti-vandal Switch

  • 12mm panel cutout
  • Ring or dot illumination options
  • Multiple LED color options
  • IP65 rated
Small pv1 series

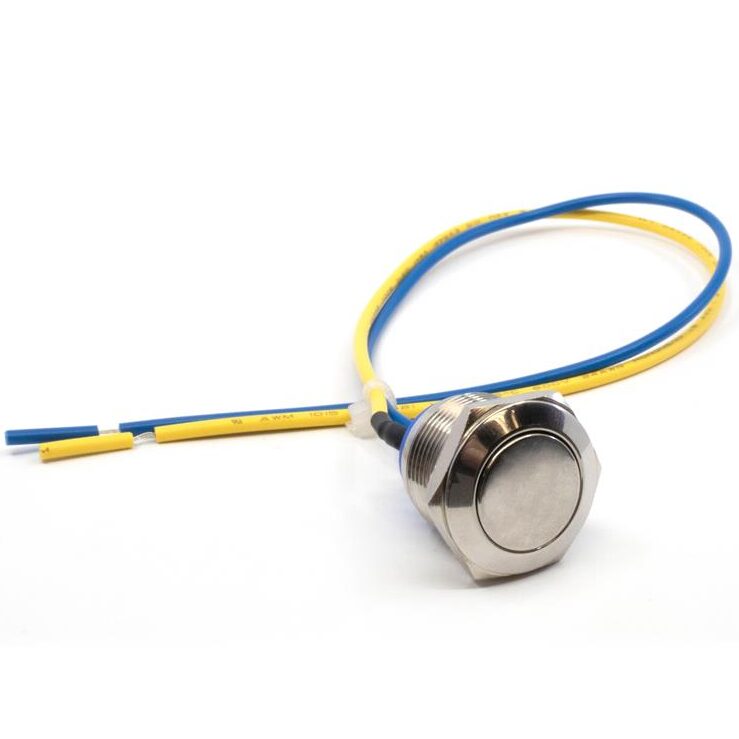

PV1 Series Long Life, Water Resistant Anti-vandal Switches

• 19mm diameter panel cutout
• 1 pole Off-(On) with IP65 rating
• Solder and screw terminal options available

Small pv2 series

PV2 Series Water Resistant, Long Life Anti-vandal Switches

• 16mm diameter panel cutout
• 1 pole Off-(On) with IP65 rating
• Solder and screw terminal options available

Small pv3 series

PV3 Series Illuminated, Sealed, Long Life Anti-vandal Switches

• 16mm diameter panel cutout
• Dot and ring illumination options available
• 1 or 2 poles momentary functions
• non-sealed and sealed options configurable

Small pv4 series

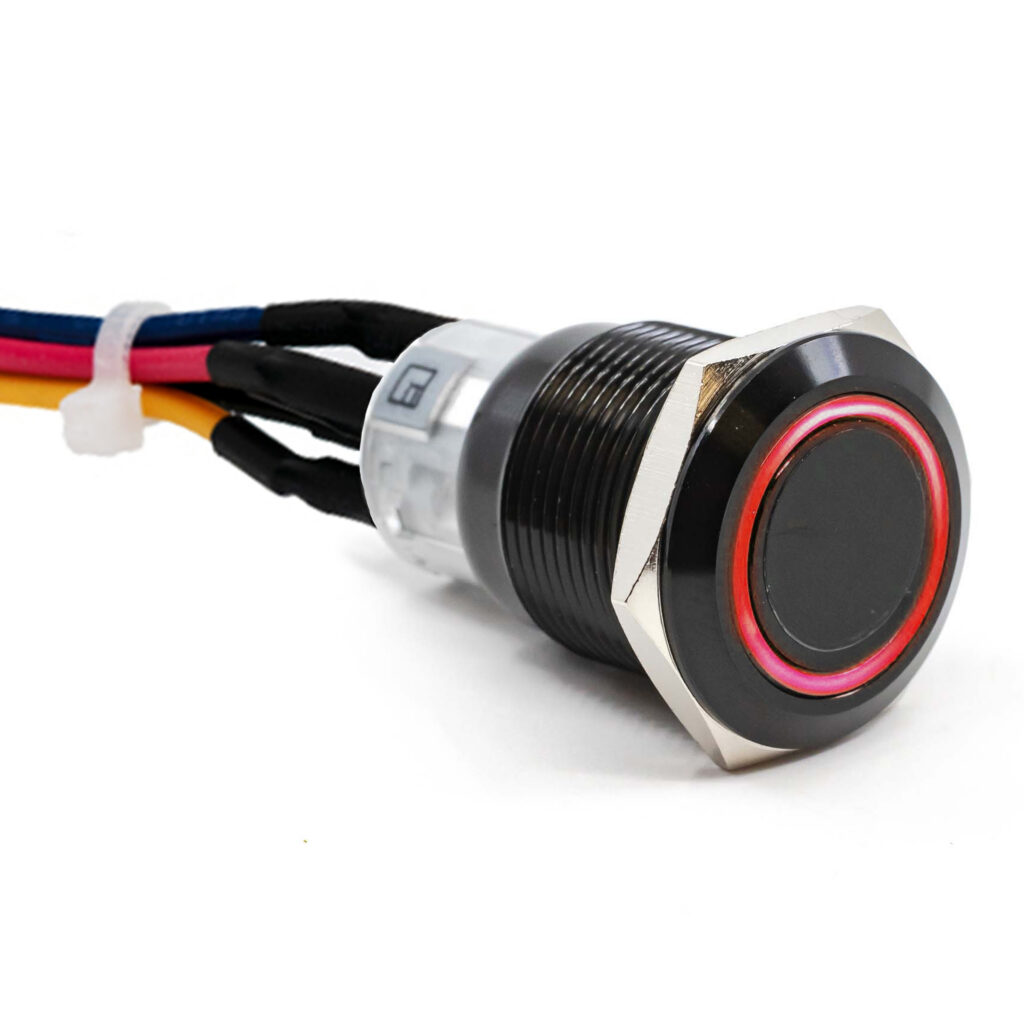

PV4 Series Illuminated, Sealed, Long Life Anti-vandal Switches

• 19mm diameter panel cutout
• Dot and ring illumination options available
• 1 or 2 poles maintained, momentary and double break functions with IP65 rating
• RGB LED available

Small pv5 series

PV5 Series Sealed, Long Life Anti-vandal Switches

• Solder terminal options available
• 1 pole momentary switch
• IP65 rated

Small pv6 series

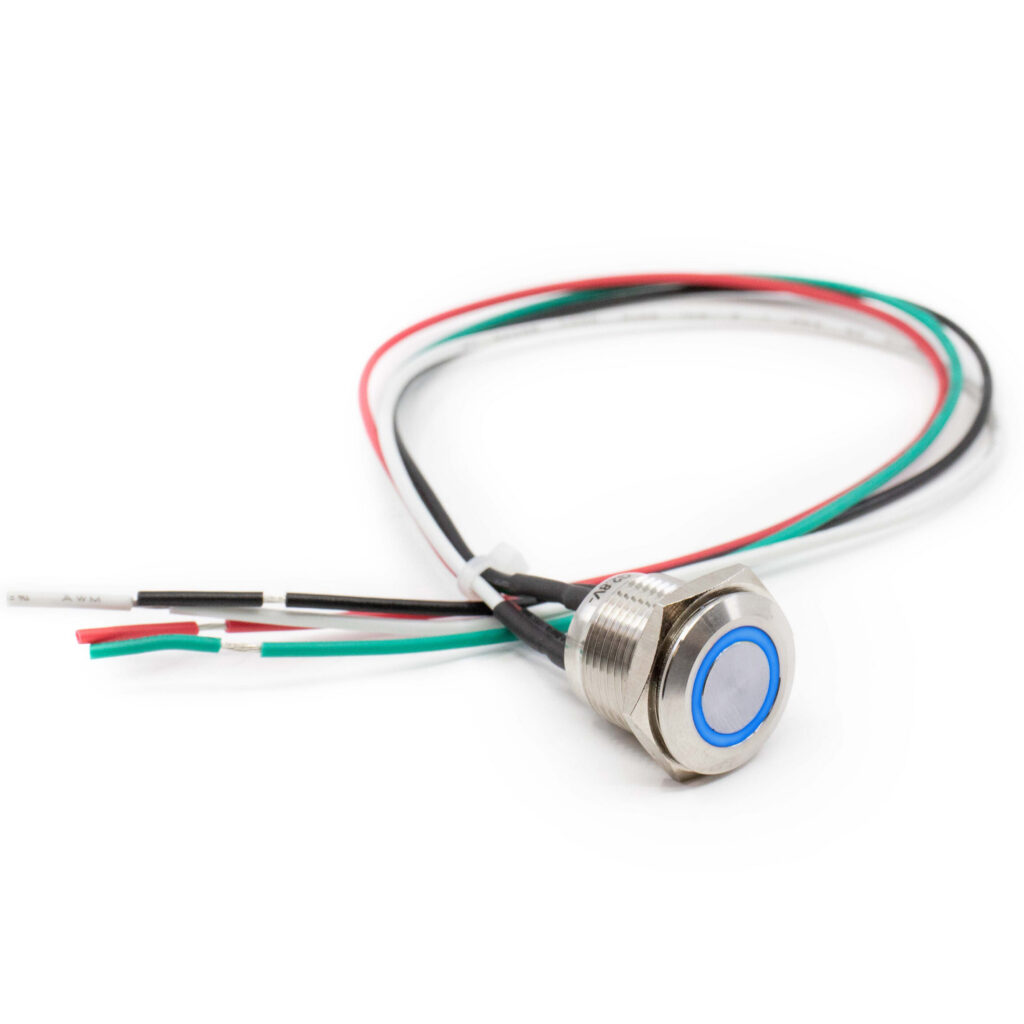

PV6 Series Illuminated, Sealed, Long Life Anti-vandal Switches

• 16mm diameter panel cutout
• 1 pole Off-(On) with IP65 rating
• Dot and ring illumination options available
• Solder terminals

Small pv7 series

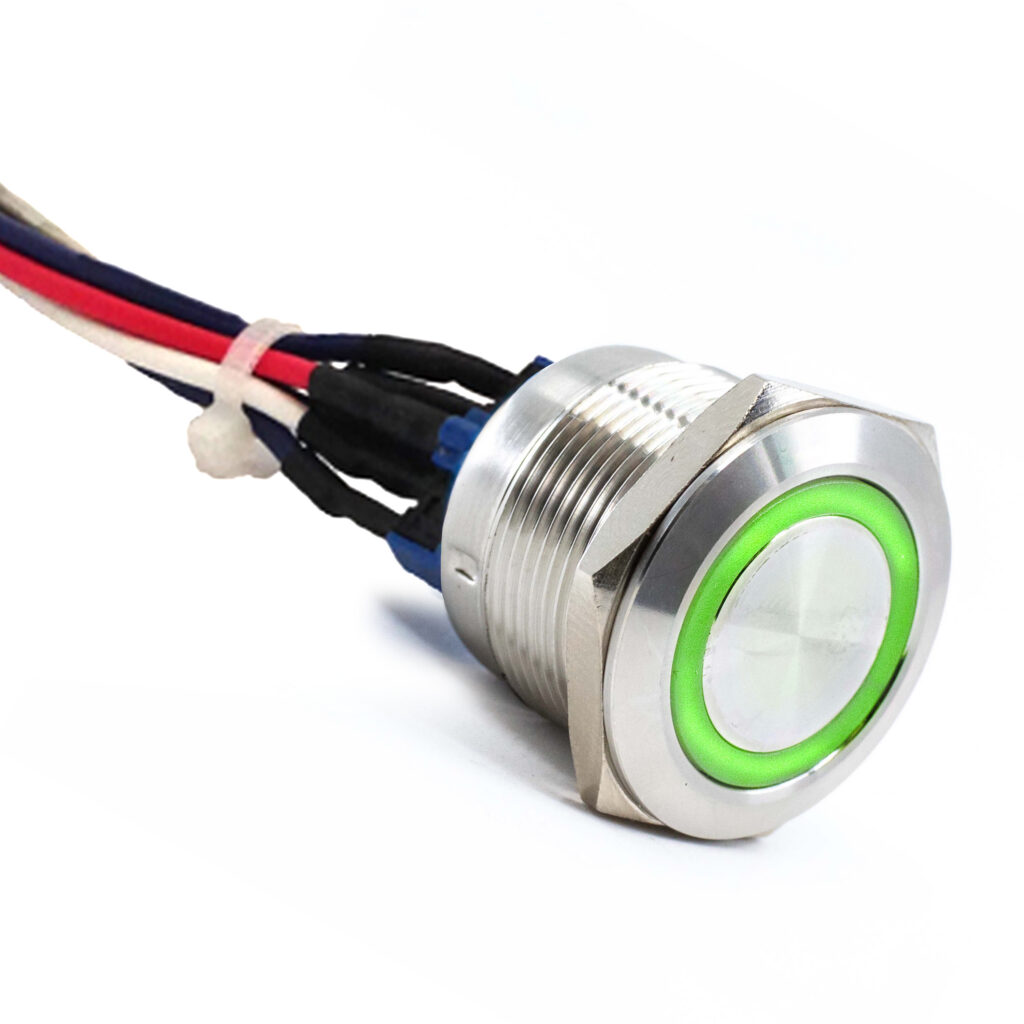

PV7 Series Sealed, Long Life, Illuminated Anti-vandal Switches

• 22mm diameter panel cutout
• Dot and ring illumination options available
• 1 pole double break function
• IP65 rated

Small pv8 series

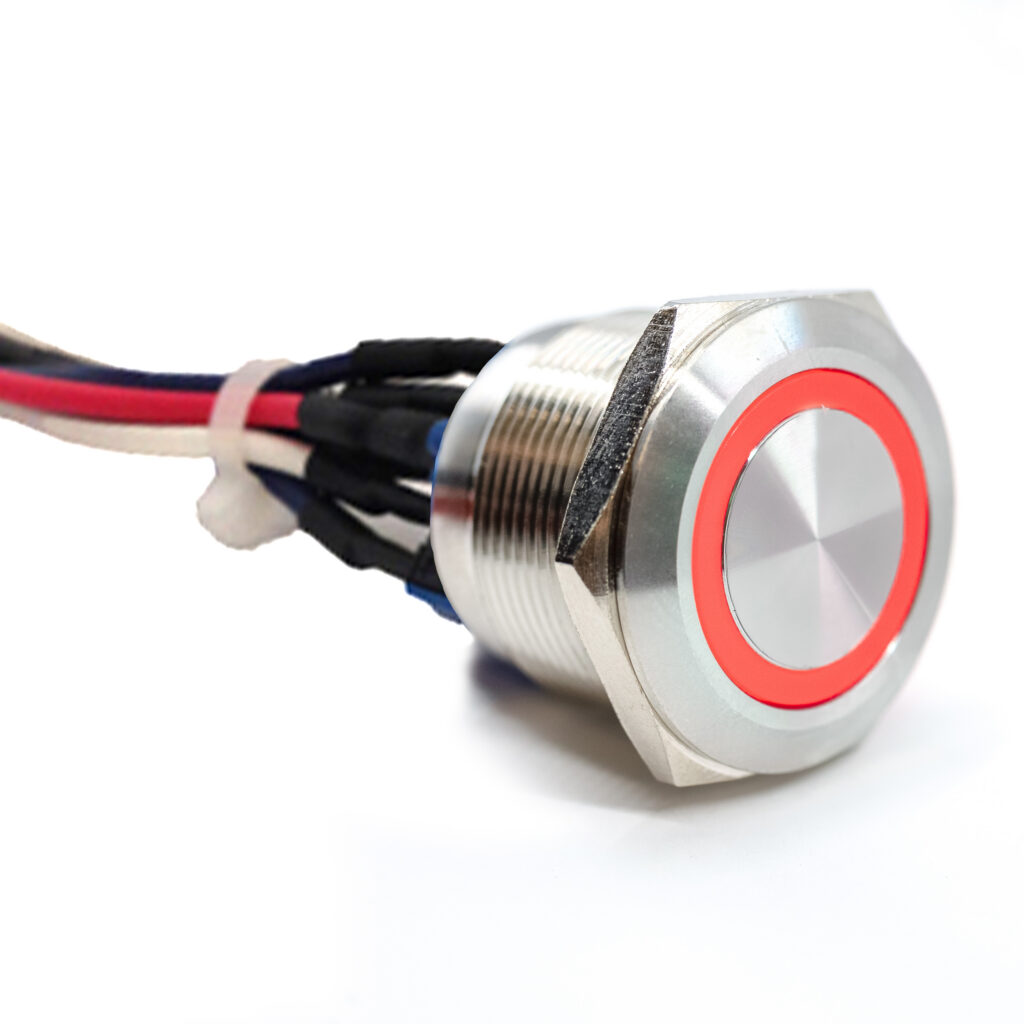

PV8 Series Illuminated, Sealed Anti-vandal Switches

• 25mm diameter panel cutout
• Dot and ring illumination options available
• 1 or 2 poles maintained and momentary double break functions
• IP65 rated

Small pv9 series

PV9 Series Sealed Illuminated Anti-vandal Switch

  • 28mm diameter panel cutout
  • Dot or ring illumination options available
  • Multiple switch functions available
  • IP65 rated, SPDT or DPDT
Small pva6 series

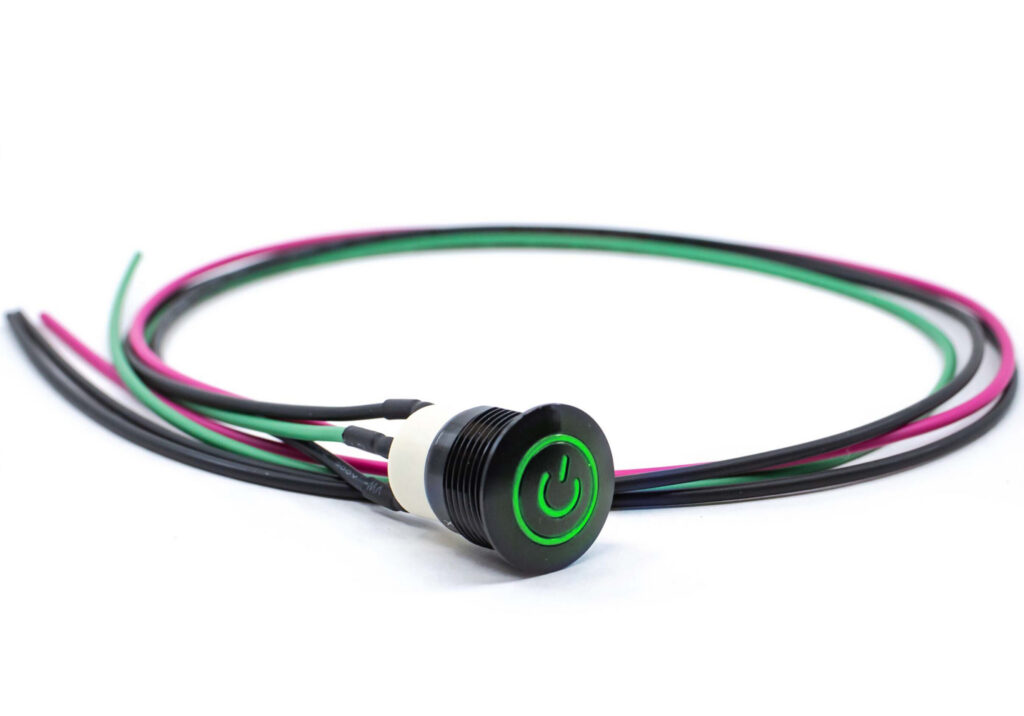

PVA6 Series Anti-vandal Switch

  • 16mm diameter panel cutout
  • Solder lug or wire leads (500mm long) termination
  • Ring or power symbol illumination options
  • IP67 rated, Off-(On), SPST
Small pvl series

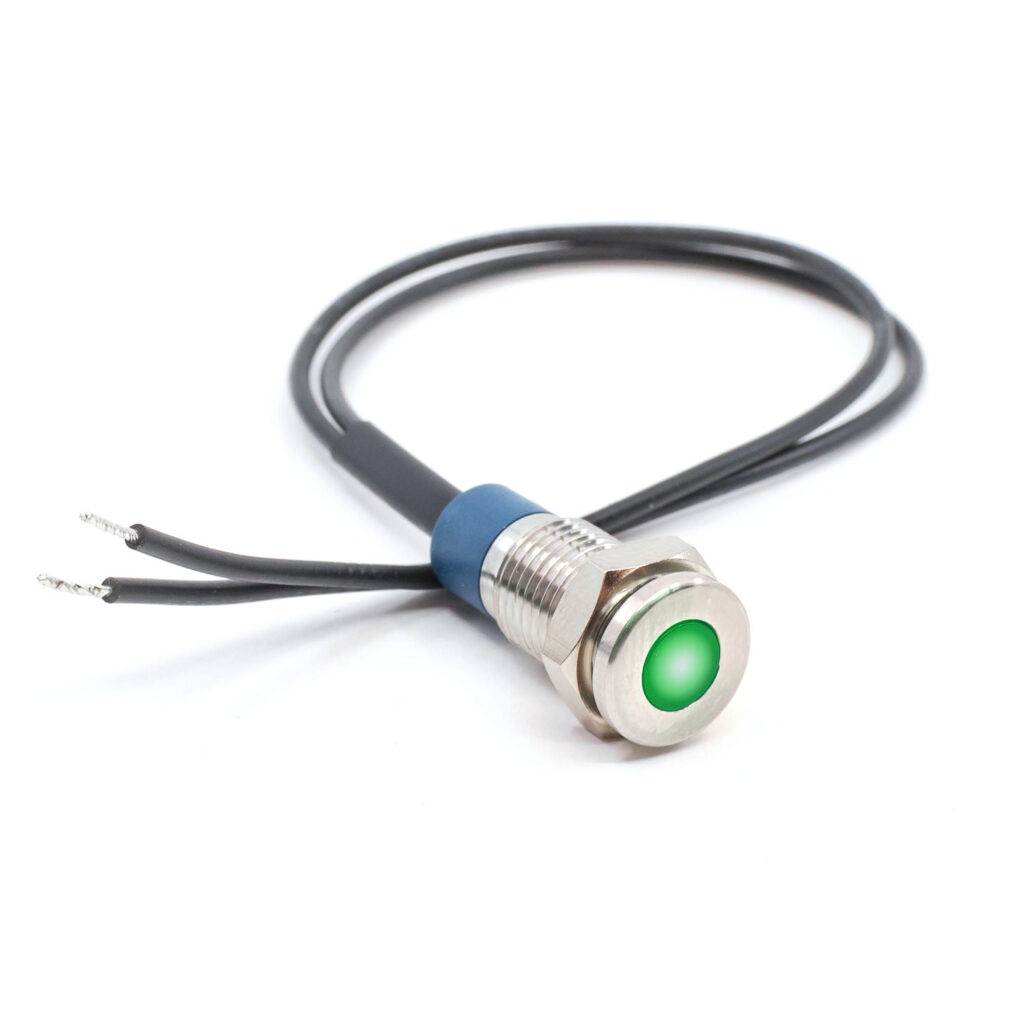

PVL Series Pilot Lamp Indicator

  • Pilot lamp indicator
  • Multiple diameters starting at 6mm dia and up
  • 40,000 hours nominal lamp life
  • IP67 rated
Small r7 series

R7 Series Sealed Illuminated Rocker Switch

• IP67 rated & UL Listed
• LED illumination options
• Custom actuator marking available
• Ergonomic design

Small r7 actuator only

R7 Series Switch - Actuator Only

• IP67 rated & UL Listed
• LED illumination options
• Custom actuator marking available
• Ergonomic design

Small rbw2 series

RBW2 Series Fully Illuminated IP66 Rated Rocker Switch

• 16(16)A 125VAC 1/3HP rating
• 22mm x 30mm panel cutout
• Full illumination options
• IP66 rated

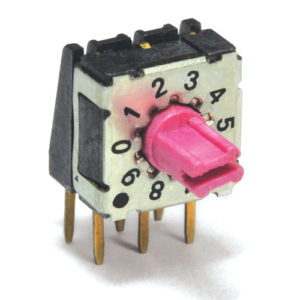

Small rdm series

RDM Series Rotary DIP Switch

• Offers IP67 sealing protection
• 10 or 16 positions
• Right angle or vertical mount
• Ultra slim size

Small rdt series

RDT Series Rotary DIP Switch

• Offers IP67 sealing protection
• 4, 6, 8, 10 or 16 positions
• Right angle or vertical mount
• SMT or thru hole

Small rp8100 series

RP8100 Series Round, Illuminated Pushbutton

• 125mA 125VAC rating
• SPST momentary (500,000 life cycles)
• IP67 sealed; Nylon housing & actuator

Small rp8200 series

RP8200 Series Illuminated, Round Pushbutton Switch

• 100mA 24VDC rating
• SPST maintained function (200,000 life cycles)
• IP67 sealed, nylon housing & actuator

Small rp8300 series

RP8300 Series Round, Illuminated, Panel Mount Pushbutton Switch

• 500mA @ 48 VAC, 200mA @ 50 VDC, 200mA @ 250 VAC ratings
• SPST momentary (500,000 life cycles)
• IP67 sealed, Die cast housing with nylon actuator

Small rp8400 series

RP8400 Series Square, Illuminated Pushbutton Switch

• 500mA @ 48 VAC, 200mA @ 50 VDC, 200mA @ 250 VAC ratings
• 13.6mm diameter panel cutout
• SPST momentary (500,000 life cycles)
• IP67 sealed, die cast housing with nylon actuator

Small rp8500 series

RP8500 Series Square Illuminated Panel Mount Pushbutton

• 100mA 50VDC rating; 125mA 125VAC rating
• 13.6mm diameter panel cutout
• SPST momentary (500,000 life cycles)
• IP67 sealed, nylon housing & actuator

Small rp8600 series

RP8600 Series IP67 Sealed Pushbutton Switch

• 0.4VA Max @ 20V Max (AC or DC) rating
• 16mm diameter panel cutout
• SPST momentary (100,000 life cycles)
• IP67 sealed, nylon housing

Small srj series

SRJ Series Rotary DIP Switches Thru-Hole

• 2x3 pin layout
• Through hole mount design
• Top tape seal option
• Tube packaging

Small srm series

SRM Series Rotary DIP Switches

• 2x3 pin layout
• Surface mount design
• Top tape seal option
• Tube or tape and reel packaging

Small srt series

SRT Series Rotary DIP Switches

• 4x1 pin layout
• Through hole and right angle mount designs
• Top tape seal option
• Tube packaging

Small tl52 series

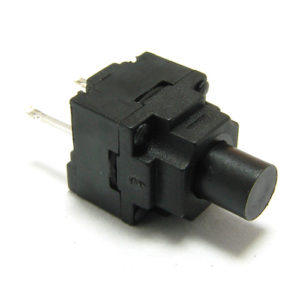

TL52 Series Sealed Radial Lead Tact Switch

• 8mm x 8mm tactile switch
• 160 ± 50; 260 ± 50 gram force options
• Through hole mount design
• IP67 sealed

Small tl6100 series

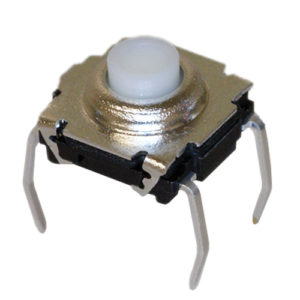

TL6100 Series Process Sealed Tact Switch

• Process sealed tactile switch
• 130,160, 300, and 500 gf options
• Through hole design
• Silver or gold plated contacts

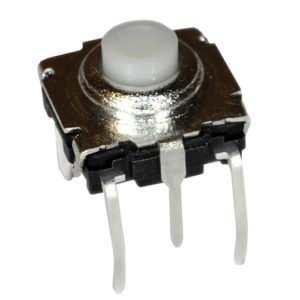

Small tl6105 series

TL6105 Series Process Sealed Tact With Earth Ground Terminal

• Process sealed tact switch w/ earth ground
• 130,160, 300, and 500 gf options
• Long life - up to 1M cycles

Small tl6110 series

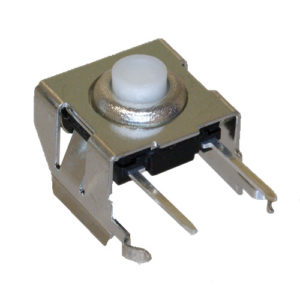

TL6110 Series Process Sealed Right Angle Tact Switch

• Process sealed tactile switch
• 130,160, 300, and 500 gf option
• Right angle design
• Long life - up to 1M cycles

Small tl6120 series

TL6120 Series SMT Process Sealed Tact Switch

• Process sealed tactile switch
• 130,160, 300, and 500 gf options
• Surface mount design
• Long life - up to 1M cycles

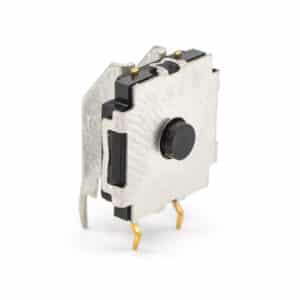

Small tl6190 series

TL6190 Series Right Angle Sealed Thru-Hole Tactile Switch

• 12.04mm x 11.50mm tactile switch
• 160 ± 60; 220 ± 60; 320 ± 60 gram force options
• Right angle through hole mount design
• Process sealed

Small tl6200 series

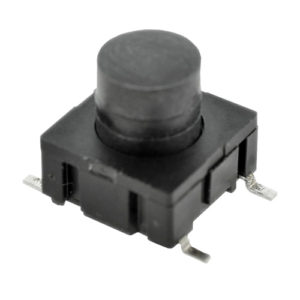

TL6200 Series Sealed Long Life Tact Switch

• 10,000,000 life cycle - long life
• Multiple actuator heights
• SMT or Thru Hole termination
• IP67 ratings

Small tl6210 series

TL6210 Series SMT Sealed Miniature Tact Switch

  • Surface mount termination
  • IP67 rated
  • Multiple LED color options
  • Small package size
Small tl6215 series

TL6215 Series Illuminated Sealed Tact Switch

• 50mA @12VDC contact rating
• Illuminated with cap options
• SPST momentary (500,000 life cycles)
• IP67 sealed; right angle or vertical

Small tl6700 series

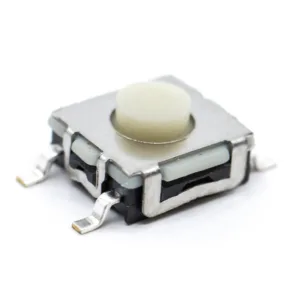

TL6700 Series Sealed SMT Tactile Switch

• 6.9mm x 6.2mm tactile switch
• 160 ± 50; 260 ± 50 gram force options
• Surface mount design
• Process sealed

Small ulv4 series

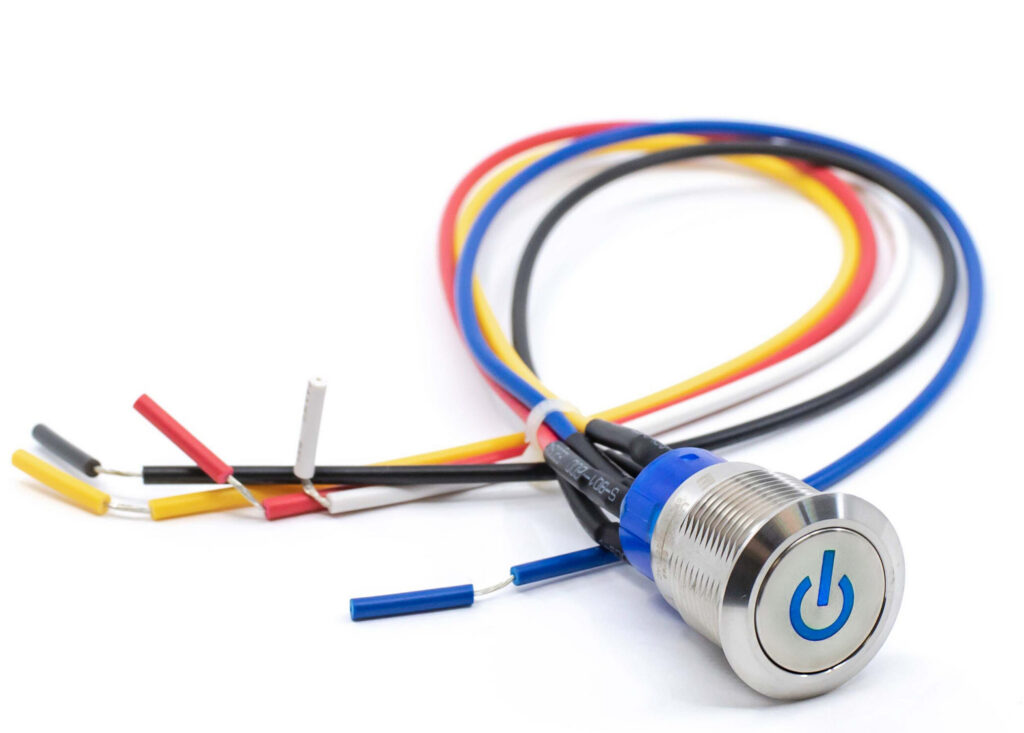

ULV4 Series Anti-vandal Switch UL Listed

• Dot, ring or power symbol illuminated
• IP67 rated, UL certified
• Long life; latching or momentary
• SPDT or DPDT with multiple functions

Small ulv7 series

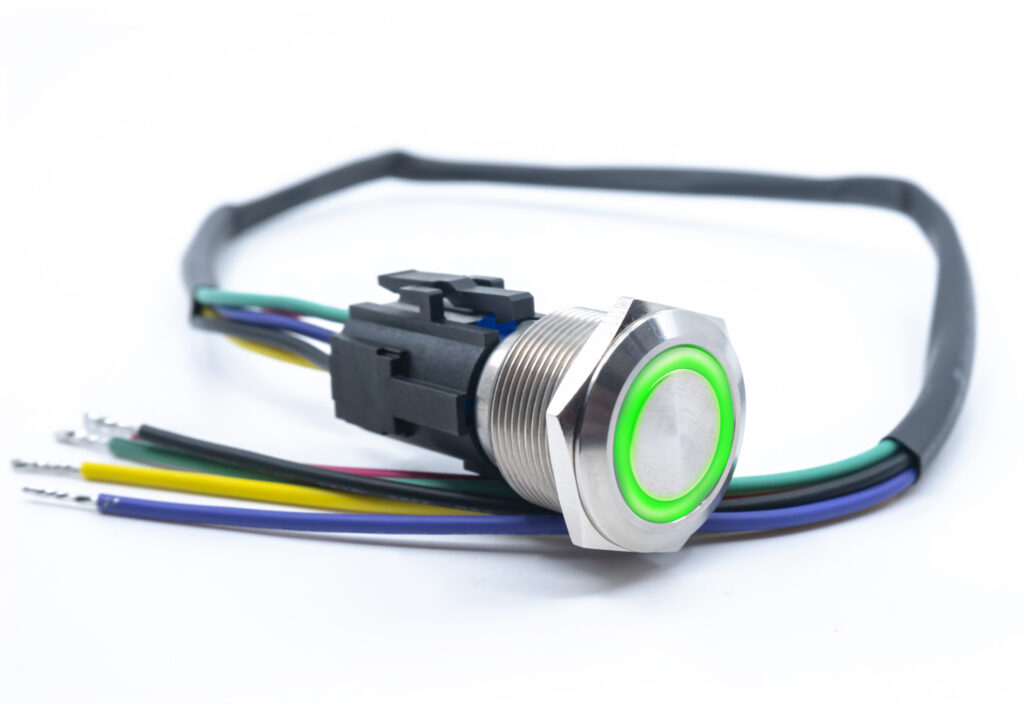

ULV7 Series Anti-vandal Switch Offers UL listing and IP67 ratings

• Ring illuminated, 22mm panel cutout
• IP67 rated, UL Certified
• Long life; latching or momentary
• SPDT or DPDT with multiple functions

Small ulv8 series

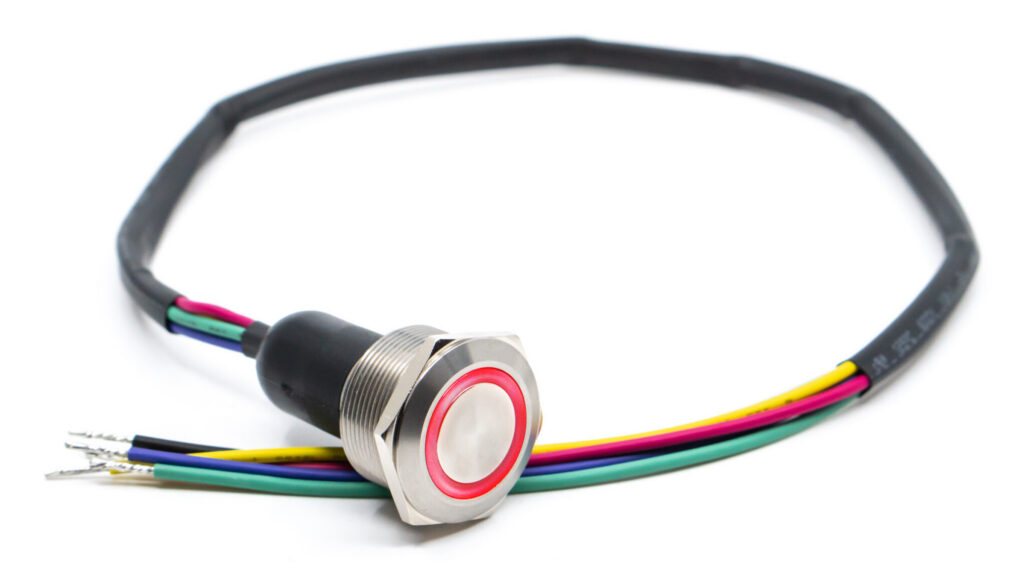

ULV8 Series UL Certified Sealed Anti-vandal Switch

• Ring illuminated, 25mm panel cutout
• IP67 rated, UL Certified
• Long life; latching or momentary
• SPDT or DPDT with multiple functions

Small wb2 series

WB2 Series 20 Amp Power Rocker Switches

• Up to 20A 125VAC 2HP
• 22mm x 30mm panel cutout
• 2 pole maintained and momentary functions
• IP55 rated
