PV16 Series
PV16 Series Illuminated Anti-Vandal Switch
- 16mm panel cutout
- 2A, 24VDC / 5A, 220VAC; IP67
- SPDT or DPDT
- High or flat actuator
- Solder, wire leads, or w/ connector
- LED ring, dot, or ring/power symbol
- Stainless steel or black anodized
TD1350 Series
TD1350 Series Pushbutton Detector Switch
- 14.5mm diameter cutout; Snap-In
- Up to 12A, 125/250VAC; UL, ENEC
- SPST Off-(On)
- Pin plunger actuator
- Quick connect or solder lug
- Black or white body and actuator
- Acts as door interlock or detector
TL6059 Series
TL6059 Series Sealed, Through Hole, Radial Lead Tactile Switch
- IP67 rated
- Through hole
- 6.00mm x 6.00mm
- PC Pin termination
- Actuator height options
- 100gf, 160gf, or 200gf
- Radial lead packaging

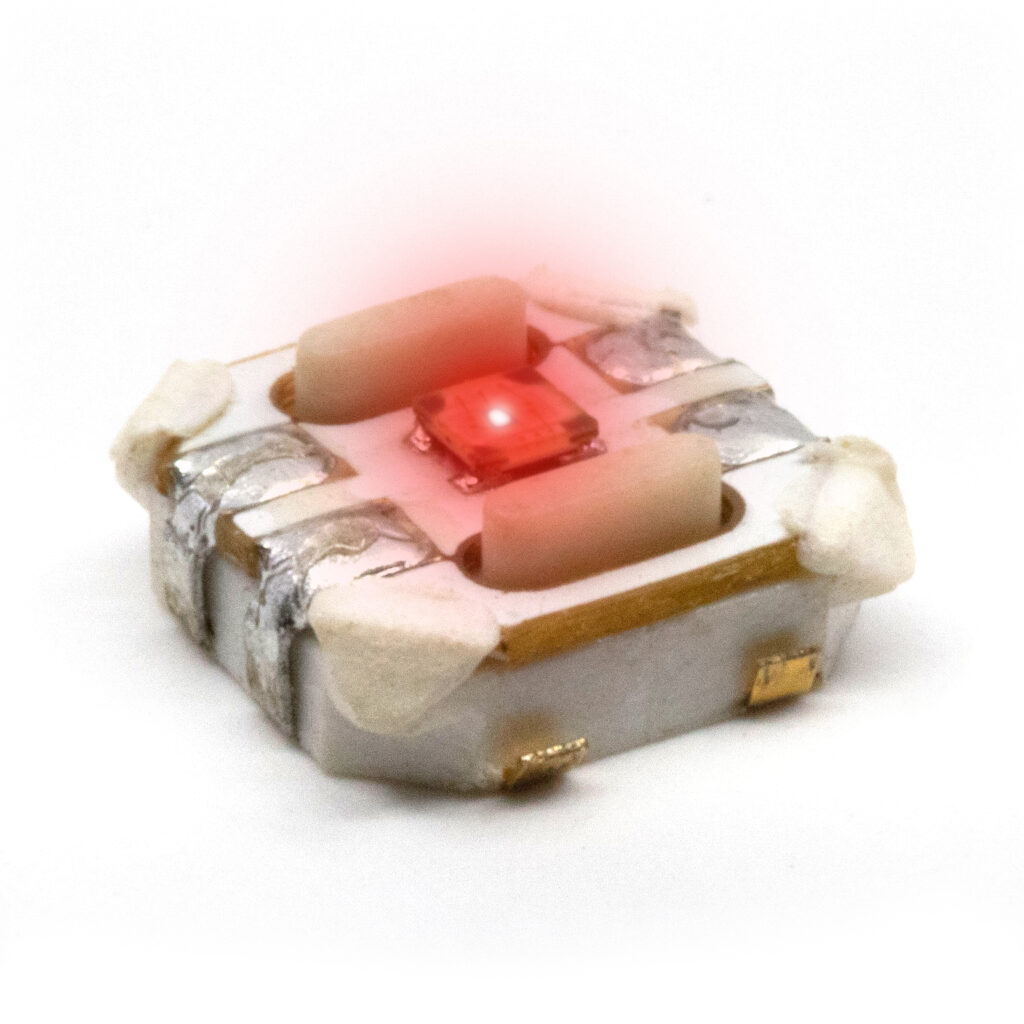

TL3220 Series
TL3220 Series Ultraminiature, RGB Illuminated, SMT Tactile Switch
- SMT
- 4.90mm x 4.90mm
- Gull wing termination
- LED, RGB illuminated
- 160g operating force
- Gold contact material
- 50mA @ 12VDC

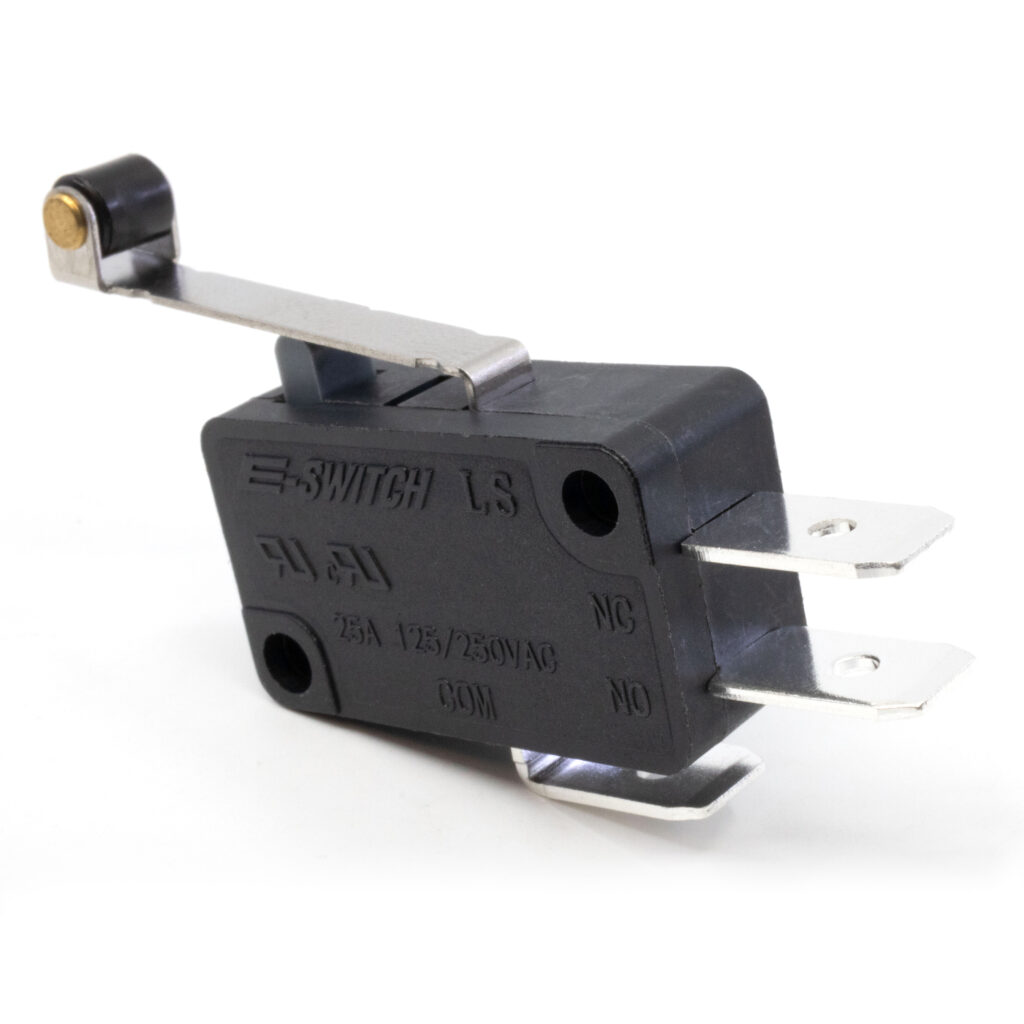

LS25 Series
LS25 Series High Current Snap Action Switch
- Chassis mount
- High Current snap action switch
- Silver – 25A, 125/250VAC; UL
- SPDT; On-(Off)
- Solder or quick connect
- Pin plunger, or six lever options
- 90gf – 400gf operating force
RP8700 Series
RP8700 Series Round, Illuminated Pushbutton Switch
- 13.6mm panel cutout
- 200mA, 50VDC; IP68
- SPST; Off-(On) or On-(Off)
- Solder, PCB, or wires w/ connector
- Round button, many color options
- Threaded bushing: M12 x 0.75
- LED illumination options
RA2 Series
RA2 Series Dual Power Rocker Switch with PVC Cap
- 22mm x 19.2mm panel cutout
- Dual rocker switch
- Up to 16A, 250VAC; UL
- SPST or SPDT; latching or mom.
- Quick-connect, solder, or wires
- Actuator marking options
- IP54 with PVC cap: ACC-P02
RCA1913 Series
RCA1913 Series Sealed, Power Rocker Switch
- 19.2mm x 13mm panel cutout
- Up to 16A, 125VAC; UL; IP68*
- SPST or SPDT; latching function
- QC-tabs, solder, PC pin, or wires
- Housing and actuator color options
- Actuator marking options
- Right angle mounting option
PR1 Series
PR1 Series Illuminated, Power Pushbutton Switch with PVC Cap
- 25mm panel cutout; Snap-In
- 16A, 125VAC; UL
- SPST or DPST; latching or mom.
- Quick connect termination
- Round actuator; color options
- Illumination & marking options
- IP54 with PVC Cap: ACC-F03
RP3502 Series
RP3502 Series Pushbutton Switch
- 12.7mm panel cutout
- 3A, 120VAC; UL
- SPST; Off-(On) or On-(Off)
- Plastic or metal body style
- Solder termination
- Round button actuator
- Actuator color options
RRS20 Series
RRS20 Series Round, Sealed, Illuminated, Power Rocker Switch
- 20mm diameter panel cutout
- Up to 16A, 250VAC; UL; IP68
- SPST or SPDT; latching function
- Quick connect, solder or wire leads
- LED illumination options
- Actuator color options
- Actuator marking options
R4 Series
R4 Series Illuminated, Power Rocker Switch
- 30mm x 11mm panel cutout
- Up to 20A, 125VAC; UL
- SPST or SPDT; latching or mom.
- Quick connect, or wire leads
- Housing and actuator color options
- LED or Neon illumination options
- Actuator marking options
R1973 Series
R1973 Series Illuminated, Power Rocker Switch
- 19.2mm x 13mm panel cutout
- 9A, 125VAC; UL
- SPST or DPST; latching or mom.
- QC-tabs, PC pin, or wire leads
- Housing and actuator color options
- LED or Neon illumination options
- Actuator marking options
R1966 Series
R1966 Series Illuminated, Power Rocker Switch
- 19.2mm x 13mm panel cutout
- 15A, 125VAC; UL
- SPST or SPDT; latching or mom.
- QC-tabs, solder, PC pin, or wires
- Housing and actuator color options
- LED illumination options
- Actuator marking options
400U Series
400U Series Ultraminiature Rocker Switch
- Through hole
- Gold – 0.4VA, 20V max. (AC or DC)
- DPDT On-On
- Straight, rt. angle, or rt. angle vert.
- Rocker or paddle actuator
- Actuator color options
- Epoxy sealed terminals
400 Series
400 Series Subminiature Rocker Switch
- Panel mount or through hole
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT, DPDT, or SPST; latch. or mom.
- Straight, rt. angle, or rt. angle vert.
- PC Pin or Solder termination
- Actuator color options
WBL Series
WBL Series Illuminated, Right Angle Pushbutton Switch
- Through hole rt. angle
- 300mA, 30VDC
- DPDT or 4PDT; latching or mom.
- PC pin termination
- Plunger actuator, or cap option
- Cap option – clear, black, or silver
- LED illumination options
ULP Series
ULP Series Illuminated Pushbutton Switch
- Through hole or panel mount
- 500mA, 25VDC (Silver)
- 100mA, 28VDC (Gold)
- SPDT or DPDT; latching or mom.
- PC pin or solder termination
- Variety of cap styles; clear diffuser
- LED illumination options
TL4201 Series
TL4201 Series Subminiature Pushbutton Switch
- Through hole
- 100mA, 30VDC
- Non-Shorting – BBM
- 4PDT; latching or momentary
- PC pin termination options
- Plunger actuator; cap options
- DPDT version: TL2201
TL2285 Series
TL2285 Series Subminiature Pushbutton Switch
- Through hole
- 100mA, 30VDC
- Non-Shorting – BBM
- DPDT; latching or momentary
- PC pin termination
- Plunger actuator
- 160gf operating force
TL2233 Series
TL2233 Series Subminiature Pushbutton Switch
- SMT
- 100mA, 30VDC
- Non-Shorting – BBM
- DPDT On-(On)
- Gull wing termination
- Rectangular button actuator
- 250gf operating force
TL2230 Series
TL2230 Series Subminiature Pushbutton Switch
- Through hole
- 100mA, 30VDC
- Non-Shorting – BBM
- DPDT; latching or momentary
- PC pin termination
- Plunger actuator
- 100gf, 140gf, or 230gf
TL2205 Series
TL2205 Series Illuminated Pushbutton Switch
- Through hole
- 100mA, 30VDC
- DPDT; latching or momentary
- PC pin termination
- Plunger actuator options
- Oval button w/ LED window option
- LED illumination options
TL2203 Series
TL2203 Series Subminiature Pushbutton Switch
- Through hole
- 100mA, 30VDC
- Non-Shorting – BBM
- DPDT; latching or momentary
- PC pin termination
- Plunger actuator
- 150gf operating force
TL2202 Series
TL2202 Series Subminiature Pushbutton Switch
- Through hole
- 100mA, 30VDC
- Shorting – MBB
- DPDT; latching or momentary
- PC pin termination options
- Plunger actuator; many caps
- MBB version: TL2201
TL2201 Series
TL2201 Series Subminiature Pushbutton Switch
- Through hole
- 100mA, 30VDC
- Non-Shorting – BBM
- DPDT; latching or momentary
- PC pin termination options
- Plunger actuator; many Caps
- 4PDT: TL4201; MBB: TL2202
RP8600 Series
RP8600 Series Square Pushbutton Switch
- 16mm panel cutout
- 0.4VA, 20V max. (AC or DC); IP67
- SPST Off-(On)
- Solder termination
- Square bezel; round button flush
- Threaded bushing: M16 x 1.0
- Gold over silver contact material
RP8500 Series
RP8500 Series Square, Illuminated Pushbutton Switch
- 13.6mm panel cutout
- 100mA, 50VDC; IP67
- SPST Off-(On)
- Solder termination
- Square button, many color options
- Threaded bushing: M12 x 0.75
- LED illumination options
RP8400 Series
RP8400 Series Square, Illuminated Pushbutton Switch
- 13.6mm panel cutout
- 200mA, 50VDC; IP67
- SPST Off-(On)
- Solder termination
- Square button, many color options
- Threaded bushing: M12 x 0.75
- LED illumination options
RP8300 Series
RP8300 Series Round, Illuminated Pushbutton Switch
- 13.6mm panel cutout
- 200mA, 50VDC; IP67
- SPST Off-(On)
- Solder termination
- Round button, many color options
- Threaded bushing: M12 x 0.75
- LED illumination options
RP8200 Series
RP8200 Series Round, Illuminated Pushbutton Switch
- 13.6mm panel cutout
- 100mA, 24VDC; IP67
- SPST Off-On
- Solder termination
- Round button, many color options
- Threaded bushing: M12 x 0.75
- LED illumination options
RP8100 Series
RP8100 Series Round, Illuminated Pushbutton Switch
- 13.6mm panel cutout
- 100mA, 24VDC; IP67
- SPST; Off-(On)
- Solder or wire leads termination
- Round button, many color options
- Snap-in or threaded (M12 x 0.75)
- LED illumination options
RP3508 Series
RP3508 Series Illuminated Pushbutton Switch
- 16mm panel cutout
- 3A, 125VAC; UL
- SPST; latching or momentary
- Solder termination
- Round button actuator
- LED illumination options
- Actuator color options
PP2 Series
PP2 Series Push-Pull Pushbutton Detector Switch
- 36.5mm x 13.5mm cutout; Snap-In
- Up to 16A or 1HP; UL
- DPDT; On-(On) or On-On-(On)
- Pin plunger, or push-pull plunger
- Quick connect termination options
- Black or white body and actuator
- Acts as door interlock or detector
PP1 Series
PP1 Series Push-Pull Pushbutton Detector Switch
- 28.4mm x 13.5mm cutout; Snap-In
- Up to 16A or 1HP; UL
- SPDT; On-(On) or On-On-(On)
- Pin plunger, or push-pull plunger
- Quick connect termination options
- Black or white body and actuator
- Acts as door interlock or detector
PBH Series
PBH Series Right Angle Pushbutton Switch
- Through hole right angle
- 100mA, 30VDC
- DPDT, 4PDT or 6PDT
- Latching or momentary function
- PC pin termination; Bracket option
- Plunger actuator, or Cap options
- Cap options: 1C, 1D, 1R, 1S
PB350 Series
PB350 Series Illuminated, Long Travel Pushbutton Switch
- Through hole
- 30mA, 28VDC
- SPST mom. or SPDT double action
- PC pin termination
- Firm tactile response
- High actuation force
- LED illuminated
PB300 Series
PB300 Series Long Travel Pushbutton Switch
- Through hole
- 30mA, 28VDC
- SPST mom. or SPDT double action
- PC pin termination
- Firm tactile response
- High actuation force
- Non-illuminated
PB1973 Series
PB1973 Series Illuminated, Power Pushbutton Switch
- 19.2mm x 13mm cutout; Snap-In
- 15A, 250VAC; UL. VDE rated to 10A
- SPST or DPST; latching or mom.
- Quick connect – 0.187″ termination
- Rectangular button actuator
- LED or neon illumination options
- Housing and actuator color options
PA5 Series
PA5 Series Power Pushbutton Switch
- Panel mount, rear or lateral
- 16A, 125/250VAC; UL
- SPST or DPST; latching or mom.
- Snap-in plunger actuator
- Solder or quick connect
- Non-illuminated
- Engineered for use at foot switch
P16 Series
P16 Series Illuminated Pushbutton Switch
- 16mm panel cutout
- Up to 8A, 125VAC; UL
- Modular interface/contact block
- SPDT; latching or momentary
- Quick connect socket termination
- Circular, square, or rectangle head
- LED, neon, or incandescent lamp
LP6 Series
LP6 Series Illuminated Pushbutton Switch
- Through hole
- 12mA, 12VDC
- SPST or DPST; momentary
- PC Pin termination
- Square button actuator
- LED illumination options
- Bi-color & RGB color options
LP4 Series
LP4 Series Illuminated Pushbutton Switch
- Thru hole or thru hole rt. angle
- 100mA, 30VDC
- DPDT; latching or momentary
- PC Pin termination
- Square, round, or plunger actuator
- With or without bezel
- LED illumination options
LP37 Series
LP37 Series Illuminated, Right Angle Pushbutton Switch
- SMT right angle
- 10mA-250mA, 20mVDC-50VDC
- SPDT On-(On)
- Gull wing termination
- 9.6mm plunger actuator
- LED illuminated
- Tape & reel packaged
LP2 Series
LP2 Series Illuminated Pushbutton Switch
- Through hole
- 1mA, 20VDC or 5mA, 5VDC
- SPST Off-(On)
- PC Pin termination
- Square button; three size options
- LED illumination options
- Button color options
LP16 Series
LP16 Series Long Life, Illuminated Pushbutton Switch
- Through hole
- 100mA, 20VDC
- SPST Off-(On)
- PC pin termination
- Square button; two size options
- LED illumination options
- Button & Diffuser color options
LP15 Series
LP15 Series Illuminated Pushbutton Switch
- Through hole
- 1mA, 20VDC
- SPST Off-(On)
- PC Pin termination
- LED illumination options
- Square or round button
- Button color options
LP11 Series
LP11 Series Illuminated Pushbutton Switch
- Through hole
- 100mA, 12VDC
- SPST; latching or momentary
- PC Pin termination
- Tactile or non-tactile feel actuator
- Square button; three size options
- LED illumination; bi-color or RGB
LP1 Series
LP1 Series Illuminated, Round Pushbutton Switch
- 8mm panel cutout
- 100mA, 30VDC
- SPST Off-(On)
- LED illuminated
- Solder termination
- 5.4mm dia. actuator
- 50,000 cycle life
LC Series
LC Series Right Angle Pushbutton Switch
- Through hole right angle
- 300mA, 30VDC
- SPDT or DPDT; latching or mom.
- PC pin termination
- Plunger for cap actuator
- Shorting or non-shorting versions
- Many cap options
LB22 Series
LB22 Series Illuminated Pushbutton Switch
- 22mm panel cutout
- 3A, 250VAC; IP65
- SPDT or DPDT; latching or mom.
- Solder termination
- LED illumination options
- Actuator color options
- Silver or gold contact material
LA Series
LA Series Sealed, Illuminated Pushbutton Switch
- Three panel cutout options
- Up to 8A, 125VAC; UL; IP65
- 1 – 4 pole; latching or momentary
- Pilot lamp indicator option
- Modular interface/contact block
- Actuator head style options
- LED, neon, or incandescent lamp
L16 Series
L16 Series Illuminated Pilot Indicator
- 16mm panel cutout
- Pilot lamp indicator light
- Modular interface/contact block
- Solder termination
- Circular, square, or rectangle head
- LED, neon, or incandescent lamp
- Lamp and lens color options
FS5700 Series
FS5700 Series Pushbutton Foot Switch
- 12.2mm panel cutout
- Panel mount, rear
- 1A, 9VDC
- SPDT, DPDT or 3PDT
- Momentary or alternate action
- Solder lug or PC Pin termination
- High actuation force
D16 Series
D16 Series Illuminated Pushbutton Switch
- 16mm panel cutout
- Up to 8A, 125VAC; UL
- Modular interface/contact block
- 1 – 4 pole; latching or momentary
- Solder termination
- Circular, square, or rectangle head
- LED, neon, or incandescent lamp
800U Series
800U Series Sealed, Ultraminiature Pushbutton Switch
- Through hole; IP67 rated
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT or DPDT; On-(On)
- PC pin termination
- Straight, rt. angle, or rt. angle vert.
- Cap and cap color options
- Gold contact material
800C Series
800C Series Alternating Action, Miniature Pushbutton Switch
- Panel mount rear, or through hole
- Silver – 3A, 120VAC or 28VDC
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT On-On
- Solder or PC pin termination
- Straight, rt. angle, or rt. angle vert.
- Alternating action design
800B Series
800B Series Sealed, Subminiature, SMT Right Angle Pushbutton Switch
- IP67 rated
- SMT right angle
- Gold – 0.4VA, 20V max. (AC or DC)
- SPST or SPDT; momentary function
- Gullwing termination
- Gold contact material
- Epoxy sealed terminals
800A Series
800A Series Sealed, Subminiature Pushbutton Switch
- Through hole; IP67 rated
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPST or SPDT; momentary function
- Cap style and color options
- Straight, rt. angle, or rt. angle vert.
- Butt contact design
700C Series
700C Series Alternate Action, Miniature Pushbutton Switch
- Panel mount rear, or through hole
- Silver – 3A, 120VAC or 28VDC
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT On-On
- Solder or PC pin; V-bracket option
- Straight, rt. angle, or rt. angle vert.
- Push-on, push-off alternate action
700A Series
700A Series Sealed Pushbutton Switch
- IP67 rated
- Panel mount rear, or through hole
- Silver – 3A, 120VAC or 28VDC
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT or DPDT; On-(On)
- Solder or PC pin; V-bracket option
- Snap acting contact design
5500 Series
5500 Series Illuminated Pushbutton Switch
- Through hole
- 300mA, 12VDC
- Hinged pushbutton design
- Crisp tactile feel
- Small or large cap style
- SPDT On-(On)
- Single or dual LED
800 Series
800 Series Subminiature Pushbutton Switch
- Panel mount rear, or through hole
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPST or SPDT; momentary function
- Cap style and color options
- Straight, rt. angle, or rt. angle vert.
- Butt contact design
700 Series
700 Series Snap-Acting, Panel Mount Pushbutton Switch
- Panel mount, Snap-In
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT or DPDT; On-(On)
- Solder or PC Pin termination
- Bezel option; cap color options
- Snap acting contact design
700 Series
700 Series Snap-Acting Pushbutton Switch
- Panel mount rear, or through hole
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT or DPDT; On-(On)
- Variety of termination options
- Cap style and color options
- Snap acting contact design
TM1000 Series
TM1000 Series Tilt Switch
- Through hole right angle
- 20mA, 20V (AC or DC)
- SPST output
- ±45° operating angle
- 1,000,000 life cycles
- Contains no mercury
- Silver contact material
RDT Series
RDT Series Sealed Rotary DIP Switch
- Through hole, SMT, or Rt angle
- 150mA, 42VDC; IP67 rated*
- 2×3 or 3×3 pcb terminal layout
- Flush, shaft, or knob actuator
- 4, 6, 8, 10, or 16 positions
- Real or complementary code
- 0.100″ (2.54mm), Full pitch
RDM Series
RDM Series Sealed, Ultra Slim Rotary DIP Switch
- Through hole, SMT, or Rt angle
- 25mA, 24VDC; IP67 rated
- 3×3 pcb terminal layout
- Flush, or shaft actuator
- 10 or 16 positions
- Real or complementary code
- 0.100″ (2.54mm), Full pitch
KAS Series
KAS Series DIP Switch
- Through hole, or rt. angle
- 25mA, 24VDC
- Slide actuator; raised or recessed
- 1-12 positions; SPST each position
- 0.100″ (2.54mm) Full pitch
- Gold contact material
- Top tape seal option
KAP Series
KAP Series Piano DIP Switch
- Through hole right angle
- 25mA, 24VDC
- Piano actuator; raised or recessed
- 2-12 positions; SPST each position
- 0.100″ (2.54mm) Full pitch
- Gold contact material
- Top tape seal option
KAG Series
KAG Series Low Profile DIP Switch
- SMT
- 25mA, 24VDC
- Slide actuator; raised or recessed
- 1-10 positions; SPST each position
- 0.100″ (2.54mm) Full pitch
- Gold contact material
- Top tape seal option
KAD Series
KAD Series Low Profile, Tri-State DIP Switch
- Through hole or SMT
- 25mA, 24VDC
- Slide actuator; raised or recessed
- 4-10 positions; SPDT each position
- 0.100″ (2.54mm) Full pitch
- Gold contact material
- Top tape seal option
KAC Series
KAC Series Low Profile, Piano DIP Switch
- SMT rt angle or thru hole rt angle
- 25mA, 24VDC
- Piano actuator; raised
- 2-10 positions; SPST each position
- 0.100″ (2.54mm) Full pitch
- Gold contact material
TD4700 Series
TD4700 Series Ultraminiature SMT Detector Switch
- SMT
- 1mA, 5VDC
- SPST Off-(On)
- Angled toggle detector
- J lead termination
- Mounting boss option
- 50gf max. force; 2.2mm travel
TL9210 Series
TL9210 Series Soft Touch, Long Travel, SMT Tactile Switch
- SMT
- 6.00mm x 6.00mm
- Soft Touch tactile switch
- Long travel 1.3mm
- J lead termination
- 180gf or 260gf operating force
- 50mA @ 12VDC
TL9100 Series
TL9100 Series Soft Touch, Long Travel, SMT Tactile Switch
- SMT
- 6.00mm x 6.00mm
- Soft Touch tactile switch
- Long travel 1.3mm
- Gull wing termination
- 200gf or 350gf operating force
- 50mA @ 12VDC
TL6800 Series
TL6800 Series Sealed, Long Life, SMT Tactile Switch
- IP67 rated
- SMT
- 6.30mm x 6.20mm
- J lead termination
- 160gf or 260gf operating force
- Long life up to 1,000,000 cycles
- 50mA @ 12VDC
TL6400 Series
TL6400 Series Sealed, SMT Tactile Switch
- IP67 rated
- SMT
- 6.00mm x 3.50mm
- J lead termination
- 160gf or 260gf operating force
- Actuator height options
- 50mA @ 12VDC
TL6300 Series
TL6300 Series Sealed, Long Life, Through Hole Tactile Switch
- IP67 rated
- Through hole
- 12.00mm x 12.00mm
- PC Pin termination
- Long life 10,000,000 cycles
- 130gf or 260gf operating force
- Actuator height and size options
TL6275 Series
TL6275 Series Illuminated, Through Hole Tactile Switch
- Through hole
- 8.00mm x 8.00mm
- PC Pin termination
- LED illuminated
- Actuator height options
- Many cap styles and colors
- 350gf operating force
TL6215 Series
TL6215 Series Sealed, Illuminated, Through Hole Tactile Switch
- IP67 rated
- Through hole; vertical or right angle
- PC Pin termination
- LED illuminated
- Many cap styles and colors
- 200gf or 450gf operating force
- 50mA @ 12VDC
TL6210 Series
TL6210 Series Sealed, Illuminated, SMT Tactile Switch
- IP67 rated
- SMT
- 6.20mm x 4.60mm
- Gull wing termination
- LED illuminated
- 200gf operating force
- 50mA @ 12VDC
TL6200 Series
TL6200 Series Sealed, Long Life, Tactile Switch
- IP67 rated
- SMT or Through hole
- 10.10mm x 10.10mm
- Gull wing or PC Pin
- Many actuator height options
- Long life 10,000,000 cycles
- 300gf operating force
TL6190 Series
TL6190 Series Sealed, Through Hole Right Angle Tactile Switch
- IP67 rated
- Through hole right angle
- 12.00mm x 11.50mm
- PC Pin termination
- 160gf, 220gf, or 320gf
- Optional Cap
- Silver or gold contact material
TL6170 Series
TL6170 Series Sealed, SMT Tactile Switch with Tall Actuator
- IP67 rated
- SMT
- 6.30mm x 6.30mm
- Gull wing termination
- 180gf or 250gf operating force
- Tall actuator height options
- 50mA @ 12VDC
TL6155 Series
TL6155 Series Sealed, Through Hole Right Angle Tactile Switch
- IP67 rated
- Through hole right angle, PIP
- 6.55mm x 6.40mm
- PC Pin termination
- 200gf or 350gf
- up to 500,000 cycle life
- 50mA @ 32VDC
TL6150 Series
TL6150 Series Sealed, Long Life, SMT Tactile Switch
- IP67 rated
- SMT
- 6.20mm x 6.20mm
- Gull wing or J lead
- 160gf, 200gf, or 350gf
- Actuator height options
- Long life 5M cycles (160gf)
TL6110 Series
TL6110 Series Sealed, Through Hole Right Angle Tactile Switch
- IP67 rated
- Through hole right angle
- 8.30mm x 5.80mm
- PC Pin termination
- 130gf, 160gf, 300gf, or 500gf
- Many actuator height options
- Silver or gold contacts
TL6105 Series
TL6105 Series Sealed, Through Hole Tactile Switch with Earth Ground Terminal
- IP67 rated
- Through hole
- 7.40mm x 7.40mm
- PC Pin w/ Earth Ground
- 130gf, 160gf, 300gf, or 500gf
- Many actuator height options
- Silver or gold contacts
TL6100 Series
TL6100 Series Sealed, Through Hole Tactile Switch
- IP67 rated
- Through hole
- 7.40mm x 7.40mm
- PC Pin termination
- 130gf, 160gf, 300gf, or 500gf
- Many actuator height options
- Silver or gold contacts
TL53 Series
TL53 Series Dual, Through Hole Right Angle Tactile Switch
- Through hole right angle
- 8.40mm x 10.50mm
- PC Pin termination
- Dual actuation
- Actuator height options
- 100gf, 160gf, or 260gf
- 50mA @ 12VDC
TL4115 Series
TL4115 Series SMT Edge Mount Right Angle Tactile Switch
- SMT rt. angle, edge mount
- 4.50mm x 2.20mm
- SMD tab termination
- 160gf or 220gf operating force
- 600,000 cycle life
- Silver contact material
- 50mA @ 12VDC
TL4105 Series
TL4105 Series Ultraminiature, SMT Edge Mount Right Angle Tactile Switch
- SMT rt. angle, edge mount
- 6.20mm x 2.50mm
- Gull wing termination
- 160gf or 250gf operating force
- 200,000 cycle life
- Silver contact material
- 50mA @ 12VDC
TL4100 Series
TL4100 Series Miniature, SMT Edge Mount Right Angle Tactile Switch
- SMT rt. angle, edge mount
- 6.20mm x 2.50mm
- Gullwing; L-shape terminals option
- 120gf, 160gf, or 240gf
- 1,000,000 cycles, certain models
- Silver contact material
- 50mA @ 12VDC
TL3901 Series
TL3901 Series Subminiature, SMT Right Angle Tactile Switch
- SMT right angle
- 6.00mm x 5.40mm
- Gull wing termination
- 180gf operating force
- Mounting bosses
- Silver contact material
- 50mA @ 12VDC
TL3780 Series
TL3780 Series Ultraminiature, Low Profile, SMT Tactile Switch
- IP67 rated
- SMT
- 2.00mm x 3.00mm
- Low profile 0.60mm
- Gull wing termination
- 100gf, 160gf, 240gf, or 330gf
- 50mA @ 12VDC
TL3365 Series
TL3365 Series Ultraminiature, SMT Tactile Switch
- SMT
- 4.20mm x 3.20mm
- J lead termination
- 180gf, 250gf, or 400gf
- Oval button actuator
- Silver contact material
- 50mA @ 12VDC
TL3360 Series
TL3360 Series SMT Right Angle Tactile Switch
- SMT right angle
- 6.50mm x 6.50mm
- Gull wing termination
- Actuator height options
- Solder pad option
- Auto placement tab option
- 185gf or 260gf operating force
TL3340 Series
TL3340 Series Subminiature, SMT Right Angle Tactile Switch
- SMT right angle
- 4.25mm x 3.30mm
- Gull wing termination
- Actuator height options
- Silicon actuator option
- 130gf, 160gf, or 260gf
- 50mA @ 12VDC
TL3336 Series
TL3336 Series Sealed, SMT Right Angle Tactile Switch
- IP67 rated
- SMT right angle
- 7.10mm x 6.60mm
- Gull wing termination
- 100gf, 160gf, 260gf, or 320gf
- Silver contact material
- 50mA @ 12VDC
TL3330 Series
TL3330 Series SMT Right Angle Tactile Switch
- SMT right angle
- 7.80mm x 2.50mm
- Gull wing termination
- 130gf or 260gf operating force
- Silver contact material
- 50mA @ 12VDC
TL3315 Series
TL3315 Series Ultra Low Profile, SMT Tactile Switch
- SMT
- 4.50mm x 4.50mm
- Low profile 0.55mm
- Snap dome actuator
- Gull wing termination
- 100gf, 160gf, or 250gf
- 50mA @ 15VDC
TL3313 Series
TL3313 Series Subminiature, SMT Tactile Switch
- SMT
- 4.60mm x 4.60mm
- Gull wing termination
- 100gf, 160gf, or 250gf
- 100,000 cycle life
- Silver contact material
- 50mA @ 12VDC
TL3305 Series
TL3305 Series SMT Tactile Switch
- SMT
- 4.50mm x 4.50mm
- Gull wing termination
- Actuator height options
- 100gf, 160gf, 260gf, or 350gf
- -40°C to 105°C operating temp
- 50mA @ 12VDC
TL3304 Series
TL3304 Series SMT Tactile Switch
- SMT
- 6.20mm x 6.20mm
- Gull wing or J lead termination
- Actuator height options
- 160gf, 260gf, 350gf, 500gf
- 100,000 cycle life
- 50mA @ 12VDC
TL3303 Series
TL3303 Series SMT Tactile Switch
- SMT
- 6.00mm x 6.00mm
- Gull wing termination
- Actuator height options
- Ground terminal option
- Long life option (5M cycles, 65gf)
- 100gf, 160gf, or 260gf
TL3302 Series
TL3302 Series SMT Tactile Switch
- SMT
- 6.00mm x 3.50mm
- Gull wing or J lead termination
- Actuator height options
- 130gf, 180gf, or 260gf force
- 50mA @ 12VDC
TL3301 Series
TL3301 Series SMT Tactile Switch
- SMT
- 6.00mm x 6.00mm
- Gull wing or J lead termination
- Many actuator height options
- Cap options for certain models
- 100gf, 160gf, or 260gf
- 50mA @ 12VDC
TL3300 Series
TL3300 Series Long Life, SMT Tactile Switch
- SMT
- 12.00mm x 12.00mm
- Gull wing termination
- Many actuator height options
- Cap options for certain models
- 130gf, 160gf, 260gf, 320gf, 520gf
- 50mA @ 12VDC
TL3275 Series
TL3275 Series Illuminated, SMT Right Angle Tactile Switch
- SMT right angle
- 6.40mm x 3.55mm
- SMD tab termination
- LED illuminated
- Many LED color options
- 160gf operating force
- 50mA @ 12VDC
TL3265 Series
TL3265 Series Illuminated, SMT Tactile Switch
- SMT
- 7.00mm x 6.80mm
- Gull wing termination
- LED Illuminated
- Many LED color options
- Cap options
- 160gf operating force
TL3253 Series
TL3253 Series Dual Illuminated, Through Hole Right Angle Tactile Switch
- Through hole right angle
- 8.40mm x 10.55mm
- PC Pin termination
- LED illuminated options
- Dual actuation
- Cap options
- 160gf operating force
TL3240 Series
TL3240 Series Illuminated, SMT Tactile Switch
- SMT
- 6.10mm x 6.10mm
- LED illuminated
- Many LED color options
- Cap options
- 100gf, 160gf, or 260gf
- 50mA @ 12VDC
TL3215 Series
TL3215 Series Ultraminiature, Long Life, Illuminated, SMT Tactile Switch
- SMT
- 4.90mm x 4.90mm
- SMD tab termination
- LED illuminated
- many LED color options
- 160gf or 250gf operating force
- 50mA @ 12VDC
TL3210 Series
TL3210 Series Miniature, Illuminated, SMT Tactile Switch
- SMT
- 5.60mm x 3.40mm
- Gull wing termination
- LED illuminated
- Many LED color options
- 160gf operating force
- 50mA @ 12VDC
TL3200 Series
TL3200 Series Dual Illuminated, SMT Tactile Switch
- SMT
- 6.80mm x 4.50mm
- Gull wing termination
- Single or dual LED illuminated
- Many LED color options
- 160gf operating force
- 50mA @ 12VDC
TL3145 Series
TL3145 Series Sealed, Long Life, SMT Tactile Switch
- IP67 rated
- SMT
- 6.45mm x 6.45mm
- J lead termination
- Actuator height options
- 180gf, 260gf, or 350gf force
- 50mA @ 12VDC
TL2243 Series
TL2243 Series Dual Through Hole Right Angle Tactile Switch
- Through hole right angle
- 7.30mm x 8.00mm
- Dual actuation
- 180gf operating force
- 0.25mm travel
- 50mA @ 12VDC
TL1275 Series
TL1275 Series Illuminated Tactile Switch with Wire Leads and Connectors
- 16mm diameter panel cutout
- Wire leads with connectors
- LED illuminated power symbol
- Many LED color options
- 350gf operating force
- Sharp tactile response
- 50mA @ 12VDC
TL1265 Series
TL1265 Series Illuminated, Through Hole Tactile Switch
- Through hole
- 7.00mm x 6.80mm
- PC Pin termination
- LED illuminated options
- Many cap styles and colors
- 160gf operating force
- 50mA @ 12VDC
TL1260 Series
TL1260 Series Illuminated, Through Hole Right Angle Tactile Switch
- Through hole right angle
- 7.00mm x 6.80mm
- PC Pin termination
- LED illuminated
- Round flat cap option
- 160gf operating force
- 50mA @ 12VDC
TL1250 Series
TL1250 Series Illuminated, Through Hole Right Angle Tactile Switch
- Through hole right angle
- 8.30mm x 10.30mm
- PC Pin termination
- LED illuminated options
- Round cap option; clear
- 120gf, 180gf, or 280gf
- 50mA @ 12VDC
TL1220 Series
TL1220 Series Illuminated, Through Hole Tactile Switch
- Through hole
- 7.60mm x 6.00mm
- PC Pin termination
- LED illuminated options
- Numerous button options
- Many graphic options
- 180gf operating force
TL1107 Series
TL1107 Series Through Hole Tactile Switch
- Through hole, or reverse
- 6.00mm x 3.50mm
- PC Pin termination
- Actuator height options
- 130gf, 180gf, or 260gf
- Silver contact material
- 50mA @ 12VDC
TL1105 Series
TL1105 Series Through Hole Tactile Switch
- Through hole, or rt. angle
- 6.00mm x 6.00mm
- PC Pin termination
- Ground terminal option
- Many actuator heights & caps
- 100gf, 160gf, or 250gf
- Silver or gold contact material
TL1100 Series
TL1100 Series Through Hole Tactile Switch
- Through hole, or rt. angle
- 12.00mm x 12.00mm
- PC Pin termination
- Many actuator heights & caps
- 160gf or 260gf
- Silver or gold contact material
- 50mA @ 12VDC
TL1030 Series
TL1030 Series Miniature SMT Tactile Switch
- SMT
- 3.50mm x 2.90mm
- J lead termination
- Ground terminal option
- 160gf, 200gf, 350gf, or 500gf
- Silver contact material
- 50mA @ 12VDC
TL1018 Series
TL1018 Series Miniature SMT Tactile Switch
- SMT
- 3.50mm x 2.60mm
- Gull wing termination
- Ground terminal option
- 160gf, 240gf, 340gf, or 450gf
- Silver contact material
- 50mA @ 12VDC
TL1017 Series
TL1017 Series Miniature SMT Tactile Switch
- SMT
- 3.00mm x 2.50mm
- Gull wing termination
- Mounting boss option
- Ground terminal option
- 160gf or 260gf
- Silver contact material
TL1016 Series
TL1016 Series Subminiature, SMT Right Angle Tactile Switch
- SMT right angle
- 4.70mm x 2.90mm
- Gull wing termination
- Mounting boss option
- Ground terminal option
- 160gf or 220gf
- Silver contact material
TL1015 Series
TL1015 Series Miniature SMT Tactile Switch
- SMT
- 3.90mm x 2.90mm
- Gull wing termination
- Mounting boss option
- 160gf or 250gf
- Silver contact material
- 50mA @ 12VDC
TL1014 Series
TL1014 Series Miniature, SMT Right Angle Tactile Switch
- SMT right angle
- 4.70mm x 3.50mm
- Gull wing termination
- Mounting boss option
- 160gf or 220gf
- Silver contact material
- 50mA @12VDC
RT3301 Series
RT3301 Series Reverse SMT Tactile Switch
- Reverse SMT
- 6.00mm x 6.00mm
- Gull wing termination
- 100gf, 160gf, 260gf, or 320gf
- 100,000 cycle life
- Silver contact material
- 50mA @ 12VDC
RT1105 Series
RT1105 Series Reverse Through Hole Tactile Switch
- Reverse through hole
- 6.80mm x 6.80mm
- PC Pin termination
- Tray packaging
- 160gf, 260gf, or 350gf
- Silver contact material
- 50mA @ 12VDC
LL3301 Series
LL3301 Series Long Life SMT Tactile Switch
- SMT
- 6.00mm x 6.00mm
- Gull wing or J lead termination
- Many actuator height options
- Cap options for certain models
- 65gf operating force
- 1,000,000 cycle life
320 Series
320 Series Tactile Pushbutton Switch
- Through hole
- 12.40mm x 12.40mm
- PC Pin termination
- Many cap styles and colors
- 135gf operating force
- 1,000,000 cycle life
- 25mA @ 50VDC
WS Series
WS Series Sealed Snap Action Switch
- IP67 rated
- Chassis mount, or through hole
- 1A 24VDC; 3A 125/250VAC; UL
- SPDT On-(On)
- Solder, PC pin, or wire leads
- Pin plunger, or two lever options
- 50gf or 70gf operating force
SS Series
SS Series Subminiature Snap Action Switch
- Chassis, thru hole, or rt angle
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 3A or 0.1A options; UL
- SPDT On-(Off)
- Solder or PC Pin termination
- Pin plunger, or three lever options
- 15gf – 130gf operating force
MS Series
MS Series Miniature Snap Action Switch
- Chassis, thru hole, or rt angle
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 5A, 125/250VAC; UL, VDE
- SPDT or SPST-NO
- Solder, quick connect, or PC pin
- Pin plunger, or seven lever options
- 10gf – 295gf operating force
LS Series
LS Series Snap Action Switch
- Chassis or thru hole rt. angle
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 15A, 125/250VAC; UL, VDE
- SPDT, SPST-NC or SPST-NO
- Solder, quick connect or PC pin
- Pin plunger or six lever options
- 25gf – 250gf operating force
EGJ1210 Series
EGJ1210 Series Slide Switch
- SMT, thru hole, or rt. angle
- 300mA, 24VDC
- SPDT On-On
- Gullwing or PC pin termination
- 250gf operating force
- 1.6mm travel
- Gold terminals
EG1312 Series
EG1312 Series SMT Right Angle Slide Switch
- SMT right angle
- 30mA, 15VDC
- SP3T On-On-(On)
- Gullwing termination
- 150gf operating force
- 1.5mm travel to any position
- 1.5mm height above pcb
500R Series
500R Series Sealed, Through Hole Slide Switch
- IP67 rated
- Thru hole, or thru hole rt angle
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT or DPDT; 2 or 3 positions
- 2.8mm actuator length
- PC pin termination
- Epoxy sealed terminals
500A Series
500A Series Subminiature Slide Switch
- Through hole or SMT
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 3A, 120VAC; 1A, 250VAC; UL
- SPDT; 2 or 3 positions; latching
- Vertical or right angle actuation
- PC pin or gullwing termination
- Epoxy sealed terminals
600 Series
600 Series Miniature, Through Hole Slide Switch
- Thru hole, or thru hole rt angle
- Gold- 0.4VA, 20V max. (AC or DC)
- Silver- 3A, 120VAC; 1A, 250VAC; UL
- SPDT or DPDT; 2 or 3 positions
- Vertical or right angle actuation
- Recessed or raised actuator
- Epoxy sealed terminals
500 Series
500 Series Miniature Slide Switch
- Panel mount, or through hole
- Gold- 0.4VA, 20V max. (AC or DC)
- Silver- 5A, 120VAC; 2A, 250VAC; UL
- SPDT or DPDT; 2 or 3 positions
- Vertical or right angle actuation
- Variety of termination options
- Epoxy sealed terminals
RSC Series
RSC Series Illuminated, Power Rocker Switch with Bi-Color Actuator
- Four panel cutout options
- Up to 20A, 125VAC; UL; IP54
- SPST or SPDT; latching or mom.
- Quick connect, solder, or wires
- Housing and actuator color options
- LED illumination options
- Actuator marking options
RRG3 Series
RRG3 Series Round, Power Rocker Switch
- 20mm diameter panel cutout
- Up to 16A, 125VAC; UL
- SPST or SPDT; latching or mom.
- Quick connect, solder, or wires
- Housing and actuator color options
- Non-illuminated, glossy finish
- Actuator marking options
RRA Series
RRA Series Round, Illuminated, Power Rocker Switch with PVC Cap
- 22mm diameter panel cutout
- Up to 15A, 125VAC; UL
- 1 or 2 pole; latching
- Quick connect, or wire leads
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-P04
RR8 Series
RR8 Series Round, Illuminated, Power Rocker Switch with PVC Cap
- 20mm diameter panel cutout
- Up to 16A, 125VAC; UL
- DPST; Off-On
- Quick connect, or wire leads
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-P03
RR5 Series
RR5 Series Round, Power Rocker Switch
- 20mm diameter panel cutout
- Up to 20A, 125VAC; UL
- SPST; latching or momentary
- Quick connect, solder, or wires
- Housing and actuator color options
- Actuator marking options
- Short body design
RR3402 Series
RR3402 Series Round, Paddle Style, Power Rocker Switch
- 15mm diameter panel cutout
- Up to 6A, 125VAC; UL
- SPST or SPDT; latching
- Solder, or wire leads termination
- Black housing and actuator
- Paddle style actuator
- Threaded body with nut design
RR3130 Series
RR3130 Series Round, Power Rocker Switch
- 18.2mm diameter panel cutout
- Up to 10A, 125VAC; UL
- 1 or 2 pole; latching
- Solder, or wire leads termination
- Housing and actuator color options
- Actuator marking options
- Threaded body with nut design
RR3112 Series
RR3112 Series Round, Illuminated, Power Rocker Switch
- 20.2mm diameter panel cutout
- Up to 16A, 125VAC; UL
- SPST or SPDT; latching or mom.
- Quick connect, or wire leads
- Housing and actuator color options
- LED or NEON illumination options
- Actuator marking options
RR1 Series
RR1 Series Round, Illuminated, Power Rocker Switch with PVC Cap
- 20mm diameter panel cutout
- Up to 16A, 125VAC; UL
- SPST or SPDT; latching
- Quick connect, solder, or wires
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-P03
RE1 Series
RE1 Series Oval, Illuminated, Power Rocker Switch
- 23.3mm x 13.5mm Oval cutout
- Up to 16A, 125VAC; UL
- SPST or SPDT; latching
- Quick connect, or wire leads
- Housing and actuator color options
- LED illumination options
- Actuator marking options
RB5 Series
RB5 Series Sealed, Illuminated, Power Rocker Switch
- 30.2mm x 22mm panel cutout
- IP67 rated
- Up to 25A, 125VAC; UL
- DPST or DPDT; latching or mom.
- Quick connect, or wire leads
- LED illumination options
- Actuator marking options
RB3 Series
RB3 Series Sealed, Illuminated, Power Rocker Switch
- 30.2mm x 13.8mm panel cutout
- IP67 rated
- Up to 25A, 125VAC; UL
- SPST or SPDT; latching or mom.
- Quick connect, or wire leads
- LED illumination options
- Actuator marking options
RB1 Series
RB1 Series Illuminated, Power Rocker Switch with PVC Cap
- 30mm x 11mm panel cutout
- Up to 20A, 125VAC; UL
- SPST or SPDT; latching or mom.
- Quick connect, or wire leads
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-F01
RA1 Series
RA1 Series Illuminated, Power Rocker Switch with PVC Cap
- 19.2mm x 13mm panel cutout
- Up to 16A, 125VAC; UL
- SPST or SPDT; latching or mom.
- QC-tabs, solder, PC pin, or wires
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-P01
R6 Series
R6 Series Slim, Power Rocker Switch
- 19.2mm x 6.65mm panel cutout
- 10A, 125VAC; UL
- SPST; latching or mom.
- Quick connect, or wire leads
- Housing and actuator color options
- Non-illuminated
- Actuator marking options
R5 Series
R5 Series Illuminated, Power Rocker Switch
- 30mm x 22mm panel cutout
- Up to 20A, 125VAC; UL
- DPST or DPDT; latching or mom.
- Quick connect, or wire leads
- Actuator color options
- LED or Neon illumination options
- Actuator marking options
900 Series
900 Series Subminiature SMT Right Angle Detector Switch
- SMT right angle
- 100mA, 50VDC
- SPST; NO or NC; momentary
- Overtravel plunger actuator
- Gullwing termination
- Mounting boss option
- 50gf max. force; 2.0mm travel
ECM3026 Series
ECM3026 Series PCB Header
- Free hanging 3mm spacing
- Wire-wire-receptacle-plug system
- Compatible with ECM3025
- Low profile design
- Two, four, six or 10 poles
ECM3025 Series
ECM3025 Series Free Hanging Receptacle Housing
- Free hanging 3mm spacing
- Wire-wire-receptacle-plug system
- Compatible w/ECM3022 ECM3026
- Low profile design
- Two, four, six or 10 poles
- Wire leads 500mm option
- ECM5556F2822C – socket term.
ECM3022 Series
ECM3022 Series Free Hanging Plug Housing
- Free hanging 3mm spacing
- Wire-wire-receptacle-plug system
- Compatible with ECM3025
- Low profile design
- Two, four six or 10 poles
- Wire leads 500mm option
- ECM5558M2822C – pin term.
SV8 Series
SV8 Series Illuminated, Short Body Anti-Vandal Switch
- 25mm panel cutout
- 2A, 36VDC; IP67 rated
- SPST Off-(On)
- Short body design; flat actuator
- Solder or wire leads 500mm
- with ECM Connector option
- LED ring or ring/power symbol
SV7 Series
SV7 Series Illuminated, Short Body Anti-Vandal Switch
- 22mm panel cutout
- 2A, 36VDC; IP67 rated
- SPST Off-(On)
- Short body design; flat actuator
- Solder or wire leads 500mm
- with ECM Connector option
- LED ring or ring/power symbol
SV4 Series
SV4 Series Illuminated, Short Body Anti-Vandal Switch
- 19mm panel cutout
- 2A, 36VDC; IP67 rated
- SPST Off-(On)
- Short body design; flat actuator
- Solder or wire leads 500mm
- with ECM Connector option
- LED ring or ring/power symbol
SAV8 Series
SAV8 Series Illuminated, High Current Anti-Vandal Switch
- 25mm panel cutout
- 15A, 125/250VAC; IP67 rated
- SPDT; latching or momentary
- Pre-mounted on LS Series switch
- Quick connect 0.187″ or wire leads
- LED ring, or ring/power symbol
- Stainless steel or black anodized
SAV7 Series
SAV7 Series Illuminated, High Current Anti-Vandal Switch
- 22mm panel cutout
- 15A, 125/250VAC; IP67 rated
- SPDT; latching or momentary
- Pre-mounted on LS Series switch
- Quick connect 0.187″ or wire leads
- LED ring, or power symbol
- Stainless steel or black anodized
SAV4 Series
SAV4 Series Illuminated, High Current Anti-Vandal Switch
- 19mm panel cutout
- 15A, 125/250VAC; IP67 rated
- SPDT; latching or momentary
- Pre-mounted on LS Series switch
- Quick connect 0.187″ or wire leads
- LED ring, dot, or power symbol
- Stainless steel or black anodized
PZ Series
PZ Series Illuminated Anti-Vandal, Piezo Switch
- 16mm, 19mm, or 22mm cutout
- 1A, 24VDC; IP68 rated
- SPST Off-(On); Piezo switch
- Concave or flat bezel
- Wire leads with connector
- LED ring, or non-illuminated
- Clear anodized or black anodized
PVT4 Series
PVT4 Series Illuminated, Tactile Response Anti-Vandal Switch
- 19mm panel cutout
- 50mA, 24VDC; IP65 rated
- SPST Off-(On)
- Tactile response; 0.5mm travel
- Solder or wire leads 300mm
- LED ring illumination
- Stainless steel or black anodized
PVS7 Series
PVS7 Series Illuminated Anti-Vandal Switch
- 22mm panel cutout
- 2A, 24VDC; IP65 rated
- SPDT or DPDT; latching or mom.
- Square bezel; flat actuator
- Solder or wire leads 300mm
- LED ring, or etched power symbol
- Stainless steel finish
PVP Series
PVP Series Anti-Vandal Switch Socket
- Socket extension for PV Series
- Solder or wire leads 140mm
- SPDT or DPDT circuit
- LED illuminated or non-illuminated
- Use with PV3, 4, 7, 8, 9, 10, or PVB3
- Order socket separate from switch
PVK4 Series
PVK4 Series Illuminated Anti-Vandal Switch
- 19mm panel cutout
- 2A, 24VDC; IP65 or IP40 rated
- 1 or 2 poles; 2 or 3 positions
- Keylock or selector actuator
- Solder or wire leads
- Stainless steel finish
- LED illumination options
PVHC7 Series
PVHC7 Series Illuminated, High Current Anti-Vandal Switch
- 22mm panel cutout
- 20A, 250VAC, UL; IP67 rated
- SPST; latching or momentary
- Flat actuator
- Solder or wire leads
- LED ring or ring/power symbol
- Stainless steel or black anodized
PVHC4 Series
PVHC4 Series Illuminated, High Current Anti-Vandal Switch
- 19mm panel cutout
- 20A, 250VAC, UL; IP67 rated
- SPST; latching or momentary
- Flat actuator
- Solder or wire leads
- LED ring or ring/power symbol
- Stainless steel or black anodized
PVA6 Series
PVA6 Series Illuminated, Long Life Anti-Vandal Switch
- 16mm panel cutout
- 2A, 36VDC; IP67 rated
- SPST; latching or momentary
- Domed, high or flat bezel/actuator
- Solder, wire leads, or molded back
- LED ring or ring/power symbol
- Stainless steel, clear, or black
PV9 Series
PV9 Series Illuminated Anti-Vandal Switch
- 28m panel cutout
- 2A, 48VDC; IP65 rated
- DPST-NO/NC or 4PST-2NO/2NC
- Flat actuator
- Solder or wire leads 300mm
- LED ring or dot
- Stainless steel or black anodized
PV8 Series
PV8 Series Illuminated Anti-Vandal Switch
- 25m panel cutout
- 2A, 48VDC; IP65 rated
- DPST-NO/NC or 4PST-2NO/2NC
- Flat actuator
- Solder or wire leads 300mm
- LED ring, dot or power symbol
- Stainless steel or black anodized
PV7 Series
PV7 Series Illuminated Anti-Vandal Switch
- 22m panel cutout
- 2A, 48VDC; IP65 rated
- DPST-NO/NC latching or mom.
- Flat actuator
- Solder or wire leads 300mm
- LED ring, dot or power symbol
- Stainless steel or black anodized
PV6 Series
PV6 Series Illuminated Anti-Vandal Switch
- 16mm panel cutout
- 2A, 48VDC; IP65 rated
- SPST Off-(On) or Pilot Indicator
- High or flat actuator
- Solder or wire leads 300mm
- LED ring, dot, or power symbol
- Stainless steel, nickel or black
PV5 Series
PV5 Series Long Life Anti-Vandal Switch
- 12mm panel cutout
- 2A, 36VDC; IP65 rated
- SPST Off-(On)
- Domed or raised actuator
- Solder, screw, or wire leads
- Non-illuminated
- Body & actuator finish options
PV4 Series
PV4 Series Illuminated Anti-Vandal Switch
- 19mm panel cutout
- 2A, 24VDC; IP67 rated*
- SPDT, DPDT, or DPDT-NO/NC
- High, or flat actuator
- Solder, screw, or wire leads
- LED ring, dot, or power symbol
- Stainless steel or black anodized
PV3 Series
PV3 Series Illuminated Anti-Vandal Switch
- 16mm panel cutout
- 2A, 48VDC; IP67 or IP40 rated
- SPDT or DPDT; momentary
- Long or short body
- Flat, high, or guarded actuator
- Solder or wire leads 300mm
- LED ring or dot
PV2 Series
PV2 Series Long Life Anti-Vandal Switch
- 16mm panel cutout
- 2A, 48VDC; IP65 rated
- SPST Off-(On)
- Domed, high, or flat actuator
- Solder, screw, or wire leads
- Non-illuminated
- Gold, nickel, stainless, or black
PV10 Series
PV10 Series Illuminated Anti-Vandal Switch
- 40mm panel cutout
- 2A, 48VDC; IP65 rated
- DPST-NO/NC or 4PST-2NO/2NC
- Flat actuator
- Solder or wire leads 300mm
- LED ring or dot
- Stainless steel or black anodized
PV1 Series
PV1 Series Long Life Anti-Vandal Switch
- 19mm panel cutout
- 2A, 36VDC; IP65 rated
- SPST Off-(On)
- Domed, high, or flat actuator
- Solder, screw, or wire leads
- Non-illuminated
- Gold, nickel, stainless, or black
PV0 Series
PV0 Series Illuminated Anti-Vandal Switch
- 12mm panel cutout
- 2A, 36VDC; IP67 rated
- SPST Off-(On)
- High or flat actuator
- Solder or wire leads 300mm
- LED ring, dot, or power symbol
- Stainless steel or black anodized
PMV6 Series
PMV6 Series Anti-Vandal Switch
- 16mm panel cutout
- 2A, 24VDC; IP67 rated
- SPST or SPDT; momentary
- Wire leads termination
- Actuator color options
- Black nylon 6/6 housing
- Crisp tactile response
