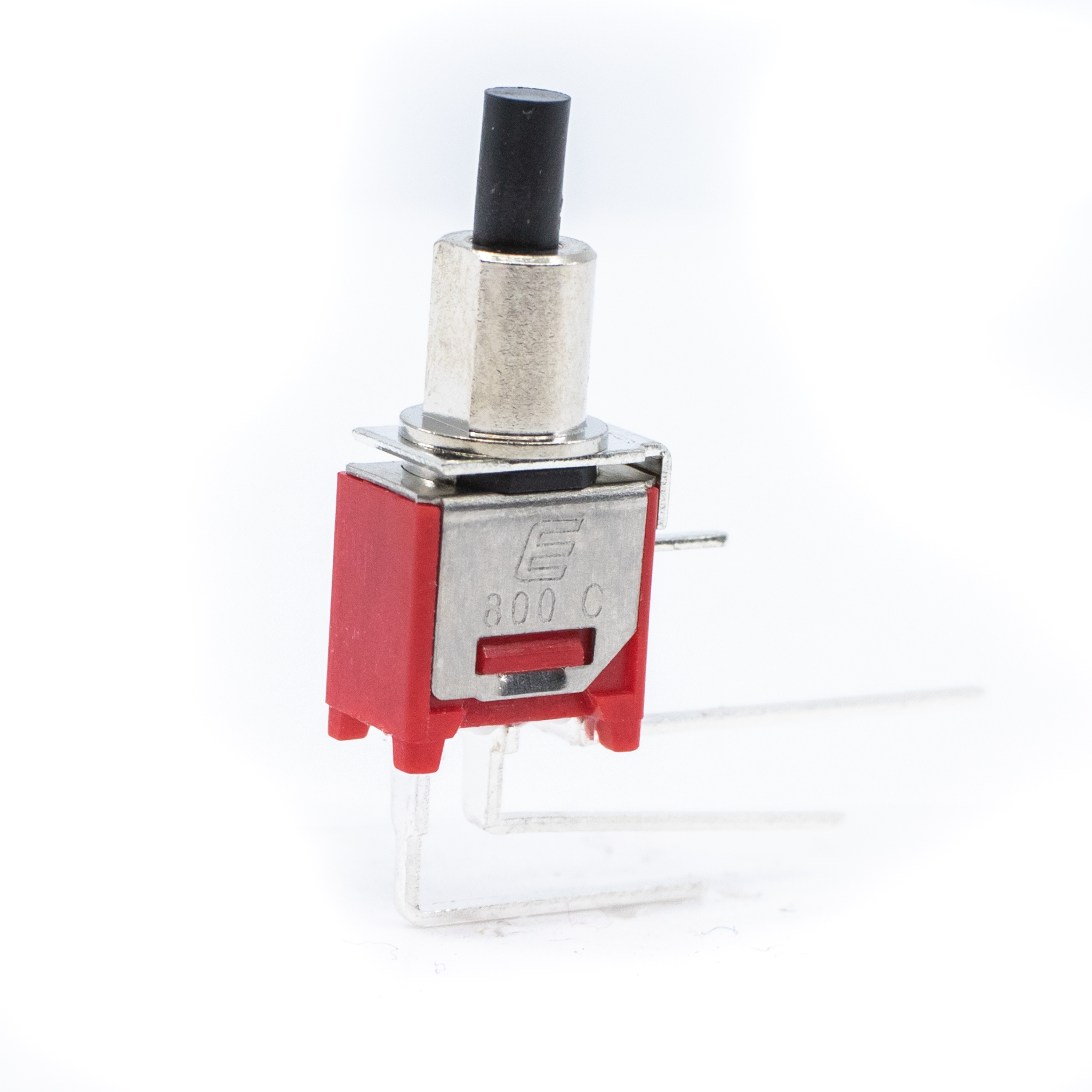

800C Series Alternating Action, Miniature Pushbutton Switch

800C Series Alternating Action, Miniature Pushbutton Switch Wire Leads & Connectors Available

800C Series: 800CSP1B5M1QE

Categories: PUSHBUTTON

RoHS Compliant REACH Compliant

800C Series Alternating Action, Miniature Pushbutton Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

800CSP1B5M1QE

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for 800CSP1B5M1QE

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the 800CSP1B5M1QE from our authorized distributors.

In-Stock Distributors

PUSHBUTTON, 3A, 120VAC/28VDC, SPDT, On-On, Panel Mount, Rear

Powered by oemsecrets

About 800C Series

  • Miniature in size
  • Termination options: right angle PCB pin, solder lug or vertical PCB pin
  • Panel mount or PCB mount switch
  • Alternating action design, SPDT functions
  • Electrical Rating
    • Silver: 3A @ 120VAC or 28 VDC, 1A @ 250VAC
    • Gold: 0.4VA @ 20V Max (AC or DC)
  • Full Travel: 1.88mm; Electrical Travel: 1.34mm
  • Operating Force: 350gf
  • Operating Temperature: -40°C to 85°C

800C Series Markets

Audio Visual

Product Specifications

800CSP1B5M1QE

PUSHBUTTON, 3A, 120VAC/28VDC, SPDT, On-On, Panel Mount, Rear

  • Series Name 800C
  • PackagingBulk
  • Current Rating3A
  • Voltage Rating120VAC/28VDC
  • CircuitSPDT
  • FunctionOn-On
  • Mounting TypePanel Mount, Rear
  • Termination TypePC Pin
  • Contact MaterialSilver
  • Actuator TypeRound, Plunger
  • Actuator ColorBlack
  • Illumination StyleNon-illuminated
  • Illumination ColorNon-illuminated
  • Operating Temperature-40°C to 85°C
