800C Series Alternating Action, Miniature Pushbutton Switch

800C Series Alternating Action, Miniature Pushbutton Switch Wire Leads & Connectors Available

800C Series: 800CSP1B6M6QE

Categories: PUSHBUTTON

  • document Series Data Sheet
  • document Spec Sheet (2D)

RoHS Compliant REACH Compliant

800C Series Alternating Action, Miniature Pushbutton Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

800CSP1B6M6QE

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for 800CSP1B6M6QE

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the 800CSP1B6M6QE from our authorized distributors.

In-Stock Distributors

PUSHBUTTON, 3A, 120VAC/28VDC, SPDT, On-On, Through Hole, Right Angle

Powered by oemsecrets

About 800C Series

  • Miniature in size
  • Termination options: right angle PCB pin, solder lug or vertical PCB pin
  • Panel mount or PCB mount switch
  • Alternating action design, SPDT functions
  • Electrical Rating
    • Silver: 3A @ 120VAC or 28 VDC, 1A @ 250VAC
    • Gold: 0.4VA @ 20V Max (AC or DC)
  • Full Travel: 1.88mm; Electrical Travel: 1.34mm
  • Operating Force: 350gf
  • Operating Temperature: -40°C to 85°C

800C Series Markets

Telecommunications

Product Specifications

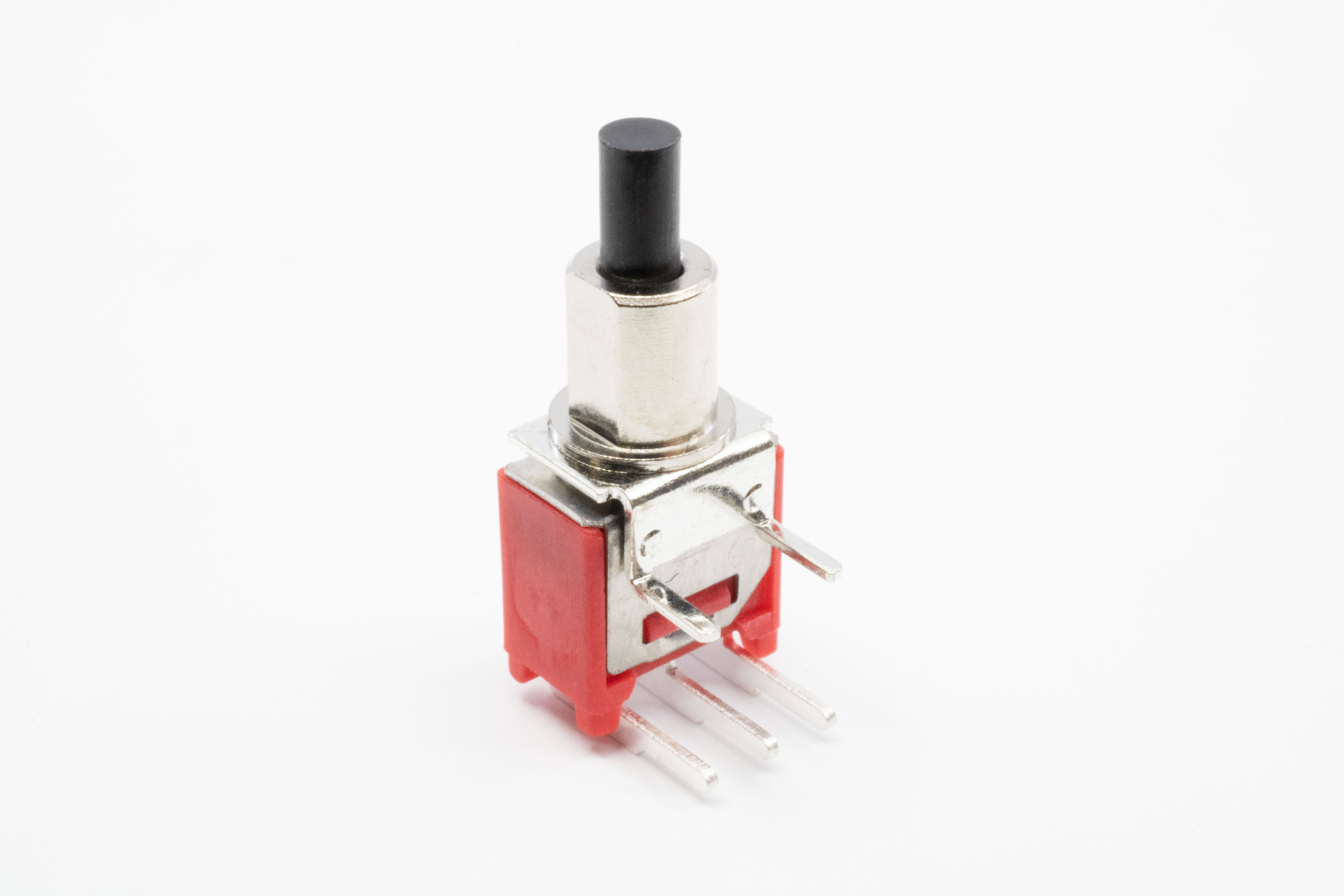

800CSP1B6M6QE

PUSHBUTTON, 3A, 120VAC/28VDC, SPDT, On-On, Through Hole, Right Angle

  • Series Name 800C
  • PackagingBulk
  • Current Rating3A
  • Voltage Rating120VAC/28VDC
  • CircuitSPDT
  • FunctionOn-On
  • Mounting TypeThrough Hole, Right Angle
  • Termination TypePC Pin
  • Contact MaterialSilver
  • Actuator TypeRound, Plunger
  • Actuator ColorBlack
  • Illumination Style-
  • Illumination Color-
  • Operating Temperature-40°C to 85°C

Support for 800CSP1B6M6QE

Not the product you are looking for? Configure your product

Product Inquiry Request Sample
