Low Profile

JS1300 Series 5-position Navigation Switch

• 5-position navigation switch
• Long life expectancy of up to 200,000 cycles
• 9.8mm x 9.8mm base; low profile, 1.55mm height
• Surface mount design

KAC Series Low Profile, Piano DIP Switch

• Replaced KAR series, 2012
• Through hole and surface mount DIP switch
• 2, 4, 6, 8, or 10 actuator positions
• Tube or tape and reel packaging options

KAE Series Low Profile DIP Switch

• Replaced KAJ series, 2012
• KAJ replaced KAW series, 2006
• 1 to 12 actuator positions; both PCB pin and SMT termination options
• Top tape seal optional; tube or tape and reel packaging

KAN Series Half Pitch, Low Profile DIP Switches

• Replaced KAD series, 2006
• Half pitch, low profile DIP switch for surface mounting
• 2, 4, 6, 8 or 10 actuator positions; top tape seal optional
• Tube or tape and reel packaging

TD4700 Series Ultraminiature Detector Switch

• Long life expectancy of 100,000 cycles
• Ultraminiature
• Very low profile

TL2243 Series Double Stacked, Low Profile Tactile Switch

• 7.3mm x 9.1mm tactile switch
• 180 ± 50 gram force option
• Dual actuation
• Right angle through hole mount design

TL3200 Series SMT, Dual LED Illuminated Tactile Switch

• 6.8mm x 4.5mm tactile switch
• 160 +75/-30 gram force
• Single or dual illumination options
• Surface mount design

TL3215 Series Ultraminiature SMT, LED Illuminated Tactile Switch

• 50mA 12VDC rating
• Multiple LED colors
• Long life of 1 million cycles
• SMT, low profile, ultra miniature

TL3301 Series SMT Tactile Switch

• 6mm x 6mm tactile switch
• 100, 160, and 260 gram force options
• Surface mount design
• Silver or gold plated contacts

TL3312 Series Miniature, Low Profile, SMT Tactile Switch

• Ultraminiature, 3.7mm x 3.7mm in size
• Surface mount termination
• Very low profile of 0.35mm

TL3315 Series Ultra Low Profile, SMT Tactile Switch

• 4.5mm x 4.5mm tactile switch
• Ultra low profile with 0.55mm height
• 100 ± 30; 160 ± 50; 250 ± 50 gram force options
• Surface mount design

TL3342 Series Low Profile, SMT Tactile Switch

• 5.2mm x 5.2mm tactile switch
• Ultra low profile with 1.50mm height
• 160 ± 50; 250 ± 50 gram force options
• Surface mount design

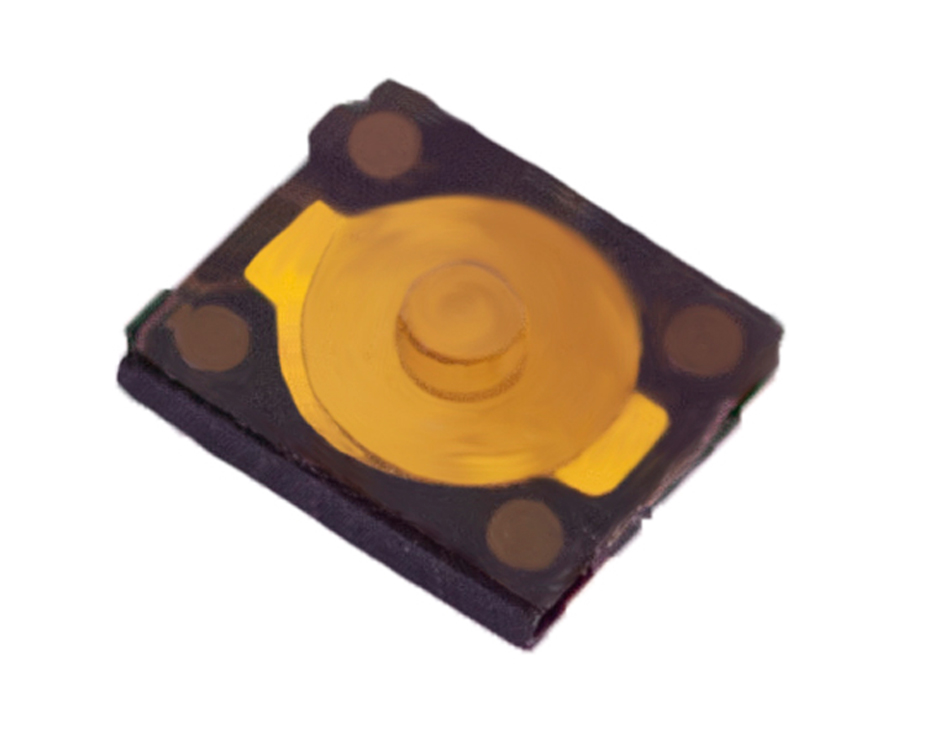

TL3701 Series Ultraminiature Micro Tactile SMT Switch

• 3.0mm x 2.6mm x 0.65mm tactile switch
• Up to 100,000 cycles life expectancy
• 100gf and 160gf options
• Surface mount design

TL3780 Series Ultraminiature, Low Profile SMT Tactile Switch

• Ultraminiature 2.0mm x 3.0mm size
• Surface mount termination
• Very low profile of 0.60mm
• Multiple operating forces

TL6330 Series High-Temperature, SMT Tactile Switch

• IP67 rating for dust and moisture protection
• Surface mount, PC board design
• Long life up to 200,000 cycles
• Small package size of 2.80mm x 4.60mm, with two actuator height options
• 200gf, 300gf, 400gf options

TL9320 Series Sealed Tactile Switch

• IP67 rated for dust and moisture protection
• SPST contact arrangement
• 8.4mm (W) x 8.4mm (L) x 3.95mm (H) dimensions
• Long life expectancy up to 500,000 cycles
