Panel Mount

Panel mount switches can be found on many types of applications including industrial, kiosks and more.

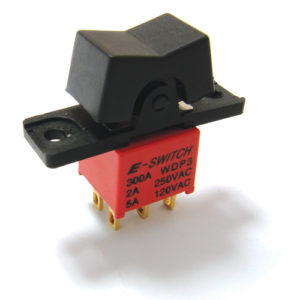

300A Series Sealed, Miniature Rocker Switch

• Sealed at an IP67 rating for protection against dust and moisture
• Up to 5A, 120VAC or 28VDC electrical rating, also available in gold
• Panel or PC board mount design
• Up to 2 poles; momentary and maintained functions

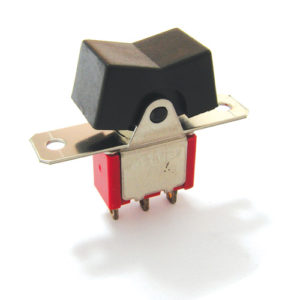

300 Series Subminiature Rocker Switch

• Up to 5A, 120VAC or 28VDC rating; also available with gold contacts
• Panel or PC board mount design
• Up to 4 poles; momentary and maintained functions

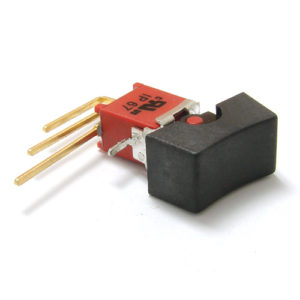

400A Series Sealed, Sub-Miniature Rocker Switches

• Up to 3A, 120VAC or 28VDC rating, also available in gold
• PC board mount design
• 1 or 2 poles; momentary and maintained functions
• IP67 sealed for protection against dust and moisture

400 Series Subminiature Rocker Switch

• Up to 3A, 120VAC or 28VDC rating, also available in gold contacts
• PC board or panel mount design
• 1 or 2 pole circuits; momentary and maintained (latching) functions

500 Series Miniature Slide Switches

• 1 or 2 poles with up to 3 actuator positions; momentary and maintained (latching) functions
• Panel or PC board mounting designs
• Vertical and horizontal actuation options

600 Series Miniature Slide Switch

• 1 or 2 poles with up to 3 actuator positions
• PC board mount design with surface mountable option
• Vertical and horizontal actuation options

700 Series Snap-Acting, Panel Mount Pushbutton Switch

• SPDT or DPDT, large momentary push button
• Gold or silver termination options
• Panel mount design
• Solder lug and quick connect termination

CS Series Illuminated, Touch Sensor Anti-vandal Switch

• 19mm or 22mm panel cutouts
• Latching or Momentary Function options
• Ring or Ring/Power Symbol lens options
• Illuminated color options: red, green, or blue
• Capacitive switching technology (Touch Sensor)

D16 Series Illuminated Pushbutton Switch

• UL, VDE, and ENEC power rated
• Circular, rectangular, and square panel mount designs
• SPDT, DPDT, 3PDT, 4PDT, maintained (latching) or momentary pushbuttons
• Exclusive solder lug design

EG Series Subminiature Slide Switch

• Up to 6 poles available and up to 6 actuator positions
• Panel and PC board mounting designs
• Vertical and horizontal actuation options

FS5700 Series Pushbutton Foot Switch

• SPDT, DPDT, or 3PDT circuits
• Momentary or alternate action functions
• High actuation force
• PC board mount or panel mount options

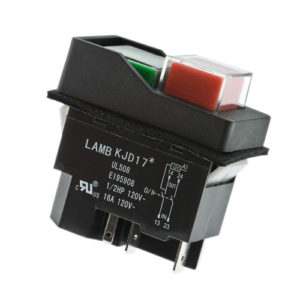

KJD17 Series Heavy Duty, Industrial Power Pushbutton Switch

• IP54 rating for protection against dust and moisture
• 16A, 120VAC, 1/2HP
• Off-On, Off-On with Remote Trip, and NO and NC with Remote Trip functions

KO Series Keylock Switches

• Up to 4A, 125VAC available dependent on series
• Panel mount design
• From 1 to 5,000 key codes dependent on series
• A variety of key types and key pull options

L16 Series Illuminated Pilot Indicator

• Circular, rectangular, and square panel mount designs
• Signal light illumination with LED, neon, or incandescent lamps in multiple colors
• Exclusively a pilot indicator light

LA Series Sealed, Illuminated Pushbutton Switches

• IP65 rated for ingress protection from dust and moisture
• [cURus] power rated for direct and alternating currents
• Signal light illumination with LED, neon, or incandescent lamps in multiple colors
• Momentary, maintained and pilot functions

LP1 Series Illuminated, Round Pushbutton Switch

• Full LED illumination options in multiple colors
• Operates and stores at -40 to 85°C
• Panel mount, round cutout of 8mm
• SPST, momentary pushbuttons

P16 Series Illuminated Pushbutton Switch

• cURus and VDE power rated for direct and alternating currents
• Circular, rectangular, and square panel mount designs
• SPDT, DPDT, 3PDT, 4PDT circuits; maintained (latching) or momentary pushbuttons
• Exclusive socket terminal design

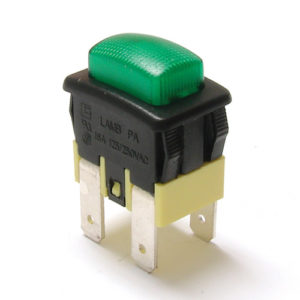

PA4 Series Illuminated, Power Pushbutton Switch

• Water resistant version with IP54 ingress protection rating
• cURus and ENEC power rated
• 13mm x 19mm panel cutout
• Full illumination options

PA5 Series Power Pushbutton Switch

• cURus and ENEC power rated for 16A
• Operate in temperatures ranging from -20 to 125°C
• SPST or DPST circuits, maintained (latching) or momentary pushbuttons

PB1973 Series Illuminated, Snap-in Pushbutton Switch

• 15A, 250VAC rating
• 13mm x 19.2mm panel cutout
• Full illumination options and multiple actuator colors
• SPST or DPST circuits; maintained (latching) or momentary functions

PB2 Series Illuminated, Power Pushbutton Switch

• High power rating of 20A, 125VAC
• IP54 rating for water resistance
• 22mm x 30mm panel cutout
• Spot illumination options

PMV6 Series Anti-vandal Switch

  • 16mm panel cutout
  • UL3385 20AWG pre-stripped and tinned wire leads
  • Multiple Cap Colors
  • 10,000 Cycle Electrical Life
  • Crisp tactile response
  • IP67 rated

PV0 Series Sealed, Illuminated Anti-vandal Switch

  • IP65 rated for protection against dust and moisture
  • 12mm panel cutout
  • Ring or dot illumination options
  • Multiple LED color options

PV10 Series Illuminated Anti-vandal Switch

• 40mm diameter panel cutout
• Dot or ring illumination options available
• Multiple switch functions available
• Multiple illumination voltage options
• IP65 rated
• SPDT or DPDT

PV1 Series Long Life, Water Resistant Anti-vandal Switch

• IP65 rating for protection against dust and moisture
• 19mm diameter panel cutout
• 1 pole, Off-(On)
• Solder and screw terminal options available

PV2 Series Sealed, Long Life Anti-vandal Switch

• IP65 rating for protection against dust and moisture
• 16mm diameter panel cutout
• 1 pole Off-(On) circuit
• Solder and screw terminal options available

PV3 Series Illuminated, Sealed, Long Life Anti-vandal Switch

• Non-sealed (IP40) and sealed (IP67) options
• 16mm diameter panel cutout
• Dot and ring illumination options available
• 1 or 2 poles; momentary functions

PV4 Series Illuminated, Long Life, Sealed Anti-vandal Switch

• IP65 rating for dust and moisture protection
• 19mm diameter panel cutout
• Dot and ring illuminated; RGB LED illumination available
• 1 or 2 poles; maintained, momentary, and double break functions

PV5 Series Sealed, Long Life Anti-vandal Switch

• IP65 rated for protection against dust and moisture
• Solder lug or screw terminal options available
• 1 pole; momentary functions

PV6 Series Illuminated, Sealed, Long Life Anti-vandal Switch

• IP65 rating for protection against dust and moisture
• 16mm diameter panel cutout
• 1 pole; Off-(On) functionality
• Dot and ring illumination options available with RGB multicolor LED indicator light
• Solder lug or wire lead terminals

PV7 Series Illuminated Anti-vandal Switch

  • 22mm diameter panel cutout
  • Dot or ring lens options
  • Multiple LED colors
  • 1 pole double break function
  •  IP65 rated

PV8 Series Illuminated, Sealed Anti-vandal Switch

• IP65 rated for dust and moisture protection
• 25mm diameter panel cutout
• Dot and ring illumination options available
• 1 or 2 poles; maintained (latching) and momentary double break functions

PV9 Series Sealed Illuminated Anti-vandal Switch

  • IP66 rated for dust and moisture protection
  • Dot or ring illumination options available
  • Multiple switch functions available
  • SPDT or DPDT

PVA3 Series Anti-vandal Switch

• IP65 rated for dust and moisture protection
• 16mm panel cutout
• Ring illumination option
• Multiple LED color options
• Momentary or maintained (latching) functions

PVA6 Series Illuminated, Long Life Anti-vandal Switch

  • IP67 rated for dust and moisture protection
  • Solder lug or wire leads (500mm long) termination
  • Ring or power symbol illumination options
  • SPST, Off-(On) functionality
  • Refer to Detail Specs for PVA6L latching version

PVP Series Anti-vandal Switch Socket

  • PVP3 both socket and wired socket are compatible with PV3 series switches featuring SPDT, DPDT, non-illuminated, or LED illuminated color options.
  • PVP4 both socket and wired socket are compatible with PV4 series switches featuring SPDT, DPDT, non-illuminated, or LED illuminated color options.
  • PVP7 both socket and wired socket are compatible with PV7 series switches featuring SPDT, non-illuminated, or LED illuminated color options.
  • PVP8 wired socket is compatible with PV8, PV9 and PV10 series switches featuring SPDT, DPDT, non-illuminated, or LED illuminated color options.
  • Wire, 22 AWG AWM UL 1007
  • Standard wire length 140.0mm [5.5 in]

PVS7 Series Illuminated Anti-vandal Switch

  • IP65 rated for dust and moisture protection
  • RGB LED illumination option
  • Ring illumination avaliable
  • Multiple function options
  • SPDT & DPDT
  • Soldered wire leads (300mm long) optional

PVT4 Series Illuminated, Tactile Response Anti-vandal Switch

  • IP65 protection from dust and moisture
  • Solder lug or wire lead termination options
  • Ring illumination
  • LED color options
  • Crisp tactile response

PZ Series Anti-vandal, Illuminated Piezo Switch

• Electrical life of 50 million cycles
• Ring illumination options
• RGB color options
• Bezel options

R1966 Series Illuminated Rocker Switch

• 15A, 125VAC electrical rating with cURus agency approval
• Industry standard 13mm x 19.2mm panel cutout
• Lens LED illumination options and actuator marking options

R1973 Series Illuminated Power Rocker Switch

• 9A, 125VAC electrical rating
• 13mm x 19.2mm panel cutout
• Full illumination options and actuator marking options
• 1 or 2 pole circuits; maintained (latching) functions

R4 Series Illuminated, High Current Rocker Switch

• 20A, 125VAC electrical rating
• 11mm x 30mm panel cutout
• Full or dot illumination options; also non-illuminated options

R5 Series Illuminated, High Current Rocker Switch

• 20A, 125VAC electrical rating with cURus certification
• 22mm x 30mm panel cutout
• Full illumination or non-illuminated options and actuator marking options

R6 Series Slim Power Rocker Switch

• 10A, 125VAC or 6A, 250VAC UL and cURus certified electrical ratings
• 6.65mm x 19.2mm slim, panel cutout
• 1 pole; maintained (latching) and momentary functions

R7 Series Illuminated, Sealed Rocker Switch

• IP67 rated & UL Listed
• LED illumination options
• Custom actuator marking available
• Ergonomic design

RA1 Series Illuminated, Power Rocker Switch with PVC Cap

• Up to 16A, 125VAC electrical rating
• PVC cap provides protection from dust and moisture at IP54 rating
• 13mm x 19.2mm panel cutout
• Full or signal light illumination options

RA4 Series Illuminated, Power Rocker Switch with PVC Cap

• Up to 16A, 125VAC, 1/3HP electrical rating
• IP54 protection against dust and moisture with PVC cap
• 22mm x 19.2mm panel cutout
• 1 or 2 pole; maintained (latching) and momentary functions

RA8 Series Illuminated, Power Rocker Switch

• 16A, 125VAC electrical rating with [cURus] certification
• Full or signal light illumination with multiple LED lens colors
• IP54 ingress protection from dust and moisture with optional cap
• 1 or 2 pole, maintained functions

RB1 Series Illuminated, Power Rocker Switch

• 20A, 125VAC, 3/4HP electrical rating with [cURus] certification
• Optional cap provides protection from dust and moisture at IP54 rating
• Full, dot, or signal light illumination and actuator marking options

RB2 Series High Current, Power Rocker Switch

• 20A, 125VAC, 1/4HP electrical rating with [cURus] certification
• IP54 protection from dust and moisture with optional cap
• Full, dot, or signal light illumination options

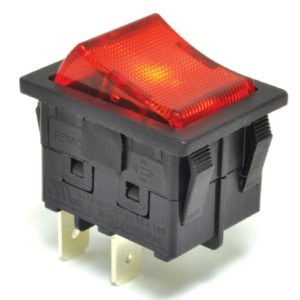

RBW2 Series Illuminated, Sealed Rocker Switch

• 16(16)A, 125VAC 1/3HP electrical rating with UL and [cURus] approval
• IP66 rated for protection from dust and moisture
• Full illumination options

RD1 Series Compact, Power Rocker Switch

• Up to 16A, 125VAC 1/3HP electrical rating with UL and [cURus] approvals
• Compact switch for 6.8mm x 19.4mm panel cutout
• 1 pole, Off-On functionality

RE1 Series Oval, Illuminated Power Rocker Switch

• Up to 16A, 125VAC 1/3HP electrical rating, with multiple rating options
• Operate in temperatures ranging from -20 to at least 105°C and up to 125°C, depending on electrical rating option
• Full illumination options, multiple marking options and lens colors

RP3508 Series Round, Illuminated Pushbutton Switch

• 3A, 125VAC rating
• 15mm x 16mm rounded edge panel cutout
• Full LED illumination options
• SPST; maintained (latching) or momentary pushbuttons

RP8100 Series Round, Illuminated Pushbutton Switch

• IP67 ingress protection rating
• 125mA 125VAC rating
• SPST, momentary pushbutton
• Life expectancy of 500,000 cycles
• Nylon housing and actuator

RP8200 Series Illuminated, Round Pushbutton Switch

• Sealed pushbutton with an IP67 rating
• 200,000 life expectancy
• 100mA 24VDC rating
• SPST, maintained (latching) function

RP8300 Series Round, Illuminated Pushbutton Switch

• Sealed at an IP67 rating
• Life expectancy of 500,000 cycles
• 500mA @ 48 VAC, 200mA @ 50 VDC, 200mA @ 250 VAC power ratings
• SPST, momentary pushbuttons

RP8400 Series Square, Illuminated Pushbutton Switch

• IP67 sealed, die cast housing with nylon actuator
• Life expectancy of 500,000 cycles
• 500mA @ 48 VAC, 200mA @ 50 VDC, 200mA @ 250 VAC power ratings
• SPST, momentary pushbuttons

RP8500 Series Square Illuminated Panel Mount Pushbutton

• 100mA 50VDC rating; 125mA 125VAC rating
• 13.6mm diameter panel cutout
• SPST momentary (500,000 life cycles)
• IP67 sealed, nylon housing & actuator

RP8600 Series Square, Sealed Pushbutton Switch

• IP67 sealed, nylon housing
• Life expectancy of 100,000 cycles
• 0.4VA Max @ 20V Max (AC or DC) power rating
• SPST, momentary pushbuttons

RR1 Series Round, Illuminated Power Rocker Switch with Cap

• Up to 16A, 125VAC 1/3HP electrical rating
• IP54 protection from dust and moisture with cap
• Full, dot, and signal light illumination options

RR3112 Series Round, Illuminated Power Rocker Switch

• 16A, 125VAC or 10A, 250VAC electrical ratings with [cURus] approval
• Ergonomic, visually appealing actuator design
• Full illumination options, with neon or LED options
• 1 pole; momentary and maintained (latching) functions

RR3130 Series Round Power Rocker Switch

• 10A, 125VAC or 6A, 250VAC electrical ratings with [cURus] approvals
• Ergonomic, curved actuators with color and marking options
• 1 or 2 pole; maintained (latching) functions

RR3402 Series Round, Paddle Style Power Rocker Switch

• 6A, 125VAC or 3A, 250VAC electrical ratings with [cURus] approvals
• 15mm diameter panel cutout
• Ergonomic, paddle style actuator
• 1 pole; maintained (latching) functions

RR5 Series Round, High Current Rocker Switch

• 20A, 125VAC or 12A, 250VAC electrical ratings with [cURus] approval
• Short body for low clearance applications
• 1 pole, maintained (latching) and momentary functions

RR8 Series Round, Illuminated Power Rocker Switch

• Up to 16A, 125VAC, 1/3HP electrical rating with multiple agency approvals
• Meant for round, 20mm diameter panel cutout
• Full illumination options

RRA Series Round, Illuminated Power Rocker Switch with Cap

• Up to 15A, 125VAC 1/3HP electrical rating with approvals from multiple agencies
• IP54 protection from dust and moisture with cap
• Full illumination options

RRG3 Series Round, Power Rocker Switch

• Up to 16A ,125VAC 1/3HP electrical rating with approvals from multiple agencies
• Meant for round, 20mm diameter panel cutout
• 1 pole; maintained (latching) and momentary functions

RRGA Series Round, High Current Rocker Switches

• 16A, 125VAC 1/3HP electrical rating with approvals from multiple agencies
• Operates in temperatures ranging from -20°C to 105°C
• 1 pole, maintained (latching) and momentary functions

RSC Series High Current Rocker Switch with Bi-color Actuator

• 20A, 125VAC 1/4HP electrical rating with [cURus] approval
• Full or signal light illumination options
• 4 different panel cutouts ranging between 12.1mm and 13.9mm x 27.2mm and 28.6mm

RVW Series High Current Power Rocker Switches

• Up to 20A, 125VAC 2HP electrical rating with [cURus] and [UL508] approvals
• IP54 rated protection from dust and moisture
• 1 or 2 pole, maintained and momentary functions

SAV4 Series Anti-Vandal Switch

  • 19mm diameter panel cutout
  • Dot, ring, power, or ring/power illumination options
  • Multiple illumination voltage options
  • Momentary and latching functions
  • 15A high current rating

SAV7 Series Anti-Vandal Switch

  • 22mm diameter panel cutout
  • Ring or ring/power illumination options
  • Multiple illumination voltage options
  • Momentary and latching functions
  • 15A high current rating

SAV8 Series Anti-Vandal Switch

  • 25mm diameter panel cutout
  • Ring or ring/power illumination options
  • Multiple illumination voltage options
  • Momentary and latching functions
  • 15A high current rating

ST1 Series High Current, Power Toggle Switch

• Up to 20A, 125VAC 2HP electrical rating with multiple agency approvals
• 1 pole, 1 or 2 throws; maintained (latching) and momentary functions
• 12mm diameter panel cutout

ST2 Series High Current, Power Toggle Switch

• Up to 20A, 125VAC 2HP electrical rating with [cURus] approval
• 2 poles, 1 or 2 throws; maintained (latching) and momentary functions
• 12mm diameter panel cutout

ST3 Series High Current, Power Toggle Switch

• Up to 24A, 125VAC 2HP electrical rating with [cURus] approvals
• 3 poles, 1 or 2 throws; maintained and momentary functions
• 12mm diameter panel cutout

SV4 Series Anti-Vandal Switch

  • Short body design
  • 19mm diameter panel cutout
  • Ring or Ring/Power Symbol combo illumination
  • IP67
  • SPST
  • Optional soldered wire leads (500mm long)

SV7 Series Illuminated Anti-Vandal Switch

  • Short body design
  • 22mm diameter panel cutout
  • Ring or Ring/Power Symbol combo illumination
  • IP67
  • SPST
  • Optional soldered wire leads (500mm long)

SV8 Series Illuminated Anti-vandal Switch

  • Short body design
  • 25mm diameter panel cutout
  • Multiple LED options
  • Ring or Ring/Power Symbol combo illumination
  • IP67
  • SPST
  • Optional soldered wire leads (500mm long)

TL1275 Series Tactile Switch with Wire Leads and Connectors

• 500mm long wire leads with connectors
• Single color and bi-color LED options
• Sharp tactile response
• Panel Mount

ULP Series Long Life, Illuminated Pushbutton Switch

• Long life of one million cycles for mechanical components and 200,000 cycle electrical life
• PC board or panel mount design with several button options
• Full LED illumination options
• SPDT or DPST, maintained (latching) or momentary pushbuttons

ULV4 Series UL Certified, Long Life Anti-vandal Switch

• Dot, ring, or power symbol illuminated
• IP67 rated for dust and moisture protection; UL certified
• Long life; maintained (latching) or momentary
• Three wire lead options available

ULV7 Series UL Certified Anti-Vandal Switch

• Ring illuminated; 22mm panel cutout
• IP67 rated for dust and moisture protection; UL Certified
• Long life; maintained (latching) or momentary
• Three wire lead options available: 300m long wire leads, detachable socket with wire leads 500mm long, or molded back with wire leads 500mm long

ULV8 Series UL Certified, Sealed Anti-vandal Switch

• Ring illuminated; 25mm panel cutout
• IP67 rated for dust and moisture protection; UL Certified
• Long life; maintained (latching) or momentary
• SPDT or DPDT with multiple functions
• Three wire lead options available

WB2 Series Sealed, High Current Rocker Switch

• Up to 20A, 125VAC, 2HP electrical rating with [cURus] approval
• IP55 rated for dust and moisture protection
• 2 pole; maintained (latching) and momentary functions

WS1 Series Sealed, Snap Action Switch

• IP67 rated for dust and moisture protection
• UL Certified
• Multiple current rating options
• Solder lug or wire leads termination options
