RP8700 Series
RP8700 Series Round, Illuminated Pushbutton Switch
- 13.6mm diameter panel cutout
- 200mA, 50VDC; IP68
- SPST; Off-(On) / On-(Off)
- Solder, PCB, or wires w/ connector
- Round button, many color options
- Threaded bushing: M12 x 0.75
- LED illumination options
TL4110 Series
TL4110 Series Low Profile, SMT Edge Mount Right Angle Tactile Switch
- SMT rt. angle, edge mount
- 2.00mm x 2.80mm
- Low profile 0.65mm
- Gull wing termination
- 160gf operating force
- 300,000 cycle life
- 20mA @ 15VDC
TL2285 Series
TL2285 Series Subminiature Pushbutton Switch
- Through hole
- 100mA, 30VDC
- DPDT; latching or momentary
- PC pin termination
- Plunger actuator
- Many cap options
- 180gf operating force
PB350 Series
PB350 Series Illuminated, Long Travel Pushbutton Switch
- Through hole
- 30mA, 28VDC
- SPST mom. or SPDT double action
- PC pin termination
- Firm tactile response
- High actuation force
- LED illumination options
JS5208 Series
JS5208 Series 5-Position, Joystick Navigation Switch
- SMT
- 20mA, 15VDC
- 4-way directional, center select
- Plunger for cap actuator
- Center: 500gf, Tilt: 280gf
- 12.4mm x 12.4mm body
- 12.2mm actuator height
RDM Series
RDM Series Sealed, Ultra Slim Rotary DIP Switch
- Through hole, SMT, or Rt angle
- 25mA, 24VDC; IP67 rated
- 3×3 pcb terminal layout
- Flush, or shaft actuator
- 10 or 16 positions
- Real or complementary code
- 0.100″ (2.54mm), Full pitch
TL9320 Series
TL9320 Series Sealed, SMT Tactile Switch
- IP67 rated
- SMT
- 8.40mm x 8.40mm
- Gull wing termination
- 400gf operating force
- 500,000 cycle life
- 50mA @ 16VDC
TL6700 Series
TL6700 Series Sealed, Long Life, SMT Tactile Switch
- IP67 rated
- SMT
- 6.90mm x 6.20mm
- Gull wing or J lead
- 160gf or 260gf operating force
- Actuator height options
- 50mA @ 12VDC
TL6340 Series
TL6340 Series Sealed, SMT Right Angle Tactile Switch
- IP67 rated
- SMT right angle
- 3.85mm x 1.95mm
- SMD tab termination
- 160gf operating force
- 200,000 cycle life
- 20mA @ 12VDC
TL6330 Series
TL6330 Series Sealed, SMT Tactile Switch
- IP67 rated
- SMT
- 4.60mm x 2.80mm
- SMD tab termination
- 200gf, 300gf, or 400gf
- Actuator height options
- 50mA @ 32VDC
TL6215 Series
TL6215 Series Sealed, Illuminated, Through Hole Tactile Switch
- IP67 rated
- Through hole; vertical or right angle
- PC Pin termination
- LED illuminated
- Many cap styles and colors
- 200gf or 450gf operating force
- 50mA @ 12VDC

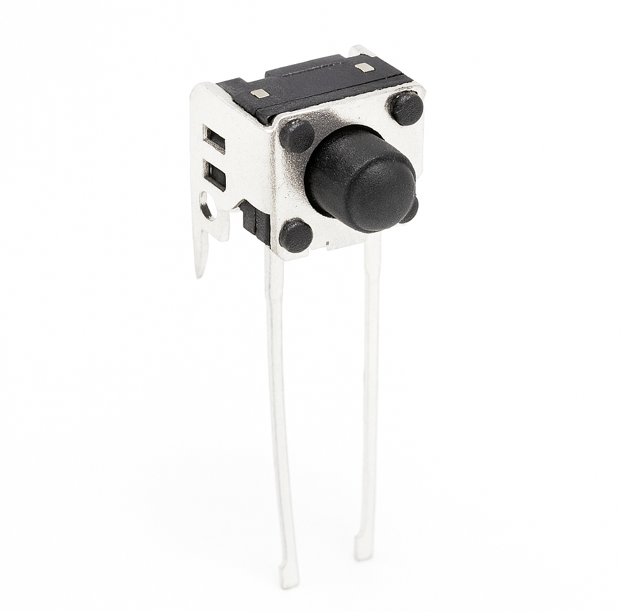

TL58 Series
TL58 Series Through Hole Right Angle, Radial Lead Tactile Switch
- Through hole right angle
- 7.40mm x 6.65mm
- PC Pin termination
- Many actuator height options
- 100gf, 160gf, or 260gf
- 50mA @ 12VDC
- Radial lead packaging
TL3780 Series
TL3780 Series Ultraminiature, Low Profile, SMT Tactile Switch
- SMT
- 2.00mm x 3.00mm
- Low profile 0.60mm
- Gull wing termination
- 100gf, 160gf, 240gf, or 330gf
- Silver contact material
- 50mA @ 12VDC
TL3365 Series
TL3365 Series Ultraminiature, SMT Tactile Switch
- SMT
- 4.20mm x 3.20mm
- J lead termination
- 180gf, 250gf, or 400gf
- Oval button actuator
- Silver contact material
- 50mA @ 12VDC
TL3312 Series
TL3312 Series Miniature, Low Profile, SMT Tactile Switch
- SMT
- 3.70mm x 3.70mm
- Low profile 0.35mm
- Snap dome actuator
- SMD tab termination
- 160gf or 235gf operating force
- 50mA @ 12VDC
TL3305 Series
TL3305 Series SMT Tactile Switch
- SMT
- 4.50mm x 4.50mm
- Gull wing termination
- Actuator height options
- 100gf, 160gf, 260gf, or 350gf
- -40°C to 105°C operating temp
- 50mA @ 12VDC
TL1030 Series
TL1030 Series Miniature SMT Tactile Switch
- SMT
- 3.50mm x 2.90mm
- J lead termination
- Ground terminal option
- 160gf, 200gf, 350gf, or 500gf
- Silver contact material
- 50mA @ 12VDC
EG1312 Series
EG1312 Series SMT Right Angle Slide Switch
- SMT right angle
- 30mA, 15VDC
- SP3T On-On-(On)
- Gullwing termination
- 150gf operating force
- 1.5mm travel to any position
- 1.5mm height above pcb
EG1215 Series
EG1215 Series SMT Right Angle Slide Switch
- SMT right angle
- 25mA, 24VDC
- SPDT On-On
- Gullwing termination
- 150gf operating force
- 1.5mm travel
- 1.4mm height above pcb
EG Series
EG Series Subminiature Slide Switch
- Panel mount or through hole
- <1A (dependent on model)
- Up to 6 poles
- Up to 6 actuator positions
- Vertical or right angle actuation
- Solder or PC pin
- Variety of package designs
500 Series
500 Series Miniature Slide Switch
- Panel mount, or through hole
- Gold- 0.4VA, 20V max. (AC or DC)
- Silver- 5A, 120VAC; 2A, 250VAC; UL
- SPDT or DPDT; 2 or 3 positions
- Vertical or right angle actuation
- Variety of termination options
- Epoxy sealed terminals
