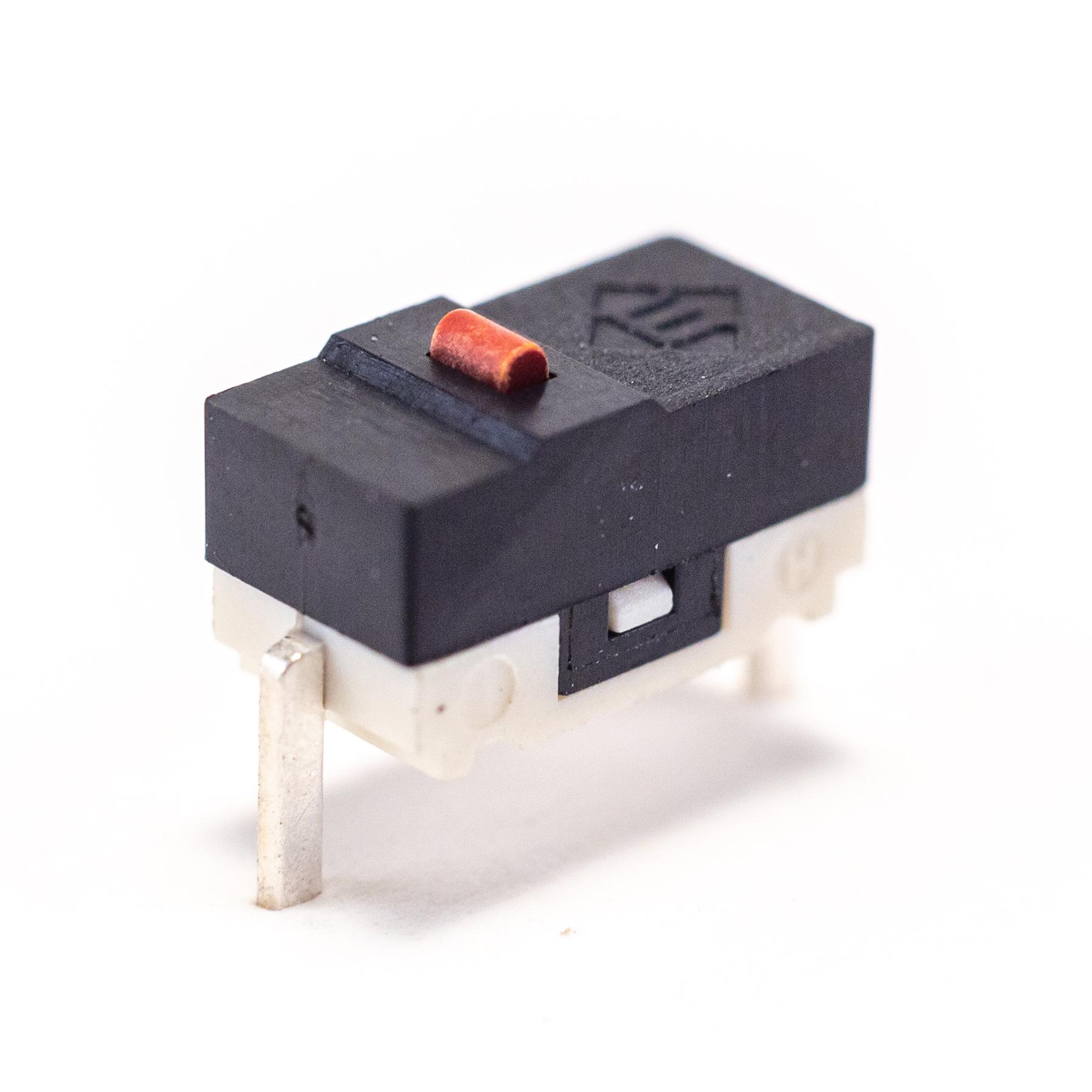

TS1 Series Subminiature Snap Action Switch
Stock Check for TS10100F070P
Not the product you are looking for? Configure your product
SNAP ACTION, 100mA, 125VAC/48VDC, SPST, Off-(On), Through Hole
About TS1 Series
- Electrical rating:
- 0.1A 125VAC or 48VDC
- SPST-NO circuit; momentary function
- Through hole mounting design
- Pin plunger actuator (no lever)
- 100,000 cycle life
- 70gf operating force
- 0.35mm travel
- Silver contact material
- -15°C to 55°C operating temperature
TS1 Series Markets
Product Specifications
TS10100F070P
SNAP ACTION, 100mA, 125VAC/48VDC, SPST, Off-(On), Through Hole
- Series Name TS1
- PackagingBulk
- Current Rating100mA
- Voltage Rating125VAC/48VDC
- CircuitSPST
- FunctionOff-(On)
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypeRound (Pin Plunger)
- Operating Force70gf
- Operating Temperature-15°C to 55°C
