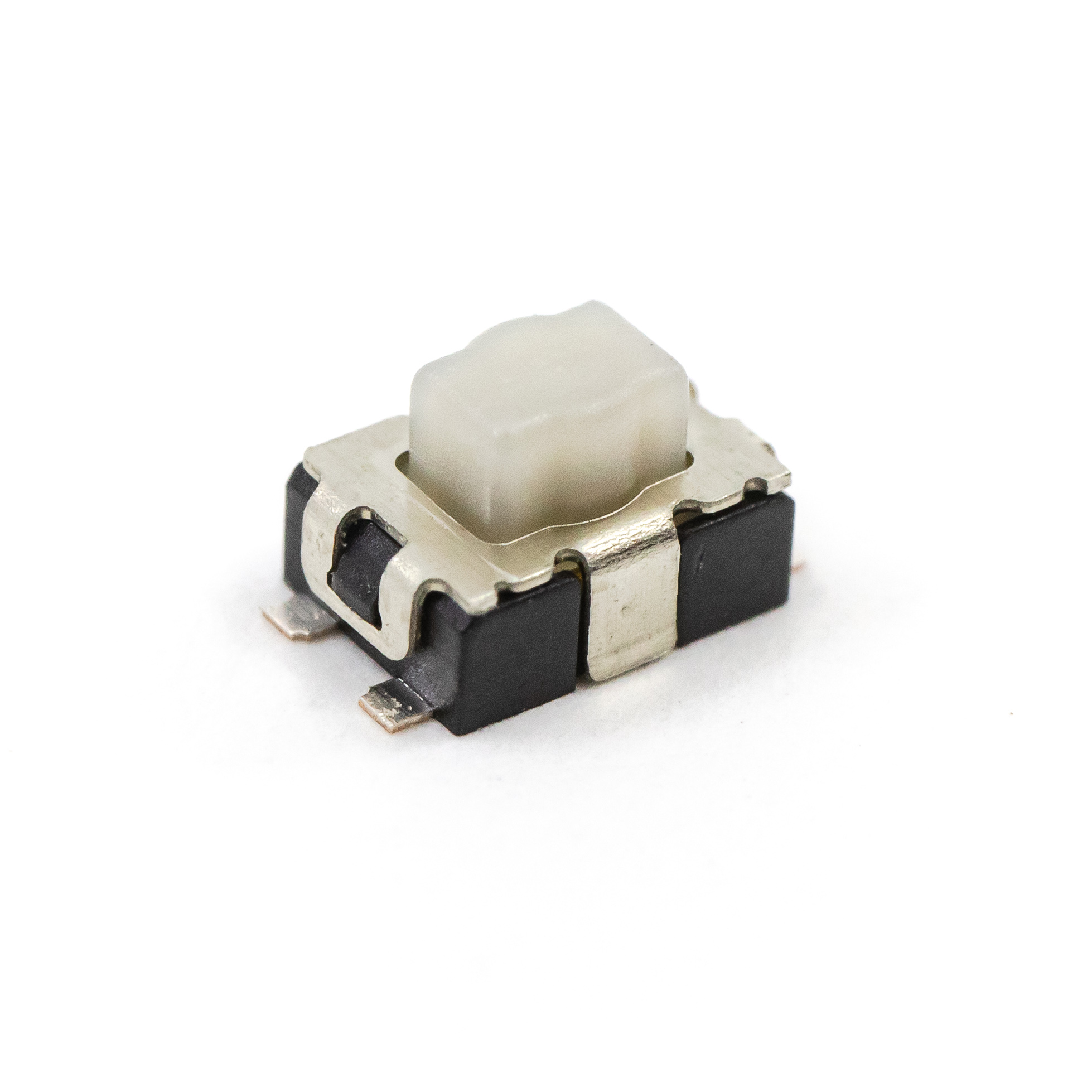

TL6330 Series Sealed, SMT Tactile Switch
Stock Check for TL6330BF300Q
Not the product you are looking for? Configure your product
TACT, 50mA, 32VDC, SPST-NO, Off-(On), Surface Mount
About TL6330 Series
- IP67 rated
- Surface mount (SMT) design
- 4.60mm x 2.80mm outline
- SMD tab termination
- 200gf, 300gf, or 400gf operating force
- Actuator height options
- Life cycles: 200K (200gf), 150K (300gf), 100K (400gf)
- Silver contact material
- -40°C to 85°C operating temperature
- 50mA @ 32VDC
- SPST-NO; Off-(On)
TL6330 Series Markets
Product Specifications
TL6330BF300Q
TACT, 50mA, 32VDC, SPST-NO, Off-(On), Surface Mount
- Series Name TL6330
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating32VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeSMD (SMT) Tab
- Contact MaterialSilver
- Actuator TypeRectangular, Button
- Actuator Height2.50mm
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Ingress ProtectionIP67
- Operating Force300gf
- Operating Temperature-40°C to 85°C
