Read MoreTL6330 Series Sealed, SMT Tactile Switch

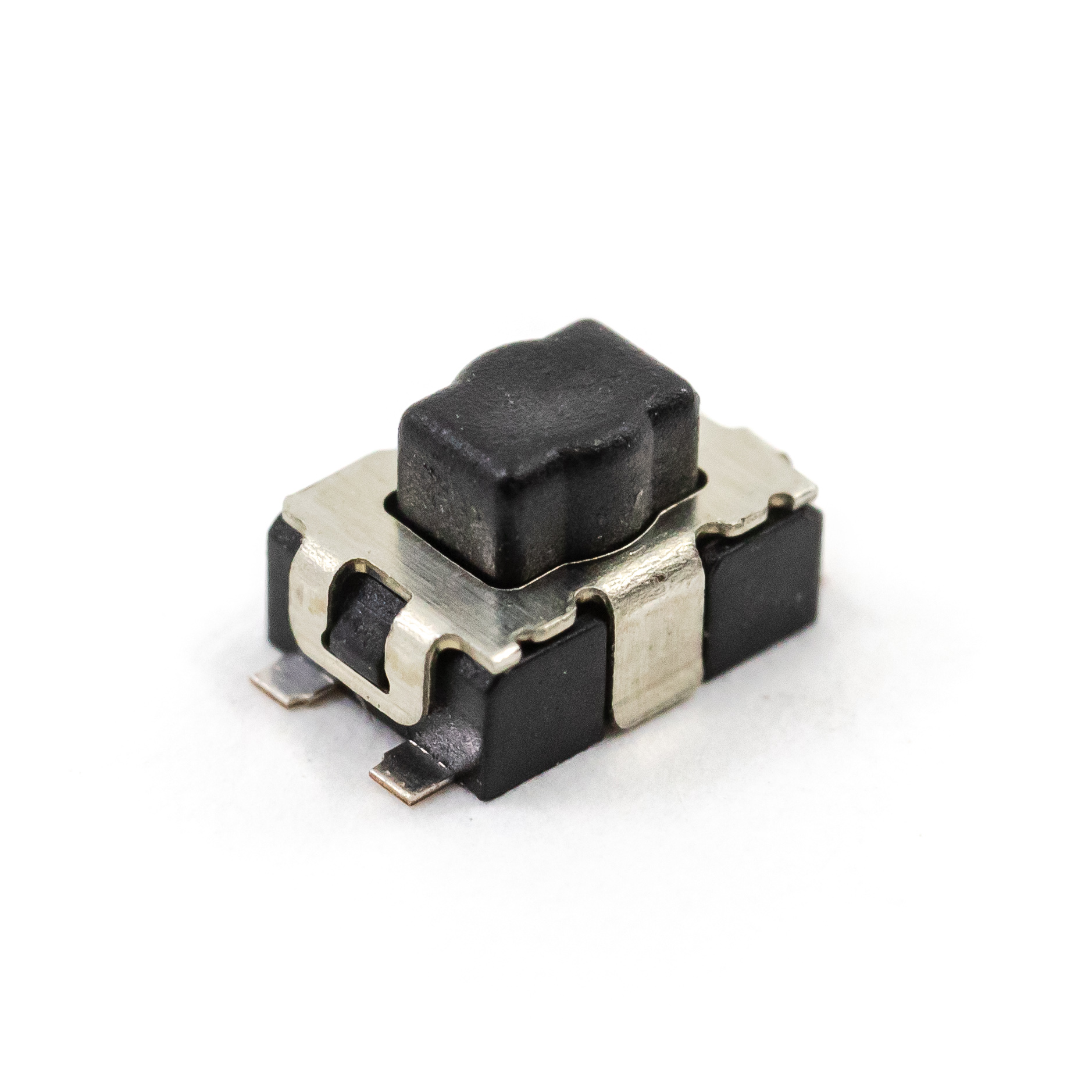

TL6330 Series Sealed, SMT Tactile Switch
Stock Check for TL6330BF200Q
Not the product you are looking for? Configure your product
TACT, 50mA, 32VDC, SPST-NO, Off-(On), Surface Mount
About TL6330 Series
- IP67
- Surface mount (SMT) design
- 4.60mm x 2.80mm
- 1.9mm or 2.5mm actuator height
- 200gf, 300gf, or 400gf operating force
- Up to 200,000 cycle life
- Silver contact material
- -40°C to 85°C operating temperature
- 50mA @ 32VDC
- Tape and reel packaged
TL6330 Series Markets
Product Specifications
TL6330BF200Q
TACT, 50mA, 32VDC, SPST-NO, Off-(On), Surface Mount
- Series Name TL6330
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating32VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeSMD (SMT) Tab
- Contact MaterialSilver
- Actuator TypeRectangular, Button
- Actuator Height2.50mm
- Illumination Style-
- Illumination Color-
- Ingress ProtectionIP67
- Operating Force200gf
- Operating Temperature-40°C to 85°C
Support for TL6330BF200Q
Not the product you are looking for? Configure your product
