Read MoreLP2 Series Illuminated Pushbutton Switch

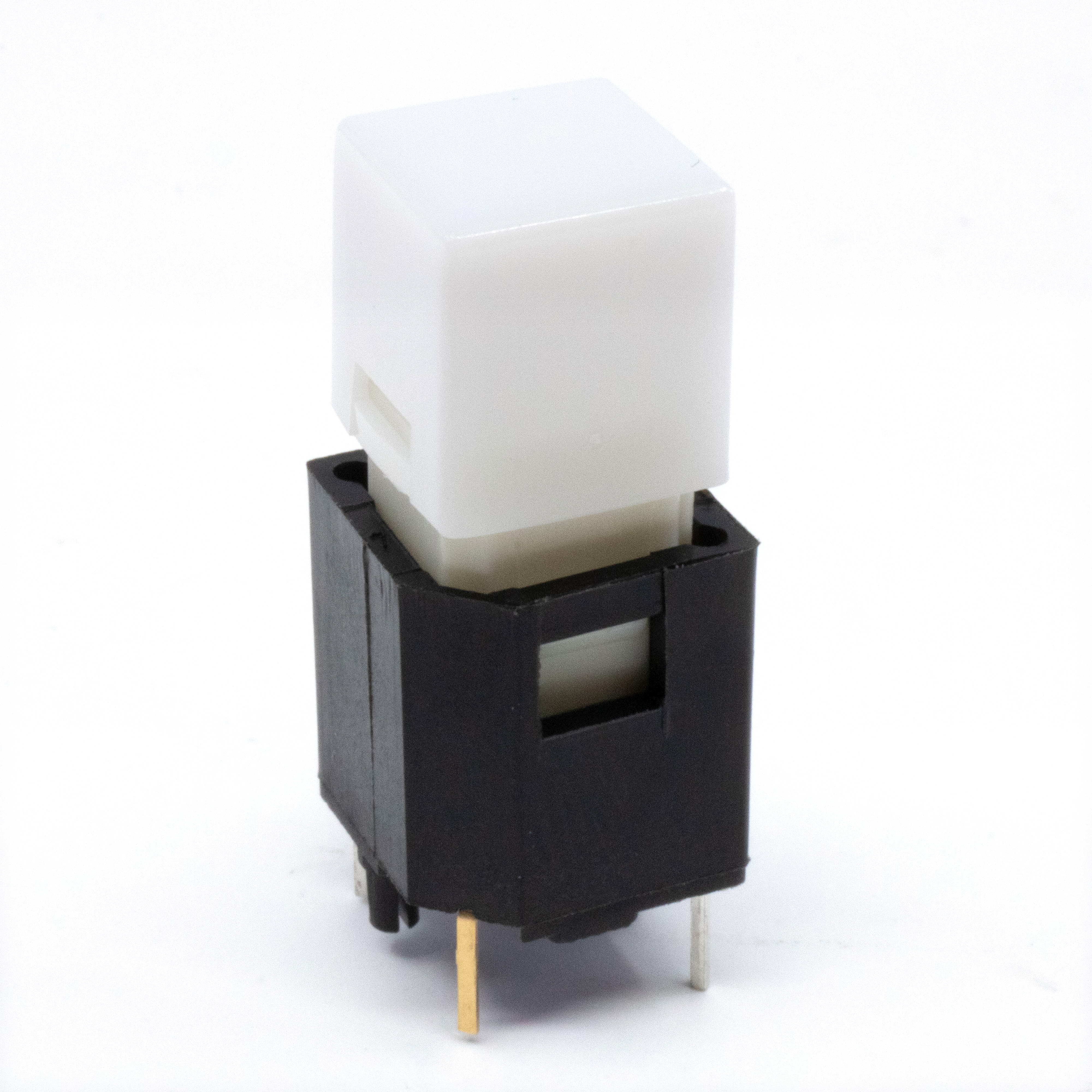

LP2 Series Illuminated Pushbutton Switch
Stock Check for LP2S2WHTBLU-N
Not the product you are looking for? Configure your product
PUSHBUTTON, 1mA, 20VDC, SPST, Off-(On), Through Hole, Illuminated
About LP2 Series
- Through hole mounting design
- Electrical Rating: 1mA @ 20VDC or 5mA @ 5VDC
- SPST Off-(On)
- PC Pin termination
- LED illumination – red, blue, green, yellow, white, or none
- Square button – 6mm, 8.6mm, or 11mm size
- Button color options
- Custom graphic options
- Operating Life: 300,000 cycles min.
- -20°C to 70°C operating temperature
LP2 Series Markets
Product Specifications
LP2S2WHTBLU-N
PUSHBUTTON, 1mA, 20VDC, SPST, Off-(On), Through Hole, Illuminated
- Series Name LP2
- PackagingBulk
- Current Rating1mA
- Voltage Rating20VDC
- CircuitSPST
- FunctionOff-(On)
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Actuator TypeSquare, Button
- Actuator ColorWhite
- Illumination StyleFull
- Illumination ColorLED, Blue
- Operating Temperature-20°C to 70°C
Support for LP2S2WHTBLU-N
