Read MoreLP2 Series Illuminated Pushbutton Switch
LP2 Series Illuminated Pushbutton Switch
Stock Check for LP2S1WHTWHT-N
Not the product you are looking for? Configure your product
PUSHBUTTON, 1mA, 20VDC, SPST, Off-(On), Through Hole, Illuminated
About LP2 Series
- Full LED illumination options
- Custom marking options
- Cap color options
- Multiple cap sizes (6mm square, 8.6mm square, 11mm square)
- Through-hole mounting design
- Single pole, momentary pushbuttons
- Operating Life: 300,000 cycles
- Travel: 1.3mm
- Contact Rating: 20VDC @ 1mA; 5VDC @ 5mA
- Operating/Storage Temperature: -20°C to 70°C
LP2 Series Markets
Product Specifications

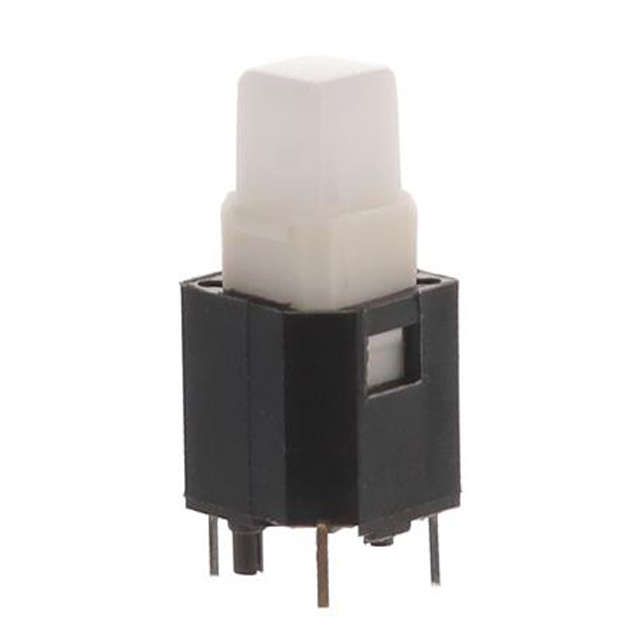

LP2S1WHTWHT-N
PUSHBUTTON, 1mA, 20VDC, SPST, Off-(On), Through Hole, Illuminated
- Series Name LP2
- PackagingBulk
- Current Rating1mA
- Voltage Rating20VDC
- CircuitSPST
- FunctionOff-(On)
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Actuator TypeSquare, Button
- Actuator ColorWhite
- Illumination StyleFull
- Illumination ColorLED, White
- Operating Temperature-20°C to 70°C
Support for LP2S1WHTWHT-N
Not the product you are looking for? Configure your product
