KAP Series Piano DIP Switch
KAP Series Piano DIP Switch
Stock Check for KAP1103E
Not the product you are looking for? Configure your product
DIP, 25mA, 24VDC, SPST, Through Hole, Right Angle
About KAP Series
- Electrical rating:Â Switch: 25mA @ 24VDC;Â Carry: 100mA @ 50VDC
- Through hole right angle mounting design
- 2 to 12 positions; SPST each position
- Straight PC pin termination
- Extended or recessed actuator; top tape seal option
- 0.100″ (2.54mm) Full pitch
- 2.0mm travel typical
- 2,000 cycle life
- Gold contact material
- -20°C to 85°C operating temperature
- Tube packaging
- Top-side “OFF” or top-side “ON” available
KAP Series Markets
Product Specifications

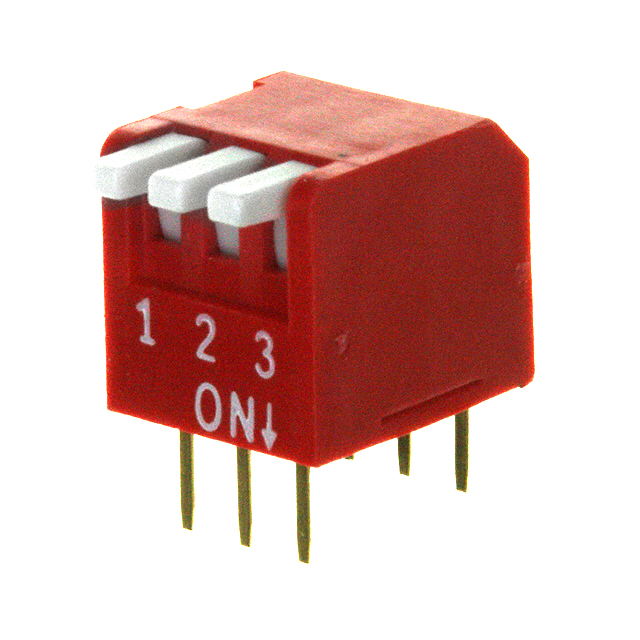

KAP1103E
DIP, 25mA, 24VDC, SPST, Through Hole, Right Angle
- Series Name KAP
- PackagingTube
- Current Rating25mA
- Voltage Rating24VDC
- CircuitSPST
- Mounting TypeThrough Hole, Right Angle
- Termination TypePC Pin
- Contact MaterialGold
- Actuator TypePiano
- Actuator Height10.20mm
- Operating Temperature-40°C to 85°C
- Nbr of Positions3
- Pitch0.100" (2.54mm), Full
