RRS20 Series
RRS20 Series Round, Sealed, Illuminated, Power Rocker Switch
- 20mm diameter panel cutout
- Up to 16A, 250VAC; UL; IP68
- SPST or SPDT; latching function
- Quick connect, solder or wire leads
- LED illumination options
- Actuator color options
- Actuator marking options

R4 Series
R4 Series Illuminated, Power Rocker Switch
- 30mm x 11mm panel cutout
- Up to 20A, 125VAC; UL
- SPST or SPDT; latching or mom.
- Quick connect, or wire leads
- Housing and actuator color options
- LED illumination options
- Actuator marking options

R1973 Series
R1973 Series Illuminated, Power Rocker Switch
- 19.2mm x 13mm panel cutout
- 9A, 125VAC; UL
- SPST or DPST; latching or mom.
- QC-tabs, PC pin, or wire leads
- Housing and actuator color options
- LED illumination options
- Actuator marking options

R1966 Series
R1966 Series Illuminated, Power Rocker Switch
- 19.2mm x 13mm panel cutout
- 15A, 125VAC; UL
- SPST or SPDT; latching or mom.
- QC-tabs, solder, PC pin, or wires
- Housing and actuator color options
- LED illumination options
- Actuator marking options

400U Series
400U Series Ultraminiature Rocker Switch
- Through hole
- Gold – 0.4VA, 20V max. (AC or DC)
- DPDT On-On
- Straight, rt. angle, or rt. angle vert.
- Rocker or paddle actuator
- Actuator color options
- Epoxy sealed terminals

400 Series
400 Series Subminiature Rocker Switch
- Panel mount or through hole
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT or DPDT; latching or mom.
- Straight, rt. angle, or rt. angle vert.
- PC Pin or Solder termination
- Actuator color options

WBL Series
WBL Series Illuminated, Right Angle Pushbutton Switch
- Through hole rt. angle
- 300mA, 30VDC
- DPDT or 4PDT; latching or mom.
- PC pin termination
- Plunger actuator, or button option
- Transparent, black, or silver button
- LED illumination options

ULP Series
ULP Series Illuminated Pushbutton Switch
- Panel mount or through hole
- Silver – 500mA, 25VDC
- Gold – 100mA, 28VDC
- SPDT or DPDT; latching or mom.
- Solder or PC pin termination
- Numerous button styles and colors
- LED illumination options

TL4201 Series
TL4201 Series Subminiature Pushbutton Switch
- Through hole
- 100mA, 30VDC
- 4PDT; latching or momentary
- PC pin termination options
- Three plunger actuator options
- Numerous cap options
- Cap color options

TL2285 Series
TL2285 Series Subminiature Pushbutton Switch
- Through hole
- 100mA, 30VDC
- DPDT; latching or momentary
- PC pin termination
- Plunger actuator
- Many cap options
- 180gf operating force

TL2233 Series
TL2233 Series Subminiature Pushbutton Switch
- SMT
- 100mA, 30VDC
- DPDT On-(On)
- Gullwing termination
- Rectangular button actuator
- White actuator; black housing
- Wave solderable
View Series

TL2202 Series
TL2202 Series Subminiature Pushbutton Switch
- Through hole
- 100mA, 30VDC
- DPDT; latching or momentary
- PC pin termination options
- Three plunger actuator options
- Numerous cap options
- Cap color options

TL2201 Series
TL2201 Series Subminiature Pushbutton Switch
- Through hole
- 100mA, 30VDC
- DPDT; latching or momentary
- PC pin termination options
- Three plunger actuator options
- Numerous cap options
- Cap color options

RP8600 Series
RP8600 Series Square Pushbutton Switch
- 16mm diameter panel cutout
- 0.4VA, 20V max. (AC or DC); IP67
- SPST Off-(On)
- Solder termination
- Square bezel; round button flush
- Threaded bushing: M16 x 1.0
- Gold over silver contact material

RP8500 Series
RP8500 Series Square, Illuminated Pushbutton Switch
- 13.6mm diameter panel cutout
- 100mA, 50VDC; IP67
- SPST Off-(On)
- Solder termination
- Square button, many color options
- Threaded bushing: M12 x 0.75
- LED illumination options

RP8400 Series
RP8400 Series Square, Illuminated Pushbutton Switch
- 13.6mm diameter panel cutout
- 200mA, 50VDC; IP67
- SPST Off-(On)
- Solder termination
- Square button, many color options
- Threaded bushing: M12 x 0.75
- LED illumination options

RP8300 Series
RP8300 Series Round, Illuminated Pushbutton Switch
- 13.6mm diameter panel cutout
- 200mA, 50VDC; IP67
- SPST Off-(On)
- Solder termination
- Round button, many color options
- Threaded bushing: M12 x 0.75
- LED illumination options

RP8200 Series
RP8200 Series Round, Illuminated Pushbutton Switch
- 13.6mm diameter panel cutout
- 100mA, 24VDC; IP67
- SPST Off-On
- Solder termination
- Round button, many color options
- Threaded bushing: M12 x 0.75
- LED illumination options

RP8100 Series
RP8100 Series Round, Illuminated Pushbutton Switch
- 13.6mm diameter panel cutout
- 100mA, 24VDC; IP67
- SPST Off-(On)
- Solder or wire leads termination
- Round button, many color options
- Snap-in or threaded (M12 x 0.75)
- LED illumination options

RP3508 Series
RP3508 Series Illuminated Pushbutton Switch
- 16mm diameter panel cutout
- 3A, 125VAC; UL
- SPST; latching or momentary
- Solder termination
- Round button actuator
- LED illumination options
- Actuator color options

PP2 Series
PP2 Series Push-Pull Pushbutton Detector Switch
- 36.5mm x 13.5mm panel cutout
- Up to 16A or 1HP, UL; IP40 rated
- Panel mount snap-in
- DPDT; push-pull or momentary
- Pin plunger, or push-pull plunger
- Quick connect termination options
- Black or white body and actuator

PP1 Series
PP1 Series Push-Pull Pushbutton Detector Switch
- 28.4mm x 13.5mm panel cutout
- Up to 16A or 1HP, UL; IP40 rated
- Panel mount snap-in
- SPDT; push-pull or momentary
- Pin plunger, or push-pull plunger
- Quick connect termination options
- Black or white body and actuator

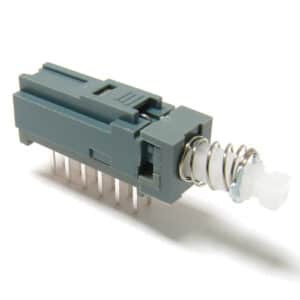

PBH Series
PBH Series Right Angle Pushbutton Switch
- Through hole right angle
- 100mA, 30VDC
- DPDT, 4PDT or 6PDT
- Latching or momentary function
- PC pin termination
- Plunger actuator, or cap option
- Cap option: 1C, 1D, 1R, 1S

PB350 Series
PB350 Series Illuminated, Long Travel Pushbutton Switch
- Through hole
- 30mA, 28VDC
- SPST mom. or SPDT double action
- PC pin termination
- Firm tactile response
- High actuation force
- LED illumination options

PB300 Series
PB300 Series Long Travel Pushbutton Switch
- Through hole
- 30mA, 28VDC
- SPST mom. or SPDT double action
- PC pin termination
- Firm tactile response
- High actuation force
- Non-illuminated

PB1973 Series
PB1973 Series Illuminated, Power Pushbutton Switch
- 19.2mm x 13mm panel cutout
- 15A, 250VAC; UL
- SPST or DPST; latching or mom.
- Quick connect termination
- Rectangular button actuator
- LED or neon illumination
- Housing and actuator color options

PA5 Series
PA5 Series Power Pushbutton Switch
- Rear or lateral panel mount
- 16A, 125/250VAC; UL
- SPST or DPST; latching or mom.
- Engineered for use as a foot switch
- Plunger for cap
- Solder or quick-connect
- -20 to +125°C operating temp

P16 Series
P16 Series Illuminated Pushbutton Switch
- 16mm diameter panel cutout
- Up to 8A, 125VAC; UL
- Modular interface/contact block
- SPDT; latching or momentary
- Quick connect, socket
- Circular, square, or rectangle head
- LED, neon, or incandescent lamp

LP6 Series
LP6 Series Illuminated Pushbutton Switch
- Through hole
- 12mA, 12VDC
- SPST or DPST; momentary
- PC pin termination
- Square button actuator
- LED illumination options
- Bi-color & RGB color options

LP4 Series
LP4 Series Illuminated Pushbutton Switch
- Thru hole or thru hole rt. angle
- 100mA, 30VDC
- DPDT; latching or momentary
- PC pin termination
- Round, square, or plunger actuator
- With or without bezel
- LED illumination options

LP37 Series
LP37 Series Illuminated, Right Angle Pushbutton Switch
- SMT right angle
- 250mA, 50VDC
- SPDT On-(On)
- Gullwing termination
- 9.6mm plunger actuator
- LED illumination options
- Tape & reel packaged

LP2 Series
LP2 Series Illuminated Pushbutton Switch
- Through hole
- 1mA, 20VDC
- SPST Off-(On)
- PC pin termination
- Square button; three size options
- LED illumination options
- Button color options

LP16 Series
LP16 Series Long Life, Illuminated Pushbutton Switch
- Through hole
- 100mA, 20VDC
- SPST Off-(On)
- PC pin termination
- Square button; two size options
- LED illumination options
- Diffuser color options

LP15 Series
LP15 Series Illuminated Pushbutton Switch
- Through hole
- 1mA, 20VDC
- SPST Off-On
- PC pin termination
- LED illumination options
- Square or round button
- Button color options

LP11 Series
LP11 Series Illuminated Pushbutton Switch
- Through hole
- 100mA, 12VDC
- SPST; latching or momentary
- Tactile or non-tactile feel actuator
- Three actuator cap size options
- LED illumination options
- LED options of bi-color & RGB

LP1 Series
LP1 Series Illuminated, Round Pushbutton Switch
- 8mm diameter panel cutout
- 100mA, 30VDC
- SPST Off-(On)
- Solder termination
- Round button actuator
- LED illumination options
- 5.4mm cap size
View Series

LC Series
LC Series Right Angle Pushbutton Switch
- Through hole right angle
- 300mA, 30VDC
- SPDT or DPDT; latching or mom.
- PC pin termination
- Plunger for cap actuator
- Shorting or non-shorting versions
- Many cap options

LB22 Series
LB22 Series Illuminated Pushbutton Switch
- 22mm diameter panel cutout
- 3A, 250VAC; IP65
- SPDT or DPDT; latching or mom.
- Solder termination
- LED illumination options
- Actuator color options
- Silver or gold contact material

LA Series
LA Series Sealed, Illuminated Pushbutton Switch
- Three panel cutout options
- Up to 8A, 125VAC; UL; IP65
- 1 – 4 pole; latching or momentary
- Pilot lamp indicator option
- Modular interface/contact block
- Actuator head style options
- LED, neon, or incandescent lamp

L16 Series
L16 Series Illuminated Pilot Indicator
- 16mm diameter panel cutout
- Pilot lamp indicator light
- Modular interface/contact block
- Solder termination
- Circular, square, or rectangle head
- LED, neon, or incandescent lamp
- Lamp and lens color options

FS5700 Series
FS5700 Series Pushbutton Foot Switch
- Foot-actuated pushbutton
- 1A, 9VDC
- SPDT, DPDT or 3PDT
- Momentary or alternate action
- High actuation force
- PC pin or solder termination
- 2.7mm to 5mm travel

D16 Series
D16 Series Illuminated Pushbutton Switch
- 16mm diameter panel cutout
- Up to 8A, 125VAC; UL
- Modular interface/contact block
- 1 – 4 pole; latching or momentary
- Solder termination
- Circular, square, or rectangle head
- LED, neon, or incandescent lamp

800U Series
800U Series Sealed, Ultraminiature Pushbutton Switch
- Through hole; IP67 rated
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT or DPDT; On-(On)
- PC pin termination
- Straight, rt. angle, or rt. angle vert.
- Cap style and color options
- Gold contact material

800C Series
800C Series Alternating Action, Miniature Pushbutton Switch
- Panel mount or through hole
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT On- On
- Solder or PC pin
- Straight, rt. angle, or rt. angle vert.
- Alternating action design

800B Series
800B Series Sealed, Subminiature, SMT Right Angle Pushbutton Switch
- SMT right angle; IP67 rated
- Gold – 0.4VA, 20V max. (AC or DC)
- SPST or SPDT; momentary function
- Gullwing termination
- Gold contact material
- Epoxy sealed terminals
- Tape & reel packaged

800A Series
800A Series Sealed, Subminiature Pushbutton Switch
- Through hole; IP67 rated
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPST or SPDT; momentary function
- Cap style and color options
- Straight, rt. angle, or rt. angle vert.
- Butt contact design

700C Series
700C Series Alternate Action, Miniature Pushbutton Switch
- Panel mount or through hole
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT On-On
- Solder or PC pin; bracket option
- Straight, rt. angle, or rt. angle vert.
- Push-on, push-off alternate action

700A Series
700A Series Sealed Pushbutton Switch
- Panel mount or through hole; IP67
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT or DPDT; On-(On)
- Solder or PC pin; bracket option
- Straight, rt. angle, or rt. angle vert.
- Snap acting contact design

5500 Series
5500 Series Illuminated Pushbutton Switch
- Through-hole
- 300mA, 12VDC
- Hinged pushbutton design
- Crisp tactile feel
- SPDT On-(On)
- Single or dual LED options
- Small or large cap style

800 Series
800 Series Subminiature Pushbutton Switch
- Panel mount or through hole
- Silver – 3A, 120VAC or 28VDC; UL
- Gold – 0.4VA, 20V max. (AC or DC)
- SPST or SPDT; momentary function
- Cap style and color options
- Straight, rt. angle, or rt. angle vert.
- Butt contact design

700 Series
700 Series Snap-Acting, Panel Mount Pushbutton Switch
- Panel mount
- Up to 3A, 120VAC or 28VDC; UL
- SPDT or DPDT; On-(On)
- Solder or quick-connect
- Bezel option; cap color options
- Silver or gold contact material
- Snap acting contact design

700 Series
700 Series Snap-Acting Pushbutton Switch
- Panel mount or through hole
- Up to 3A, 120VAC or 28VDC; UL
- SPDT or DPDT; On-(On)
- Variety of termination options
- Cap style and color options
- Threaded or nonthreaded bushing
- Snap acting contact design

TM1000 Series
TM1000 Series Tilt Switch
- Through hole right angle
- 20mA, 20V (AC or DC)
- SPST output
- ±45° operating angle
- 1,000,000 life cycles
- Contains no mercury
- Silver contact material

RDT Series
RDT Series Sealed Rotary DIP Switch
- Through hole, SMT, or Rt angle
- 150mA, 42VDC; IP67 rated
- 2×3 or 3×3 pcb terminal layout
- Flush, shaft, or knob actuator
- 4, 6, 8, 10, or 16 positions
- Real or complementary code
- 0.100″ (2.54mm), Full pitch

RDM Series
RDM Series Sealed, Ultra Slim Rotary DIP Switch
- Through hole, SMT, or Rt angle
- 25mA, 24VDC; IP67 rated
- 3×3 pcb terminal layout
- Flush, or shaft actuator
- 10 or 16 positions
- Real or complementary code
- 0.100″ (2.54mm), Full pitch

KAS Series
KAS Series DIP Switch
- Through hole; right angle option
- 25mA, 24VDC
- Slide actuator; raised or recessed
- 1-12 positions; SPST each position
- 0.100″ (2.54mm) Full pitch
- Gold contact material
- Top tape seal option

KAP Series
KAP Series Piano DIP Switch
- Through hole
- 25mA, 24VDC
- Piano actuator; raised or recessed
- 2-12 positions; SPST each position
- 0.100″ (2.54mm) Full pitch
- Gold contact material
- Top tape seal option

KAG Series

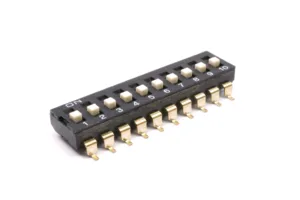

KAG Series Low Profile DIP Switch
- SMT
- 25mA, 24VDC
- Slide actuator; raised or recessed
- 1-10 positions; SPST each position
- 0.100″ (2.54mm) Full pitch
- Gold contact material
- Top tape seal option

KAD Series
KAD Series Low Profile, Tri-State DIP Switch
- Through hole or SMT
- 25mA, 24VDC
- Slide actuator; raised or recessed
- 4-10 positions; SPDT each position
- 0.100″ (2.54mm) Full pitch
- Gold contact material
- Top tape seal option

KAC Series
KAC Series Low Profile, Piano DIP Switch
- Through hole or SMT
- 25mA, 24VDC
- Piano actuator; raised
- 2-10 positions; SPST each position
- 0.100″ (2.54mm) Full pitch
- Gold contact material

TD4700 Series
TD4700 Series Ultraminiature SMT Detector Switch
- SMT
- 1mA, 5VDC
- SPST Off-(On)
- Angled toggle detector
- 50gf max. force; 2.2mm travel
- Mounting boss option
- Ultraminiature size; guiding post

TL9210 Series
TL9210 Series Soft Touch, Long Travel, SMT Tactile Switch
- SMT
- 6mm x 6mm
- “Soft Touch” tactile switch
- Long travel of 1.3mm
- 180gf or 260gf operating force
- 5mm actuator height
- 100,000 cycle life

TL9100 Series
TL9100 Series Soft Touch, Long Travel, SMT Tactile Switch
- SMT
- 6mm x 6mm
- “Soft Touch” tactile switch
- Long travel of 1.3mm
- 200gf or 350gf operating force
- 5mm actuator height
- Up to 100,000 cycle life

TL6800 Series
TL6800 Series Sealed, Long Life, SMT Tactile Switch
- IP67
- SMT
- 6.3mm x 6.2mm
- Up to 1,000,000 cycle life
- 160gf or 260gf operating force
- 3.1mm actuator height
- Silver contact material

TL6400 Series
TL6400 Series Sealed, SMT Tactile Switch
- IP67
- SMT
- 6mm x 3.5mm
- 160gf or 260gf operating force
- 4.3mm or 5.0mm actuator height
- 30,000-50,000 cycle life
- Silver contact material

TL6300 Series
TL6300 Series Sealed, Long Life, Through Hole Tactile Switch
- IP67
- Through hole
- 12mm x 12mm
- Long life of 10,000,000 cycles
- 130gf or 260gf operating force
- 7.3mm or 4.3mm actuator height
- 0.3mm travel

TL6275 Series
TL6275 Series Illuminated, Through Hole Tactile Switch
- Through hole
- 8mm x 8mm
- LED illuminated
- Many LED color options
- Multiple actuator options
- Additional cap options
- 350gf operating force

TL6215 Series
TL6215 Series Sealed, Illuminated, Through Hole Tactile Switch
- IP67
- Through hole; vertical or right angle
- size difference for TH and RA
- LED Illuminated
- Many LED color options
- Many additional cap options
- 200gf or 450gf operating force

TL6210 Series
TL6210 Series Sealed, Illuminated, SMT Tactile Switch
- IP67
- SMT
- 6.2mm x 4.6mm
- LED Illuminated
- many LED color options
- 200gf operating force
- 3.72mm actuator height

TL6200 Series
TL6200 Series Sealed, Long Life, Tactile Switch
- IP67
- SMT or Through hole
- 10.1mm x 10.1mm
- Many actuator height options
- Long life of 10,000,000 cycles
- 300gf operating force
- Black or white actuator

TL6190 Series
TL6190 Series Sealed, Through Hole Right Angle Tactile Switch
- Process sealed
- Through hole right angle
- 12mm x 11.5mm
- 160gf, 220gf, or 320gf
- 2.9mm actuator height
- Round button cap
- Silver or gold contact material

TL6170 Series
TL6170 Series Sealed, SMT Tactile Switch with Tall Actuator
- IP67
- SMT
- 6.3mm x 6.3mm
- 7.2mm or 7.7mm Actuator
- 180gf or 250gf operating force
- 300,000 cycle life
- Gull wing termination

TL6155 Series
TL6155 Series Sealed, Through Hole Right Angle Tactile Switch
- IP67
- Through hole right angle, PIP
- 6.55mm x 6.4mm
- 350gf operating force
- 3.9mm actuator height
- 300,000 cycle life
- Silver contact material

TL6150 Series
TL6150 Series Sealed, Long Life, SMT Tactile Switch
- IP67
- SMT
- 6.2mm x 6.2mm
- Up to 5,000,000 cycles
- Three operating forces
- Two actuator height options
- Gull wing or J lead

TL6110 Series
TL6110 Series Sealed, Through Hole Right Angle Tactile Switch
- IP67
- Through hole right angle
- 8.3mm x 5.8mm
- Many operating forces
- Many actuator height options
- Up to 1,000,000 cycle life
- Silver or gold contacts

TL6105 Series
TL6105 Series Sealed, Through Hole Tactile Switch with Earth Ground Terminal
- IP67
- Through hole
- 7.4mm x 7.4mm
- Earth ground terminal
- Many operating forces
- Many actuator height options
- Up to 1,000,000 cycle life

TL6100 Series
TL6100 Series Sealed, Through Hole Tactile Switch
- IP67
- Through hole
- 7.4mm x 7.4mm
- Many operating forces
- Many actuator height options
- Up to 1,000,000 cycle life
- Silver or gold contacts

TL53 Series
TL53 Series Dual, Through Hole Right Angle Tactile Switch
- Through hole right angle
- 8.4mm x 10.5mm
- Two independent switches
- Many actuator height options
- Three operating forces
- Silver contact material
- -20°C to 70°C operating temp

TL4105 Series
TL4105 Series Ultraminiature, SMT Edge Mount Right Angle Tactile Switch
- SMT, rt. angle edge mount
- 6.2mm x 2.5mm
- 1.7mm actuator height
- 160gf or 250gf
- Gullwing termination
- Up to 200,000 cycle life
- 0.15mm travel

TL4100 Series
TL4100 Series Miniature, SMT Edge Mount Right Angle Tactile Switch
- SMT, rt. angle edge mount
- 6.2mm x 2.5mm
- 2.0mm actuator height
- 120gf, 160gf, or 240gf
- Gullwing; L-shape terminals option
- Up to 1,000,000 cycle life
- 0.15mm travel

TL3901 Series
TL3901 Series Subminiature, SMT Right Angle Tactile Switch
- SMT
- 6mm x 5.4mm
- 180gf operating force
- Mounting boss
- Gull wing termination
- 50,000 cycle life
- 0.30mm travel

TL3780 Series
TL3780 Series Ultraminiature, Low Profile, SMT Tactile Switch
- SMT
- 2.0mm x 3.0mm
- low profile 0.60mm
- 100gf, 160gf, 240gf or 330gf operating force
- Up to 500,000 cycle life
- Gull wing termination
- 0.13mm travel

TL3365 Series
TL3365 Series Ultraminiature, SMT Tactile Switch
- SMT
- 4.2mm x 3.2mm
- 2.5mm actuator height
- Three operating forces
- J Lead termination
- Silver contact material
- 100,000 cycle life

TL3360 Series
TL3360 Series SMT Right Angle Tactile Switch
- SMT
- 6.5mm x 6.5mm
- 185gf or 260gf operating force
- Many actuator height options
- Solder pad option
- Auto placement tab option
- Silver or gold contacts

TL3340 Series
TL3340 Series Subminiature, SMT Right Angle Tactile Switch
- SMT
- 4.25mm x 3.3mm
- 3.4mm or 5.9mm actuator height
- Three operating forces
- Gull wing termination
- 100,000 cycle life
- 300,000 for silicon actuator

TL3336 Series
TL3336 Series Sealed, SMT Right Angle Tactile Switch
- IP67
- SMT
- 7.1mm x 6.6mm
- 1.9mm actuator height
- Many operating force options
- 100,000 cycle life
- Silver contact material

TL3330 Series
TL3330 Series SMT Right Angle Tactile Switch
- SMT
- 7.8mm x 2.5mm
- 3.5mm actuator height
- 130gf or 260gf operating force
- Gull wing termination
- 30,000 – 50,000 cycle life
- Silver contact material

TL3315 Series
TL3315 Series Ultra Low Profile, SMT Tactile Switch
- SMT
- 4.5mm x 4.5mm
- low profile of 0.55mm
- 0.20mm travel
- Three operating forces
- Up to 1,000,000 cycle life
- Silver contact material

TL3313 Series
TL3313 Series Subminiature, SMT Tactile Switch
- SMT
- 4.6mm x 4.6mm
- Three operating forces
- 1.5mm actuator height
- Gull wing termination
- Silver contact material
- 100,000 cycle life

TL3305 Series
TL3305 Series SMT Tactile Switch
- SMT
- 4.5mm x 4.5mm
- Many operating forces
- Three actuator height options
- Up to 500,000 cycle life
- Gull wing termination
- Silver contact material

TL3304 Series
TL3304 Series SMT Tactile Switch
- SMT
- 6.2mm x 6.2mm
- many operating forces
- Two actuator height options
- 100,000 cycle life
- Gull wing or J lead
- Silver contact material

TL3303 Series
TL3303 Series SMT Tactile Switch
- SMT
- 6mm x 6mm
- Ground terminal option (TLE)
- Long life option (LL)
- 100gf, 160gf, or 260gf force
- Two actuator height options
- Gull wing termination

TL3302 Series
TL3302 Series SMT Tactile Switch
- SMT
- 6mm x 3.5mm
- 130gf, 180gf, or 260gf force
- Two actuator height options
- Gull wing or J lead
- Silver contact material
- 20,000-50,000 min. cycles

TL3301 Series
TL3301 Series SMT Tactile Switch
- SMT
- 6mm x 6mm
- 100gf 160gf, or 260gf force
- Many actuator height options
- Cap options
- 100,000 cycle life
- Gull wing or J lead

TL3300 Series
TL3300 Series Long Life, SMT Tactile Switch
- SMT
- 12mm x 12mm
- Many operating forces
- Many actuator height options
- up to 10,000,000 cycles
- Silver contact material
- -25 to 70°C operating temp

TL3275 Series
TL3275 Series Illuminated, SMT Right Angle Tactile Switch
- SMT
- 6.4mm x 3.55mm
- LED illuminated
- LED color options
- dual-LED
- 3.9mm actuator height
- 160gf operating force

TL3265 Series
TL3265 Series Illuminated, SMT Tactile Switch
- SMT
- 7mm x 6.8mm
- LED Illuminated
- LED color options
- Many additional cap options
- 12mm height
- 160gf operating force

TL3253 Series
TL3253 Series Dual Illuminated, Through Hole Right Angle Tactile Switch
- Through hole right angle
- 8.4mm x 10.55mm
- Single or dual LED illuminated
- LED color options
- Dual actuation
- Additional cap options
- 22.6mm height
- 160gf operating force

TL3240 Series
TL3240 Series Illuminated, SMT Tactile Switch
- SMT
- 6.1mm x 6.1mm
- LED Illuminated
- many LED color options
- Additional cap options
- 7.8mm height
- 100gf, 160gf, or 260gf force

TL3215 Series
TL3215 Series Ultraminiature, Long Life, Illuminated, SMT Tactile Switch
- SMT
- 4.9mm x 4.9mm
- LED Illuminated
- many LED color options
- 2.0mm actuator height
- 1,000,000 cycle life
- 160gf or 250gf operating force

TL3210 Series
TL3210 Series Miniature, Illuminated, SMT Tactile Switch
- SMT
- 5.6mm x 3.4mm
- LED Illuminated
- LED color options
- 3.12mm actuator height
- 160gf operating force
- 100,000 cycle life

TL3200 Series
TL3200 Series Dual Illuminated, SMT Tactile Switch
- SMT
- 6.8mm x 4.5mm
- Single or dual LED illuminated
- LED color options
- 2.5mm height
- 160gf operating force
- 30,000 cycle life

TL3145 Series
TL3145 Series Sealed, Long Life, SMT Tactile Switch
- IP67
- SMT
- 6.45mm x 6.45mm
- 3,000,000 cycles
- 180gf, 260gf, or 350gf force
- actuator height options
- J lead termination

TL2243 Series
TL2243 Series Dual Through Hole Right Angle Tactile Switch
- Through hole right angle
- 7.3mm x 8mm
- Dual actuation
- 6.8mm actuator height
- 180gf operating force
- 0.25mm travel
- 30,000 cycle life

TL1275 Series
TL1275 Series Illuminated Tactile Switch with Wire Leads and Connectors
- Panel mount
- 16mm diameter cutout
- Wires and connectors
- LED Illuminated
- LED color options
- 350gf operating force
- Sharp tactile response

TL1265 Series
TL1265 Series Illuminated, Through Hole Tactile Switch
- Through hole
- 7mm x 6.8mm
- LED illuminated
- LED color options
- Cap and cap color options
- 160gf operating force
- 500,000 cycle life

TL1260 Series
TL1260 Series Illuminated, Through Hole Right Angle Tactile Switch
- Through hole right angle
- 7mm x 6.8mm
- LED illuminated
- LED color options
- Round cap option
- 160gf operating force
- Cap color options

TL1250 Series
TL1250 Series Illuminated, Through Hole Right Angle Tactile Switch
- Through hole right angle
- 8.3mm x 10.3mm
- LED illuminated
- Many LED color options
- Additional round cap option
- 10.7mm actuator height (with cap)
- Three operating forces

TL1220 Series
TL1220 Series Illuminated, Through Hole Tactile Switch
- Through hole
- 7.6mm x 6mm
- LED illuminated
- Many LED color options
- Numerous button options
- Many graphic options
- 180gf operating force

TL1107 Series
TL1107 Series Through Hole Tactile Switch
- Through hole with options
- 6mm x 3.5mm
- Three operating forces
- 4.3mm or 5.0mm actuator height
- Silver contact material
- 30,000 – 50,000 min. cycle life
- -20°C to 70°C operating temp

TL1105 Series
TL1105 Series Through Hole Tactile Switch
- Through hole
- 6mm x 6mm
- Ground terminal option
- 100gf, 160gf, or 250gf force
- Right angle option
- Many actuator height options
- Cap and cap color options

TL1100 Series
TL1100 Series Through Hole Tactile Switch
- Through hole, or THRA
- 12mm x 12mm
- 160gf or 260gf operating force
- Many actuator height options
- Many additional cap options
- Many Additional cap color options
- 100,000 cycle life

TL1030 Series
TL1030 Series Miniature SMT Tactile Switch
- SMT
- 3.5mm x 2.9mm
- Many operating forces
- Ground terminal option
- J-lead termination
- Up to 200,000 cycle life
- Silver contact material

TL1018 Series
TL1018 Series Miniature SMT Tactile Switch
- SMT
- 3.5mm x 2.6mm
- Many operating forces
- Ground terminal option
- Mounting boss option
- Up to 500,000 cycle life
- Silver contact material

TL1017 Series
TL1017 Series Miniature SMT Tactile Switch
- SMT
- 3.0mm x 2.5mm
- 160gf or 260gf operating force
- Mounting boss option
- Ground terminal option
- Up to 200,000 cycle life
- Gull wing termination

TL1016 Series
TL1016 Series Subminiature, SMT Right Angle Tactile Switch
- SMT right angle
- 4.7mm x 2.9mm
- 3.55mm actuator length
- 160gf or 220gf operating force
- Mounting boss option
- Ground terminal option
- Gull wing termination

TL1015 Series
TL1015 Series Miniature SMT Tactile Switch
- SMT
- 3.9mm x 2.9mm
- 160gf or 250gf operating force
- Mounting boss option
- Gull wing termination
- Silver contact material
- Tape and reel packaged

TL1014 Series
TL1014 Series Miniature, SMT Right Angle Tactile Switch
- SMT
- 4.7mm x 3.5mm
- 160gf or 220gf operating force
- Gull wing termination
- Mounting boss option
- 4.5mm actuator height
- 1.65mm height off the pcb

RT3301 Series
RT3301 Series Reverse SMT Tactile Switch
- Reverse SMT
- 6mm x 6mm
- Many operating forces
- 100,000 cycle life
- Silver contact material
- -40° to 85°C operating temp
- 50mA @ 12VDC

RT1105 Series
RT1105 Series Reverse Through Hole Tactile Switch
- Reverse through hole
- 6.8mm x 6.8mm
- Three operating forces
- 100,000 cycle life
- Silver contact material
- -20°C to 85°C operating temp
- 50mA @ 12VDC

LL3301 Series
LL3301 Series Long Life SMT Tactile Switch
- Long life version of the TL3301
- SMT
- 6mm x 6mm
- Many actuator height options
- Cap options for certain models
- 70gf operating force
- 1,000,000 cycle life

320 Series
320 Series Tactile Pushbutton Switch
- Through hole
- 12.4mm x 12.4mm
- Many cap styles and colors
- Many additional cap options
- 1,000,000 cycle life
- 135gf operating force
- 0.7mm travel

WS Series
WS Series Sealed Snap Action Switch
- Chassis mount, or through hole
- 0.1A, 125VAC; UL
- 1A 24VDC; UL
- SPDT On-(On); IP67 rated
- Solder, PC pin, or wire leads
- Pin plunger, or two lever options
- 50gf or 70gf operating force

SS Series
SS Series Subminiature Snap Action Switch
- Chassis, thru hole, or rt angle
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 3A or 0.1A options; UL
- SPDT On-(Off)
- Solder, PC pin, retention, or angled
- Pin plunger, or three lever options
- 15gf – 130gf operating force

MS Series
MS Series Miniature Snap Action Switch
- Chassis, thru hole, or rt angle
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 5A, 125/250VAC; UL, VDE
- SPDT or SPST-NO
- Solder, quick connect, or PC pin
- Pin plunger, or seven lever options
- 10gf – 295gf operating force

LS Series
LS Series Snap Action Switch
- Chassis, or thru hole rt angle
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 15A, 125/250VAC; UL, VDE
- SPDT, SPST-NC, or SPST-NO
- Solder, quick connect, or PC pin
- Pin plunger, or six lever options
- 25gf – 250gf operating force

EGJ1210 Series
EGJ1210 Series Slide Switch
- SMT, thru hole, or rt. angle
- 300mA, 24VDC
- SPDT On-On
- Gullwing or PC pin options
- 250gf operating force
- 1.6mm travel
- Gold terminals

EG1312 Series
EG1312 Series SMT Right Angle Slide Switch
- SMT right angle
- 30mA, 15VDC
- SP3T On-On-(On)
- Gullwing termination
- 150gf operating force
- 1.5mm travel to any position
- 1.5mm height above pcb

500R Series
500R Series Sealed, Through Hole Slide Switch
- Thru hole, or thru hole rt angle
- Gold – 0.4VA, 20V max. (AC or DC)
- SPDT or DPDT; 2 or 3 positions
- 2.8mm actuator length
- PC pin termination
- Epoxy sealed terminals
- IP67 rated

500A Series
500A Series Subminiature Slide Switch
- Through hole or SMT
- Gold – 0.4VA, 20V max. (AC or DC)
- Silver – 3A, 120VAC; 1A, 250VAC; UL
- SPDT; 2 or 3 positions; latching
- Vertical or right angle actuation
- PC pin or gullwing termination
- Epoxy sealed terminals

600 Series
600 Series Miniature, Through Hole Slide Switch
- Thru hole, or thru hole rt angle
- Gold- 0.4VA, 20V max. (AC or DC)
- Silver- 3A, 120VAC; 1A, 250VAC; UL
- SPDT or DPDT; 2 or 3 positions
- Vertical or right angle actuation
- Recessed or raised actuator
- Epoxy sealed terminals

500 Series
500 Series Miniature Slide Switch
- Panel mount, or through hole
- Gold- 0.4VA, 20V max. (AC or DC)
- Silver- 5A, 120VAC; 2A, 250VAC; UL
- SPDT or DPDT; 2 or 3 positions
- Vertical or right angle actuation
- Variety of termination options
- Epoxy sealed terminals

RSC Series
RSC Series Illuminated, Power Rocker Switch with Bi-Color Actuator
- Four panel cutout options
- Up to 20A, 125VAC; UL; IP54
- SPST or SPDT; latching or mom.
- Quick connect, solder, or wires
- Housing and actuator color options
- LED illumination options
- Actuator marking options

RRG3 Series
RRG3 Series Round, Power Rocker Switch
- 20mm diameter panel cutout
- Up to 16A, 125VAC; UL
- SPST or SPDT; latching or mom.
- Quick connect, solder, or wires
- Housing and actuator color options
- Non-illuminated, glossy finish
- Actuator marking options

RRA Series
RRA Series Round, Illuminated, Power Rocker Switch with PVC Cap
- 22mm diameter panel cutout
- Up to 15A, 125VAC; UL
- 1 or 2 pole; latching
- Quick connect, or wire leads
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-P04

RR8 Series
RR8 Series Round, Illuminated, Power Rocker Switch with PVC Cap
- 20mm diameter panel cutout
- Up to 16A, 125VAC; UL
- DPST; Off-On
- Quick connect, or wire leads
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-P03

RR5 Series
RR5 Series Round, Power Rocker Switch
- 20mm diameter panel cutout
- Up to 20A, 125VAC; UL
- SPST; latching or momentary
- Quick connect, solder, or wires
- Housing and actuator color options
- Actuator marking options
- Short body design

RR3402 Series
RR3402 Series Round, Paddle Style, Power Rocker Switch
- 15mm diameter panel cutout
- Up to 6A, 125VAC; UL
- SPST or SPDT; latching
- Solder, or wire leads termination
- Black housing and actuator
- Paddle style actuator
- Threaded body with nut design

RR3130 Series
RR3130 Series Round, Power Rocker Switch
- 18.2mm diameter panel cutout
- Up to 10A, 125VAC; UL
- 1 or 2 pole; latching
- Solder, or wire leads termination
- Housing and actuator color options
- Actuator marking options
- Threaded body with nut design

RR3112 Series
RR3112 Series Round, Illuminated, Power Rocker Switch
- 20.2mm diameter panel cutout
- Up to 16A, 125VAC; UL
- SPST or SPDT; latching or mom.
- Quick connect, or wire leads
- Housing and actuator color options
- LED illumination options
- Actuator marking options

RR1 Series
RR1 Series Round, Illuminated, Power Rocker Switch with PVC Cap
- 20mm diameter panel cutout
- Up to 16A, 125VAC; UL
- SPST or SPDT; latching
- Quick connect, solder, or wires
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-P03

RE1 Series
RE1 Series Oval, Illuminated, Power Rocker Switch
- 23.3mm 13.5mm Oval panel cutout
- Up to 16A, 125VAC; UL
- SPST or SPDT; latching
- Quick connect, or wire leads
- Housing and actuator color options
- LED illumination options
- Actuator marking options

RB5 Series
RB5 Series Sealed, Illuminated, Power Rocker Switch
- 30.2mm 22mm panel cutout
- Up to 25A, 125VAC; UL
- DPST or DPDT; latching or mom.
- Quick connect, or wire leads
- Flat actuator
- LED illumination options
- Actuator marking options

RB3 Series
RB3 Series Sealed, Illuminated, Power Rocker Switch
- 30.2mm 13.8mm panel cutout
- Up to 25A, 125VAC; UL
- SPST or SPDT; latching or mom.
- Quick connect, or wire leads
- Flat actuator
- LED illumination options
- Actuator marking options

RB1 Series
RB1 Series Illuminated, Power Rocker Switch with PVC Cap
- 30mm 11mm panel cutout
- Up to 20A, 125VAC; UL
- SPST or SPDT; latching or mom.
- Quick connect, or wire leads
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-F01-1

RA1 Series
RA1 Series Illuminated, Power Rocker Switch with PVC Cap
- 19.2mm 13mm panel cutout
- Up to 16A, 125VAC; UL
- SPST or SPDT; latching or mom.
- QC-tabs, solder, PC pin, or wires
- LED illumination options
- Actuator marking options
- IP54 with PVC cap: ACC-P01

R6 Series
R6 Series Slim, Power Rocker Switch
- 19.2mm 6.65mm panel cutout
- 10A, 125VAC; UL
- SPST; latching or mom.
- Quick connect, or wire leads
- Housing and actuator color options
- Non-illuminated
- Actuator marking options

R5 Series
R5 Series Illuminated, Power Rocker Switch
- 30mm x 22mm panel cutout
- Up to 20A, 125VAC; UL
- DPST or DPDT; latching or mom.
- Quick connect, or wire leads
- Actuator color options
- LED illumination options
- Actuator marking options

900 Series
900 Series Subminiature SMT Right Angle Detector Switch
- SMT right angle
- 100mA, 50VDC
- SPST, NO or NC; momentary
- Overtravel plunger actuator
- 50gf max. force; 2.0mm travel
- Mounting boss option
- Tape and reel packaged

ECM3022 Series
ECM3022 Series Free Hanging Plug Housing
Free hanging plug housing for ECM Series connector system with 3mm spacing, a low profile design and up to 10 poles.
View Series
SV8 Series
SV8 Series Illuminated, Short Body Anti-Vandal Switch
- 25mm panel cutout
- 2A, 36VDC; IP67 rated
- SPST Off-(On)
- Short body design; flat actuator
- Solder or wire leads
- LED ring or ring/power symbol
- Stainless steel finish

SV7 Series
SV7 Series Illuminated, Short Body Anti-Vandal Switch
- 22mm panel cutout
- 2A, 36VDC; IP67 rated
- SPST Off-(On)
- Short body design; flat actuator
- Solder or wire leads
- LED ring or ring/power symbol
- Stainless steel finish

SV4 Series
SV4 Series Illuminated, Short Body Anti-Vandal Switch
- 19mm panel cutout
- 2A, 36VDC; IP67 rated
- SPST Off-(On)
- Short body design; flat actuator
- Solder or wire leads
- LED ring or ring/power symbol
- Stainless steel finish

SAV8 Series
SAV8 Series Illuminated, High Current Anti-Vandal Switch
- 25mm panel cutout
- 15A, 125VAC; IP67 rated
- SPDT; latching or momentary
- Pre-mounted on LS Series switch
- Quick connect 0.187″ or wire leads
- LED ring, or ring/power symbol
- Stainless steel or black anodized

SAV7 Series
SAV7 Series Illuminated, High Current Anti-Vandal Switch
- 22mm panel cutout
- 15A, 125VAC; IP67 rated
- SPDT; latching or momentary
- Pre-mounted on LS Series switch
- Quick connect 0.187″ or wire leads
- LED ring, or power symbol
- Stainless steel or black anodized

SAV4 Series
SAV4 Series Illuminated, High Current Anti-Vandal Switch
- 19mm panel cutout
- 15A, 125VAC; IP67 rated
- SPDT; latching or momentary
- Pre-mounted on LS Series switch
- Quick connect 0.187″ or wire leads
- LED ring, dot, or power symbol
- Stainless steel or black anodized

PZ Series
PZ Series Illuminated Anti-Vandal, Piezo Switch
- 16mm, 19mm, or 22mm cutout
- 1A, 24VDC; IP68 rated
- SPST Off-(On); Piezo switch
- Concave or flat bezel
- Wire leads with connector
- LED ring, or non-illuminated
- Clear anodized or black anodized

PVT4 Series
PVT4 Series Illuminated, Tactile Response Anti-Vandal Switch
- 19m panel cutout
- 50mA, 24VDC; IP65 rated
- SPST Off-(On)
- Tactile response; 0.5mm travel
- Solder or wire leads
- LED ring illumination
- Stainless steel or black anodized

PVS7 Series
PVS7 Series Illuminated Anti-Vandal Switch
- 22m panel cutout
- 2A, 24VDC; IP65 rated
- SPDT or DPDT; latching or mom.
- Square bezel; flat actuator
- Solder or wire leads
- LED ring, or etched power symbol
- Stainless steel finish

PVP Series
PVP Series Anti-Vandal Switch Socket
- Socket extension for PV Series
- Solder or wire leads termination
- SPDT or DPDT
- LED illuminated, or non-illuminated
- Use with PV3, 4, 7, 8, 9, 10, or PVB3

PVK4 Series
PVK4 Series Illuminated Anti-Vandal Switch
- 19m panel cutout
- 2A, 24VDC; IP65 or IP40 rated
- SPDT or DPDT; 2 or 3 positions
- Keylock or selector actuator
- Solder or wire leads
- LED illuminated arrow (selector)
- Stainless steel finish

PVHC7 Series
PVHC7 Series Illuminated, High Current Anti-Vandal Switch
- 22m panel cutout
- 20A, 250VAC, UL; IP67 rated
- SPST; latching or momentary
- Flat actuator
- Solder or wire leads
- LED ring or ring/power symbol
- Stainless steel or black anodized

PVHC4 Series
PVHC4 Series Illuminated, High Current Anti-Vandal Switch
- 19m panel cutout
- 20A, 250VAC, UL; IP67 rated
- SPST; latching or momentary
- Flat actuator
- Solder or wire leads
- LED ring or ring/power symbol
- Stainless steel or black anodized

PVA6 Series
PVA6 Series Illuminated, Long Life Anti-Vandal Switch
- 16m panel cutout
- 2A, 36VDC; IP67 rated
- SPST; latching or momentary
- Domed, high or flat bezel/actuator
- Solder, wire leads, or molded back
- LED ring or ring/power symbol
- Stainless steel, clear, or black

PV9 Series
PV9 Series Illuminated Anti-Vandal Switch
- 28m panel cutout
- 2A, 48VDC; IP65 rated
- DPST-NO/NC or 4PST-2NO/2NC
- Flat actuator
- Solder or wire leads
- LED ring or dot
- Stainless steel or nickel finish

PV8 Series
PV8 Series Illuminated Anti-Vandal Switch
- 25m panel cutout
- 2A, 48VDC; IP65 rated
- DPST-NO/NC or 4PST-2NO/2NC
- Flat actuator
- Solder or wire leads
- LED ring, dot or power symbol
- Stainless steel, nickel, or black

PV7 Series
PV7 Series Illuminated Anti-Vandal Switch
- 22m panel cutout
- 2A, 48VDC; IP65 rated
- DPST-NO/NC latching or mom.
- Flat actuator
- Solder or wire leads
- LED ring, dot or power symbol
- Stainless steel or black anodized

PV6 Series
PV6 Series Illuminated Anti-Vandal Switch
- 16mm panel cutout
- 2A, 48VDC; IP65 rated
- SPST Off-(On) or Pilot Indicator
- High or flat actuator
- Solder or wire leads
- LED ring, dot, or power symbol
- Stainless steel, nickel or black

PV5 Series
PV5 Series Long Life Anti-Vandal Switch
- 12mm panel cutout
- 2A, 36VDC; IP65 rated
- SPST Off-(On)
- Domed or raised actuator
- Solder, screw, or wire leads
- Non-illuminated
- Body & actuator finish options

PV4 Series
PV4 Series Illuminated Anti-Vandal Switch
- 19mm panel cutout
- 2A, 24VDC; IP67 rated
- SPDT, DPDT, or DPDT-NO/NC
- High, or flat actuator
- Solder, screw, or wire leads
- LED ring, dot, or power symbol
- Stainless steel or black anodized

PV3 Series
PV3 Series Illuminated Anti-Vandal Switch
- 16mm panel cutout
- 2A, 48VDC; IP67 or IP40 rated
- SPDT or DPDT; momentary
- Long or short body
- Guarded, high, or flat actuator
- Solder or wire leads
- LED ring or dot

PV2 Series
PV2 Series Long Life Anti-Vandal Switch
- 16mm panel cutout
- 2A, 48VDC; IP65 rated
- SPST Off-(On)
- Domed, high, or flat actuator
- Solder, screw, or wire leads
- Non-illuminated
- Gold, nickel, stainless, or black

PV10 Series
PV10 Series Illuminated Anti-Vandal Switch
- 40m panel cutout
- 2A, 48VDC; IP65 rated
- DPST-NO/NC or 4PST-2NO/2NC
- Flat actuator
- Solder or wire leads
- LED ring or dot
- Stainless steel finish

PV1 Series
PV1 Series Long Life Anti-Vandal Switch
- 19mm panel cutout
- 2A, 36VDC; IP65 rated
- SPST Off-(On)
- Domed, high, or flat actuator
- Solder, screw, or wire leads
- Non-illuminated
- Gold, nickel, stainless, or black

PV0 Series
PV0 Series Illuminated Anti-Vandal Switch
- 12mm panel cutout
- 2A, 36VDC; IP67 rated
- SPST Off-(On)
- High or flat actuator
- Solder or wire leads
- LED ring, dot, or power symbol
- Stainless steel or black anodized

PMV6 Series
PMV6 Series Anti-Vandal Switch
- 16mm panel cutout
- 2A, 24VDC; IP67 rated
- SPST or SPDT; momentary
- Actuator color options
- Wire leads termination
- Non-illuminated
- Black nylon 6/6 housing
View Series
