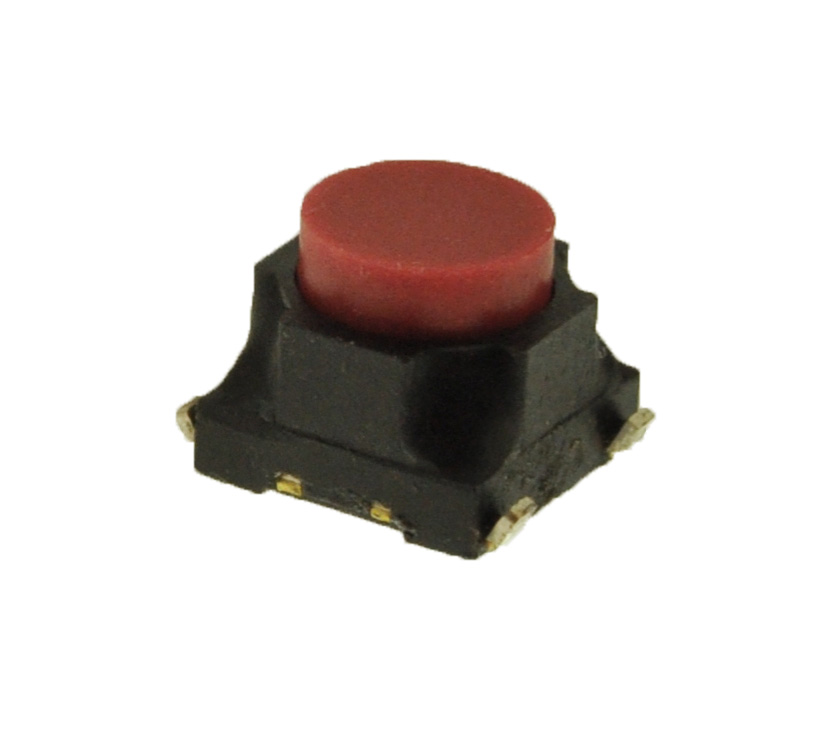

TL9100 Series Soft Touch, Long Travel, SMT Tactile Switch
Stock Check for TL9100AF350Q
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount
About TL9100 Series
- Surface mount (SMT) design
- 6mm x 6mm
- “Soft Touch” tactile switch
- Long travel of 1.3mm
- 200gf or 350gf operating force
- 5mm actuator height
- Up to 100,000 cycle life
- Silver contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaged
TL9100 Series Markets
Product Specifications
TL9100AF350Q
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount
- Series Name TL9100
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeRound, Button
- Actuator Height5.00mm
- Illumination Style-
- Illumination Color-
- Operating Force350gf
- Operating Temperature-40°C to 85°C
