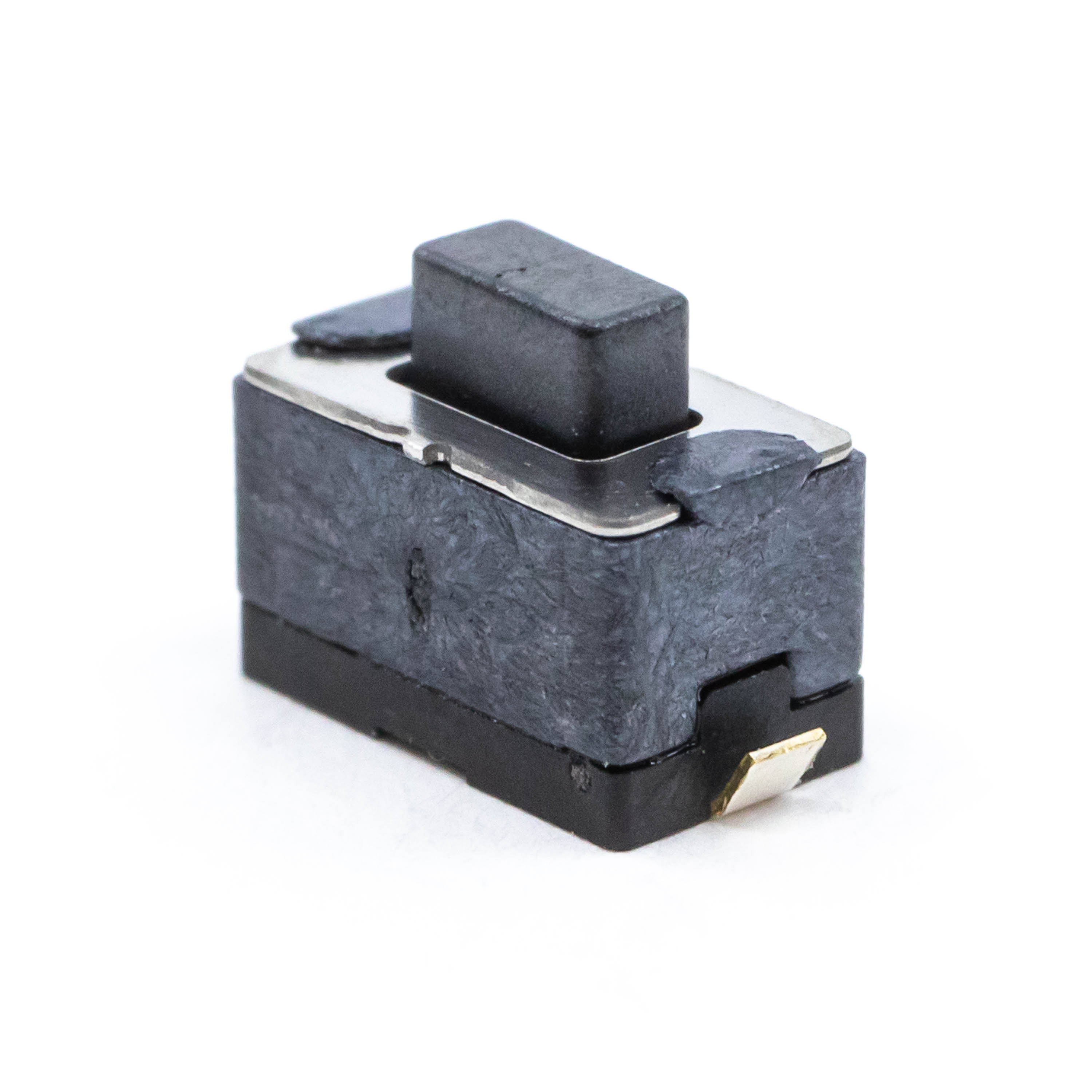

TL6400 Series Sealed, SMT Tactile Switch
Stock Check for TL6400BF160QJ
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Illuminated
About TL6400 Series
- IP67
- Surface mount (SMT) design
- 6mm x 3.5mm
- 160gf or 260gf operating force
- 4.3mm or 5.0mm actuator height
- 30,000-50,000 cycle life
- Silver contact material
- -40 to 85°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaged
TL6400 Series Markets
Product Specifications
TL6400BF160QJ
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Illuminated
- Series Name TL6400
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeJ-lead
- Contact MaterialSilver
- Actuator TypeRectangular, Button
- Actuator Height5.00mm
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Ingress ProtectionIP67
- Operating Force160gf
- Operating Temperature-40°C to 85°C
