Read MoreTL6215 Series Sealed, Illuminated, Through Hole Tactile Switch
TL6215 Series Sealed, Illuminated, Through Hole Tactile Switch
Stock Check for TL6215RF200BDT
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole, Right Angle, Illuminated
About TL6215 Series
- IP67
- Through hole; vertical or right angle mounting design
- 7.7mm x 6.37mm for the vertical versions
- 7.7mm x 6.65mm for the right angle versions.
- Illuminated, with many LED color options
- Many additional cap options
- 200gf or 450gf operating force
- 500,000 cycle life
- -20°C to 70°C operating temperature
- 50mA @ 12VDC
- Tray packaged
TL6215 Series Markets
Product Specifications

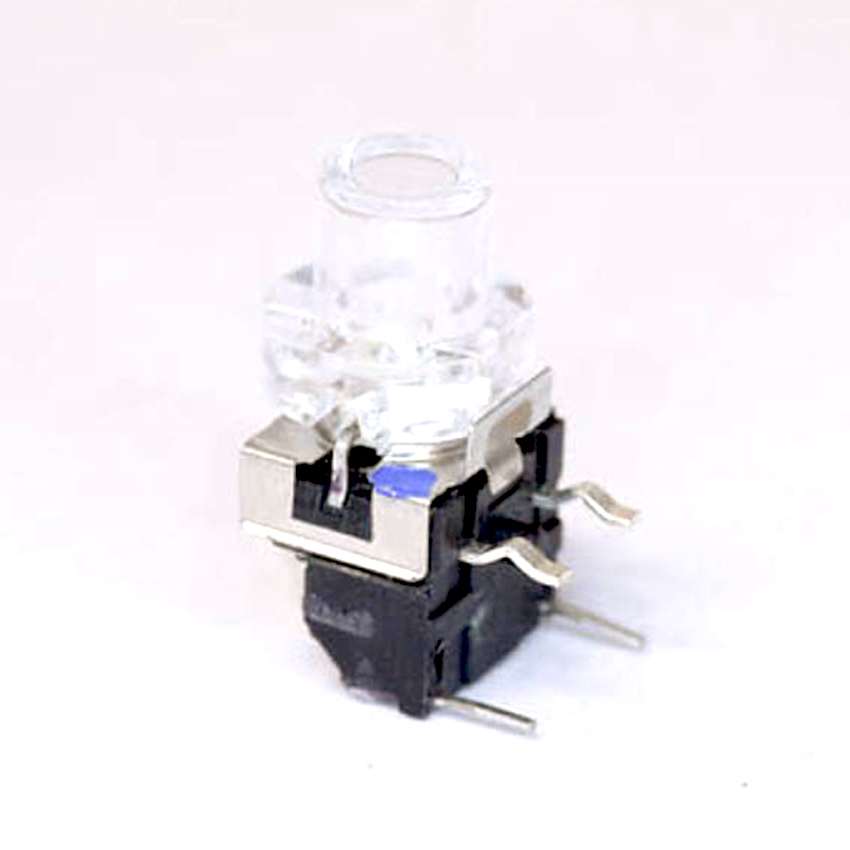

TL6215RF200BDT
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole, Right Angle, Illuminated
- Series Name TL6215
- PackagingTray
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeThrough Hole, Right Angle
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypeRound, Button
- Actuator Height9.60mm
- Illumination StyleIlluminated
- Illumination ColorLED, Blue
- Illumination Voltage3.3VDC
- Ingress ProtectionIP67
- Operating Force200gf
- Operating Temperature-20°C to 70°C
- Cap OptionClear Cap
