Read MoreTL6190 Series Sealed, Through Hole Right Angle Tactile Switch

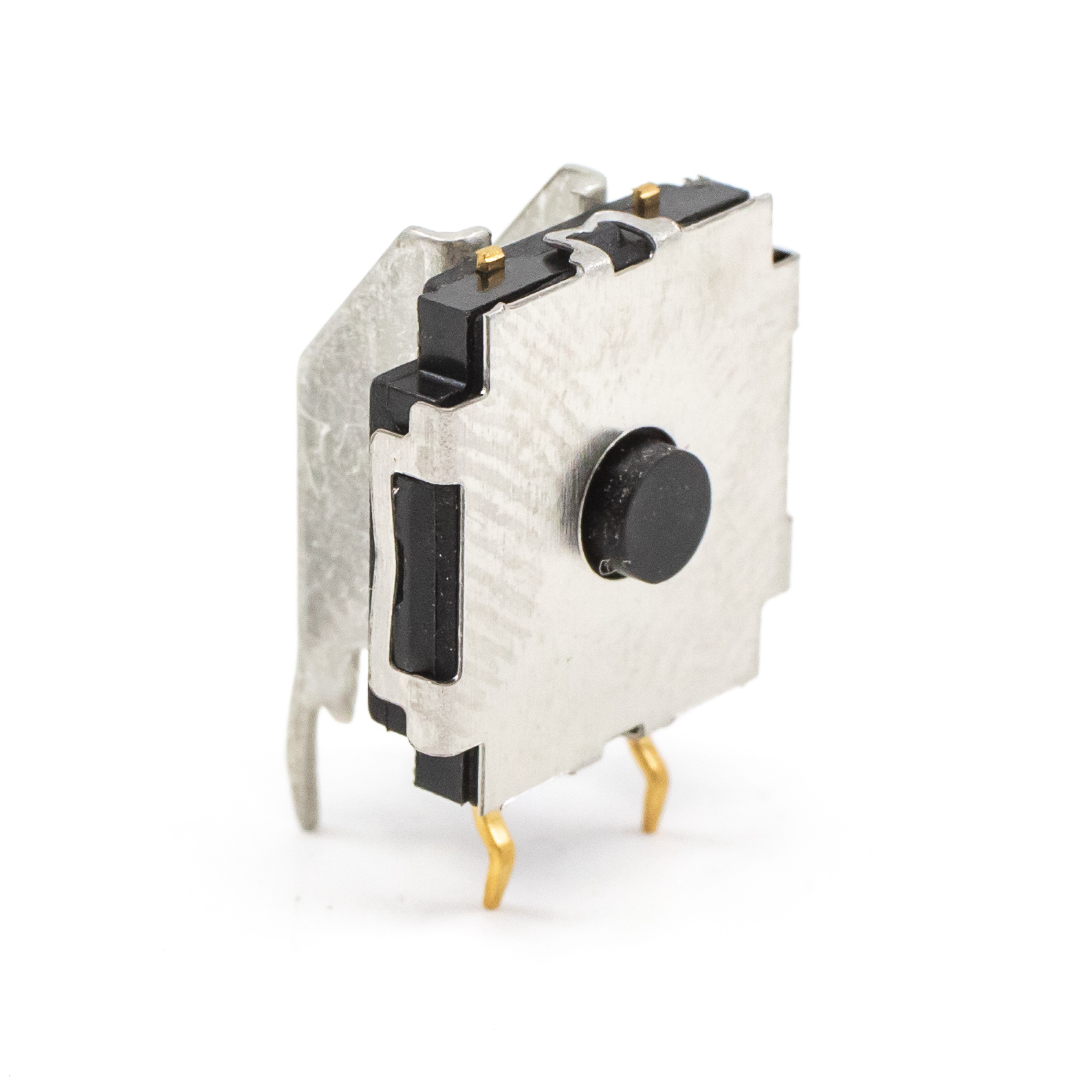

TL6190 Series Sealed, Through Hole Right Angle Tactile Switch
Stock Check for TL6190AF220R
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole, Right Angle, Illuminated
About TL6190 Series
- Process sealed
- Through hole right angle mounting design
- 12mm x 11.5mm
- 160gf, 220gf, or 320gf operating force
- 2.9mm actuator height
- 100,000 cycle life
- -40 to 105°C operating temperature (switch)
- -40 to 85°C operating temperature (button cap)
- 50mA @ 12VDC
- Tube packaging for switch
- Bulk packaging for button cap
TL6190 Series Markets
Product Specifications
TL6190AF220R
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole, Right Angle, Illuminated
- Series Name TL6190
- PackagingTube
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeThrough Hole, Right Angle
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height2.90mm
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Operating Force160gf
- Operating Temperature-40°C to 105°C
