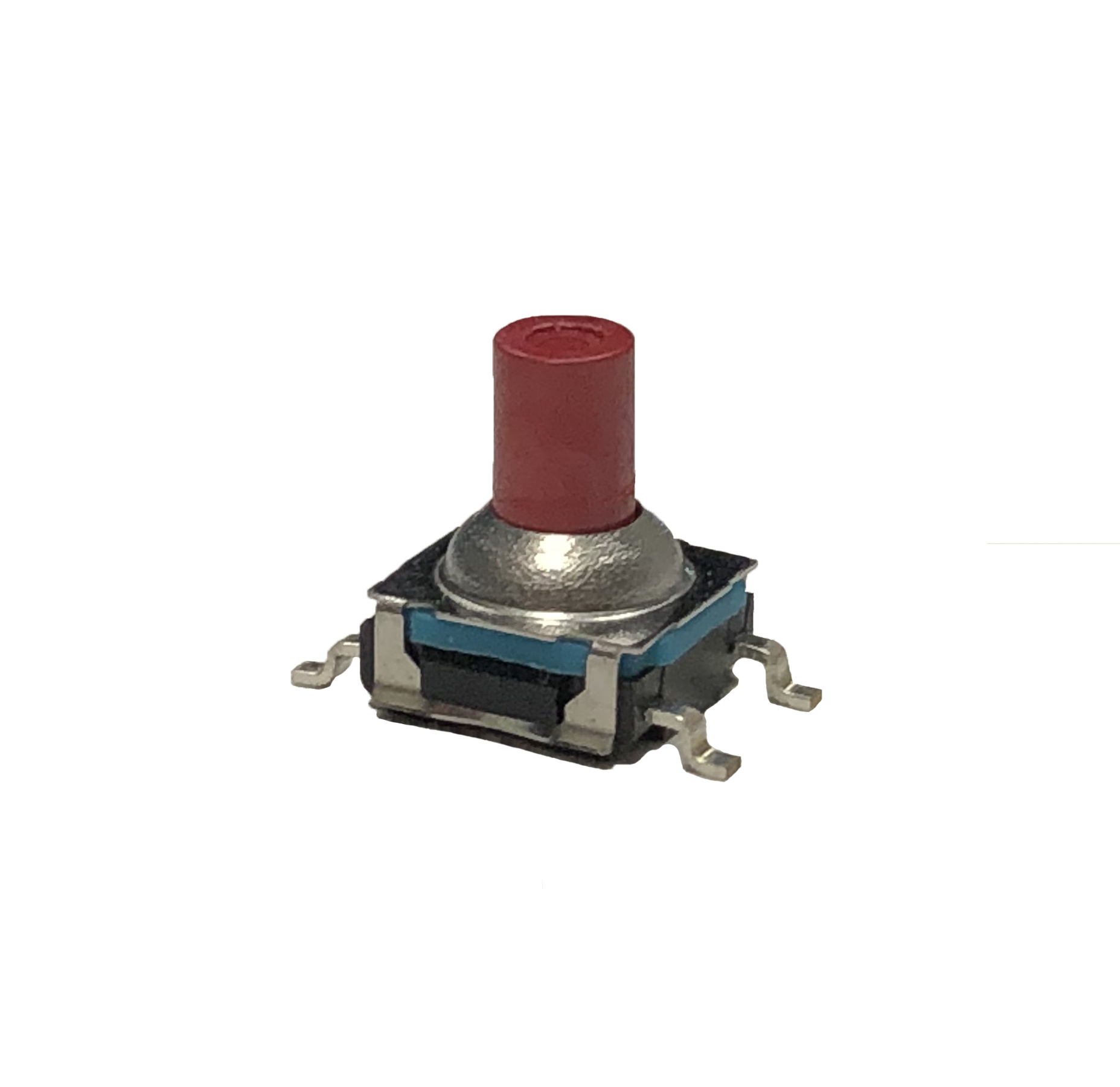

TL6170 Series Sealed, SMT Tactile Switch with Tall Actuator
Stock Check for TL6170BF180QG
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Illuminated
About TL6170 Series
- IP67
- Surface mount (SMT) design
- 6.3mm x 6.3mm
- 7.2mm or 7.7mm tall actuator height options
- 180gf or 250gf operating force
- 300,000 cycle life
- Gull wing termination
- Silver contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaged
TL6170 Series Markets
Product Specifications
TL6170BF180QG
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Illuminated
- Series Name TL6170
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height7.70mm
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Ingress ProtectionIP67
- Operating Force180gf
- Operating Temperature-40°C to 85°C
