TL6105 Series Sealed, Through Hole Tactile Switch with Earth Ground Terminal
Stock Check for TL6105DF300QP
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole
About TL6105 Series
- IP67
- Through hole mounting design
- 7.4mm x 7.4mm
- Earth ground terminal
- 130gf, 160gf, 300gf, or 500gf operating force
- Many actuator height options
- Up to 1,000,000 cycle life
- Silver or gold contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
TL6105 Series Markets
Product Specifications

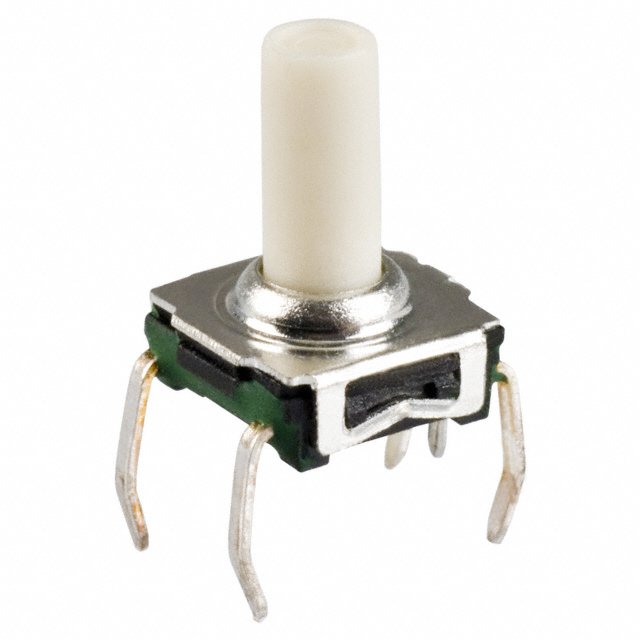

TL6105DF300QP
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Through Hole
- Series Name TL6105
- PackagingTube
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeThrough Hole
- Termination TypePC Pin
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height10.00mm
- Illumination Style-
- Illumination Color-
- Operating Force300gf
- Operating Temperature-40°C to 85°C
