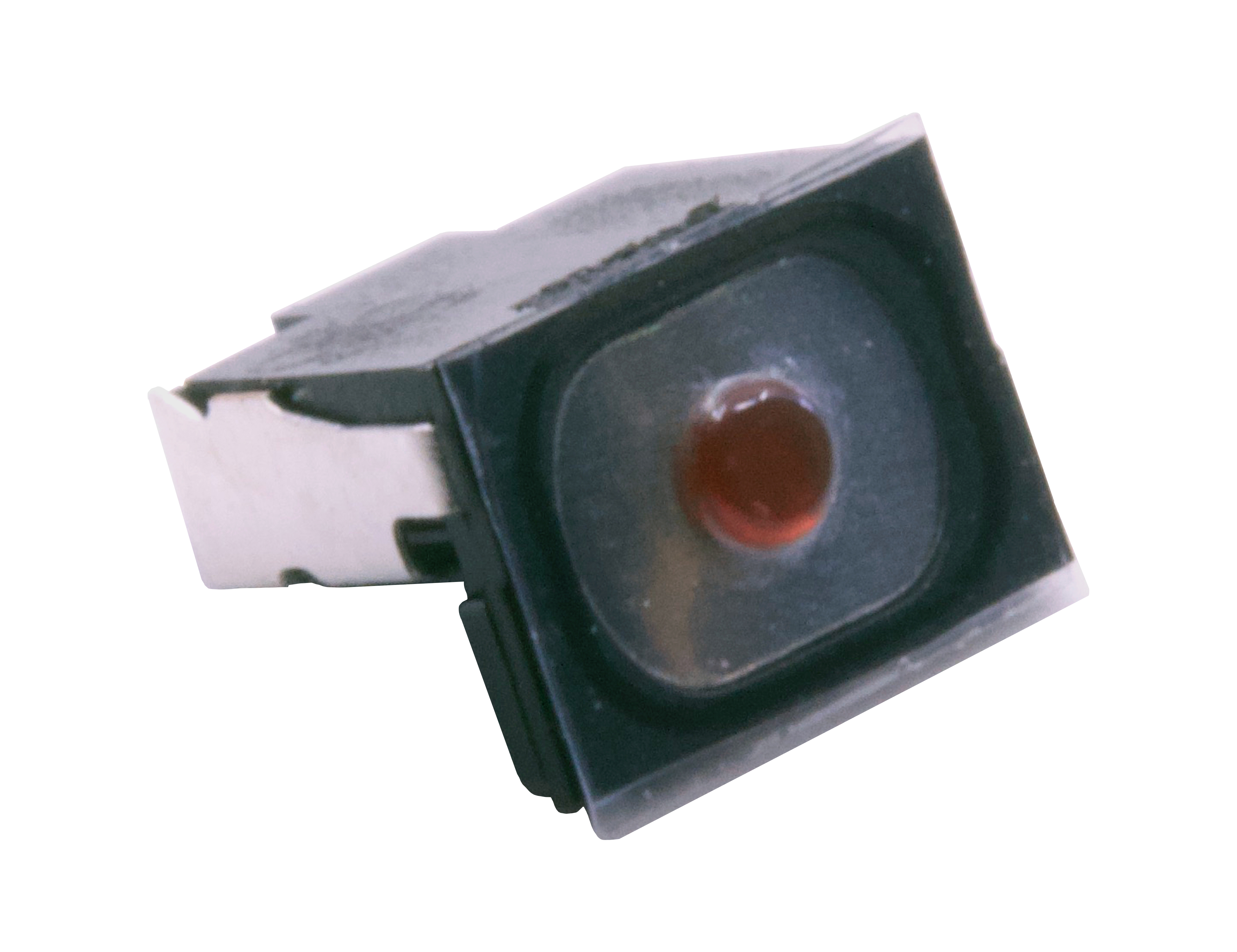

TL4110 Series Low Profile, SMT Edge Mount Right Angle Tactile Switch
Stock Check for TL4110AF160Q
Not the product you are looking for? Configure your product
TACT, 20mA, 15VDC, SPST-NO, Off-(On), Surface Mount, Right Angle, Edge Mount, Illuminated
About TL4110 Series
- Edge mount, right angle (SMT) design
- 2.0mm x 2.8mm
- 0.65mm actuator height
- 160gf operating force
- Gull wing termination
- 300,000 cycle life
- 0.13mm travel
- Silver contact material
- -40°C to 85°C operating temperature
- 20mA @ 15VDC
- Tape and reel packaged
TL4110 Series Markets
Product Specifications
TL4110AF160Q
TACT, 20mA, 15VDC, SPST-NO, Off-(On), Surface Mount, Right Angle, Edge Mount, Illuminated
- Series Name TL4110
- PackagingTape & Reel
- Current Rating20mA
- Voltage Rating15VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount, Right Angle, Edge Mount
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height0.65mm
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Operating Force160gf
- Operating Temperature-40°C to 85°C
