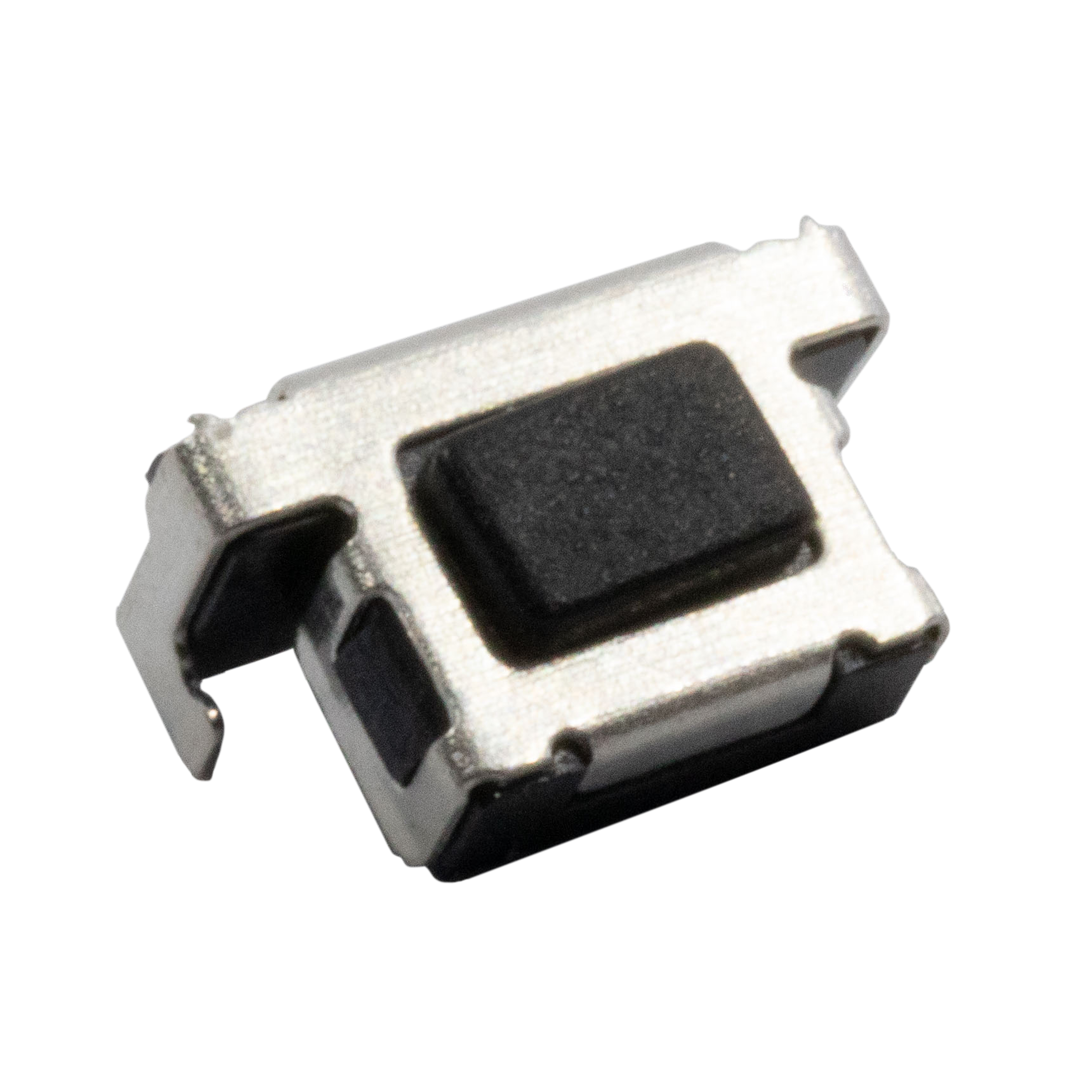

TL4105 Series Ultraminiature, SMT Edge Mount Right Angle Tactile Switch
Stock Check for TL4105AF250QG
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Right Angle, Edge Mount
About TL4105 Series
- Surface mount right angle, edge mount (SMT) design
- 6.20mm x 2.50mm outline
- Gull wing termination
- 160gf or 250gf operating force
- 200,000 cycle life
- Silver contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
- SPST-NO; Off-(On)
TL4105 Series Markets
Product Specifications
TL4105AF250QG
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Right Angle, Edge Mount
- Series Name TL4105
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount, Right Angle, Edge Mount
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeRectangular, Button
- Actuator Height1.70mm
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Operating Force250gf
- Operating Temperature-40°C to 85°C
