Read MoreTL3342 Series Low Profile, SMT Tactile Switch

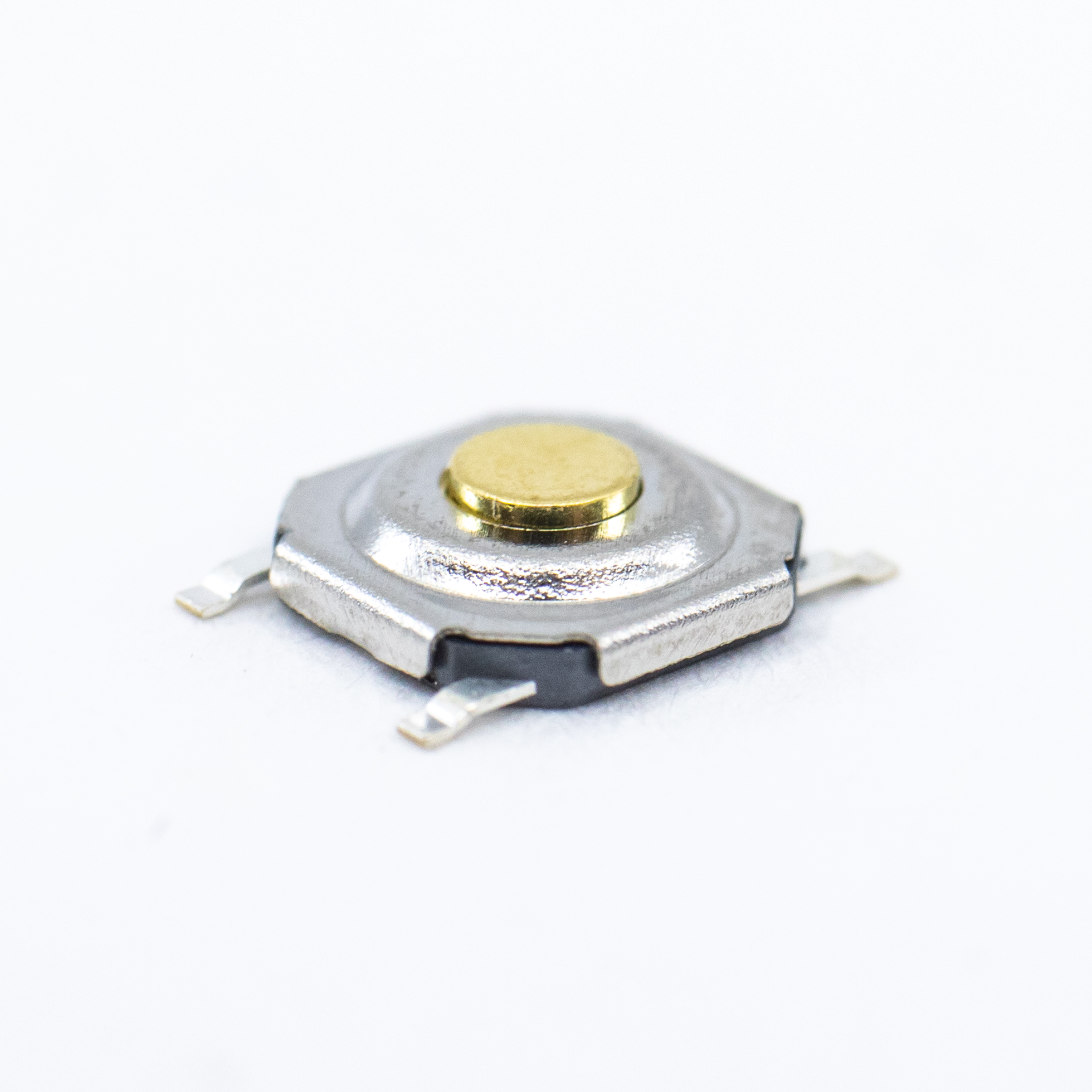

TL3342 Series Low Profile, SMT Tactile Switch
Stock Check for TL3342F450QG
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount
About TL3342 Series
- Surface mount (SMT) design
- 5.2mm x 5.2mm
- Ultra low profile with 1.50mm height
- 100gf, 160gf, 260gf, 320gf, or 450gf operating force
- Gull wing termination
- Up to 100,000 cycle life
- Silver contact material
- -20°C to 70°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaged
TL3342 Series Markets
Product Specifications
TL3342F450QG
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount
- Series Name TL3342
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height1.54mm
- Illumination Style-
- Illumination Color-
- Operating Force450gf
- Operating Temperature-20°C to 70°C
Support for TL3342F450QG
Not the product you are looking for? Configure your product
