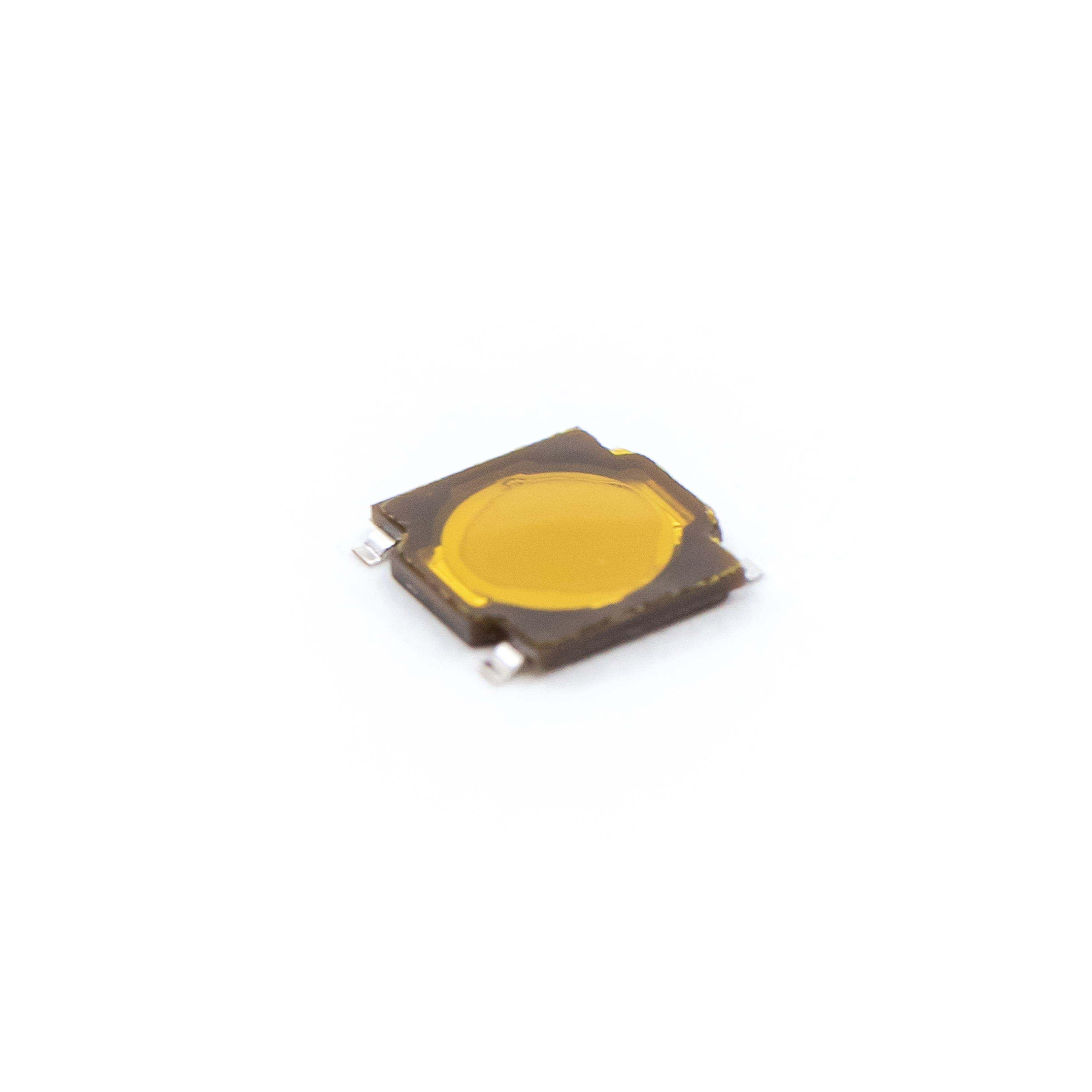

TL3315 Series Ultra Low Profile, SMT Tactile Switch
Stock Check for TL3315NF250Q
Not the product you are looking for? Configure your product
TACT, 50mA, 15VDC, SPST-NO, Off-(On), Surface Mount
About TL3315 Series
- Surface mount (SMT) design
- 4.5mm x 4.5mm
- Very low profile of 0.55mm
- 0.20mm travel
- 100gf, 160gf, or 250gf operating force
- Up to 1,000,000 cycle life
- -20°C to 70°C operating temperature
- Silver contact material
- 50mA @ 15VDC
- Tape and reel packaged
TL3315 Series Markets
Product Specifications
TL3315NF250Q
TACT, 50mA, 15VDC, SPST-NO, Off-(On), Surface Mount
- Series Name TL3315
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating15VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeSnap Dome
- Actuator Height0.55mm
- Illumination Style-
- Illumination Color-
- Operating Force250gf
- Operating Temperature-20°C to 70°C
Support for TL3315NF250Q
Not the product you are looking for? Configure your product
