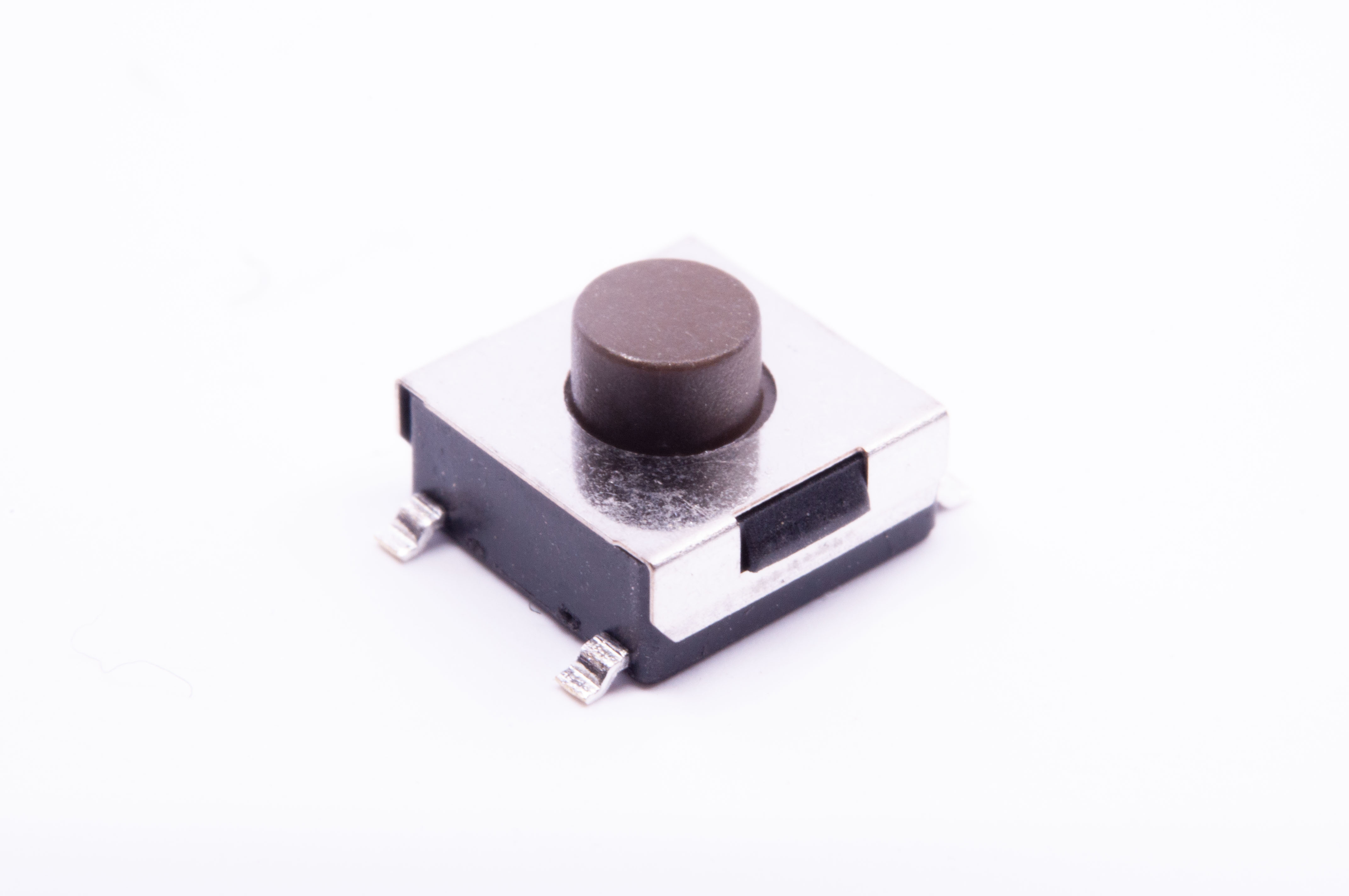

TL3303 Series SMT Tactile Switch
Stock Check for TL3303AF100QG
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Illuminated
About TL3303 Series
- Surface mount (SMT) design
- 6mm x 6mm
- Ground terminal option (TLE3303)
- Long life option (LL3303)
- 100gf, 160gf, or 260gf operating force
- Multiple actuator height options
- Silver contact material
- Gull wing termination
- 100,000 cycle life
- -20°C to 70°C operating temperature
- Â 50mA @ 12VDC
TL3303 Series Markets
Product Specifications
TL3303AF100QG
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Illuminated
- Series Name TL3303
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height4.30mm
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Operating Force100gf
- Operating Temperature-20°C to 70°C
Support for TL3303AF100QG
