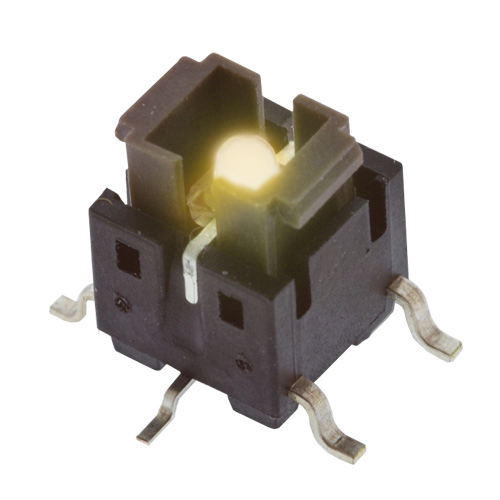

TL3240 Series Illuminated, SMT Tactile Switch
Stock Check for TL3240F160YT
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Illuminated
About TL3240 Series
- Surface mount (SMT) design
- 6.1mm x 6.1mm
- Illuminated, with many LED color options
- Additional cap options
- 7.8mm height
- 100gf, 160gf, or 260gf operating force
- 200,000 cycle life
- Silver contact material
- -25°C to 70°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaging
TL3240 Series Markets
Product Specifications
TL3240F160YT
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Illuminated
- Series Name TL3240
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypePlunger for Cap
- Actuator Height7.80mm
- Illumination StyleIlluminated
- Illumination ColorLED, Yellow
- Illumination Voltage2.0 VDC
- Operating Force160gf
- Operating Temperature-25°C to 70°C
