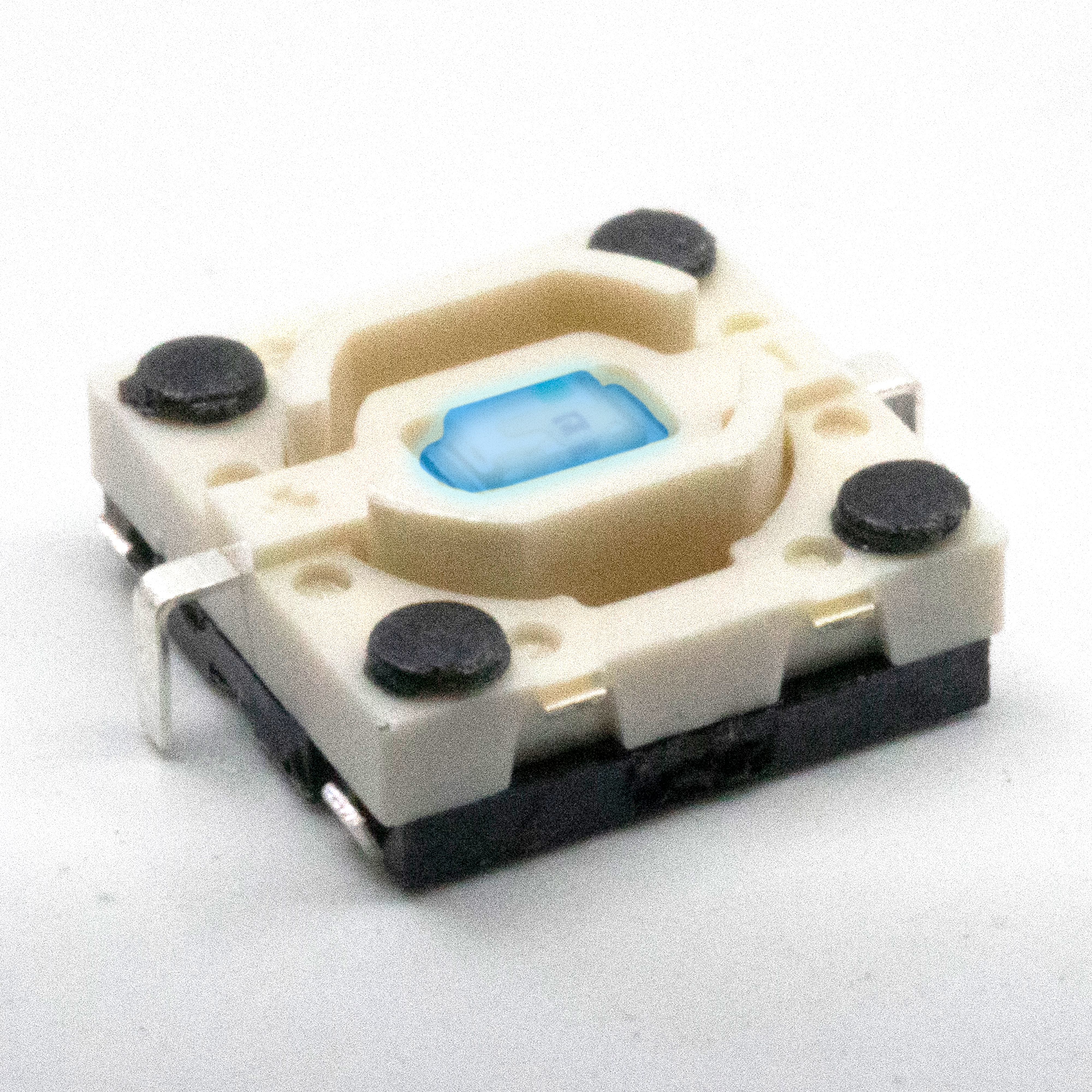

Read MoreTL3215 Series Ultraminiature, Long Life, Illuminated, SMT Tactile Switch
TL3215 Series Ultraminiature, Long Life, Illuminated, SMT Tactile Switch
Stock Check for TL3215AF160BQ
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Illuminated
About TL3215 Series
- Surface mount (SMT) design
- 4.9mm x 4.9mm
- Illuminated, with many LED color options
- 2.0mm actuator height, very low profile
- 1,000,000 cycle life
- 160gf or 250gf operating force
- Silver contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaging
TL3215 Series Markets
Product Specifications
TL3215AF160BQ
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Illuminated
- Series Name TL3215
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeSMD (SMT) Tab
- Contact MaterialSilver
- Actuator TypePlunger for Cap
- Actuator Height2.00mm
- Illumination StyleIlluminated
- Illumination ColorLED, Blue
- Illumination Voltage3VDC
- Operating Force160gf
- Operating Temperature-40°C to 85°C
