TL3145 Series Sealed, Long Life, SMT Tactile Switch
Stock Check for TL3145BF350QJ
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount
About TL3145 Series
- IP67
- Surface mount (SMT) design
- 6.45mm x 6.45mm
- Long life up to 3,000,000 cycles
- 180gf, 260gf, or 350gf operating force
- 3.5mm or 5.2mm actuator height
- J lead termination
- Silver contact material
- -40°C to 85°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaging
TL3145 Series Markets
Product Specifications

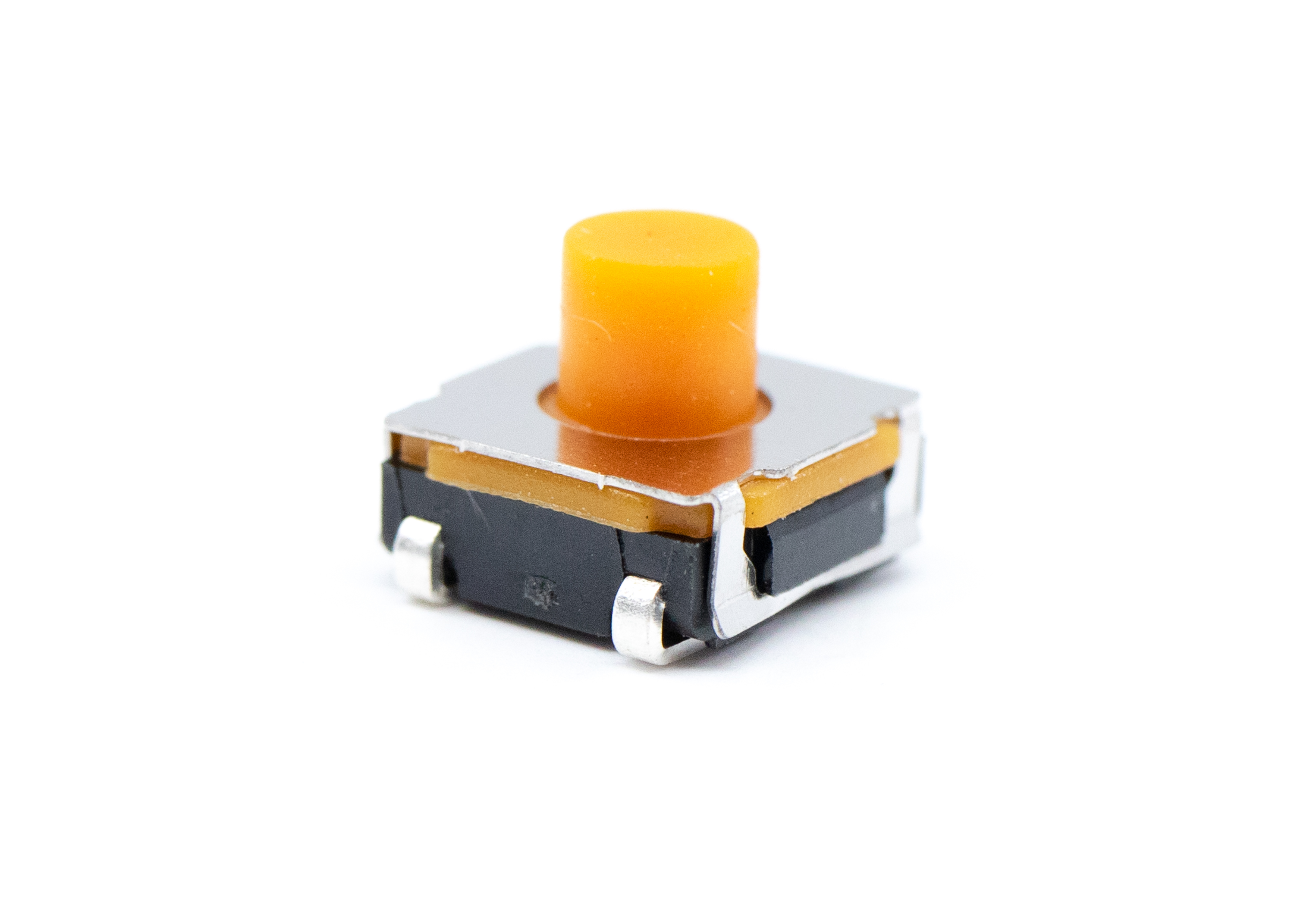

TL3145BF350QJ
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount
- Series Name TL3145
- PackagingBulk
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount
- Termination TypeJ-lead
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height5.20mm
- Illumination Style-
- Illumination Color-
- Operating Force350gf
- Operating Temperature-40°C to 85°C
